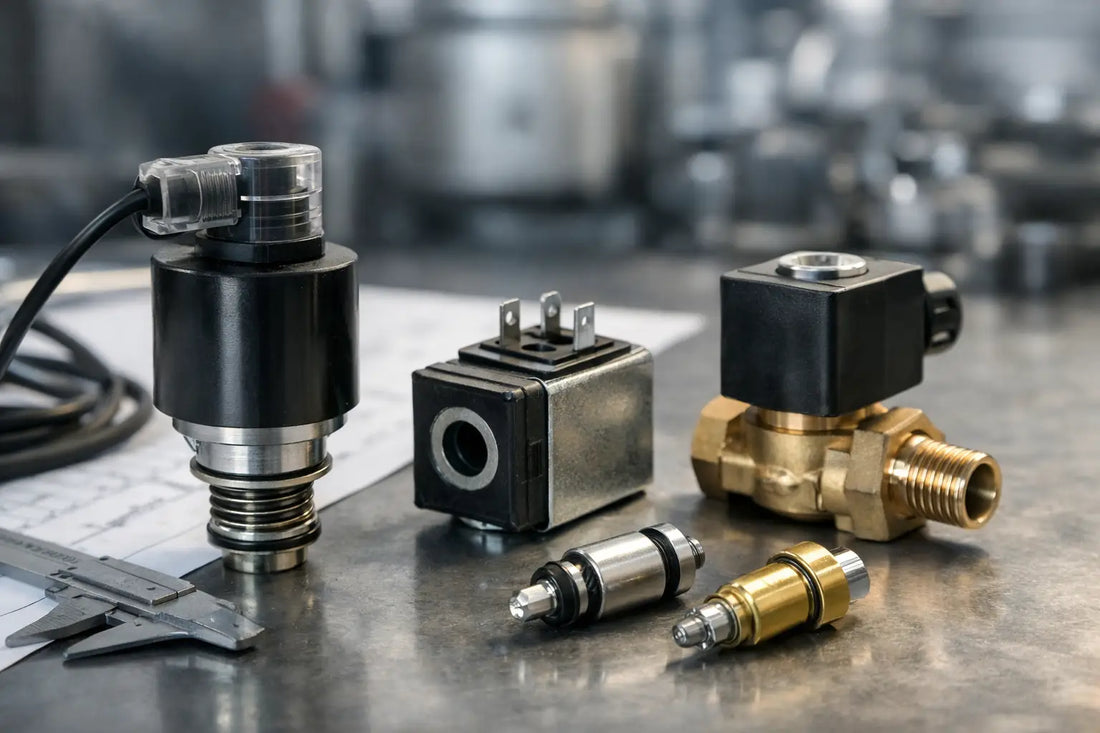

How to Choose Replacement Machine Solenoids
AdminShare
A failed solenoid can stop a machine even when the valve body, cylinder, PLC output, and air supply are all in working order. To choose replacement machine solenoids correctly, start with the exact electrical and mechanical requirements of the installed component, not just a photo or a similar-looking coil. A fast replacement only helps if it restores the intended motion safely and reliably.
For maintenance and procurement teams, the priority is usually clear: identify the part, confirm compatibility, verify condition and availability, and get it shipped before downtime becomes a larger production problem. The details below help prevent a wrong purchase, repeated troubleshooting, or damage to connected equipment.
Start With the Existing Part Number
The manufacturer part number is the strongest starting point. Look for it on the solenoid coil label, valve nameplate, connector, or the machine electrical documentation. Record every character, including suffixes, voltage codes, coil series identifiers, and revision markings. A single letter can distinguish a 24 VDC coil from a 120 VAC coil or separate a standard-duty option from an explosion-proof version.
If the original part number is readable, search and purchase against that number first. This is especially useful with older machinery, discontinued product lines, or automation systems built around specific valve platforms. Surplus inventory can provide a practical source of ready-to-ship replacement parts when OEM lead times are long.
When a part number is missing or damaged, collect information before removing the solenoid. Take clear photos of all labels, the valve assembly, connector orientation, wiring, and mounting position. Document the manufacturer, valve series, port size, coil dimensions, connector type, and machine location. These details give a supplier or technician enough information to identify an equivalent without guessing.
Match the Electrical Specifications First
A solenoid is an electromagnetic device, so electrical mismatch is one of the quickest ways to create another failure. Confirm the coil's rated voltage and whether it operates on AC or DC. A 24 VDC coil is not interchangeable with a 24 VAC coil, even though the numbers appear similar. Likewise, a 120 VAC replacement installed on a 24 VDC circuit will not actuate as intended.
Check the following specifications against the installed unit and machine circuit:
- Rated voltage and current type: AC or DC
- Frequency for AC coils: typically 50/60 Hz or 60 Hz
- Wattage or VA rating
- Connector style and pin configuration
- Duty cycle: continuous duty or intermittent duty
- Polarity requirements for DC coils with LEDs, suppression, or electronic circuitry
For DC circuits, verify whether the original coil includes a diode, varistor, LED indicator, or other surge-suppression device. Reversing polarity on a diode-protected coil can prevent operation. Replacing a suppressed coil with an unsuppressed version may also expose sensitive control components to inductive voltage spikes.
Verify the Actual Supply Voltage
Do not rely only on a wiring diagram, particularly on modified equipment. Measure voltage at the coil connector while the machine calls for actuation. A nominal 24 VDC circuit that is dropping significantly under load may indicate a wiring, power supply, terminal, or output-card issue rather than a failed solenoid.
If the replacement burns out quickly, chatters, or fails to pull in, recheck the actual circuit voltage and command signal before ordering another coil. The problem may be upstream.
Confirm Valve and Mechanical Compatibility
Many machine solenoids are removable coils fitted over a valve armature tube. Others are integrated assemblies that require replacement of the complete valve or operator. Determine which design is installed before purchasing.
For a coil-only replacement, confirm the inside diameter, length, retaining method, and valve series. Two coils can have identical voltage ratings but different bore sizes or mounting depths. If the coil does not seat fully over the armature tube, it may not generate enough force to shift the valve.
Also verify connector and cable requirements. DIN-style connectors are common in industrial pneumatic and hydraulic applications, but they are available in multiple forms and orientations. Flying-lead coils, conduit connections, M8/M12 connectors, and molded connectors each require different installation approaches. In a tight enclosure, connector clearance and cable exit direction can be as important as the coil itself.
If replacing the full valve, match port configuration and function. A 3/2 valve, 4/2 valve, and 5/2 valve are not interchangeable simply because they share a similar solenoid coil. Confirm normally open versus normally closed behavior, spring return versus double solenoid actuation, port thread type, flow capacity, operating pressure, and seal compatibility.
Understand the Machine Function Before Selecting an Equivalent
An equivalent replacement is sometimes appropriate, but it must match the job the original solenoid performs. On pneumatic equipment, a solenoid may control a clamp, gate, ejector, cylinder, vacuum circuit, or safety-related sequence. On hydraulic systems, it may pilot directional control, unload pressure, or shift a spool. The wrong valve function can create unintended movement, pressure loss, or a sequence fault.
Review the machine schematic or trace the connected tubing and wiring. Identify what happens when the solenoid is energized and de-energized. For double-solenoid valves, verify which coil corresponds to each commanded direction. Swapping the two may reverse machine motion or create confusing fault symptoms.
Safety circuits require added caution. Do not substitute a general-purpose solenoid into an application that requires a listed, monitored, redundant, or safety-rated component. Follow the machine builder's requirements and facility lockout/tagout procedures during diagnosis and installation.
Account for the Operating Environment
A replacement that works on the bench may not last on the machine floor. Consider ambient temperature, washdown exposure, dust, oil mist, vibration, and available enclosure protection. Standard coils can overheat when installed near furnaces, heated process equipment, or poorly ventilated electrical cabinets. Moisture ingress can quickly damage connectors and coil windings in food processing, outdoor, or washdown applications.
Check the required IP or NEMA protection level when the application is exposed to water, coolant, or dust. For hazardous locations, confirm that the exact solenoid and complete installation meet the required classification. Explosion-proof and intrinsically safe applications should never be treated as a place for close-enough substitutions.
Chemical compatibility also matters. In hydraulic and pneumatic systems, seals and valve materials must tolerate the media being controlled. A valve suited for clean compressed air may not be suitable for aggressive chemicals, high-temperature fluids, or contaminated hydraulic oil.
Inspect the Cause of Failure Before Installing the New Part
Solenoids do fail from age, heat, voltage problems, and winding breakdown. But a burned or damaged coil can also be a symptom. A sticking valve spool, contaminated pilot passage, excessive pressure, damaged armature tube, or constant overvoltage can cause a new replacement to fail just as quickly.
With power isolated, inspect the valve for debris, corrosion, damaged seals, or mechanical binding. Check connector terminals for looseness, heat discoloration, and water intrusion. Measure coil resistance and compare it with manufacturer guidance when available. An open circuit often indicates a failed winding, while an unusually low resistance reading can point to a shorted coil.
On AC solenoids, buzzing or chattering can result from low voltage, a worn armature, dirt in the magnetic path, or loose components. On DC solenoids, failure to actuate may be electrical, but it can also be caused by a blocked valve or insufficient pilot pressure. Treat the coil and valve as a working assembly during troubleshooting.
Buy for Uptime, Not Just Unit Price
For planned maintenance, an exact OEM replacement may be the best choice when lead time is acceptable. During an active shutdown, an in-stock surplus component with the correct part number and verified specifications can be the faster path back to production. The right choice depends on criticality, available spares, warranty requirements, and the cost of lost machine time.
Before placing an order, confirm the manufacturer, exact part number, quantity, condition, voltage, and shipping timeline. Ask whether the item is new surplus, used, refurbished, or unused in original packaging, and make sure the condition aligns with the application. For critical assets, consider buying an additional matched spare after the machine is running again.
MRO Exchange helps industrial buyers source in-stock surplus MRO equipment and hard-to-find parts when replacement speed matters. Keeping the correct solenoid specification, machine location, and approved alternates in your maintenance records will make the next urgent purchase faster and more accurate.
