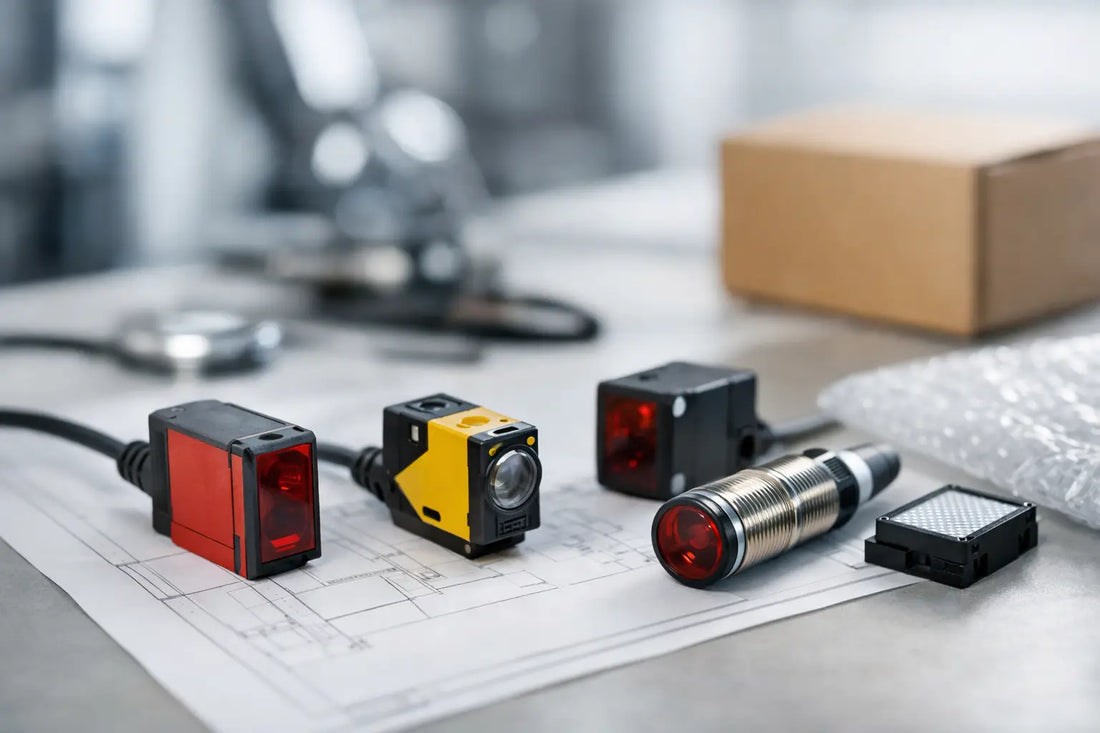

Discontinued Photoelectric Sensors Sourcing

A failed photoelectric sensor can stop a conveyor, miscount finished goods, or leave a safety-related sequence unable to reset. When the original model is obsolete, discontinued photoelectric sensors sourcing is not a general purchasing task. It is a specification-matching job with direct uptime consequences.

The fastest acceptable answer is not always the newest sensor in the same product family. A replacement must work with the existing target, wiring, controller input, mounting hardware, and environmental conditions. If it cannot, the apparent savings from a quick purchase can turn into added downtime, field modifications, and repeated troubleshooting.

Start With the Exact Device Identity

Begin with the full manufacturer part number from the sensor label, not a shortened description from a maintenance note. Photoelectric sensors often have small suffix differences that change the output type, sensing mode, connector, cable length, or optical configuration. One omitted character can lead to the wrong device.

Record the manufacturer, complete part number, serial or date code when available, and every readable marking on the housing. Photograph the label, connector end, mounting face, and target area before removing the failed unit. If the label is worn or missing, check the electrical drawings, bill of materials, spare-parts cabinet, machine manual, PLC documentation, and prior purchase records.

Also identify whether the failed part is truly the sensor. A damaged cordset, misaligned reflector, contaminated lens, loose mounting bracket, failed 24 VDC supply, or bad input channel can create the same symptoms. Replacing a sensor without verifying the fault wastes both time and scarce inventory.

Match the Specifications That Affect Operation

A discontinued sensor can sometimes be replaced by a current equivalent, but equivalence needs to be proven at the application level. Start with the sensing method: through-beam, retroreflective, diffuse, background suppression, laser, contrast, color, or fiber-optic. These are not interchangeable simply because the housing looks similar.

For a practical review, compare the original device and proposed replacement against the following requirements:

• Supply voltage and current draw, including whether the machine uses 10-30 VDC, 24 VDC, or an AC-powered sensor.
• Output configuration: PNP or NPN, normally open or normally closed behavior, and whether the output is light-on or dark-on.
• Output style and load requirements, such as discrete transistor output, relay output, analog output, or IO-Link.
• Sensing range, target material, target color, target size, reflectivity, speed, and required repeatability.
• Connection method, including cable length, wire colors, M8 or M12 pinout, quick-disconnect style, and connector orientation.
• Mechanical fit: body shape, thread size, mounting hole spacing, bracket clearance, lens location, and beam direction.
• Environmental rating, washdown exposure, ambient temperature, vibration, dust, oil mist, and required enclosure rating.

These checks matter because the controller only sees an electrical signal. A PNP replacement installed on an NPN input circuit may not switch the input at all. A retroreflective sensor with the wrong polarization may detect the reflector but miss glossy product. A sensor with a suitable sensing range may still be too slow for a high-speed indexing line.

Do Not Assume Wire Colors Match

Wire color conventions are common, not universal. Brown is often positive supply and blue is often DC common, but output wire assignments differ by manufacturer and model. Connector pinouts can also vary between older and current product lines.

Verify the wiring diagram for both devices before energizing the circuit. For an urgent replacement, label the existing conductors during removal and compare the connector pinout at the sensor, not just the cable colors. This simple step prevents damaged inputs and avoids a second outage caused by incorrect field wiring.

Decide Between an Exact Replacement and a Retrofit

An exact, same-part-number replacement is usually the lowest-risk path. It preserves the original mounting, wiring, sensing behavior, and validated machine sequence. For critical equipment, it also reduces the amount of requalification required before production resumes.

That does not mean an exact replacement is always available or always the best inventory decision. A current replacement may offer better diagnostics, improved contamination tolerance, a longer sensing range, or easier adjustment. The trade-off is engineering time. A retrofit can require a new bracket, mating cable, wiring changes, PLC logic review, and production testing.

Use a direct replacement when downtime is immediate, the original application is stable, and compatible surplus inventory is available. Consider a retrofit when the obsolete model fails repeatedly, the application has changed, or the plant needs a supportable standard for future maintenance. In some cases, buying one exact replacement for recovery and planning a controlled upgrade later is the best operational decision.

Evaluate Surplus Inventory With Discipline

For discontinued components, surplus inventory is often the most practical source of an exact replacement. The key is to buy based on identification and condition, not a broad product description.

Confirm that the offered part number matches character for character, including suffixes. Ask whether the unit is new surplus, used, refurbished, or removed from equipment. Each condition can have a place in MRO purchasing, but the buyer should know what is being installed on the line.

New surplus is often preferred for critical spares because it may retain original factory packaging and minimizes unknown service history. Used equipment can be appropriate for less critical applications or as a temporary recovery part, provided the condition is clearly represented and the unit can be tested before installation. Refurbished equipment may be suitable where a documented inspection process and return terms fit the plant's risk tolerance.

Packaging condition also deserves attention. A sensor stored loose in a bin may have scratched optics, bent pins, or damaged cable insulation even if it was never installed. Check for intact connector threads, clean lenses, uncut cables, readable labels, and undamaged housings. For devices with trim pots or selector switches, document the as-received setting before adjustment.

Build a Better Discontinued Photoelectric Sensor Spare Strategy

A single failed sensor should prompt a look at the installed base. If one obsolete model is on a production line, there may be more of the same device elsewhere in the facility. Search the maintenance system by manufacturer and part number, then identify every asset using it.

For components with long replacement lead times or no current production equivalent, establish a reasonable on-site spare level. The right quantity depends on failure history, number of installed units, process criticality, and how quickly a substitute could be qualified. A sensor on a noncritical reject conveyor does not carry the same stocking requirement as one controlling a primary packaging line.

Standardization can reduce future risk, but it should be deliberate. Replacing every legacy sensor during a breakdown is rarely efficient. Instead, identify recurring obsolete models, choose approved replacements, document brackets and wiring changes, and schedule conversions during planned maintenance. Keep the original part number and the approved replacement cross-reference in the maintenance record.

Test Before Returning to Production

Bench testing is worthwhile when time allows. Power the sensor with the correct supply, verify output switching with the actual target or a representative target, and confirm indicator behavior. For through-beam and retroreflective applications, test alignment tolerance rather than only confirming that the sensor switches once.

After installation, verify the PLC input state, machine sequence, and fault recovery behavior. Run enough product to confirm detection under normal speed, spacing, vibration, and lighting conditions. A sensor that works on an empty line may behave differently with reflective packaging, dust accumulation, or closely spaced product.

Purchase for Recovery, Then Protect the Next Shift

For urgent needs, provide the supplier with the full part number, photos, quantity required, condition preference, and any deadline for shipment. Clear information shortens the verification cycle and improves the chance of receiving a usable part the first time. MRO Exchange supports this type of procurement with in-stock surplus industrial inventory, direct assistance, and fast fulfillment options when replacement time matters.

Once the line is running, update the spare-parts record with the exact installed model, settings, wiring notes, and any approved alternatives. The next failure should begin with a known part number and a defined replacement path, not another search conducted while production is waiting.
