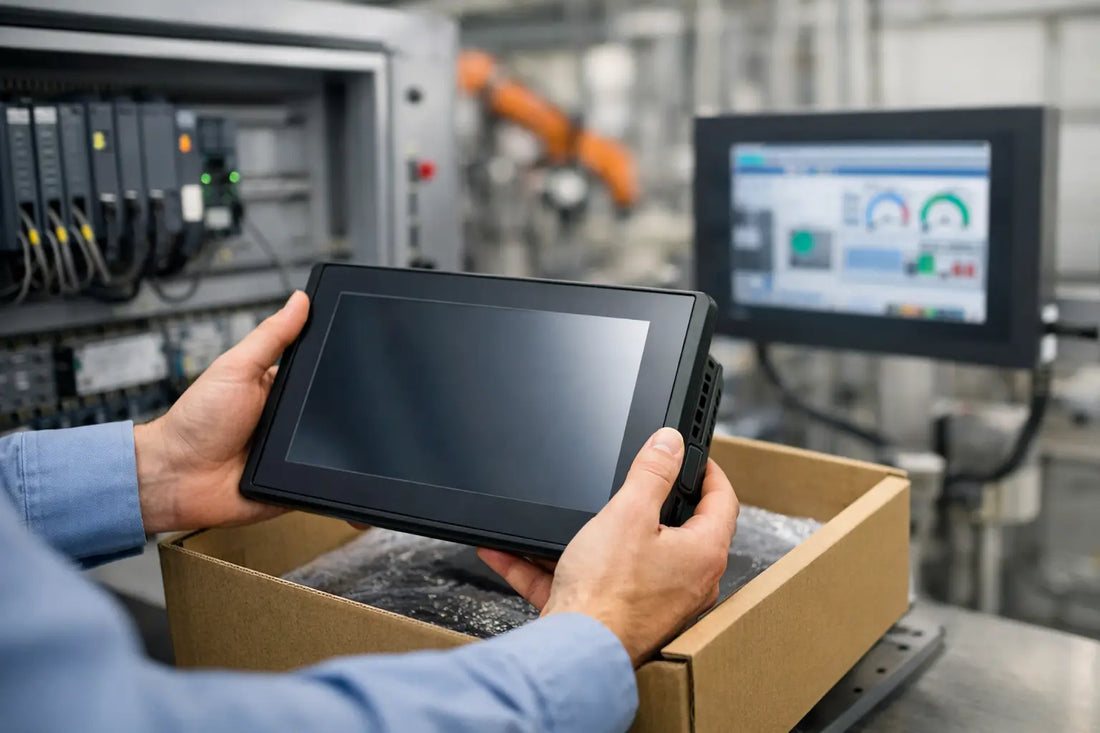

How to Buy Replacement HMIs Without Delay
AdminShare
A failed operator panel can stop an otherwise healthy machine. Knowing how to buy replacement HMIs quickly starts with treating the unit as a control-system component, not just a screen. A panel that looks similar may have the wrong communication port, firmware support, voltage requirement, or mounting dimensions. The result can be more downtime instead of less.
For maintenance and procurement teams, the best replacement is usually the one that restores operation with the least engineering work. That may be an exact part-number match, a compatible revision, or a planned migration to a newer platform. The right choice depends on the condition of the original HMI, the urgency of the outage, and whether the existing application can be recovered.
Start With the Exact HMI Identification
The manufacturer part number is the first item to verify. Find the label on the rear housing, side, or inside the enclosure and record every character, including suffixes, series identifiers, and revision codes. A base model number alone is often not enough. Variants can differ in display size, keypad layout, touchscreen type, memory, serial ports, Ethernet capability, and hazardous-location ratings.
Capture the HMI's manufacturer, full catalog number, serial number, hardware revision, and date code if available. Take clear photos of the label, front bezel, rear connectors, and mounting cutout. Those details help confirm whether a listed surplus unit is a direct replacement or only a related model.
Do not assume a newer-looking panel will accept the old project file. A replacement may require a different development environment, file conversion, firmware update, or communication driver. If production is down, an exact match is generally the lowest-risk path.
How to Buy Replacement HMIs With Confidence
Before placing an order, match the replacement against the installed unit in four areas: physical fit, electrical requirements, communications, and application compatibility. Each matters because an HMI sits between the operator and the control system.
Confirm physical and electrical fit
Check the display dimensions and panel cutout, not just the diagonal screen size. A 10-inch HMI from one product family may not fit the same opening as another 10-inch unit. Also verify bezel depth, mounting clips, enclosure clearance, and the front-panel environmental rating needed for the application.
Then confirm the input power requirement. Many industrial HMIs use 24 VDC, but voltage range, terminal arrangement, grounding instructions, and current draw can vary. If the original panel uses AC power or includes an external power supply, confirm the replacement supports the same arrangement.
Match every communication connection
Look at the actual cables connected to the failed HMI. Common interfaces include Ethernet, serial RS-232, RS-422, RS-485, USB, and fieldbus connections. The presence of an Ethernet port does not prove compatibility. Protocol support matters just as much as the connector.
For example, a panel communicating with a PLC over a legacy serial network may not operate if the replacement only supports Ethernet-based drivers. Similarly, an HMI connected to a managed plant network may require specific IP settings, switch configuration, or security permissions before it can communicate.
Verify the software and project file
The HMI hardware is only half the replacement. The project application determines screens, alarms, recipes, user access, PLC tags, and machine controls. Confirm that the original project file is available and identify the software version used to create it.
If the file is unavailable, a direct replacement can still be useful if the existing program can be uploaded from the old unit. That depends on the manufacturer, model, security settings, and condition of the original HMI. A completely failed panel may not allow recovery. In that situation, plan for application reconstruction or evaluate whether another unit on the machine contains a backup.
Ask whether the replacement has the required firmware installed or whether it can be updated to the needed revision. Firmware mismatches are a common source of startup delays, especially with older automation platforms.
Decide Between Exact Match, Compatible Unit, and Upgrade
An exact part-number replacement is usually the fastest route when the application is known to be good and downtime is the immediate concern. It minimizes changes to panel fabrication, wiring, software, and operator training. For discontinued equipment, surplus inventory can be especially valuable because it may provide the same model without an OEM production lead time.
A compatible unit can work when the exact model is unavailable, but it should be evaluated by qualified maintenance or controls personnel before purchase. Compatibility may involve a similar product family, the same programming software, and matching communication support. Even then, minor changes in screen resolution, keypad functions, memory, or firmware can affect deployment.
An upgrade makes sense when the original HMI has repeated failures, is difficult to support, or no longer meets production needs. It can improve availability over the long term, but it is not usually a same-day replacement. Expect engineering time for new hardware, panel modifications, application conversion, testing, and operator acceptance. For a critical machine, many plants buy an exact replacement now and schedule the modernization later.
Evaluate Surplus HMI Condition Before You Buy
Surplus equipment can reduce cost and shorten replacement time, particularly for obsolete or hard-to-source models. Still, buyers should understand the listed condition and what is included. A new surplus HMI may be unused inventory in original packaging, while used surplus equipment may show prior installation or handling. Either can be appropriate, depending on risk tolerance and the urgency of the repair.
Review the listing for the exact part number, condition description, photographs, quantity available, and included accessories. Ask whether the unit includes terminal blocks, mounting hardware, memory cards, cables, or protective covers if those items are needed for installation. These small components can become the next source of delay.
For critical applications, consider buying more than one unit when inventory allows. One replacement restores the machine; a second can become a shelf spare. This is particularly practical for a discontinued HMI installed across multiple machines or lines.
Use a Purchase Checklist That Prevents Repeat Downtime
Before approving the order, confirm the following details with the maintenance, controls, and purchasing teams:
- Full manufacturer part number, including series, suffix, and hardware revision
- Display size, panel cutout, operator input method, and environmental rating
- Input voltage, connector type, and required mounting or terminal hardware
- PLC, drive, or network communication protocol and physical ports
- Availability of the HMI application file, required software version, and firmware revision
- Condition, quantity, shipping timing, and return terms appropriate for the purchase
Plan the Installation Before the Replacement Arrives
A ready-to-ship HMI only helps if the installation is prepared. Back up the PLC program and any accessible HMI files before removing the failed or failing panel. Document network addresses, serial settings, cable locations, user credentials, alarm history, and any machine-specific configuration values.
If the original unit is still operating intermittently, use that window to capture the project file and settings. Do not wait for a complete failure if the HMI is known to be obsolete or showing display, touchscreen, backlight, or communication problems.
When the replacement arrives, inspect it before mounting. Compare labels, ports, and physical dimensions with the order and the installed unit. Load the application, verify communications with the controller, test critical screens and alarms, and confirm that safety functions remain under the control of the proper safety devices and logic. An HMI may display safety information, but it should not be treated as a substitute for the machine's safety control system.
For urgent replacements and hard-to-find models, MRO Exchange can help buyers identify in-stock surplus inventory by exact part number. The practical goal is simple: get the correct panel in hand, install it with fewer unknowns, and keep the machine available for production.
