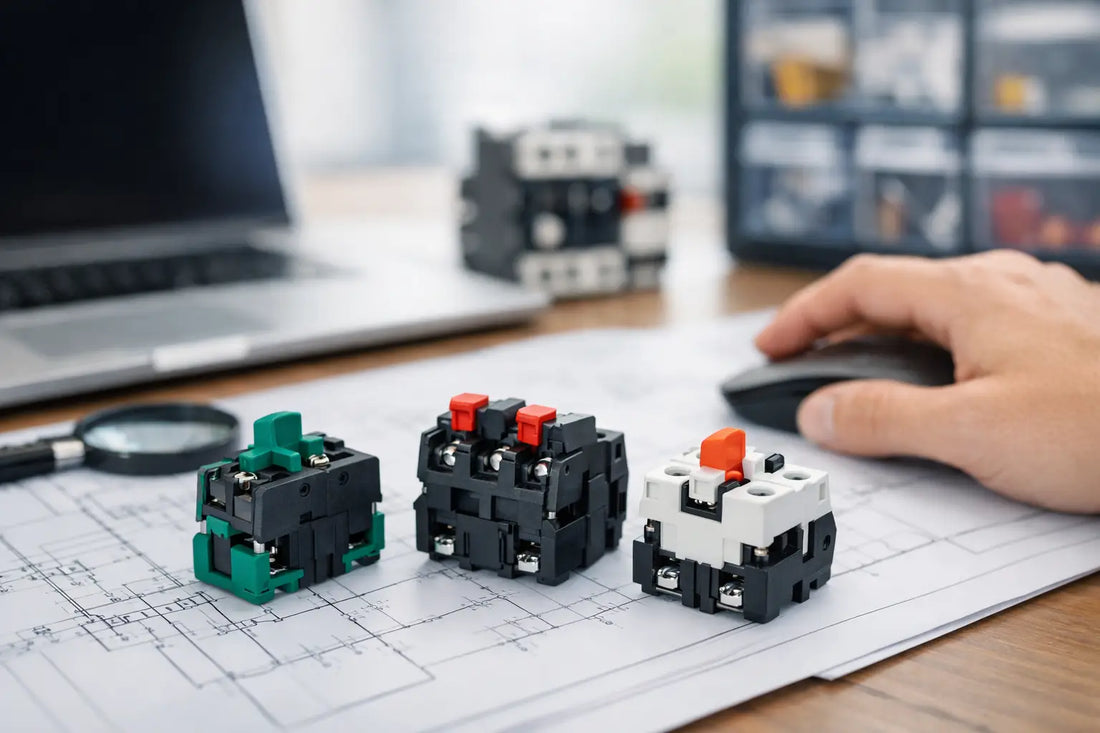

How to Find Replacement Contact Blocks Fast
AdminShare
A failed contact block can stop a machine over a component that takes up less space than a thumb. Knowing how to find replacement contact blocks quickly starts with identifying the exact contact block, not just ordering a similar-looking NO or NC unit. The right replacement must fit the existing operator, match the circuit function, and meet the electrical and environmental requirements of the application.
For maintenance teams, the goal is simple: restore operation without creating a new problem in the control circuit. A block that physically snaps into place but has the wrong contact arrangement, terminal style, or operator-series compatibility can extend downtime instead of ending it.
Start With the Existing Part Number
The manufacturer part number is the fastest and most reliable path to a replacement. Look directly on the side, back, or terminal area of the contact block. On many industrial pushbutton and selector switch assemblies, the operator part number and contact block part number are separate. Record the number from the block itself whenever possible.
Do not rely only on the number printed on the pushbutton head, pilot light, selector operator, or enclosure. Those components may be compatible with several different contact blocks, each with a different function. A 22 mm pushbutton operator, for example, may accept normally open, normally closed, early-make, late-break, double-contact, or low-level signal blocks depending on its product family.
If the label is worn, take clear photos from several angles before removing the part. Photograph the terminal markings, mounting clips, color coding, and any molded manufacturer logo. These details help distinguish similar components from different series.
Confirm the Contact Function Before Ordering
A contact block is defined first by what it does in the circuit. The two most common configurations are normally open, marked NO, and normally closed, marked NC. The terms describe the contact state when the operator is in its normal, unactuated position.
An NO contact closes when a pushbutton is pressed or selector is moved into the actuated position. It is commonly used for start commands, reset functions, permissives, and control inputs. An NC contact opens when actuated. It is frequently used for stop circuits, interlocks, fault circuits, and safety-related control logic.
Do not substitute NO for NC, or NC for NO, based on availability. The machine may fail to start, fail to stop, generate a fault condition, or defeat the intended circuit logic. For a multi-contact block, verify the full arrangement, such as 1NO, 1NC, 2NO, 2NC, or 1NO+1NC.
Terminal markings provide another useful check. Numbers and symbols vary by manufacturer, but terminals may be marked to identify an NO or NC contact pair. Compare the markings on the installed block with the candidate replacement. If you have access to the electrical drawing, trace the device tag and verify the contact state shown in the schematic.
Pay Attention to Safety Circuits
Standard contact blocks should not automatically be used in an emergency stop or machine safety circuit. E-stop assemblies often require a specific positive-opening NC contact block, approved operator, and compatible mounting arrangement. Safety-rated applications may also require components with defined mechanical linkage, force-guided behavior, or approval markings.
Match the original safety component exactly unless the machine documentation, safety design, and qualified personnel support an approved replacement. A convenient substitute is not a safe substitute.
Verify Operator and Series Compatibility
Contact blocks are rarely universal. Even when two blocks share a 22 mm or 30 mm panel-mount format, their rear mounting systems can differ substantially. Some twist-lock onto the operator, some snap onto a contact carrier, and others use screws, retaining rings, or proprietary adapter bases.
Identify the operator manufacturer and product series. Common industrial control brands may have several generations of pushbuttons and selector switches with similar appearance but incompatible contact blocks. The correct fit depends on the operator body, mounting collar, contact carrier, and sometimes the position of the block in a stacked assembly.
Check the mounting interface closely. Compare the shape of the actuator coupling, locking tabs, release clips, depth, and orientation. A replacement should seat fully and lock positively without forcing the assembly. If a contact block is designed to mount on the left, right, front, or rear of a carrier, confirm its intended location before purchase.
Stacking limits also matter. A selector switch may accept several blocks, while an illuminated pushbutton may have less room because the lamp module occupies part of the rear assembly. Adding a deeper block can interfere with wireway space, enclosure doors, or adjacent components.
Match Electrical Ratings and Terminal Style
Once the form and contact function are confirmed, compare the electrical specifications. Contact blocks used in industrial control panels may be rated for AC or DC pilot duty, resistive loads, inductive loads, low-level signals, or specific utilization categories. The replacement must suit the actual circuit, not only the supply voltage written on the panel.
Review the original block's voltage and current ratings, utilization category, and approval marks where applicable. Control circuits that switch PLC inputs, relay coils, contactor coils, or low-current electronic signals may have different requirements than circuits switching heavier loads. For low-voltage or low-current applications, contact material can affect reliability over time.
Terminal type is equally practical. A screw-clamp replacement may not work cleanly where the original uses spring-clamp terminals, quick-connect tabs, solder terminals, or a plug-in connector. Changing terminal style can require wire changes, ferrules, crimp terminals, or additional panel clearance. During an urgent repair, that extra work can turn a simple replacement into a wiring task.
How to Find Replacement Contact Blocks From Limited Information
When the part number is unavailable, build an identification record from the installed component. Capture these details before searching inventory or requesting assistance:
- Manufacturer name, logos, and all readable molded or printed markings
- Contact configuration, including NO, NC, and the total number of contact circuits
- Operator type and series, such as pushbutton, selector switch, key switch, or E-stop
- Mounting method, terminal style, dimensions, and photos of the front and rear
- Electrical ratings, approvals, and the control-circuit application
If only the panel device tag is known, use the machine's electrical prints, bill of materials, spare-parts list, or previous maintenance records. Device tags can lead to an OEM part reference even when the contact block label is unreadable. For older equipment, check whether the original manufacturer issued a supersession or whether the operator series was discontinued.
New, Surplus, and Alternate Parts
A new OEM block is often the cleanest option, but lead time can be the deciding factor during an outage. Surplus and new-old-stock inventory can be a practical source when a current production part is unavailable, backordered, or discontinued. The value is not merely lower cost. It is immediate availability of an exact legacy component.
Condition matters. Ask whether the item is new surplus, unused old stock, refurbished, or pulled from service. For a contact block, inspect the housing, terminals, mounting clips, and actuator interface before installation. Reject parts with cracked plastic, corroded terminals, damaged locking tabs, or uncertain contact action.
An alternate part can be acceptable, but only after verifying form, fit, and function. A manufacturer-approved successor may require an adapter, a new operator body, or a different contact carrier. An alternate from another manufacturer may require a complete operator conversion rather than a block-only replacement. That can be reasonable during a planned upgrade, but it is rarely the best first move during an unplanned stoppage.
Check the Replacement Before Restoring Power
Before energizing the machine, test the installed block mechanically and electrically. Confirm that it locks into the operator correctly, that the operator returns normally, and that the terminals are secure. Use an appropriate meter to verify continuity in the normal and actuated positions.
Then compare the actual contact action to the drawing. This step is especially valuable when replacing a block in a stop chain, interlock circuit, selector switch, jog station, or sequence control. A quick continuity check can catch a reversed contact arrangement before it becomes a startup problem.
Label the replacement part number in the maintenance record and consider keeping one or two critical blocks in plant spares. High-use operators, older control platforms, and discontinued series deserve special attention. The small carrying cost of a verified spare is often far lower than the cost of searching during a shutdown.
When an exact contact block is needed quickly, a part-number-first search and complete application details reduce risk. MRO Exchange can help industrial buyers locate in-stock surplus components when standard channels cannot support the required timeline. The best replacement is the one that matches the circuit, fits the operator, and is ready to install when uptime is on the line.
