How to Match Pneumatic Valves for Replacement
AdminShare

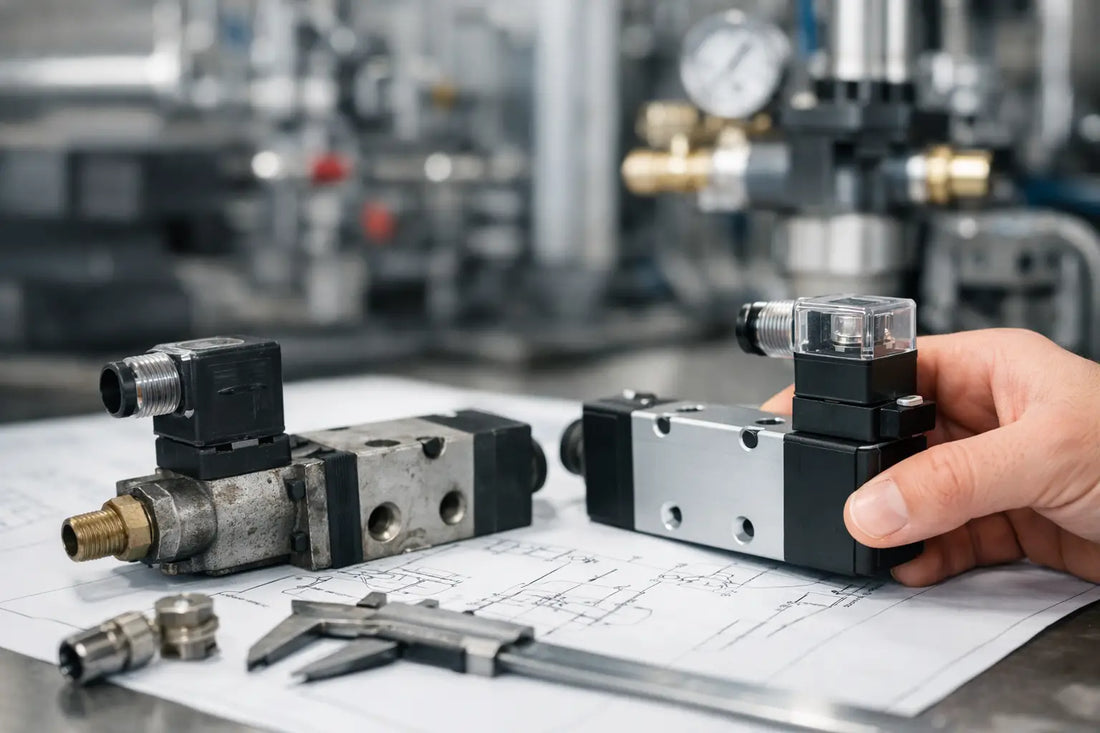

A failed solenoid valve can stop a cylinder, hold up a packaging line, or leave a machine in an unsafe state. Knowing how to match pneumatic valves is not just a matter of finding a similar-looking part. The replacement must perform the same function, connect to the existing air circuit, operate on the available electrical supply, and fit the machine without creating new downtime.
For a direct replacement, start with the manufacturer and full part number from the valve body, coil, label, or machine documentation. When that information is incomplete, use the valve's functional and physical specifications to identify an equivalent. A close match on one specification is not enough if the port layout, normal position, voltage, or mounting style differs.
Start With the Valve's Function
The first question is what the valve does in the circuit. Pneumatic directional control valves are defined by their number of ports and positions. A 3/2 valve has three ports and two switching positions. A 5/2 valve has five ports and two positions, while a 5/3 valve has five ports and three positions. These configurations are not interchangeable without reviewing the circuit and actuator behavior.
For example, a 3/2 normally closed valve is commonly used with a single-acting cylinder. In its normal state, supply air is blocked and the working port is exhausted. Replacing it with a normally open version reverses that behavior. A machine may energize unexpectedly, fail to retract, or lose its intended safe state.
On double-acting cylinders, a 5/2 valve is common. Determine whether the original uses a single solenoid with spring return or two solenoids. A single-solenoid valve returns to its normal position when power is removed. A double-solenoid valve can remain in its last shifted state until the opposite coil receives power. That difference matters during power loss, emergency stops, and restart sequences.
If the valve is a 5/3 model, identify the center condition: closed center, pressure center, or exhaust center. The center condition determines what happens when neither solenoid is energized. This is a functional requirement, not a secondary preference.
Match Ports, Threads, and Flow Path
After confirming function, inspect every pneumatic connection. Count the ports and identify their labels. Common markings include P or 1 for supply, A and B or 2 and 4 for work ports, and R, S, 3, and 5 for exhaust. Manufacturers do not always place ports in the same physical location, so compare the port map rather than assuming a similar body will plumb the same way.
Port size must also match the existing fittings or be intentionally adapted. In US equipment, NPT threads are common, but many imported machines use BSPP or BSPT threads. These thread types can appear similar while sealing differently. Forcing mismatched fittings can damage the valve body or create leaks that are difficult to trace.
A replacement should have adequate flow capacity for the application. Manufacturers may state this as Cv, SCFM, liters per minute, or a nominal flow rate at a defined pressure drop. A valve with too little capacity can slow cylinder movement, reduce gripping force, or cause inconsistent cycle times. Selecting a larger valve is not automatically better, either. It may require different fittings, increase air consumption, or fail to fit an existing manifold.
When comparing flow ratings, use the original valve's published data whenever available. If it is not available, consider cylinder bore, stroke, cycle speed, tubing size, and the symptoms of the failed installation. A fast-cycling actuator generally needs more flow margin than a low-speed clamp.
Confirm Pressure Range and Air Compatibility
Every candidate valve must operate within the system's pressure range. Check the minimum pilot pressure, maximum operating pressure, and proof or burst rating if listed. Some pilot-operated valves need a minimum pressure differential to shift reliably. They may not function properly in low-pressure applications or where downstream pressure is nearly equal to supply pressure.
Also verify the air quality and lubrication conditions. Standard industrial valves are often intended for filtered compressed air. If the system uses lubricated air, confirm that the valve seals and internal components are suitable. If the application involves vacuum, dry air, inert gas, or another medium, do not assume a general-purpose pneumatic valve is acceptable.
Seal material can determine service life. Nitrile is common for standard compressed-air service, while fluorocarbon and other materials may be required for higher temperatures or chemical exposure. For food, pharmaceutical, washdown, or outdoor environments, the body material and environmental rating deserve the same attention as the internal seals.
Match the Electrical Side Before Ordering
A mechanically compatible valve can still be unusable if its coil does not match the machine's control circuit. Read the coil label and confirm voltage, current type, frequency for AC coils, power consumption, and connector style. Common ratings include 24 VDC, 24 VAC, 120 VAC, and 230 VAC. A 24 VDC coil is not a substitute for a 120 VAC coil, even if it installs on the same valve body.
Check whether the coil is supplied with the replacement valve or must be ordered separately. On some designs, the coil can be removed and transferred. That can be useful when the valve body is damaged but the correct coil is still in serviceable condition. It only works when the coil series, wattage, and mechanical fit are confirmed.
Connector details matter in the field. DIN-style connectors, flying leads, terminal boxes, and prewired connectors each require different installation methods. If the original uses a connector with an LED indicator or surge suppression, replacing it with a plain connector may remove useful diagnostics or expose an output module to inductive kick. For DC solenoids, verify whether the existing circuit relies on a diode, varistor, or other suppression method.
Check Mounting, Dimensions, and Manifold Compatibility
The fastest replacement is often an exact part number because it preserves mounting and plumbing. If an exact unit is unavailable, measure the valve body and compare mounting holes, port spacing, overall height, coil clearance, and exhaust arrangement. A valve that fits on paper may interfere with guards, tubing, adjacent manifold stations, or electrical enclosures.
Manifold-mounted valves require additional care. Identify the manifold series, station configuration, gasket pattern, and valve interface. A five-port valve from the same manufacturer may still use a different sub-base or communication-ready manifold platform. Do not order by brand name alone.
For a stack or valve island, check whether the replacement needs a blanking plate, shared supply configuration, or specific end plates. If the machine uses fieldbus controls, determine whether the issue is limited to the pneumatic valve slice, coil, electronics module, or communication hardware before replacing components.
Use This Identification Record for Surplus or Discontinued Parts
When sourcing a hard-to-find valve, provide the most complete identification record possible. Clear photos of all labels, ports, connectors, and mounting surfaces reduce guesswork. A procurement request should include these details:
- Manufacturer, complete part number, and any revision or series code
- Valve configuration, normal state, actuation method, and return method
- Port count, thread type, port size, and flow requirement
- Operating pressure range, media, body material, and seal material if known
- Coil voltage, AC or DC, wattage, connector type, and lead length
- Manifold or sub-base part number, mounting dimensions, and required quantity
MRO Exchange can help buyers identify in-stock surplus components when a full part number or clear specification set is available. For an urgent repair, having the old valve, photos, and machine information ready can shorten the sourcing process.
Test the Replacement Before Returning the Machine to Service
Once installed, verify operation at controlled conditions before releasing the equipment. Confirm that supply, work, and exhaust ports are connected correctly and that the actuator moves in the intended direction. Check for leaks at fittings, manifold seals, and exhaust ports. Then cycle the valve through normal machine conditions while watching pressure, cylinder speed, coil temperature, and controller output status.
If the replacement shifts but the actuator behaves incorrectly, stop and compare the original port diagram to the new valve's schematic. Reversed A and B ports, an incorrect normal state, and a different center condition are common causes. Do not compensate for an incorrect valve selection with improvised tubing changes unless the circuit has been reviewed and approved.
Keep the valve label, wiring information, and replacement date in the machine's maintenance record. The next failure is easier to solve when the exact working configuration is documented, and a properly identified spare can turn a line-down event into a routine repair.
