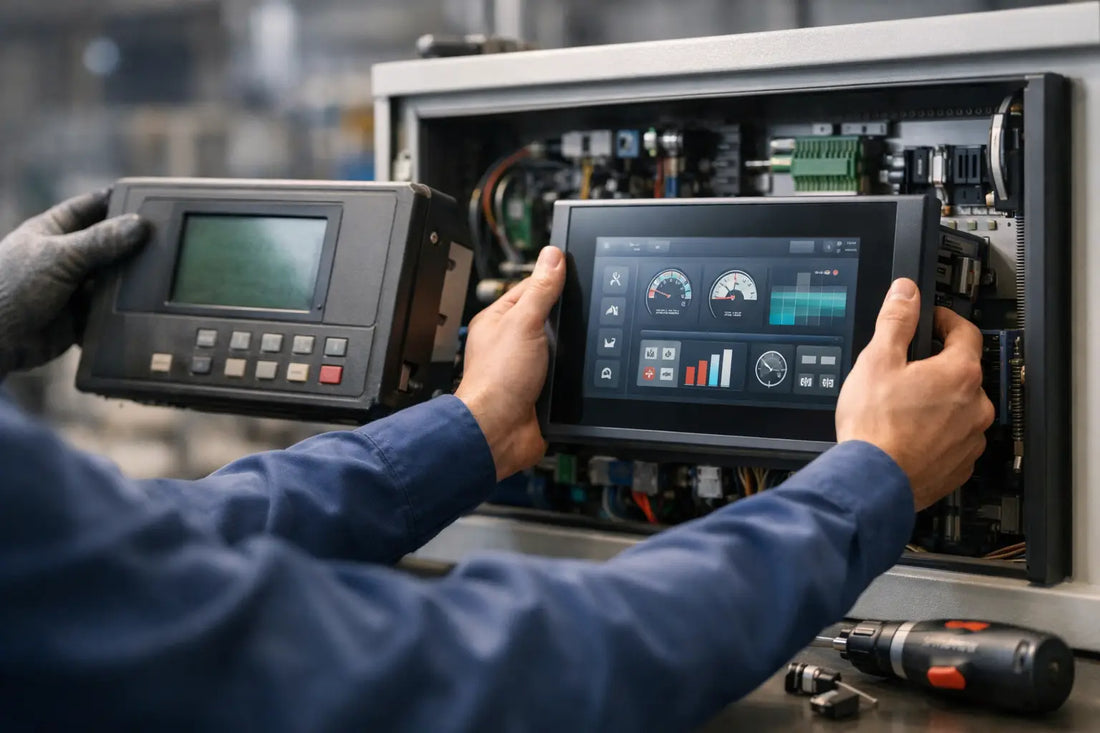

How to Replace Obsolete HMI Panels Fast

When an HMI fails on a live line, the question is not whether it should be replaced. The question is how to replace obsolete HMI panels without turning one bad screen into a week of downtime, a controls rewrite, and a rush procurement problem.

For most plants, the right answer is not the same in every case. Sometimes the best move is a direct replacement from surplus stock. Sometimes a retrofit is the only practical path. And sometimes the cheapest-looking option creates the most expensive result once programming, mounting changes, and startup delays are included. A good replacement plan starts with the machine, the controls architecture, and how fast you need to be running again.

Start with the failure, not the catalog

Before you source anything, confirm what actually failed. Operators often report an HMI as dead when the issue is backlight failure, touchscreen drift, a bad communication port, a power supply problem, or a PLC-side fault. If the panel powers up but does not communicate, replacing the HMI alone may not solve the problem.

Check the exact symptoms. Is the display blank? Does the unit boot but freeze? Are only certain inputs unresponsive? Is there visible damage to the digitizer, membrane keys, or Ethernet port? This matters because some obsolete HMI panels can be kept in service with a repair stopgap while you source a proper replacement. If you misdiagnose the problem, you lose time and often buy the wrong part.

At this stage, document everything on the nameplate. Capture manufacturer, series, part number, revision level, voltage, communication ports, and screen size. If the HMI has a compact flash card, SD card, or removable application storage, secure it immediately. If software backups exist, verify that they open and match the installed unit.

How to replace obsolete HMI panels without creating new problems

The fastest purchase is not always the fastest recovery. A replacement HMI has to match more than the cutout dimensions. It must fit the electrical and software reality of the machine.

Start with compatibility at four levels: physical fit, power requirements, communications, and application support. Physical fit includes panel cutout, bezel dimensions, mounting depth, and environmental rating. Power means matching input voltage and checking current draw. Communications means the replacement can talk to the PLC, drives, or other devices using the available protocols and ports. Application support is the most critical piece - can you load the existing runtime or convert the project without rebuilding the entire interface?

If you can source the same part number or an approved manufacturer substitute in stock, that is usually the lowest-risk option. For critical machines, a direct replacement minimizes engineering labor and startup uncertainty. This is where surplus inventory often makes sense. Obsolete does not always mean unavailable. In many cases, discontinued HMI panels are still in stock through surplus channels and ready to ship.

If an exact match is not available, move to the next closest replacement within the same family. Manufacturers often publish migration paths, but those paths may still require firmware updates, cable changes, driver adjustments, or project conversion. Treat "drop-in replacement" claims carefully. In industrial controls, drop-in often means "close enough with work."

Decide between direct replacement and retrofit

A direct replacement makes sense when downtime is urgent, the existing application is stable, and the machine is not due for a broader controls upgrade. It is usually the better option for legacy production assets that still perform well and only need a functioning operator interface.

A retrofit makes sense when the old panel is repeatedly failing, replacement stock is too limited, the software is no longer maintainable, or the machine needs new features such as data collection, alarm history, recipe handling, or network integration. Retrofitting can improve long-term support, but it raises the short-term cost and complexity.

The trade-off is straightforward. Direct replacement lowers immediate risk and gets the line running faster. Retrofit reduces future obsolescence exposure but often requires more engineering time, validation, and operator retraining. If the machine is a production bottleneck, the real decision often comes down to whether you can afford planned downtime now or unplanned downtime later.

Verify the software situation early

Many HMI replacement projects fail at the software stage, not the hardware stage. Before ordering, confirm whether you have the original application file, the correct programming software, license access, communication drivers, and password credentials. If the only copy of the project lives in the failed panel, your options narrow quickly.

Some obsolete platforms allow application upload. Some do not. Some allow upload but only as a runtime file that cannot be fully edited. Others require the original development environment, which may only run on older operating systems. That is why software verification should happen before you commit to a migration path.

If you are replacing with the exact same model, software friction is usually lower, but revision differences can still matter. If you are moving to a newer family, check project conversion support and test every screen, alarm, and tag mapping before installation. Graphics conversion is rarely the hard part. Communications and hidden logic usually are.

Sourcing strategy matters when the line is down

When you need an obsolete HMI panel, availability outranks preference. OEM lead times, if the product is even still supported, are often not workable in a downtime event. A practical sourcing plan looks at surplus inventory, discontinued stock, and ready-to-ship units from trusted sellers that provide exact part identification.

For buyers handling urgent replacements, part number accuracy is everything. Match the full manufacturer number, not just the series. Check revision suffixes, display type, keypad versus touchscreen configuration, communication modules, and any included memory or firmware requirements. One character off can turn an overnight shipment into a non-usable part.

Condition also matters, but context matters more. New surplus is ideal when available. Used or refurbished can still be the right call for older machines if the source is credible and the goal is rapid recovery. In many plants, restoring operation this shift is worth more than waiting weeks for a cleaner procurement path.

This is also where working with a supplier focused on in-stock industrial inventory can shorten the process. MRO Exchange serves buyers who need exact parts, fast fulfillment, and direct support when standard channels are too slow.

Plan the installation before the replacement arrives

Once the part is sourced, do not wait for delivery to think through installation. Prepare the panel opening, wiring documentation, communication settings, and backup files in advance. Print the terminal assignments. Verify whether serial pinouts, Ethernet addressing, or protocol settings will need to change. If the replacement uses different mounting hardware or connectors, have those on hand before the swap begins.

If you are moving to a non-identical model, build extra time into the outage window. Even small differences can create field delays - a slightly deeper chassis interfering with enclosure components, a new firmware requirement, or a driver mismatch that only appears during commissioning.

For regulated or validated environments, make sure change control, documentation, and testing requirements are addressed upfront. The replacement may be operationally simple but procedurally heavy.

Test what operators actually use

After installation, do more than confirm the home screen loads. Test the functions operators rely on under production conditions. Start and stop commands, alarm acknowledgement, setpoint entry, recipe changes, manual jog screens, maintenance pages, and communication loss behavior all need to be checked.

An HMI can appear functional while still missing important tags, security settings, or navigation links. These are the failures that show up at 2 a.m. during a changeover, not during a quick daytime startup check.

If the old panel failed without warning, use the replacement event as a trigger to review the rest of the installed base. If one obsolete HMI has reached end of life, others on similar assets may not be far behind. Standardizing a spare strategy now can reduce the next emergency.

Build a better replacement plan for next time

The best time to think about obsolescence is after you recover from it. Record the exact installed replacement, save current backups in more than one location, document firmware and communication settings, and identify which machines still rely on unsupported HMIs. If a machine is production-critical, consider keeping a spare in stock.

That spare strategy does not need to be expensive to be effective. For some plants, one tested surplus unit on the shelf is enough to protect a key asset for years. For others, a phased migration plan makes more sense. It depends on how critical the machine is, how often the panel fails, and how difficult the software is to recover.

When you are deciding how to replace obsolete HMI panels, the right answer is usually the one that restores operation with the least total risk - not just the lowest purchase price. Fast shipment matters. Exact part matching matters. Software recoverability matters. If you handle those three well, an obsolete panel becomes a manageable maintenance problem instead of a plant-wide disruption.

A failed HMI is always urgent, but it does not have to be chaotic. The more precise you are on part number, compatibility, and recovery path, the faster you get back to running.
