How to Test Limit Switches Without Guesswork

A limit switch can look fine, click normally, and still be the reason a conveyor will not start, a cylinder overruns its position, or a safety sequence stops mid-cycle. To test limit switches correctly, isolate the machine first, identify the circuit type, and verify both mechanical actuation and electrical contact state. A quick continuity check is useful, but it is only one part of a reliable diagnosis.

For maintenance teams, the objective is not simply proving that a switch changes state on a bench. The objective is determining whether it performs correctly in the machine, at the required position, under the conditions that caused the fault.

Start With Safety and the Circuit Drawing

Before opening an enclosure or removing a switch, follow the site lockout/tagout procedure. Disconnect and verify the energy sources that can move the equipment. This may include electrical power, pneumatic pressure, hydraulic pressure, gravity, stored spring force, or motion from another section of the line.

A limit switch may be part of a control circuit, an interlock, a permissive chain, or a safety-related function. Do not assume it is a simple on-off device. Review the electrical drawing if it is available, especially the terminal designations and the expected state of the contacts. A normally open contact is commonly marked NO, while a normally closed contact is marked NC. Common terminals may be marked COM or use numbering that varies by manufacturer.

The circuit drawing also prevents a common troubleshooting error: testing a good switch while overlooking a failed relay, broken conductor, loose terminal, input module, or control power issue downstream.

Inspect the Switch Before Using a Meter

Many limit switch failures are mechanical. Start with a close visual and physical inspection while the equipment is de-energized. Check whether the actuator arm, plunger, roller, whisker, or rotary lever moves freely and returns positively. A sticking actuator can cause intermittent failures that a static meter test may not show.

Look for a bent lever, worn roller, cracked housing, loose mounting screws, damaged conduit, oil intrusion, corrosion, or broken cable insulation. On machinery with vibration, verify that the switch body has not shifted away from the intended trip point. A switch that is mounted a fraction of an inch out of position may work during manual testing but fail when the machine is moving at normal speed.

Also inspect the target or cam that actuates the switch. Worn dog plates, loose cam hardware, misaligned guards, and excessive travel can all create what appears to be a switch problem. The switch and its actuator must be treated as one operating system.

How to Test Limit Switches With a Multimeter

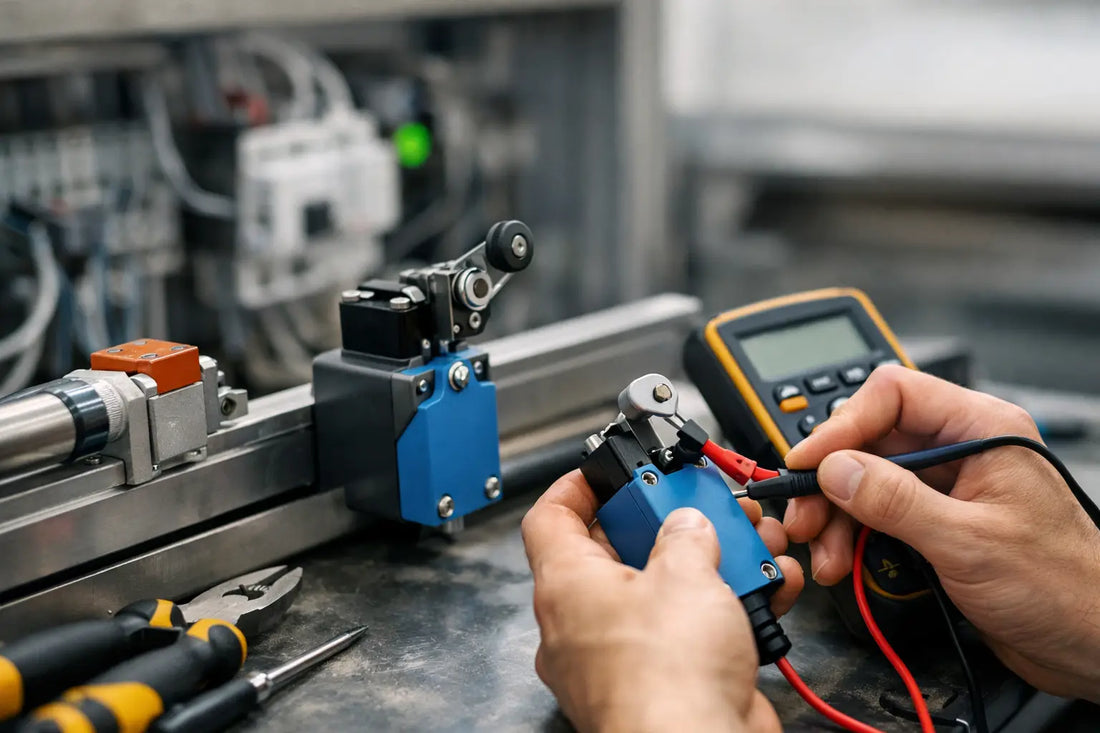

For an isolated switch, a digital multimeter set to continuity or resistance is the standard first test. If possible, disconnect at least one lead from the switch contact being tested. This avoids reading through parallel paths in the machine circuit.

Place one meter lead on the common terminal and the other on the normally closed terminal. With the actuator at rest, the meter should indicate continuity or very low resistance. Slowly operate the actuator through its travel. The NC contact should open, producing an open-loop or high-resistance reading.

Then test the common and normally open terminals. At rest, the contact should read open. When the actuator reaches its operating point, the meter should show continuity or low resistance.

Operate the switch repeatedly, not just once. Watch for readings that flicker, remain unstable, or require unusual force to change. These are signs of worn internal contacts, a weak return spring, contamination, or mechanical wear. For a device that trips rapidly in service, move the actuator at a similar speed when practical. Slow hand operation can hide contact bounce or a marginal mechanism.

A low-resistance reading does not always mean the contact is healthy under load. Pitted or oxidized contacts can pass a meter's small test current while creating excessive voltage drop in an energized circuit. If the application permits live troubleshooting by qualified personnel, measure voltage across the closed contact under normal load. A meaningful voltage drop across a closed contact points to resistance that may warrant replacement.

Verify the Switch at the Machine Input

A limit switch can test correctly at its terminals and still fail to deliver a usable signal to the control system. After the isolated test, inspect the full signal path. Check terminal blocks, field connectors, cable flex points, junction boxes, and the PLC or relay input associated with the device.

On a 24 VDC control circuit, qualified technicians may verify whether the expected input voltage reaches the controller when the switch changes state. Compare the observed input indicator or diagnostic status with the physical position of the switch. If the switch is actuated but the PLC input does not change, the issue may be wiring, a failed input point, incorrect common wiring, or loss of control power.

Do not jumper a limit switch simply to keep production moving unless the machine's documented procedure and safety controls specifically allow it. Bypassing an interlock can create equipment damage or serious personnel risk. A temporary bypass also removes valuable diagnostic information if it is installed before the circuit has been tested.

Common Results and What They Usually Mean

An open reading on an NC contact when the actuator is at rest often indicates a failed contact, broken internal mechanism, incorrect terminal selection, or a switch that is being held actuated by a misaligned target. A closed reading on an NO contact at rest can indicate the same types of issues in the opposite state.

If both contact sets test correctly but the machine still faults, focus on wiring integrity and circuit logic. A loose conductor can pass a stationary test and open only when the machine vibrates. A cable may also fail where it flexes repeatedly at a moving guard, cylinder, or carriage.

If the contacts change state inconsistently, replace the switch rather than relying on adjustment alone. Cleaning external debris may resolve an actuator obstruction, but sealed industrial limit switches are generally not field-repairable. Internal contact problems tend to return, usually at the worst possible time.

Select the Replacement by Specification, Not Appearance

When replacement is required, match more than the mounting shape. Record the manufacturer and exact part number when possible, then confirm the electrical and mechanical specifications. The replacement must have the correct contact configuration, actuator style, mounting dimensions, wiring or connector arrangement, voltage and current ratings, environmental rating, and operating travel.

Actuator selection matters. A roller lever may be appropriate for a cam-driven application, while a plunger may be better for direct linear contact. Lever length and roller diameter affect operating point and overtravel. A visually similar switch with a different operating force or travel can change machine timing or cause damage at the end of a stroke.

For safety interlocks, use the specified safety-rated device and verify the complete safety circuit after installation. A general-purpose limit switch is not automatically an acceptable substitute for a coded safety switch, guard-locking device, or positive-opening safety contact arrangement.

Surplus inventory can be a practical source when an OEM part has a long lead time or has been discontinued. MRO Exchange supports urgent industrial replacement needs with in-stock surplus MRO components, but buyers should still verify part number, revision details, condition, and application fit before ordering.

Test Again After Installation

After installing the replacement, secure the mounting hardware and route conductors so they are protected from pinch points, heat, abrasion, and repeated flexing. Set the actuator position according to the machine documentation. Confirm that the switch changes state before the mechanism reaches a hard stop and that sufficient overtravel remains after actuation.

Restore power using site procedures and verify the device through several normal machine cycles. Observe the controller input, machine response, and any alarms. If the application is intermittent, run enough cycles to include the vibration, speed, temperature, or load conditions associated with the original fault.

A limit switch is a low-cost component with a high influence on uptime. Testing it methodically, then replacing it with a correctly specified unit when needed, is faster than repeated resets and safer than working around a failed interlock. Keep the old switch, its part number, and the failure symptoms documented in the maintenance record. That information can make the next urgent repair a straightforward parts decision instead of another round of guesswork.
