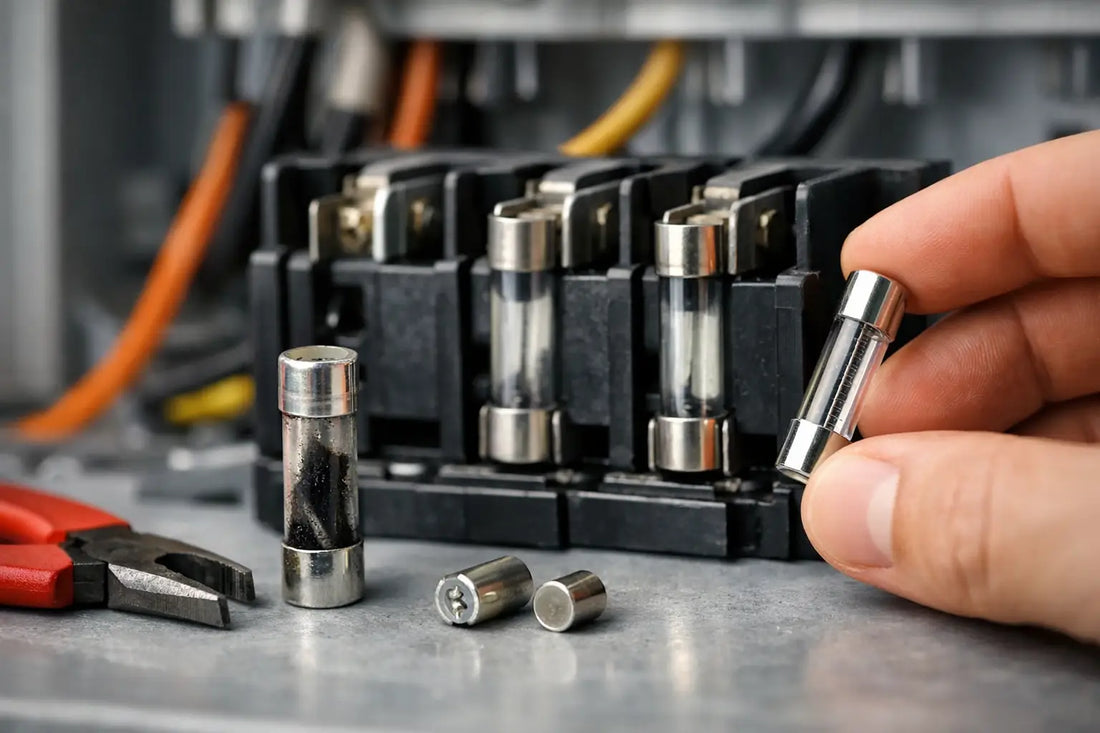

Industrial Fuse Failures: Causes and Fast Fixes

A fuse that opens during a production run is rarely the whole problem. Industrial fuse failures are often the first visible sign of an overloaded circuit, a shorted component, a wiring fault, or an incorrectly specified replacement. Replacing the fuse may restore power for a few minutes, but repeated failures can turn a small electrical issue into extended downtime, damaged equipment, and missed production.

For maintenance teams, the priority is clear: identify why the fuse opened before putting equipment back into service. That requires confirming the correct fuse specification, checking the protected circuit, and sourcing a replacement that matches the application rather than simply matching the physical size.

What Industrial Fuse Failures Usually Mean

A fuse is designed to be the sacrificial component in a circuit. It opens when current exceeds its rated capability for enough time to create unsafe heat. In a properly designed system, that action protects conductors, drives, power supplies, transformers, motors, and control components from more serious damage.

A single fuse failure can be a normal response to a temporary event, such as inrush current during motor startup or a short-duration overload. A fuse that blows repeatedly is different. It should be treated as a diagnostic signal, not a recurring consumable expense.

The failure pattern matters. A fuse that opens immediately when power is applied points toward a dead short, reversed wiring, failed rectifier, or damaged power device. A fuse that holds briefly and then opens under load may indicate an overloaded motor, mechanical binding, excessive heat, or a component that is breaking down after it warms up.

Common Causes of Industrial Fuse Failures

Short Circuits and Ground Faults

A direct short circuit creates a rapid, high-current event that should open the fuse quickly. Damaged insulation, pinched cable, contaminated terminal blocks, failed coils, and moisture intrusion are common causes. In panels exposed to washdown, dust, vibration, or high heat, inspect wiring and connections closely before replacing a fuse.

Ground faults can be harder to find. They may appear only when a cable moves, when condensation is present, or when a machine reaches a certain operating position. Look for rub points in cable trays, conduit entries, moving-machine wiring, and door-mounted components.

Overloads and Excessive Inrush Current

A circuit may be healthy but still draw more current than the fuse can support. Motors with worn bearings, seized pumps, blocked fans, or overloaded conveyors can pull high current as mechanical resistance rises. A transformer or power supply can also have significant inrush current at startup.

This is where fuse class and time-current characteristics matter. A fast-acting fuse may open during a normal startup surge, while a correctly sized time-delay fuse may carry that temporary inrush and still provide protection against sustained overloads. The answer is not automatically to install a larger fuse. Increasing the amp rating without verifying conductor size and equipment requirements can remove the protection the circuit needs.

Incorrect Fuse Selection

Industrial fuses are not interchangeable just because they fit the same holder. Voltage rating, amp rating, interrupting rating, speed, class, physical dimensions, and agency approvals all affect suitability.

For example, substituting a general-purpose fuse for a semiconductor fuse in a drive or rectifier circuit can leave expensive power electronics insufficiently protected. Installing a low interrupting-rated fuse where available fault current is high can create a serious safety concern. A replacement should match the manufacturer’s specification or be a verified equivalent with the same critical electrical and physical characteristics.

Failed Downstream Components

A blown fuse can be caused by the equipment it protects. Variable frequency drives, servo drives, contactors, solenoid valves, DC power supplies, heaters, transformers, and motor starters can all develop faults that increase current draw.

A failed bridge rectifier, for instance, may blow an input fuse as soon as power is applied. A shorted output transistor in a drive can do the same. If the circuit includes several loads, isolate them methodically. Disconnect downstream branches according to the equipment documentation, then test each section rather than replacing parts by guesswork.

Loose Connections, Heat, and Environmental Damage

Loose terminals create resistance, and resistance creates heat. Over time, heat can discolor fuse clips, weaken connections, damage insulation, and create intermittent overcurrent events. A fuse holder with weak spring tension or heat damage can also cause problems even when the fuse itself is correctly rated.

Inspect for browned terminals, melted plastic, corrosion, loose lugs, vibration damage, and signs of arcing. In older panels, the condition of the holder deserves the same attention as the replacement fuse.

How to Troubleshoot an Industrial Fuse Failure

Start with safe isolation. Follow site lockout/tagout procedures, verify the absence of voltage with appropriate test equipment, and use qualified electrical personnel for energized troubleshooting where required. A fuse is part of a potentially high-energy circuit, not a trial-and-error repair item.

Document the original fuse before removing it. Record the manufacturer, part number, amp rating, voltage rating, class or series, speed designation, interrupting rating, and physical dimensions. If the fuse markings are damaged, use the panel drawings, equipment manual, or bill of materials to confirm the required part.

Then inspect the fuse and holder. A visibly broken element may indicate an overcurrent event, but visual inspection alone does not identify the cause. Check the holder for heat damage and verify terminal tightness to the torque requirements of the equipment manufacturer.

Next, test the circuit with power removed. Measure for shorts between conductors and ground, inspect connected loads, and check motor windings, coils, heaters, and power devices as appropriate. A megohmmeter may help identify insulation problems, but it should only be used where the connected electronic equipment can tolerate the test voltage.

If the fuse opens only during operation, gather operating data. Compare running current to nameplate values, check motor load, inspect mechanical components, and determine whether the event coincides with startup, acceleration, heating cycles, or a particular machine function. The timing of the failure is often the fastest path to the root cause.

Selecting the Right Replacement Fuse

Once the underlying issue is corrected, select a replacement using the complete specification. The part number is the most reliable starting point because it captures details that may not be obvious from amp and voltage markings alone.

At minimum, confirm the rated current, rated voltage, fuse type, speed, interrupting rating, mounting style, and dimensions. Also verify whether the application requires a particular fuse class, such as Class CC, J, RK, T, or semiconductor protection. In control circuits, compact supplemental fuses may be used. In power distribution, the required class may be tied to coordination, available fault current, and code compliance.

There are cases where an equivalent replacement is acceptable, especially when the original part is obsolete or unavailable. Equivalency should be based on technical specifications, not appearance. A maintenance buyer should be able to compare the data sheet requirements with the replacement before approving the purchase.

For urgent repairs, keeping exact spare fuse part numbers in maintenance records reduces delays. MRO Exchange supports buyers who need in-stock surplus industrial parts and hard-to-source replacement components ready to ship. For critical equipment, it is also practical to stock approved spares at the point of use, particularly when a single fuse can stop an entire line.

Preventing Repeat Failures

The best prevention program combines correct parts management with basic electrical maintenance. Keep approved fuse specifications in the equipment record, label panel locations clearly, and avoid mixed or unmarked spare-fuse bins. A correctly rated fuse installed in the wrong circuit is still the wrong part.

Use thermal inspections to identify hot fuse holders, terminals, and overloaded circuits before they fail. Review recurring fuse replacements in work orders. If the same machine, circuit, or shift appears repeatedly, the issue may be mechanical, process-related, or tied to a changing operating condition rather than the electrical component alone.

It also helps to separate emergency spares from general stock. Critical fuses should be stored in clean, dry conditions and identified by exact manufacturer part number. This prevents a rushed repair from becoming an incorrect substitution.

A fuse that opens has done its job. The maintenance task is to determine what placed the circuit at risk, correct that condition, and install the exact replacement needed to return equipment to service with confidence.
