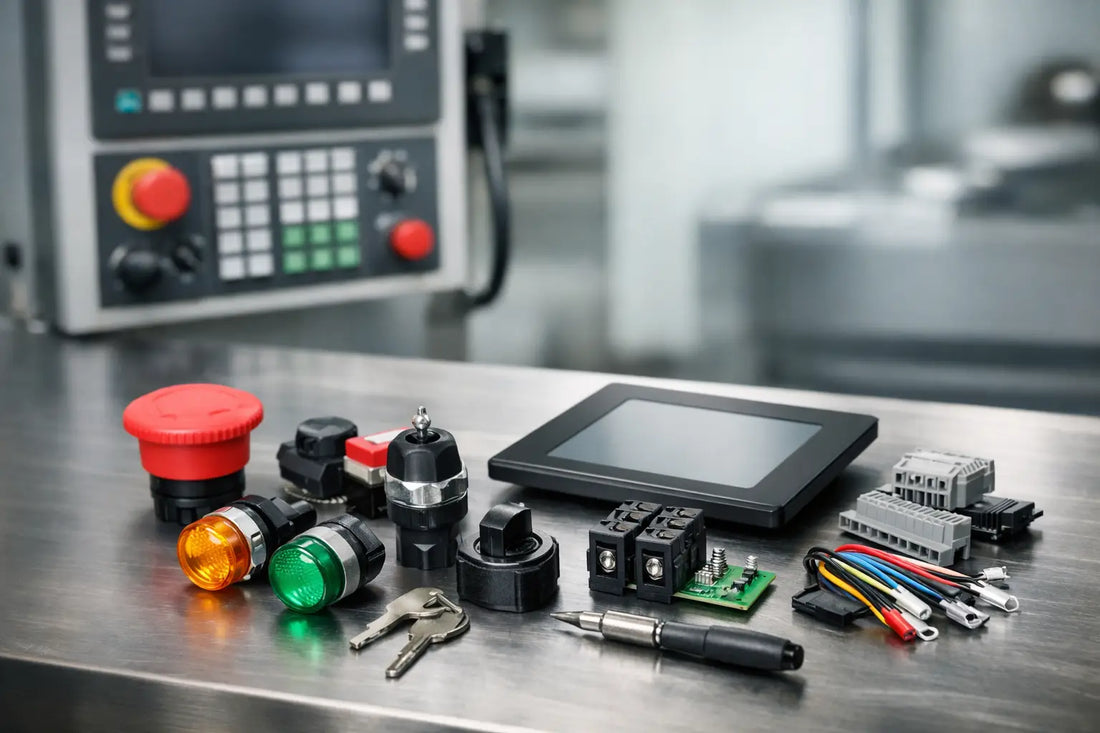

Machine Control Panel Parts Guide for Fast Repairs
AdminShare
A stopped line rarely waits for a convenient replacement cycle. When a control panel component fails, the fastest path back to production is accurate identification, specification verification, and a replacement that can ship now. This machine control panel parts guide covers the components maintenance and procurement teams most often need to identify under downtime pressure.
A control panel is not a single system with interchangeable pieces. It is an assembly of power distribution, protection, control, signaling, and communication components selected for a specific machine and operating environment. A part that looks correct may still fail to fit the rail, match the coil voltage, communicate on the installed network, or meet the enclosure rating. Part number discipline matters.
The Parts Inside a Typical Machine Control Panel
Most machine panels contain a mix of high-voltage power components and low-voltage control devices. The exact layout depends on the machine, but the following categories account for many urgent MRO replacement needs.
Circuit breakers, fuses, and disconnects
Circuit breakers and fuses protect conductors and components against overcurrent. A disconnect switch provides a visible means to isolate power for service. These parts must be matched by voltage rating, current rating, interrupting capacity, poles, mounting style, and applicable fuse class where relevant.
Do not substitute a higher amp rating simply because it is available. That can remove protection from downstream wiring or equipment. Similarly, a breaker with the right current rating may not have the required DC rating or short-circuit current rating for the application.
Power supplies and transformers
Control power supplies convert incoming AC power to the DC voltage used by PLCs, sensors, relays, and operator devices. Common outputs include 24 VDC, but voltage alone is not enough. Verify output current, input voltage range, single-phase or three-phase input, mounting method, load derating, and any required redundancy or diagnostic contacts.
Control transformers serve a related role in panels that use AC control circuits. Before ordering, confirm primary and secondary voltage, VA rating, frequency, fuse requirements, and terminal configuration. An undersized replacement can run hot or drop output voltage when contactors and solenoids energize.
Contactors, overloads, and motor starters
Motor control components are frequent failure points because they switch loads repeatedly. A motor starter often includes a contactor and overload relay, with auxiliary contacts used for interlocks and status feedback. Contact wear, coil failure, overload trips, and mechanical damage can all create a production stop.
When identifying a replacement, record the full contactor catalog number, coil voltage and frequency, number of poles, AC or DC coil type, motor utilization rating, and installed auxiliary blocks. For overloads, verify the current adjustment range, trip class, reset type, and whether the unit is a direct-mount or separate component.
A contactor with matching physical dimensions is not necessarily electrically equivalent. Coil voltage mismatches are especially common during rushed repairs. A 120 VAC coil will not replace a 24 VDC coil, even if both devices share the same frame size.
Relays, timers, and signal conditioners
Interposing relays separate low-power controller outputs from higher-load field devices. Time-delay relays control sequencing, while signal conditioners convert or isolate analog signals. These are compact parts, but they can be difficult to replace correctly without a complete label or wiring reference.
Check coil voltage, contact arrangement, contact rating, socket type, timing function, input and output signal range, and isolation requirements. For timers, determine whether the application needs on-delay, off-delay, interval, pulse, or multifunction timing. A replacement with a different timing mode can cause an intermittent machine fault that is harder to diagnose than the original failure.
PLCs, I/O modules, and communication hardware
Programmable logic controllers, remote I/O modules, communication cards, and industrial network switches form the control layer of many automated machines. These parts require more than electrical compatibility. Firmware version, controller family, rack position, network protocol, and configuration all affect whether a replacement can be put into service.
For PLC hardware, capture the manufacturer, full part number, series or revision, power requirements, slot location, and connector type. For I/O, identify the point count, input or output type, voltage, sink or source configuration, analog range, and terminal base part number. If a managed switch or communication module has failed, document the network protocol and any configuration requirements before removing it.
A surplus replacement can reduce lead time substantially, but it should be evaluated against the installed system revision and the plant's backup program. Keep current controller programs, network settings, and machine documentation accessible before an emergency occurs.
HMIs, pushbuttons, pilot lights, and selectors
The operator interface is where mechanical damage and wear are often most visible. HMIs, pushbuttons, emergency-stop devices, selector switches, pilot lights, and illuminated actuators all need to match the existing panel cutout, voltage, contacts, and environmental conditions.
For an HMI, confirm screen size, display type, power input, communication ports, mounting cutout, and exact product family. A newer model may require a different project file or software version. For 22 mm or 30 mm operator devices, verify operator style, color, momentary or maintained action, contact blocks, lamp voltage, and legend requirements.
Emergency-stop replacements deserve additional care. Confirm the actuator type, latching behavior, contact configuration, release method, and applicable safety circuit requirements. The device must be installed and tested by qualified personnel according to the machine's safety design.
Terminal blocks, wiring devices, and enclosure hardware
Terminal blocks, jumpers, end stops, wire ducts, cable glands, DIN rail, and enclosure hardware may appear secondary until a damaged or missing piece delays a repair. These parts should be identified by conductor range, terminal type, voltage and current rating, spacing, rail profile, and accessory compatibility.
A terminal block series can have several nearly identical versions for feed-through, grounding, fused, disconnect, sensor-actuator, or multi-level connections. Match the exact series whenever possible, particularly if cross-connect jumpers and markers must fit an existing terminal strip.
How to Identify the Right Replacement Part
The best information comes from the component label, not a general description of the machine. Photograph the front, side, terminals, and any accessory modules before removing the failed part. Capture the complete catalog number, including suffixes, revision marks, date codes, and voltage markings.
Then compare the replacement against the installed part and the electrical documentation. Confirm these details before purchase:
- Manufacturer and complete part number
- Electrical ratings, including voltage, current, frequency, and coil or control voltage
- Mechanical fit, including mounting style, dimensions, terminal orientation, and connector type
- Functional configuration, such as contact arrangement, I/O type, timing mode, or communication protocol
- Environmental and safety requirements, including enclosure rating, temperature range, approvals, and hazardous-location suitability where applicable
What to Keep in Critical Spares
Not every panel part belongs in storeroom inventory. The right spares strategy depends on failure history, lead time, production impact, and the number of machines using the same component. A $40 relay with a two-day lead time may not justify stocking. A discontinued PLC power supply that can halt a high-output line for a week usually does.
Start with components that are single points of failure, obsolete, long lead time, or used across multiple assets. Common candidates include PLC CPUs and power supplies, HMI units, specialty I/O cards, variable frequency drive control boards, contactor coils, 24 VDC power supplies, communication modules, and hard-to-source safety components.
Store sensitive electronics in appropriate packaging and maintain a simple record of location, part number, compatible equipment, and any required firmware or configuration files. A spare that cannot be found or cannot be configured quickly is not a true downtime spare.
Buying Surplus Control Panel Parts With Confidence
Surplus inventory is often the practical answer when OEM availability is limited or a legacy part has been discontinued. The trade-off is that buyers need to be more precise about condition, completeness, and compatibility. Confirm whether the item is new surplus, used, refurbished, or missing original packaging. Ask whether terminal blocks, connectors, keys, software media, or accessory modules are included when those items are needed for installation.
For urgent repairs, prioritize exact part number matches and in-stock status over broad family matches. MRO Exchange supports this approach with surplus industrial inventory that is ready to ship, helping maintenance teams source hard-to-find automation and control components without adding unnecessary delay.
The most useful control panel parts guide is the one your team can use at 2 a.m. Keep panel drawings current, photograph nameplates before removal, and treat every suffix on a part number as potentially meaningful. That preparation turns an urgent replacement search into a controlled repair decision.
