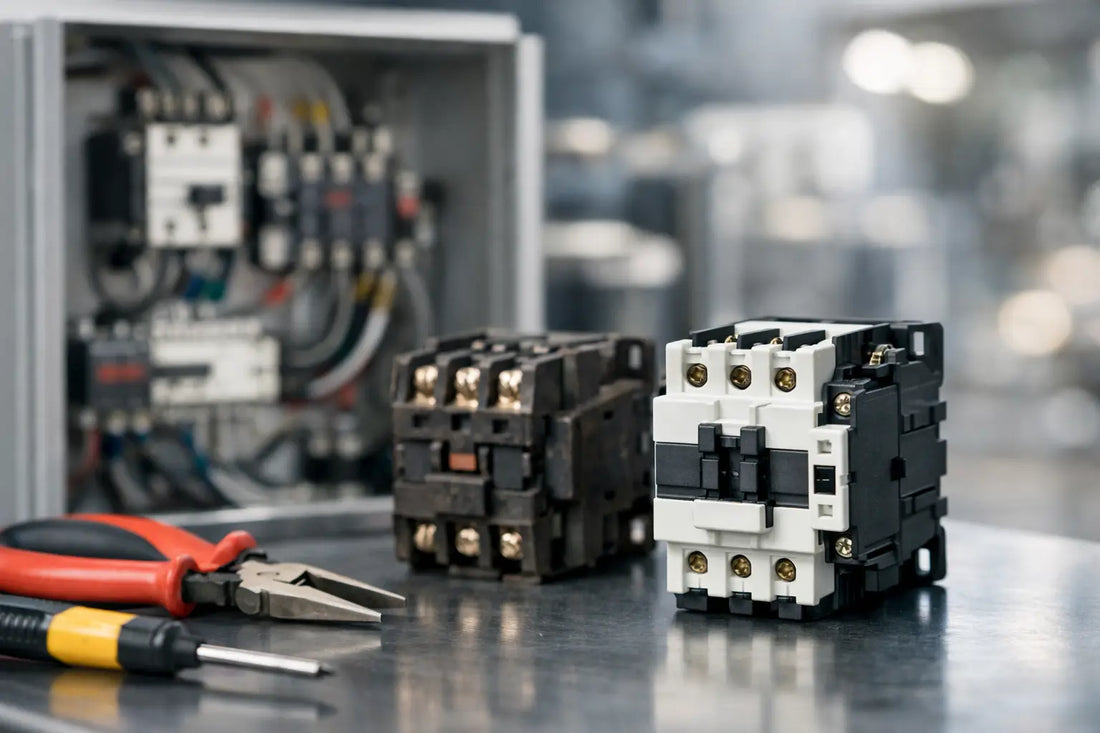

Replacement Contactors for Legacy Equipment

A failed contactor can stop a conveyor, pump, compressor, or production cell even when the rest of the equipment remains serviceable. For plants running older machinery, finding replacement contactors for legacy equipment is rarely as simple as matching the manufacturer name. The original part may be discontinued, the markings may be worn, and a newer device may look similar while having a different coil voltage, contact arrangement, or auxiliary configuration.

The right replacement is the one that restores the circuit's original function without creating a new reliability or safety problem. That requires a disciplined review of the installed contactor, the load it controls, and the physical and electrical limits of the panel.

Start With the Installed Contactor, Not the Catalog Photo

A contactor is an electrically controlled switch designed to repeatedly connect and disconnect a power circuit. In legacy equipment, it may control a motor starter, resistive heater bank, lighting circuit, solenoid load, transformer, or another high-current device. Its appearance is useful, but the nameplate and wiring configuration carry more weight than its frame size or color.

Record every legible marking before removing the unit. The manufacturer and full catalog number are the best starting points, especially when sourcing surplus or obsolete inventory. Also capture the rated operational current, number of main poles, coil voltage and frequency, auxiliary contact arrangement, and utilization category if shown. A contactor rated for a resistive load is not automatically suitable for frequent motor switching.

Photograph the front, side, terminals, coil label, overload connection, and control wiring. A clear picture of the panel layout can prevent a costly mistake when terminal locations or mounting dimensions matter. If the original part number is incomplete, these details help identify a suitable exact match or cross-reference candidate.

Verify the Electrical Requirements Before Choosing a Replacement

The most common replacement error is treating amperage as the only specification that matters. Current rating is critical, but it is only one part of the decision.

Match the coil circuit exactly

The coil must match the control circuit voltage supplied by the machine. Common coil ratings include 24 VAC, 24 VDC, 120 VAC, 230 VAC, and 480 VAC, but older equipment can use less common values. AC and DC coils are not interchangeable unless the replacement is specifically designed for the applied control power.

Do not infer coil voltage from the voltage feeding the motor or other load. A 480-volt motor starter may use a 120-volt control coil supplied through a control transformer. Applying the wrong coil voltage can cause immediate coil failure, failure to pull in, overheating, or erratic operation.

Confirm poles, power rating, and duty

Count the main power poles and identify whether the application requires normally open or normally closed power contacts. Most motor contactors use three normally open poles, but single-phase and specialty circuits may differ. For motor applications, compare the contactor's motor duty rating at the actual system voltage, not only its general amp rating.

The load type changes the selection. Across-the-line motor starting produces a higher inrush demand than a steady resistive load. Reversing applications, plugging, jogging, and frequent cycling place additional stress on contacts. If the failed device is part of a reversing starter, the electrical and mechanical interlocking arrangement must also be preserved.

Check auxiliary contacts and control logic

Auxiliary contacts often carry the logic that makes the machine run safely and predictably. They may seal in a start command, signal a PLC input, operate an indicator light, prove a contactor state, or interlock another starter. The replacement needs the required normally open and normally closed auxiliary contacts in the correct quantity and arrangement.

A replacement that powers the motor but lacks an auxiliary contact may leave the control circuit unable to latch. Conversely, an added or differently positioned auxiliary block can interfere with adjacent components in a crowded enclosure. Verify the contact designations against the schematic rather than relying on a visual comparison.

Physical Fit Can Decide Whether a Substitute Is Practical

An electrically compatible contactor is not always a practical field replacement. Legacy panels often have limited space, fixed wire lengths, and original mounting hardware that will not accommodate a modern frame.

Measure width, height, depth, mounting-hole spacing, and rail or panel mounting style. Check terminal orientation and conductor entry direction. A substitute with line terminals at the top and load terminals at the bottom may require wire extensions or rerouting if the original design used a different arrangement. Any field modification should maintain proper conductor bend radius, wire identification, enclosure clearance, and code requirements.

Also inspect the overload relay interface. Many motor starters use a matched contactor and overload relay system. A contactor from another series may not accept the existing overload relay, even if both parts appear close in size. In some cases, replacing the contactor, overload, and auxiliary block as a matched assembly is more reliable than forcing a partial substitution.

Exact Match, Functional Equivalent, or Modern Retrofit?

There are three practical paths for replacing an obsolete contactor. The best choice depends on downtime pressure, equipment condition, and the role of the machine in production.

An exact-match surplus part is usually the lowest-risk option when the original model is available in tested condition and the existing system has otherwise been reliable. It avoids changes to mounting, coil wiring, auxiliary contacts, and overload interfaces. For an urgent repair, an in-stock exact part can return a machine to service with minimal engineering work.

A functional equivalent can be appropriate when an exact part is no longer available or when a direct substitute has been verified against the application requirements. This approach requires more review. The new contactor must meet or exceed the relevant electrical ratings and fit the control and physical arrangement without compromising the installation.

A modern retrofit makes sense when the original starter assembly has repeated failures, uses unsupported accessories, or creates ongoing sourcing risk. It may require a new contactor, overload relay, mounting adaptation, updated drawings, and commissioning time. That is more work during the repair, but it can reduce future dependence on aging components. It is not automatically the right answer for every isolated failure.

Inspect the Cause of Failure Before Installing a New Contactor

A contactor that has welded, burned, chattered, or failed to pull in may be the result of another problem. Replacing only the component can produce a repeat failure shortly after startup.

Pitted or welded contacts can point to overload conditions, excessive cycling, incorrect contactor sizing, phase imbalance, loose power connections, or motor problems. A humming or chattering coil can indicate low control voltage, a damaged control transformer, poor terminals, an unstable control signal, or an incorrect coil. Heat discoloration near terminals often suggests loose connections or undersized conductors rather than a defective contactor alone.

Before energizing the replacement, qualified personnel should inspect the load circuit, verify torque requirements, check control voltage, and review the overload setting where applicable. Follow site lockout/tagout procedures and the equipment manufacturer's documentation. A contactor replacement is a routine maintenance task, but it still involves energized systems and stored mechanical or electrical hazards that require proper controls.

Build a Better Sourcing Record for Legacy Equipment

Every successful repair is an opportunity to make the next one faster. Add the failed contactor's full part number, coil rating, application, acceptable substitute information, and panel location to the maintenance record. Keep photos of the nameplate and wiring configuration with the asset file.

For critical equipment, identify one or two approved replacement paths before the next failure. This does not always mean carrying every part in the storeroom. It can mean documenting the exact part and knowing where ready-to-ship surplus inventory may be available. MRO Exchange supports this type of urgent procurement with in-stock industrial components and direct assistance when exact identification matters.

A legacy contactor does not need to become a production emergency. When the coil, duty rating, auxiliary logic, mounting, and overload interface have all been checked, the replacement decision becomes a controlled maintenance action rather than a rushed guess.
