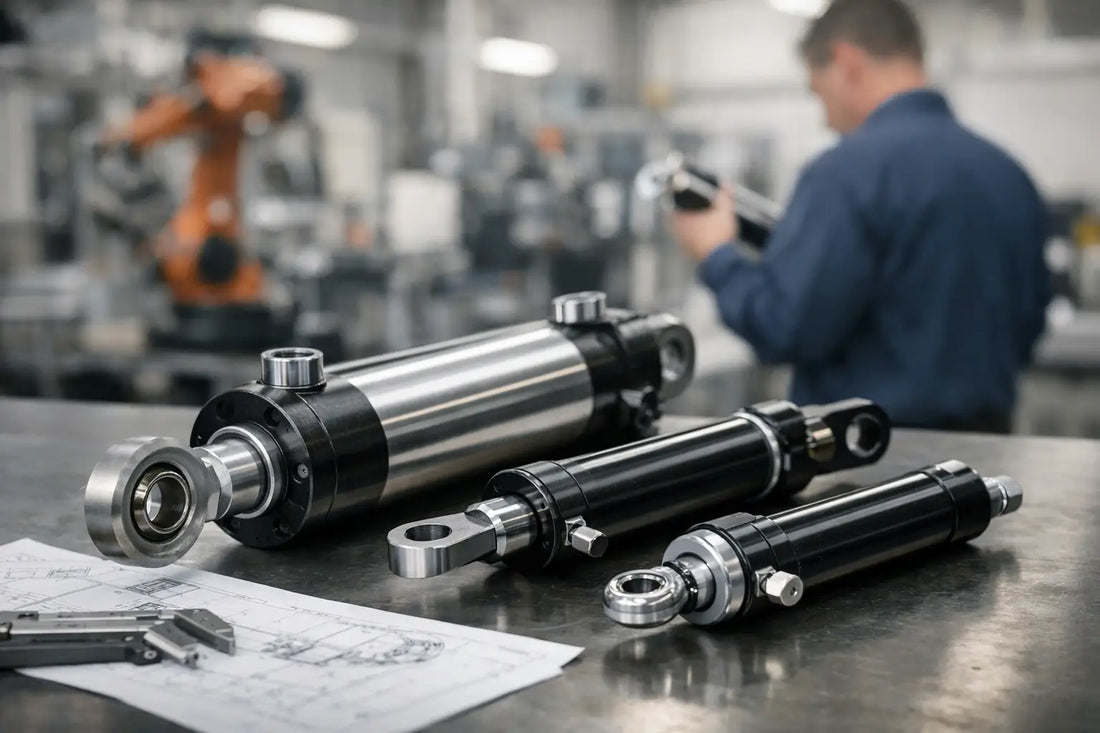

A cylinder failure rarely arrives at a convenient time. A leaking rod seal, bent piston rod, or damaged barrel can stop a press, lift, clamp, conveyor, or mobile machine while production waits. Hydraulic cylinders are straightforward components in principle, but selecting a replacement under downtime pressure requires more than matching the overall length.
The right replacement must fit the machine mechanically, handle the operating load, connect correctly to the hydraulic circuit, and perform within the system's pressure range. For maintenance and procurement teams, the fastest path is to identify the installed cylinder accurately before comparing available inventory.
Start With the Existing Hydraulic Cylinder
If the original cylinder is still on site, its nameplate is the first place to look. Record the manufacturer, complete part number, model or series, serial number if present, and any stamped dimensions. A complete OEM number can reduce a multi-hour identification process to a direct part search.
Nameplates are often painted over, corroded, missing, or limited to a partial code. In that case, take clear photographs of the cylinder from several angles before removal. Include the ports, both mounting ends, the rod end, and any labels. Measure the cylinder only after it has been isolated, depressurized, and made safe according to plant procedures.
A replacement decision should be based on the cylinder's functional specifications, not on its general appearance. Two tie-rod cylinders may look nearly identical while having different stroke lengths, port threads, mounting dimensions, seal materials, or pressure ratings. Those differences can turn a seemingly close match into an installation delay.
Specifications That Determine Fit
The bore is the internal diameter of the cylinder barrel. It directly affects force output. At a given pressure, a larger bore produces more push force, while a smaller bore produces less. The rod diameter also matters because it affects pull force, buckling resistance, and the annular area on the rod side of a double-acting cylinder.
Stroke is the usable travel distance from fully retracted to fully extended. Do not estimate it from the cylinder's closed length. Measure the actual travel, or verify it against drawings and machine documentation. A cylinder with the wrong stroke can prevent a mechanism from reaching its work position or can overtravel into adjacent equipment.
Retracted and extended pin-to-pin dimensions are equally important on mounted equipment. They confirm whether the cylinder will sit in the machine correctly throughout its travel. When replacing a custom or older OEM unit, these installed dimensions may be more useful than a broad product-series designation.
The key information to capture includes:
- Bore diameter, rod diameter, and stroke
- Retracted and extended center-to-center dimensions
- Mounting style and mounting dimensions
- Port type, port size, and port orientation
- Maximum working pressure and operating environment
Mounting Style Is Not Interchangeable by Default
Cylinder mounting determines how force moves into the machine frame. Common configurations include clevis mounts, cross-tube mounts, trunnion mounts, flange mounts, foot mounts, and threaded body mounts. The rod end may use a clevis, eye, spherical bearing, threaded stud, or custom attachment.
A mounting style that is merely similar can create side loading. Side loading accelerates seal wear, scores the rod or barrel, and can bend a rod over time. For a cylinder used in a pivoting mechanism, check pin diameter, pin spacing, bushing condition, and whether the mount requires spherical movement. For fixed linear motion, verify alignment between the cylinder and the driven load.
Confirm Ports Before Ordering
Port details are a frequent source of last-minute problems. Identify whether the ports use NPT, SAE straight-thread O-ring, JIC-related adapters, metric threads, or another connection standard. Record both the thread and the port location. A cylinder with correct force capacity but ports facing the wrong direction may require fittings or hose routing changes that are impractical inside a guarded machine.
Also determine whether the application uses a single-acting or double-acting design. A single-acting cylinder uses hydraulic pressure in one direction and returns by spring, gravity, or external force. A double-acting cylinder uses pressure to extend and retract. Replacing one with the other without redesigning the circuit is not a field substitution.
Match Pressure, Load, and Duty Cycle
A cylinder's rated working pressure must meet or exceed the machine's maximum system pressure. Do not confuse normal operating pressure with relief-valve setting, pressure spikes, or intensification conditions. The system may see short-duration loads beyond the pressure typically displayed at the pump.
Force is calculated by multiplying hydraulic pressure by effective piston area. For extension, use the full bore area. For retraction on a double-acting cylinder, use the bore area minus the rod area. This distinction matters when a machine needs substantial pull force, not only push force.
Higher capacity is not automatically a better replacement. Increasing bore size can change speed, flow requirements, and machine forces. A larger cylinder may move more slowly with the same pump flow, overload a fixture, or exceed the structural limits of a linkage. It may also require different mounting geometry. When the original specification is known, matching it is usually the lowest-risk approach.
Duty cycle and environment influence seal selection and expected service life. Standard seals may be suitable for common mineral hydraulic oil and normal industrial temperatures. High heat, low temperature, water glycol fluid, aggressive chemicals, food-related washdown, or outdoor contamination can require different seal compounds, rod coatings, and wiper designs. A cylinder that fits dimensionally but uses unsuitable seals can fail quickly.
New, Surplus, and Rebuilt Options
When an OEM replacement has a long lead time or has been discontinued, surplus inventory can be a practical option. Surplus does not automatically mean used. It may be unused inventory from excess stock, a plant closure, a canceled project, or an overstocked storeroom. The condition description matters, as do photographs and the exact manufacturer part number.
A new surplus cylinder can be especially useful when it is an exact match to an installed unit and is ready to ship. The trade-off is that quantities may be limited, packaging may show storage wear, and the original factory support path may differ from buying current production. Buyers should confirm condition, included accessories, and return terms before placing an urgent order.
Rebuilt cylinders can make sense for large, custom, or obsolete units when a qualified repair path is available. However, turnaround time, internal condition, warranty coverage, and dimensional accuracy should be evaluated carefully. A rebuilt unit is not the same procurement decision as an in-stock replacement. If downtime is critical, compare the actual ready date, not just the quoted repair duration.
Build a Better Replacement Request
The fastest sourcing requests give suppliers enough information to verify a match without repeated emails. Lead with the exact manufacturer and part number when available. If no number exists, provide the measurements, mounting photos, port information, operating pressure, and the equipment function.
State whether an exact replacement is required or whether an equivalent is acceptable. That distinction changes the search. For an OEM machine under warranty or a tightly engineered production cell, an exact unit may be necessary. For a noncritical fixture or legacy machine, an equivalent may be workable if mounting, force, pressure, stroke, and connections are confirmed.
Include the quantity needed and the required delivery date. A single in-stock unit may restore production today, while a larger planned requirement may call for a different procurement approach. MRO Exchange supports industrial buyers looking for available surplus parts, but availability is inventory-specific. Confirm the exact item before committing a repair plan around it.
Inspect Before Installation
Even a correct part should be inspected before it goes on the machine. Check the barrel and rod for shipping damage, corrosion, dents, thread damage, and contamination. Verify that protective port plugs are present and that the rod is clean. Compare the received part number and physical dimensions against the purchase order and the removed cylinder.
During installation, keep hydraulic lines clean, use correct fittings, and avoid forcing hoses into a side-loaded position. Bleed air according to equipment procedures, then run the cylinder slowly through several cycles while checking for leaks, interference, and unusual motion. Recheck mounting hardware after initial operation if the machine manufacturer recommends it.
The best cylinder replacement is not simply the one that arrives first. It is the one that restores the machine without creating a second failure point. Accurate identification, clear specifications, and a realistic view of what can be substituted will make urgent sourcing faster and keep the repair under control.
