A failed operator screen can stop a production cell even when every motor, drive, PLC, and sensor behind it is still operating correctly. This urgent HMI replacement case study follows a representative maintenance scenario: a legacy HMI failed during a scheduled production run, the OEM lead time was unacceptable, and the maintenance team needed a compatible replacement in hand before downtime spread into additional shifts.
The details matter because an HMI is rarely just a display. It is the point where operators select recipes, acknowledge alarms, monitor process values, and start or stop equipment. Replacing it under pressure requires more than finding a screen that looks similar. The team must identify the exact unit, confirm compatibility, protect the machine program, and arrange shipment quickly enough to restore production.
Urgent HMI Replacement Case Study: The Failure
The plant operated a packaging line built around a legacy PLC platform and a 10-inch touchscreen HMI. At the beginning of the first shift, operators reported an intermittent blank display. The unit restarted twice, then stopped booting entirely. The PLC remained online, but without the HMI, operators could not reliably change product settings, clear active faults, or run the line through normal startup procedures.
The maintenance manager first checked the likely external causes: control power, the 24 VDC supply, grounding, communication wiring, and cabinet temperature. Voltage at the HMI terminals was within range, the power supply was stable, and the PLC showed no network fault indicating a failed communications cable. The HMI itself was the likely failure point.
That diagnosis created a sourcing problem. The installed HMI was an older model no longer readily available through the original equipment channel. A current-generation model was available as a possible migration option, but it required engineering review, software conversion, panel modifications, and likely changes to the communications configuration. That might be the right long-term project. It was not the right answer for an idle line.
The team needed an exact or verified compatible legacy replacement, ready to ship.
Why the Part Number Was the Starting Point
The first question was not, “What size screen do we need?” It was, “What is the complete manufacturer part number?” A partial number, product family name, or photo of the front bezel can lead to an expensive error.
An HMI family may include units with identical dimensions but different power requirements, display types, Ethernet options, serial ports, memory capacity, or firmware support. A unit that mounts in the panel opening may still fail to communicate with the existing PLC or may not accept the application file.
The maintenance team documented the full catalog number from the rear label, including suffixes. They also recorded the serial number, hardware revision, and installed firmware version when available. Photographs of the rear label, connectors, and panel cutout were shared with the buyer responsible for sourcing. Those details reduced the risk of ordering a near-match that would add another day of downtime.
The Compatibility Checks That Protected the Repair
Before approving a replacement, the team compared the candidate unit against the failed HMI. This was a practical verification process, not a general product search. The critical checks included:
- Exact manufacturer and complete part number, including any revision or option suffix
- Input voltage and power connector type
- Screen size, panel cutout, mounting hardware, and environmental rating
- Ethernet, serial, USB, and fieldbus communication ports
- PLC protocol and driver support for the installed control system
- Firmware version and compatibility with the existing HMI application
- Availability of the current HMI project file and any required user credentials
The team also confirmed that the HMI was not handling safety functions. It displayed safety status and alarms, but emergency stops and safety interlocks were controlled independently through the machine safety circuit. That distinction matters. An HMI should not be treated as a substitute for safety controls, and any replacement plan should preserve the machine’s validated safety design.
Repair, OEM Replacement, or Surplus Inventory?
With the technical requirements defined, the plant considered three paths. Sending the failed unit for repair could be cost-effective when a repair provider can evaluate it quickly and when the plant has a spare. Here, the line could not wait for evaluation, repair, return shipping, and reinstallation. Repair remained a possible backup plan, but not the immediate recovery path.
Ordering a current OEM replacement carried the advantage of a supported product line and a future-oriented platform. The trade-off was lead time and implementation effort. A newer HMI might require a different panel cutout, updated software, revised drivers, or a full validation of machine operation. For a planned modernization, those requirements are manageable. During an active outage, they can extend downtime substantially.
The third option was surplus inventory. For an obsolete or hard-to-source HMI, a verified in-stock surplus unit can be the most direct route back to operation. The benefit is availability. The trade-off is that buyers need to evaluate condition, confirm the exact part number, review supplier information carefully, and understand the return or warranty terms before purchasing.
In this case, the buyer located an in-stock unit matching the required catalog number through MRO Exchange. The seller confirmed availability, and the plant selected expedited shipping after verifying the unit’s specifications against the failed HMI label and project requirements.
From Purchase Order to Production Restart
The replacement was dispatched the same day. While it was in transit, maintenance prepared the cabinet for installation instead of waiting for the shipment to arrive. They tagged and photographed every connection, saved a final copy of the project backup, checked the panel gasket and mounting clips, and reviewed the startup procedure with operations.
This preparation was not busywork. A rushed installation can create a second failure if the power polarity is reversed, a communication cable is missed, the panel seal is damaged, or the wrong project file is loaded. The team also verified that the machine could be placed in a safe state before reconnecting the new HMI.

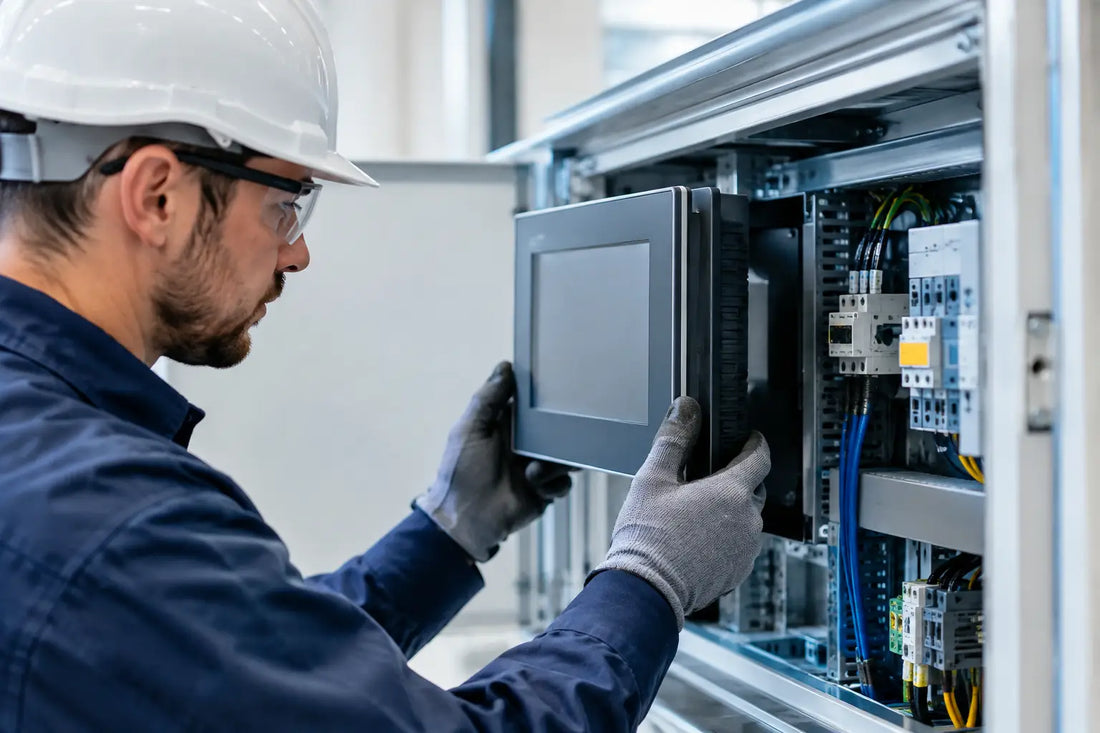

The replacement arrived the next morning. Installation took less than an hour, followed by application download and communication checks. The first power-up confirmed display operation and network connection. The maintenance technician then checked recipe selection, alarm acknowledgment, production counters, and key operator screens before releasing the line to operations.
The line returned to production within 36 hours of the original failure report. More importantly, the recovery did not require an unplanned controls redesign. The plant avoided losing additional operating shifts while preserving time to plan a future modernization on its own schedule.
What This HMI Replacement Case Study Shows
The speed of the recovery came from decisions made before the purchase, not from shipping alone. The team identified the failure correctly, captured the full part number, confirmed the application backup, and selected a replacement based on technical fit rather than appearance. Fast fulfillment only helps when the ordered equipment is the right equipment.
This approach works best when the existing HMI platform is stable, the application is available, and an exact replacement will restore the machine without design changes. It is less suitable when the old unit has recurring failures, the software is unavailable, the control system is being upgraded, or the plant needs new cybersecurity and remote-access capabilities. In those situations, an engineering-led migration may be the better investment.
For maintenance teams, the practical lesson is to treat legacy HMI availability as part of the uptime plan. Record critical part numbers, maintain current program backups, and identify which operator interfaces have no installed spare. When an operator screen goes dark, the best time to start verifying compatibility is not after the line has already stopped.
