ABB DC Drive Contactor EHDB110
ABB DC Drive Contactor EHDB110
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus inventory. Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund.

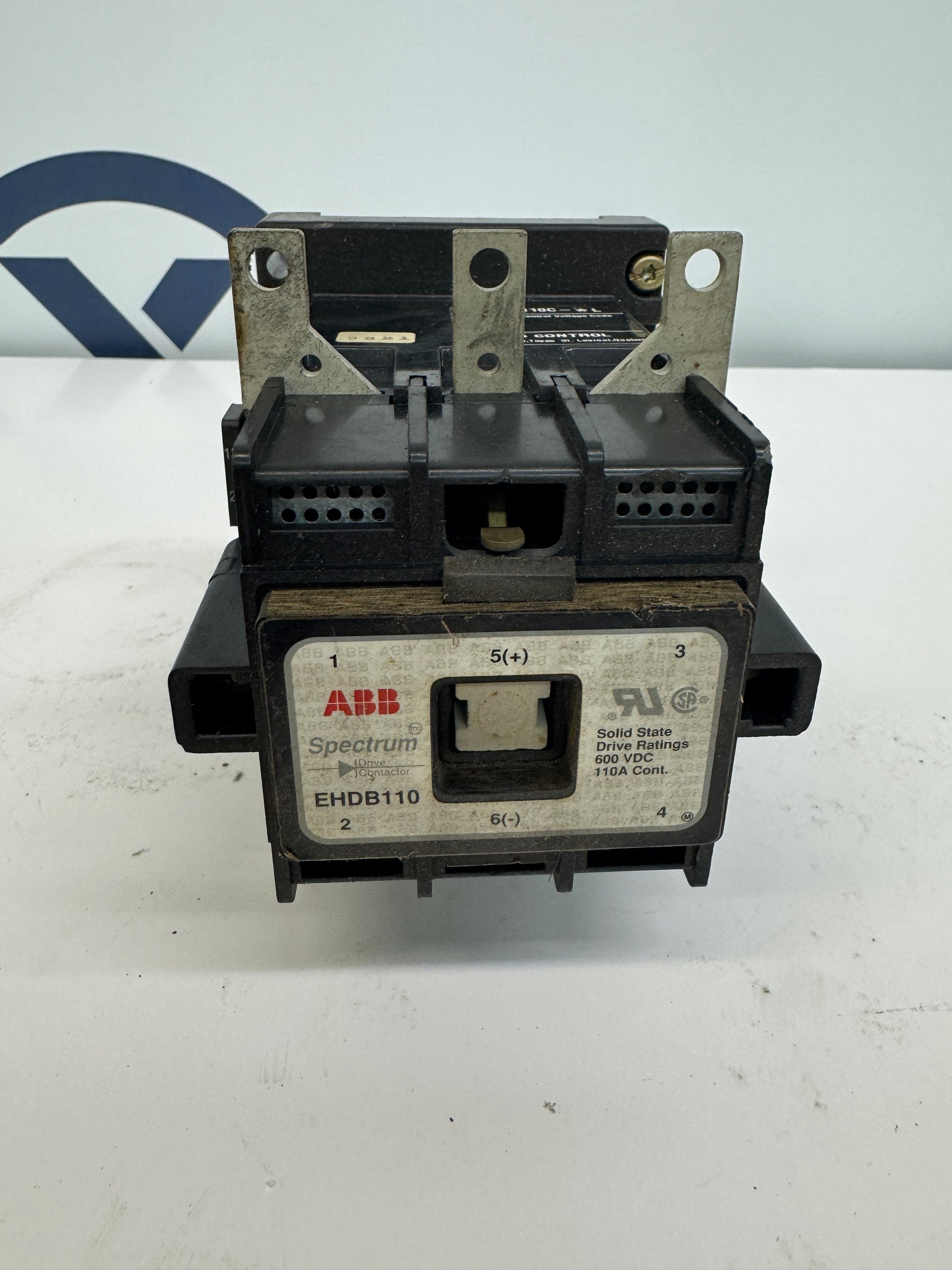

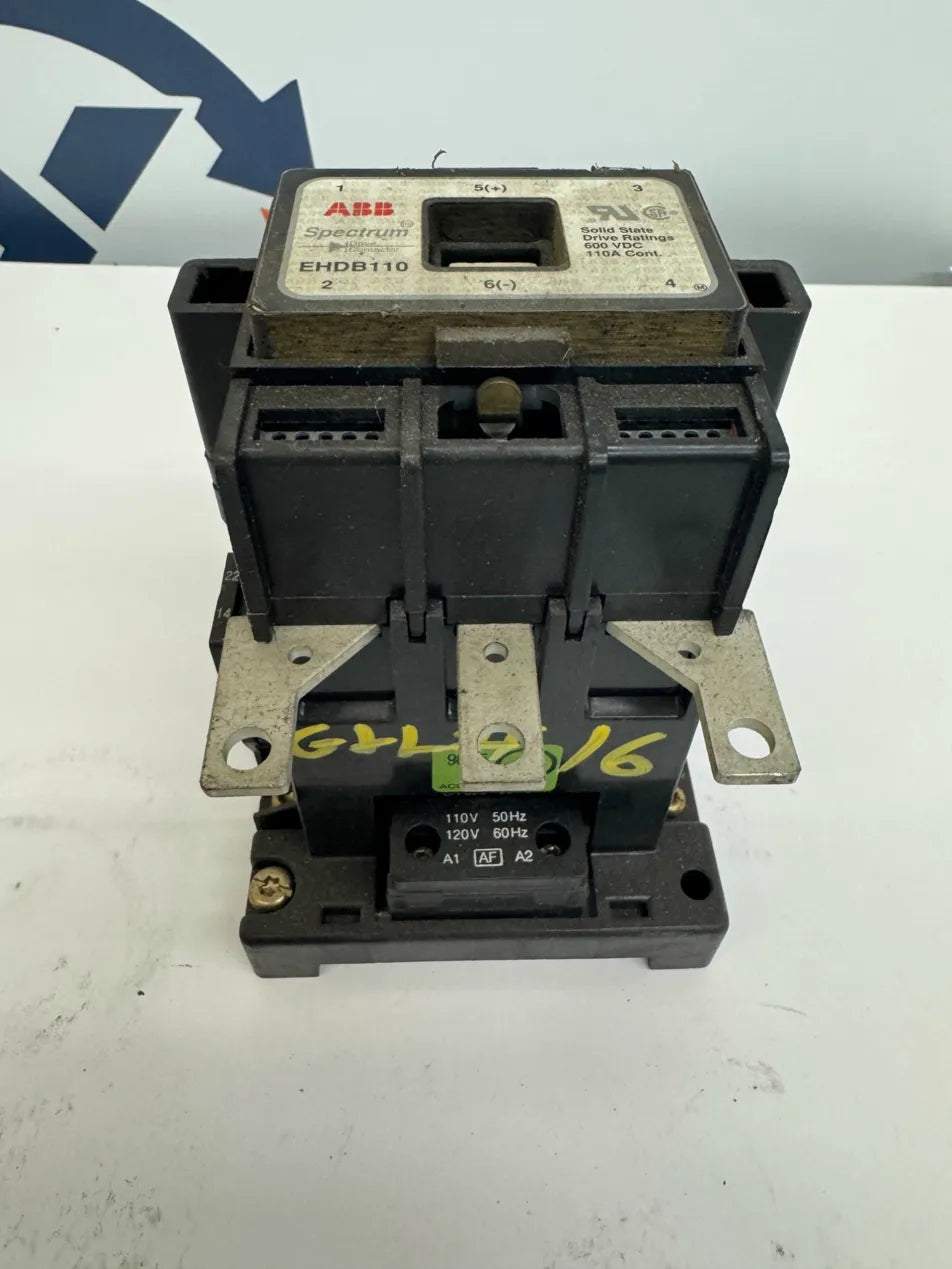

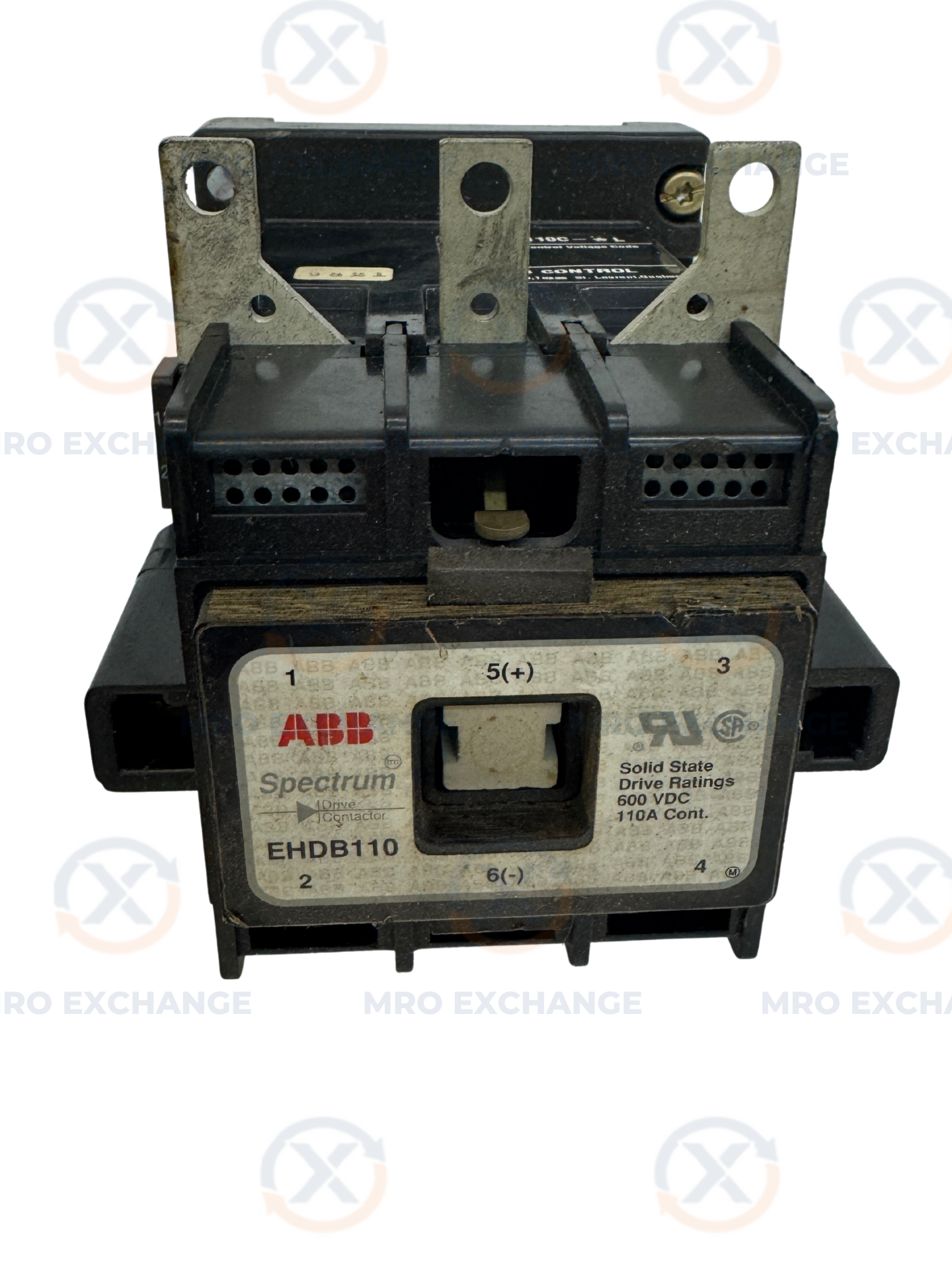

Used in solid state DC adjustable speed drive systems, the ABB Spectrum EHDB110 is a 3-pole DC drive contactor rated for 110A continuous current at 600 VDC. The unit carries the ABB Spectrum "Drive Contactor" designation and is designed for applications where the contactor is not required to make or break the load under normal operating conditions. The coil is rated at 110V AC at 50Hz and 120V AC at 60Hz, as confirmed by the visible nameplate. Terminal markings visible on the unit include poles 1 through 4 on the main contacts, with 5(+) and 6(-) designations consistent with the EHDB series polarity-dependent NC contact configuration used for dynamic braking circuits. An auxiliary contact block is mounted to the unit, marked CAL 16-11A, rated 600V AC and 10A per the visible label. The full catalog reference visible on the back label reads EHDB 110C. UL and CSA listings are confirmed by visible marks on the nameplate. ABB positions the Spectrum EHDB series as a purpose-built solution for solid state DC drive environments, where standard AC contactors are not suitable due to DC arc interruption requirements.
Stock # 0226-702
Surplus inventory sold as described. Please review photos, specifications, and compatibility details carefully before purchase. Reach out with any questions prior to ordering.
