Alberti Right Angle Head T90-3.5R-182 / 4013455P-150 | CAT40 | 4000 RPM Max, Internal Coolant | Orientation: Radial | Coolant Through

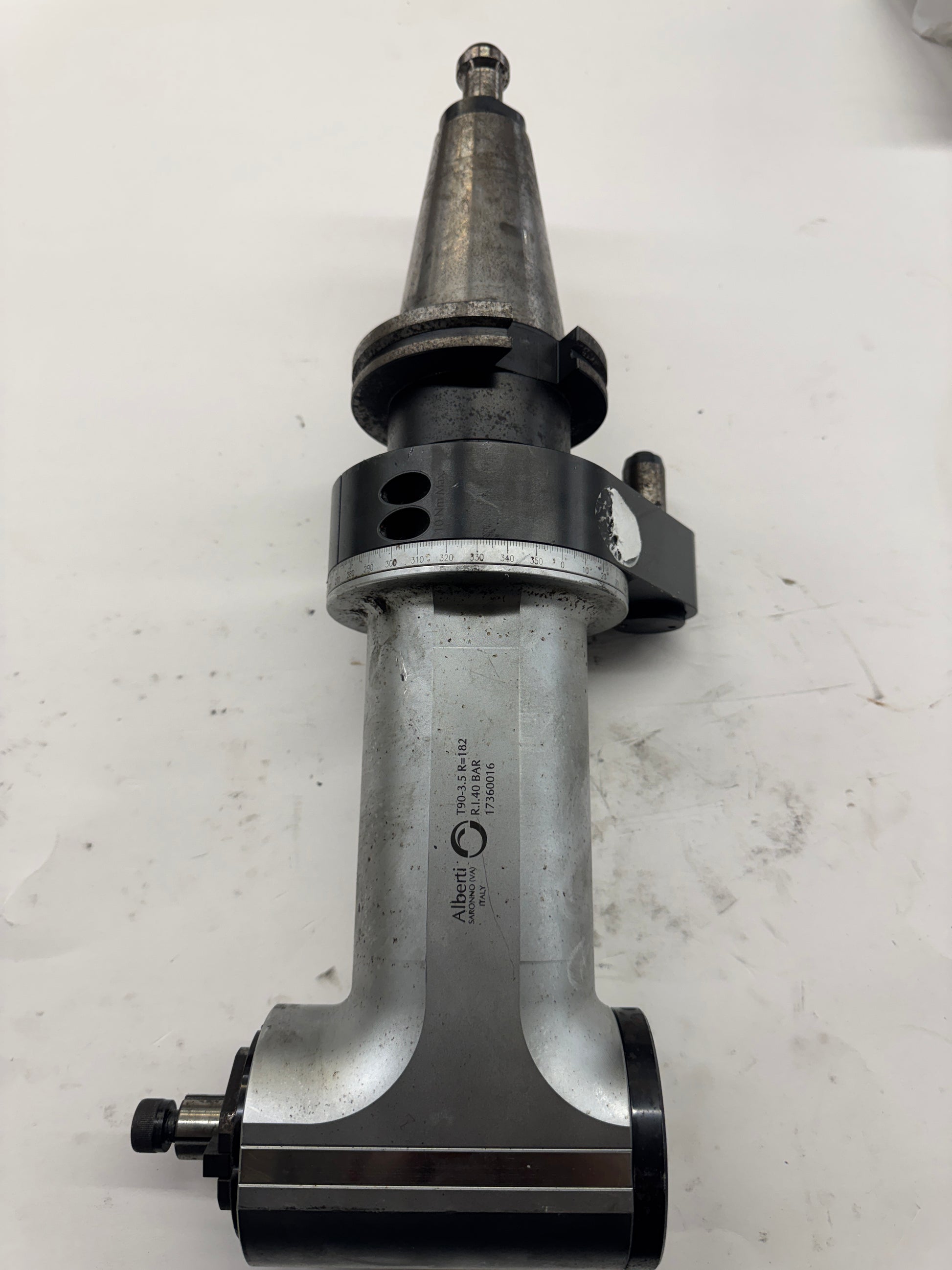

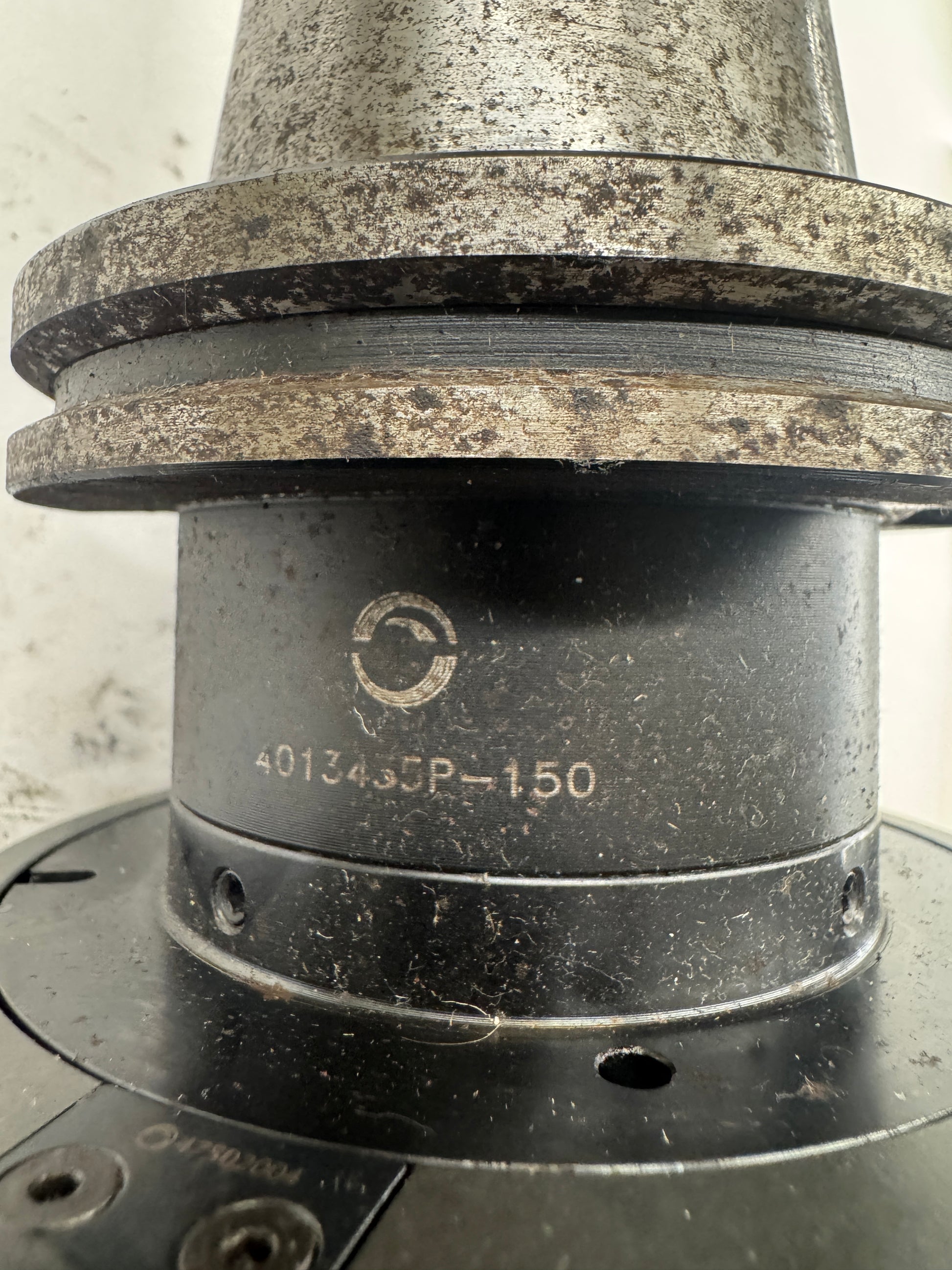

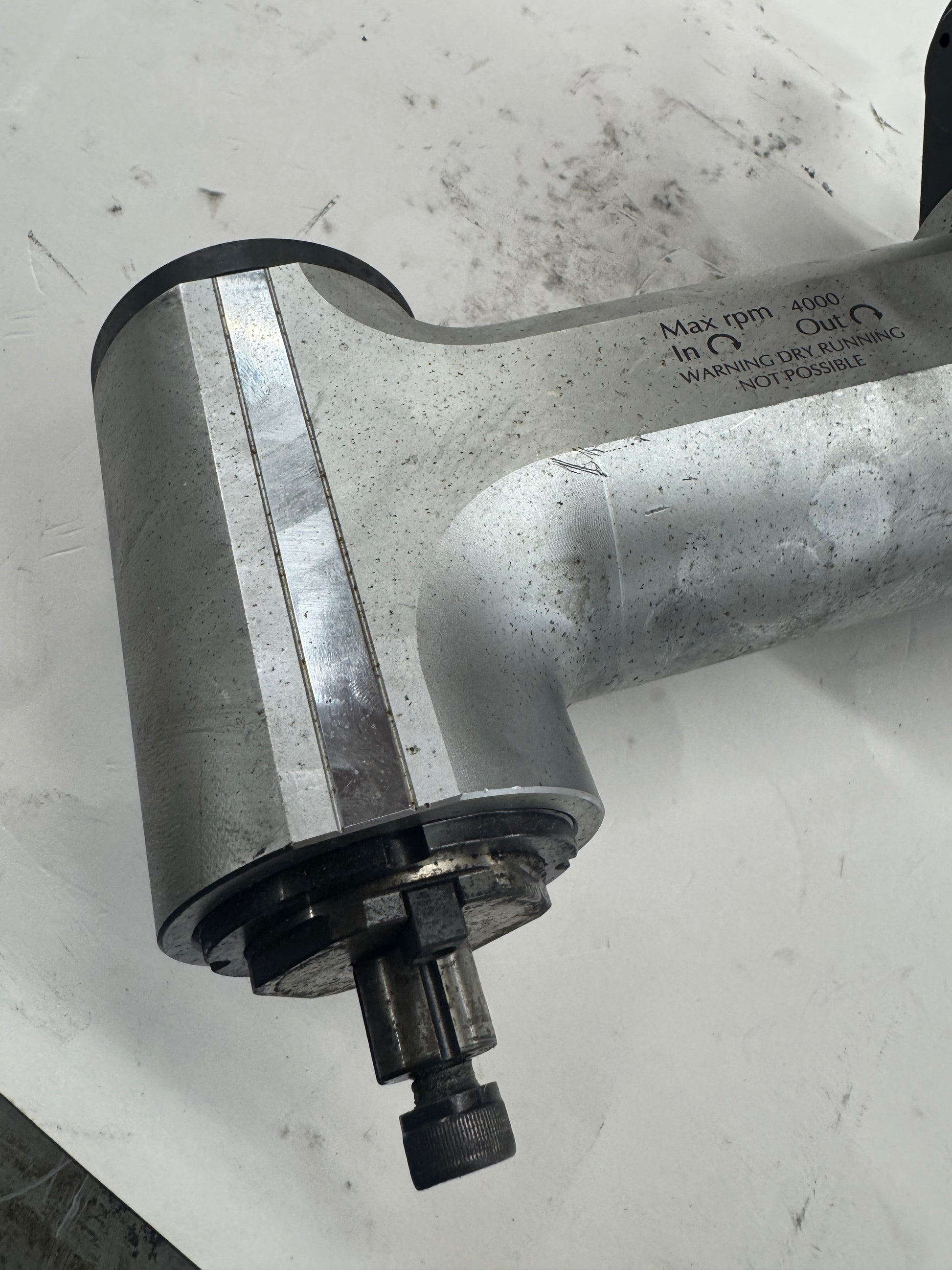

The Alberti T90-3.5R-182 is a 90-degree right angle milling head with a CAT40 input shank, manufactured by Alberti Umberto S.r.l. in Italy. Part number 4013455P-150 is laser marked on the body, with serial number 17360016 visible on the nameplate. The unit operates at a maximum of 4,000 RPM as stated on the casting. Internal coolant flow through is required for operation; the body carries a warning that dry running is not possible, consistent with Alberti's standard design for this line. Coolant inlet and outlet ports are visible on the body.

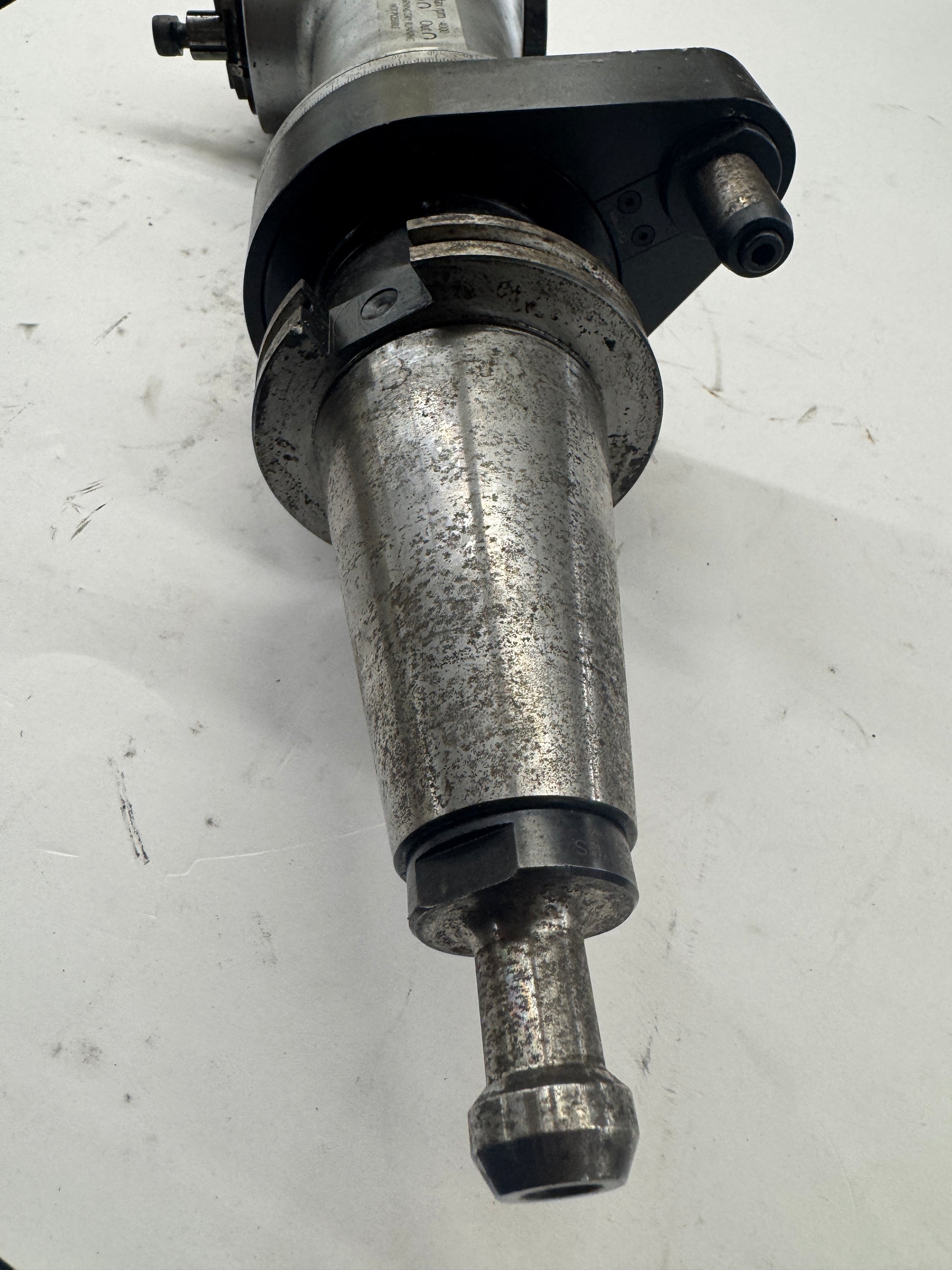

The T90-3.5R designation places this unit in Alberti's T90 Linea Control series, which are single-output 90-degree angular heads designed for use in CNC machining centers requiring radial milling, drilling, or tapping operations not achievable with the machine's primary spindle orientation. The RJ40 BAR designation visible on the nameplate confirms the CAT40 input interface. A graduated indexing ring is present, allowing precise angular orientation of the output spindle. The large-diameter aluminum and steel body construction is characteristic of the 3.5-size class within the Alberti T90 family, which is rated for higher torque and axial load capacity than smaller series units.

This unit is offered as surplus. Alberti is an Italian precision tooling manufacturer recognized internationally for premium angle head products and commands corresponding pricing in the US surplus market.

Stock # 0426-02122
