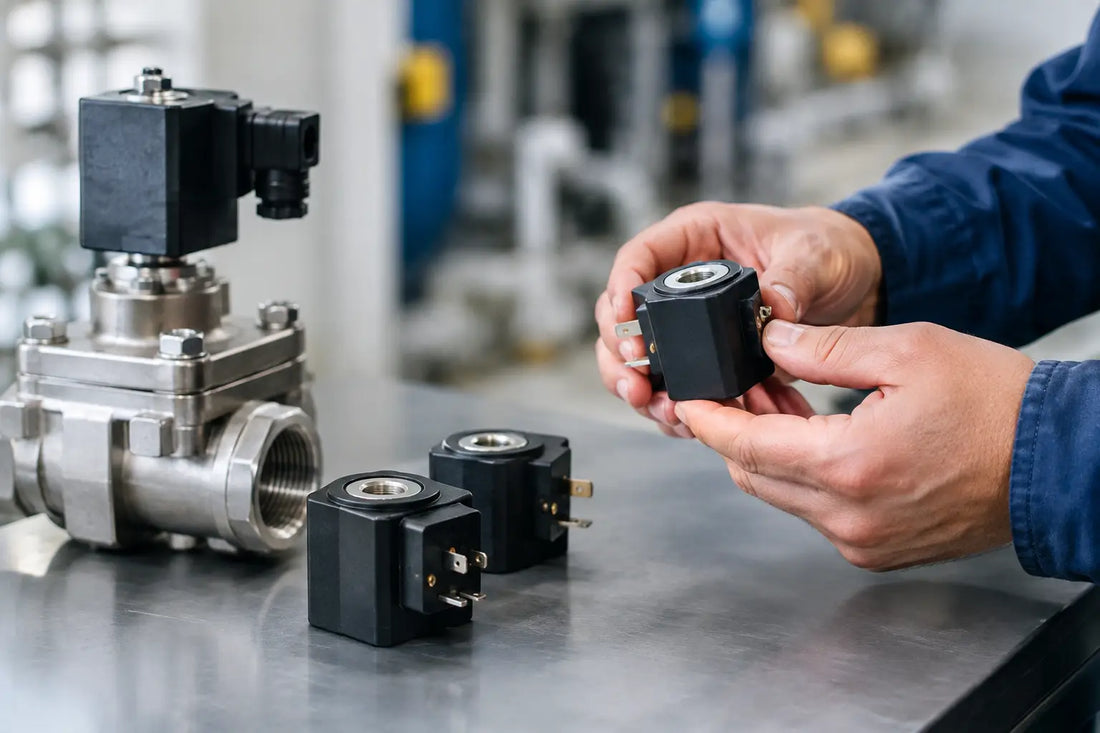

When to Replace Solenoid Coils in Industrial Systems
AdminShare
A solenoid valve that will not shift can stop a machine just as effectively as a failed motor starter. The difficult part is determining when to replace solenoid coils and when the actual problem is the valve, wiring, power supply, or control signal. Replacing a coil without confirming the fault can waste time and leave the equipment down. Waiting too long on a degraded coil can turn an intermittent issue into an unplanned shutdown.
For maintenance teams, the best decision comes from a combination of visible condition, electrical test results, operating behavior, and verified part specifications. A coil is a relatively simple component, but it operates in environments that are often hot, wet, dirty, high-vibration, or electrically demanding. Those conditions shorten service life.
When to Replace Solenoid Coils: The Main Warning Signs
Replace a solenoid coil when it has a confirmed electrical failure, physical damage that affects safe operation, or repeatable performance problems that remain after the valve and circuit have been checked. The most common sign is a coil that no longer energizes or produces enough magnetic force to shift the valve armature.
A burned smell, darkened housing, melted insulation, or cracked encapsulation are clear reasons to remove the coil from service. These conditions usually point to overheating. The underlying cause still matters. A coil may overheat because it is receiving the wrong voltage, being held energized beyond its duty rating, operating in high ambient heat, or fighting a sticking armature. Installing a new coil without addressing that cause can result in another failure.
Intermittent operation also deserves attention. If a valve works after the cabinet cools down, fails after several cycles, or responds only when a technician moves the connector or cable, the issue may be inside the coil, in the lead wire, or at the connection point. Do not assume that an intermittent valve is automatically a mechanical valve failure.
A loud hum or unusual buzzing can be another indicator, particularly on AC coils. Some low-level noise is normal on certain designs. A coil that suddenly becomes noticeably louder, however, may be running with a loose or contaminated armature, low supply voltage, or internal damage. That condition produces heat and should be investigated before the component fails completely.
Separate Coil Failures From Valve Failures
The coil creates the magnetic field. The valve armature, spool, poppet, seals, and internal passages perform the mechanical work. A good coil cannot correct a valve that is blocked by contamination, corrosion, worn seals, or a mechanically seized spool.
Start by confirming whether the coil is receiving the correct command voltage at its terminals while the machine is calling for the valve to actuate. If rated voltage is present but the valve does not shift, disconnect power and test the coil. If the coil tests correctly, inspect the valve body and process conditions. Contaminated hydraulic fluid, wet pneumatic air, debris in a pilot passage, and incorrect mounting can all prevent movement.
Conversely, if the valve shifts when a known-good coil is installed, the original coil is the likely issue. This substitution test is useful only when the replacement coil is verified for the same voltage, connector style, power rating, duty cycle, and valve platform. A coil that physically slips over the armature may still be electrically or thermally incorrect.
Electrical Tests That Support a Replacement Decision
A basic resistance test is often the fastest way to identify an open or shorted coil. With the circuit de-energized, isolated, and verified safe, measure resistance across the coil terminals using a multimeter. Compare the reading with the manufacturer specification or with a known-good matching coil.
An infinite or extremely high resistance reading usually indicates an open winding or broken internal connection. Near-zero resistance can indicate a shorted winding. Either result calls for replacement. A reading that appears normal does not fully prove the coil is good, because insulation breakdown or connection faults may occur only under heat, vibration, or operating voltage.
For coils that fail intermittently, test at ambient temperature and again after the machine has run long enough for the fault to appear. Check voltage at the coil during operation, not only at the output card or terminal block. Voltage drop through undersized conductors, damaged connectors, loose terminals, or corroded contacts can keep a good coil from pulling in reliably.
Do not use resistance alone to select a replacement. DC and AC coils can have very different resistance values, and nominally similar coils from different manufacturers may not match. Part number verification remains the safer purchasing method.
Heat, Duty Cycle, and Environment Matter
Coil temperature should be evaluated in context. Many industrial solenoid coils run hot during normal service, especially compact DC coils used on hydraulic manifolds and continuously energized pneumatic valves. A hot surface is not, by itself, proof of failure.
The concern is a temperature change from normal operating behavior, excessive heat that discolors the coil or damages nearby wiring, or heat paired with erratic operation. Check whether the coil is rated for continuous duty or intermittent duty. An intermittent-duty coil used in a continuously energized circuit can fail early even if the voltage is correct.
Ambient conditions matter as well. Oil exposure, washdown, chemical contact, metal fines, vibration, and direct radiant heat all affect coil life. A replacement should match the required enclosure and environmental rating. In a washdown area, for example, a standard coil may work briefly but fail prematurely if moisture reaches the connector or winding area.
Verify These Specifications Before Ordering
A correct replacement requires more than matching the word “solenoid” on a label. Maintenance and purchasing teams should capture the information from the old coil, valve documentation, machine electrical drawings, and the equipment nameplate when available.
Verify these details before releasing an order:
- Manufacturer and exact coil or valve part number
- AC or DC supply type and nominal voltage
- Frequency for AC coils, such as 50/60 Hz or 60 Hz
- Wattage, VA rating, current draw, and duty-cycle requirement
- Coil bore, armature tube diameter, height, and mounting method
- Connector type, pin configuration, cable length, and indicator requirements
- Environmental, temperature, insulation-class, and hazardous-location requirements
- Valve series or manifold compatibility
If the original component is obsolete, cross-reference carefully rather than selecting by appearance. Surplus inventory can be a practical option for discontinued components, but buyers should still confirm condition, exact identifiers, and compatibility with the installed valve.
Replace the Coil Safely and Correctly
Before removal, apply the site lockout/tagout procedure and release stored pneumatic, hydraulic, or process pressure as required. Photograph the wiring and connector orientation if the installation is not clearly labeled. This is particularly useful on manifold assemblies with several similar valves.
Inspect the armature tube, connector, cable, and terminal contacts while the coil is removed. A damaged connector gasket, loose DIN plug, brittle lead wire, or corroded terminal can mimic a failed coil. Clean only as permitted by the equipment manufacturer. Do not force tools into the armature area or alter a valve tube to make an incorrect coil fit.
After installing the replacement, verify supply voltage, energize the circuit, and observe actual valve response. Check for connector heating, abnormal noise, leaks, and repeat fault alarms. On critical equipment, record the replacement part number, date, machine location, and suspected failure cause in the maintenance history. That record helps identify recurring heat, contamination, or voltage problems.
Stock Coils Where Downtime Is Expensive
Not every coil needs to be stocked. Low-use valves with standard, readily available coils may be managed through normal purchasing. Critical machine coils, obsolete valve-series coils, unusual voltages, and components with long OEM lead times are stronger candidates for on-site spares.
A practical spare strategy starts with the equipment that can stop production or create a safety and quality risk. Keep a verified spare for each critical coil type, labeled with its valve series, voltage, and machine application. Avoid building a large assortment of unverified look-alike coils. Fewer, accurately identified spares are more useful than shelves full of uncertain inventory.
When an immediate replacement is needed, MRO Exchange can help industrial buyers locate in-stock surplus components by exact manufacturer and part number. For urgent purchases, provide the full label information and electrical specifications upfront to reduce the risk of ordering a near match instead of the correct coil.
The best time to replace a questionable coil is before a minor electrical symptom becomes a production event. Confirm the fault, correct the condition that caused it, and source a verified replacement that matches the installed system.
