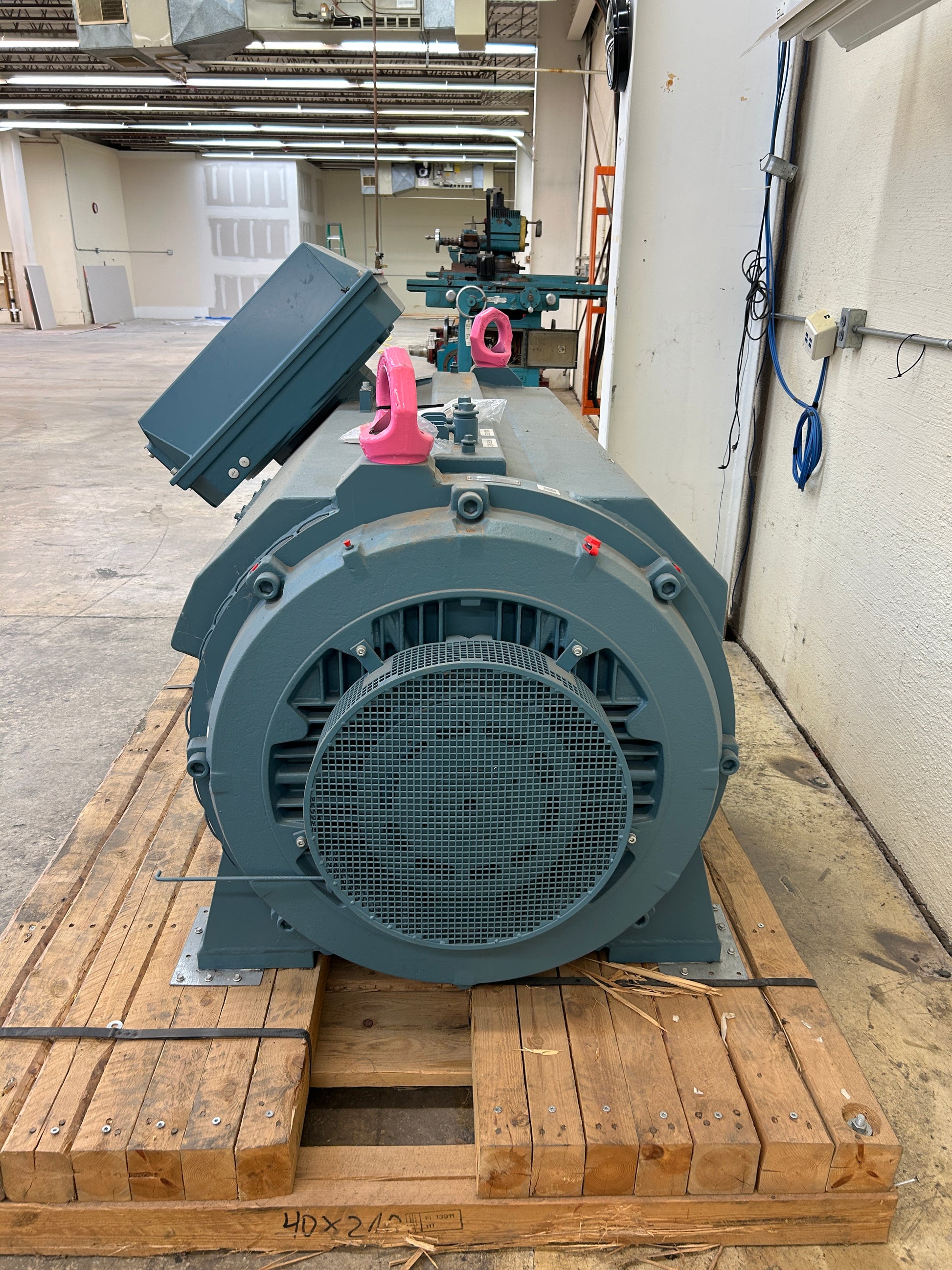

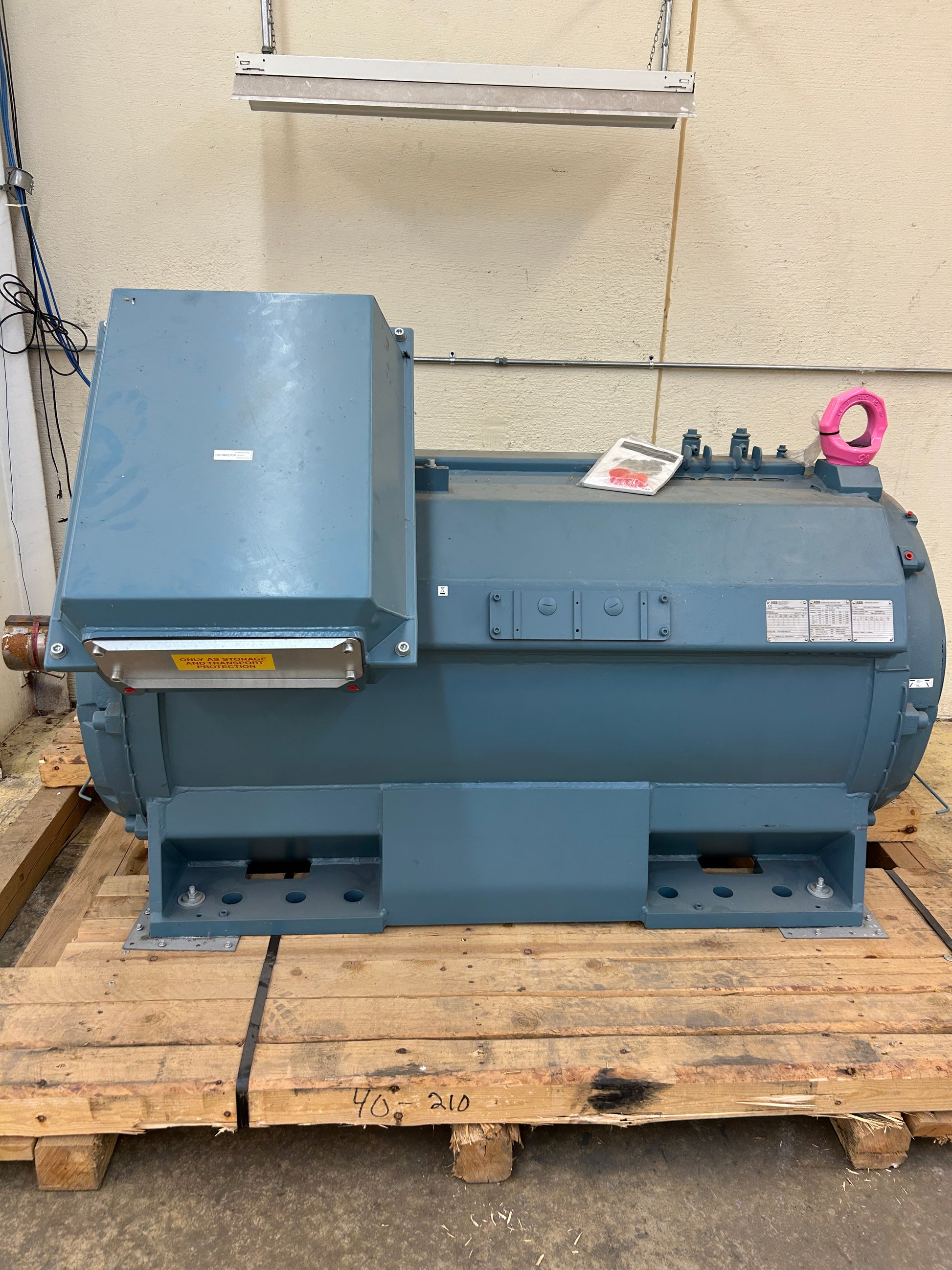

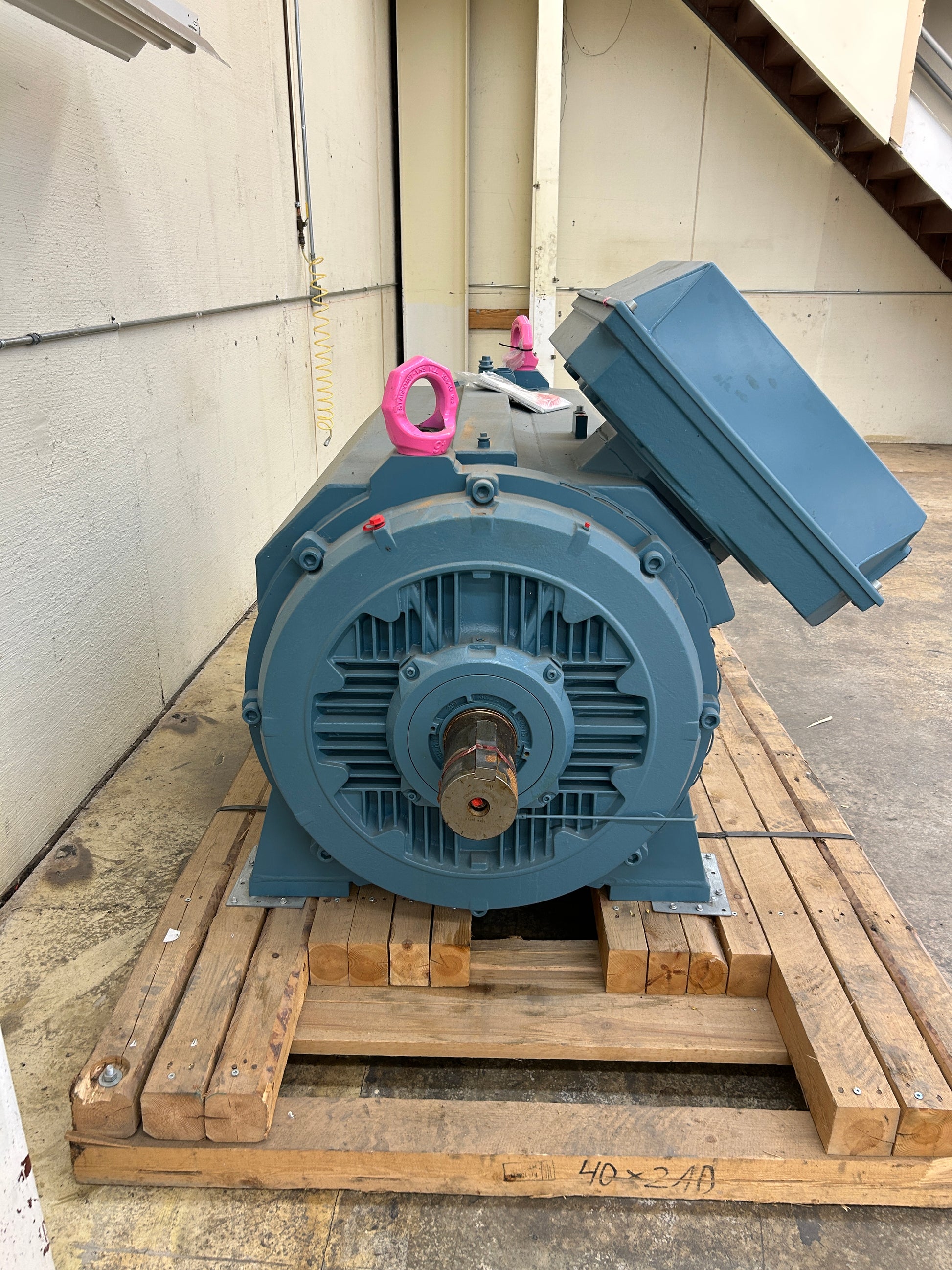

ABB 3GLP453510-RDG AC Induction Motor 800 kW 460V AC 1494 RPM IMB3 Horizontal

$69,999.99 USD

Sale Sold out

✓ 30-day returns on every item — return policy

ConditionSurplus - Untested MPN3GLP453510-RDG Stock #0226-00004

30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.

Shipping

This item ships by custom freight. Check out with local pickup, and we'll contact you with a custom shipping quote.

Same-Day Available
Real support team
Secure checkout

Product Specifications

Manufacturer: ABB Oy, IEC LV Motors (Vaasa, Finland)
MPN / Model: M3LP 450LA 6
Product Code: 3GLP453510-RDG +VC
Product Type: 3-Phase AC Induction Motor
Serial Number: 3G1F2124761092
OEM / Alternate Part Number: 2005681-20
Year of Manufacture: 2021
Voltage: 460V AC (delta)
Frequency: 75 Hz
Phase: 3-Phase
Power: 800 kW
Speed: 1494 RPM
Current: 1326A
Power Factor: 0.84
Duty: S9
Insulation Class: H
Enclosure: IP 55
Mounting: IMB3 / IM1001
Cooling: Water-cooled
Water Inlet: Closer to N-end
Water Outlet: Closer to D-end
Inlet Water Temperature: 35°C max
Water Flow: 50 L/min
Water Pressure: 2 bar min / 5 bar max

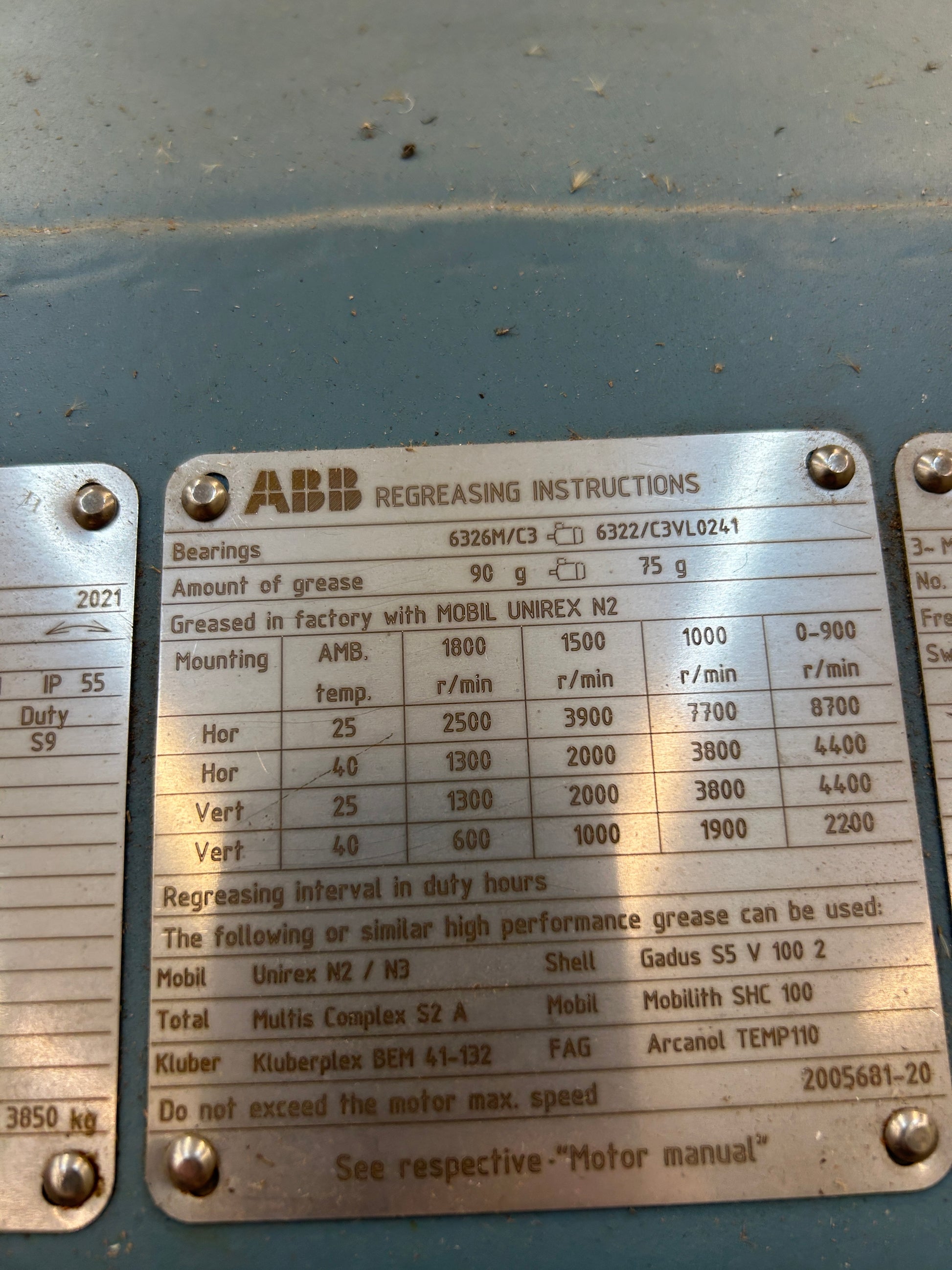

Bearings: 6326M/C3 (drive end), 6322/C3VL0241 (non-drive end)
Weight: 3850 kg
Standard: IEC 60034-1

Product Description

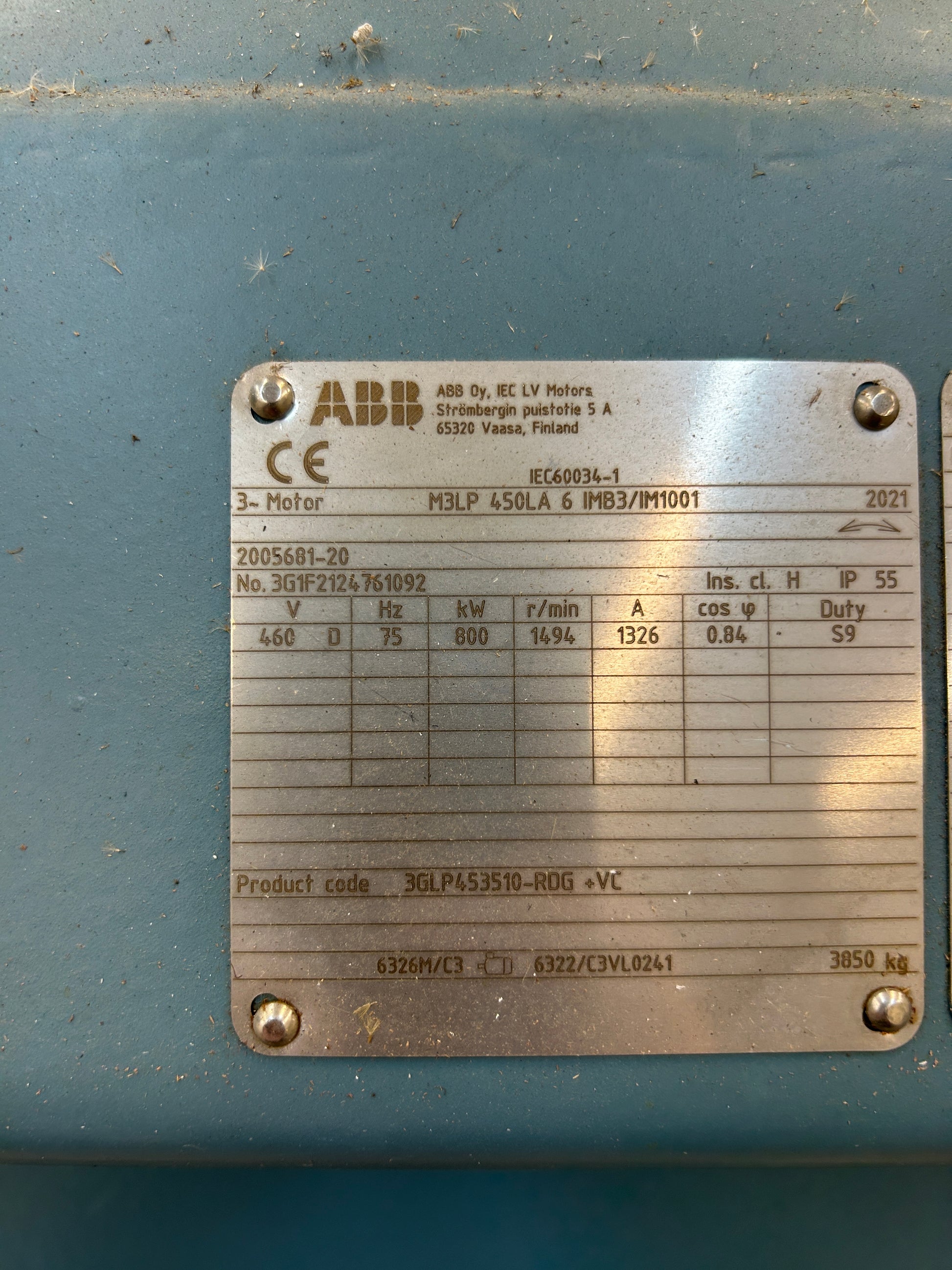

The ABB M3LP 450LA 6 is a three-phase AC induction motor rated 800 kW at 460V, 75 Hz, with a nameplate speed of 1494 RPM and a full load current of 1326A. The nameplate lists a power factor of 0.84 and S9 duty, which covers non-periodic load and speed variation. Insulation is class H with an IP 55 enclosure, and the motor is configured for horizontal foot mounting per IMB3 / IM1001. Bearings are 6326M/C3 on the drive end and 6322/C3VL0241 on the non-drive end. Nameplate weight is 3850 kg. Manufactured in 2021 by ABB Oy, IEC LV Motors, Vaasa, Finland, and built to IEC 60034-1.

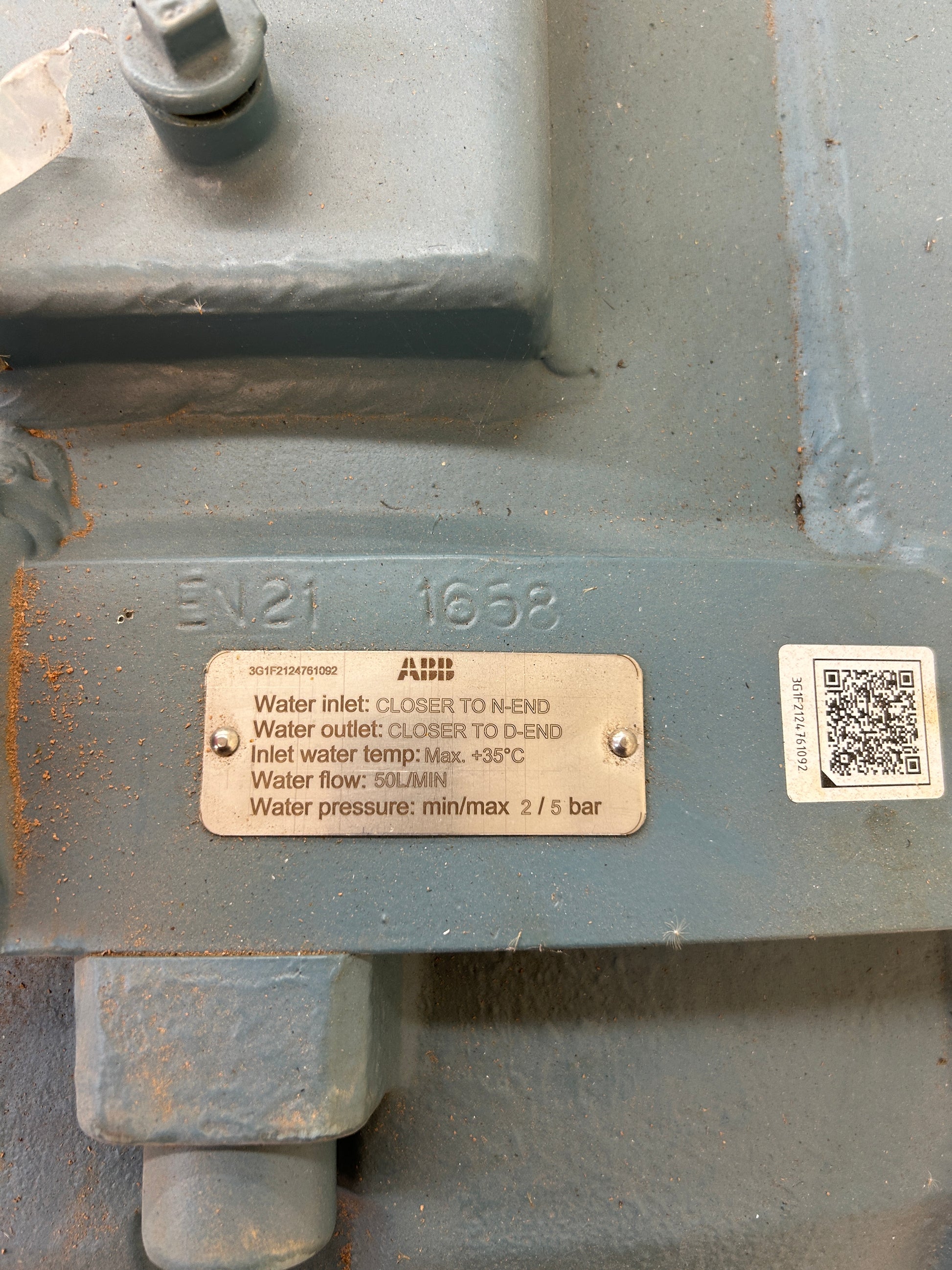

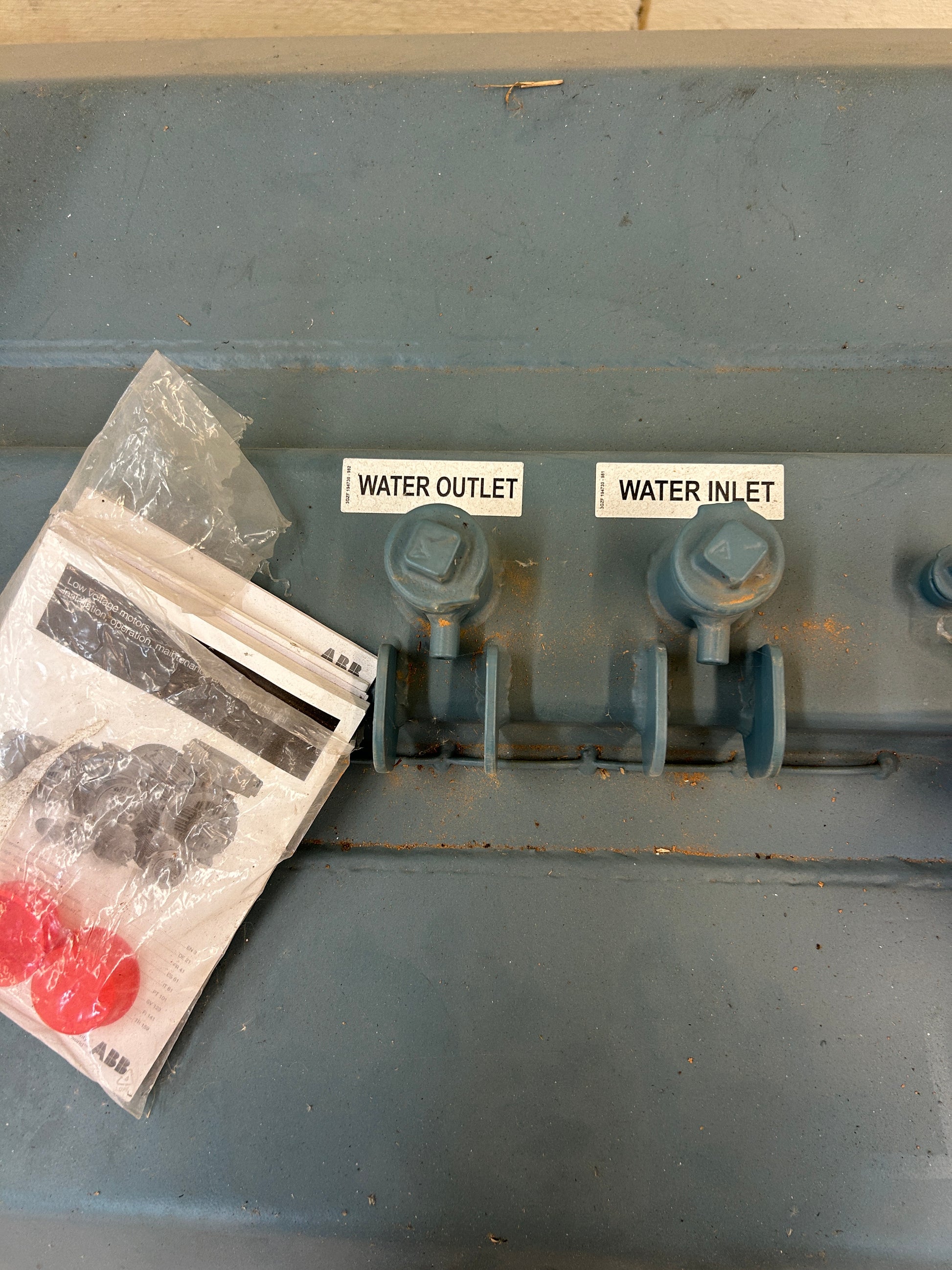

The motor is water-cooled. Per the cooling plate, the water inlet sits closer to the non-drive end and the outlet closer to the drive end, with a maximum inlet water temperature of 35°C, a flow rate of 50 L/min, and water pressure between 2 and 5 bar. A cooling water supply meeting those figures is required for operation at the nameplate rating.

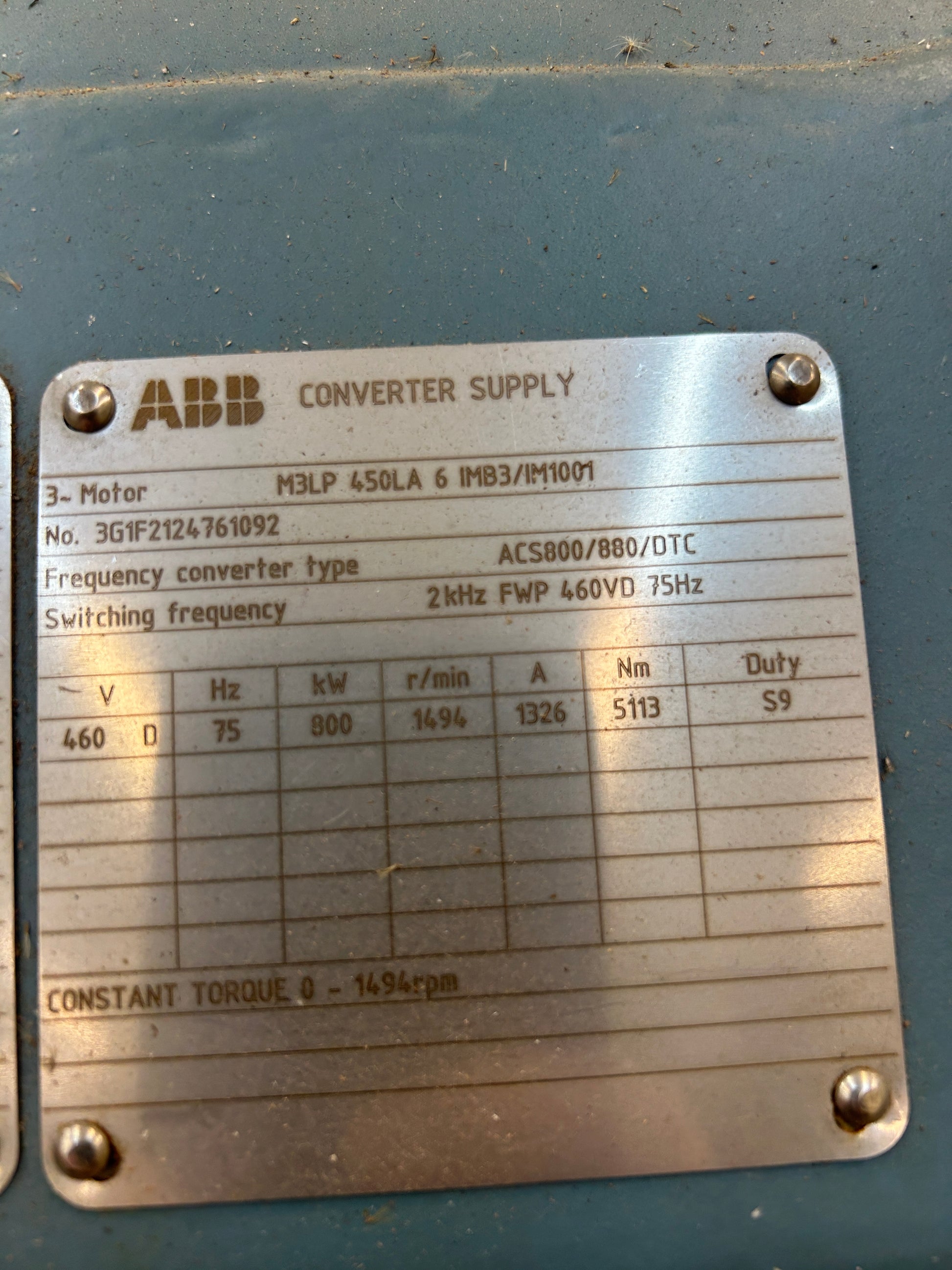

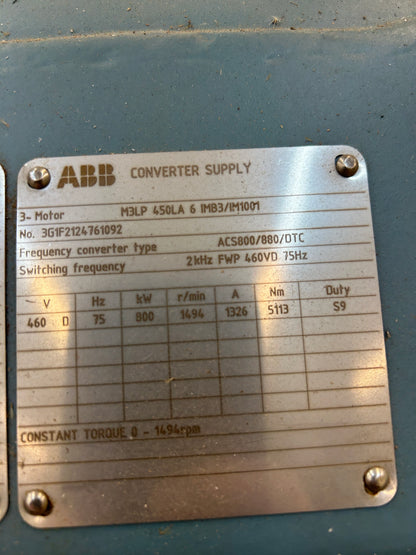

The 75 Hz nameplate frequency indicates a motor supplied for converter-fed operation rather than direct across-the-line starting. Motors of this size and configuration are typically found on large pumps, compressors, fans, mills, and other continuous-duty process drives where high power density and controlled speed are required.

Buyers matching this ABB M3LP 450LA 6 for replacement or spare inventory should confirm the product code 3GLP453510-RDG +VC, the serial number, and their available cooling water supply against their existing installation.

Stock # 0226-004
