ABB BSR23 / 2TLA010041R0600 Safety Expansion Relay 24V DC

$119.99 USD

Sale Sold out

✓ 30-day returns on every item — return policy

ConditionSurplus - Untested MPNBSR23 / 2TLA010041R0600 Stock #0326-01038

30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.

Shipping Estimate

⚡ Same-day shipping available — order by 11 am CT ($100 add-on at checkout)

✓ Free domestic UPS Ground shipping — applied automatically at checkout.

Same-Day Available
Real support team
Secure checkout

Product Specifications

Manufacturer: ABB (ABB AB Jokab Safety)
MPN / Model: BSR23 / 2TLA010041R0600
Product Type: Expansion Relay
Series: Sentry
Supply Voltage: 24 V DC, 5 W (19.2 to 27.6 V DC)
External Fuse: Any (JDYX/7) fast acting, ratings 250 V, 4 A, IR200A
Relay Outputs: 4 NO + 1 NC (13/14, 23/24, 33/34, 43/44, 51/52)
NO Contact Ratings: AC1, AC15: 250 V, 5 A; DC1, DC13: 24 V, 6 A; Fuse 6 A
NC Contact Ratings: AC1, AC15: 250 V, 0.5 A; DC1, DC13: 24 V, 3 A; Fuse 4 A
Inputs: Receive R1, R2; Test X1, X2
Wire Size: 12 to 24 AWG (0.21 to 3.31 mm²), strip length 6 to 7 mm, terminal torque 0.8 Nm
Enclosure Rating: IP20
Standards: EN 61508 up to SIL3, EN ISO 13849-1 up to PLe/Cat.4, EN 62061 up to SILCL3, EN 61511-1, IEC 60947-5-1, GB/T14048.5
Certifications / Marks: UL (E353291), TUV SUD, CE, CCC
Label Print (lower right): 05 2130 E 00001070
Country of Origin: Germany
Condition: Surplus - Untested

Product Description

This is an ABB BSR23 / 2TLA010041R0600 expansion relay. The nameplate reads ABB, Made in Germany, BSR23, Ind. Cont. Eq., 2TLA010041R0600, Expansion relay, IP20, and 24 VDC, 5W (19.2-27.6 VDC), with the external fuse, contact ratings, wire data, standards and terminal designations listed above. The address on the label is ABB AB Jokab Safety, Varlabergsvägen 11, 434 39 Kungsbacka, Sweden. The label also shows UL (E353291), TUV SUD, CE and CCC marks, and the lower right print reads 05 2130 E 00001070. No field is marked as a serial number.

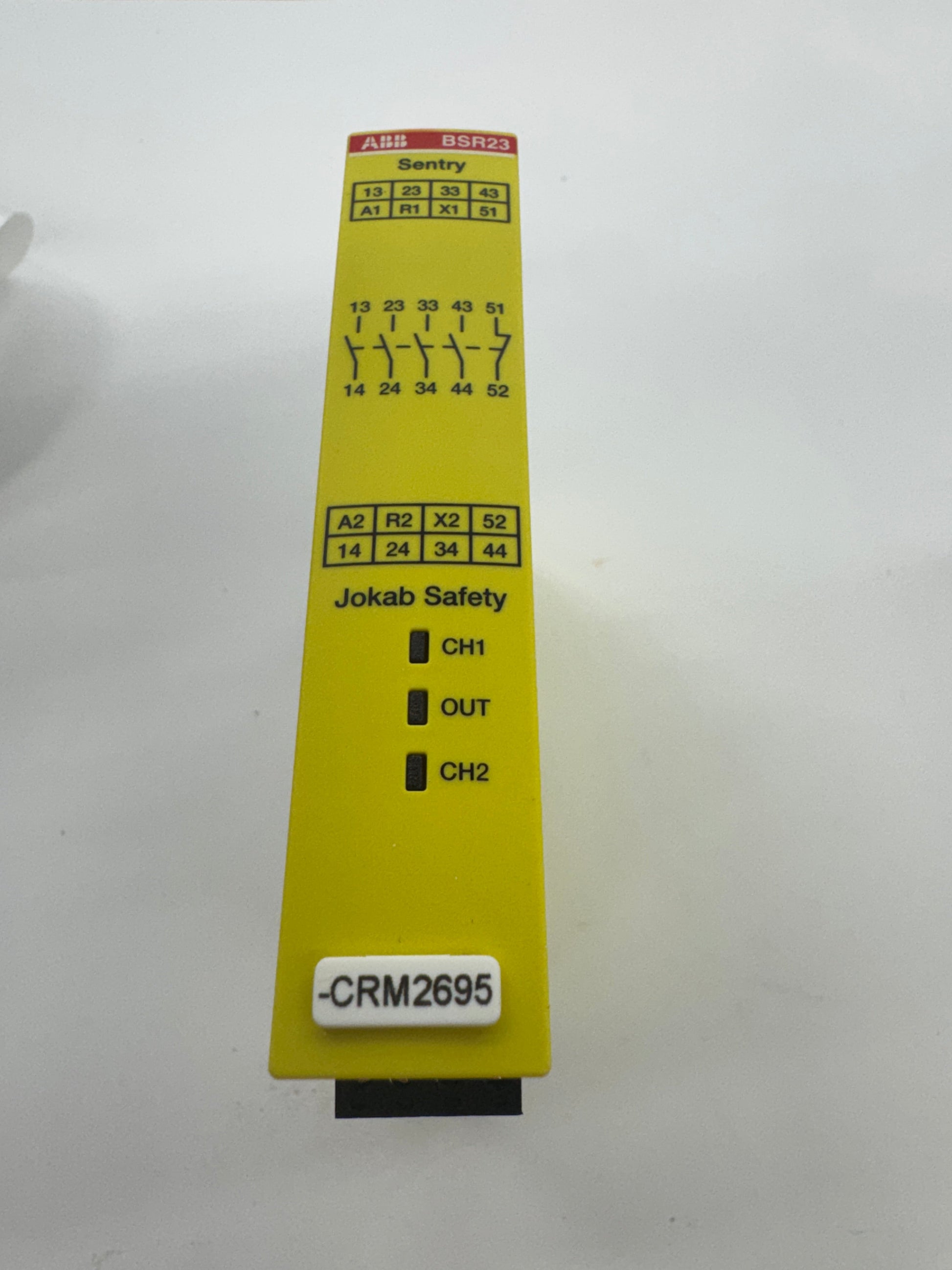

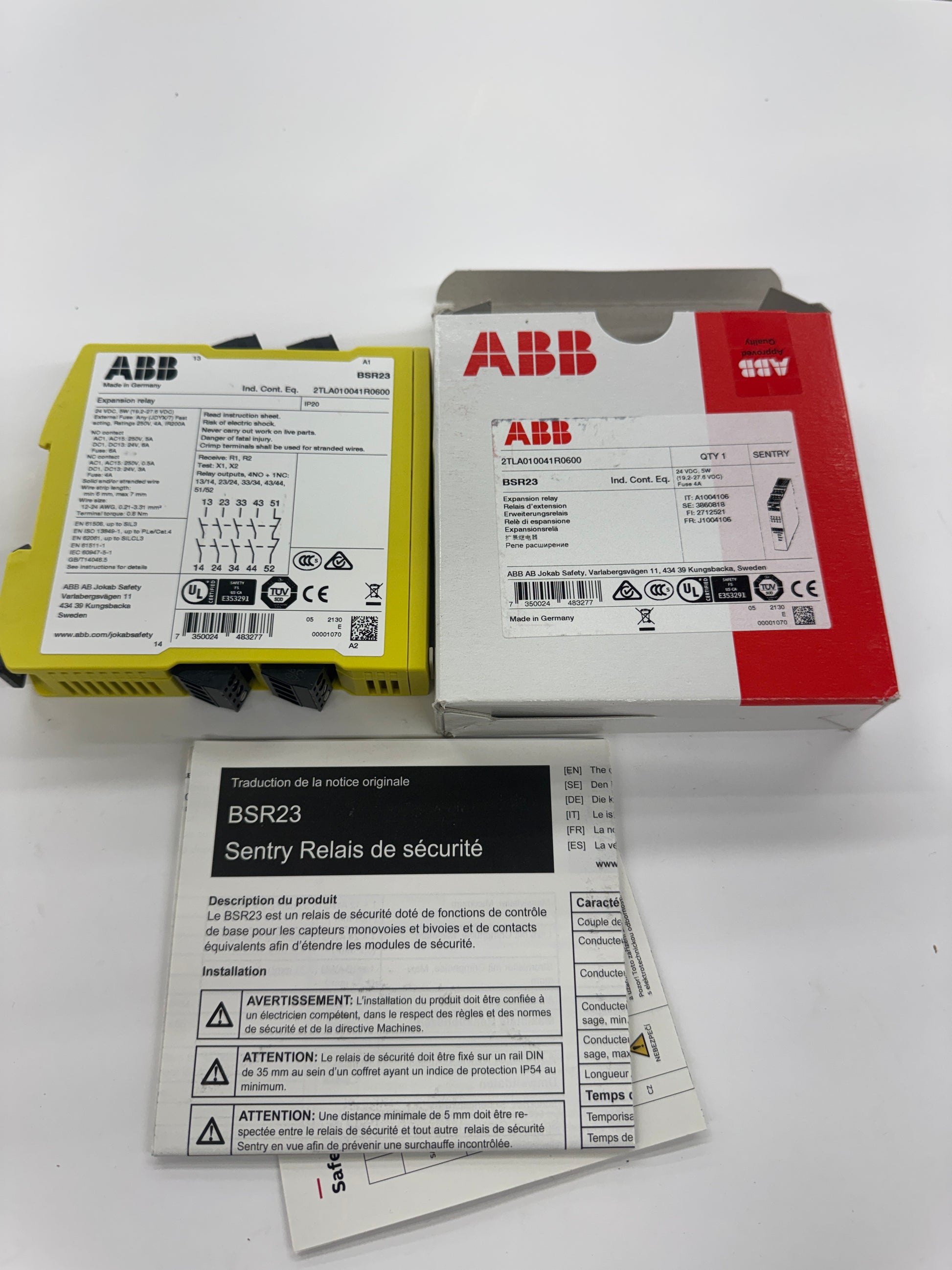

The housing is yellow, with a front face marked ABB, BSR23, Sentry and Jokab Safety, and three indicator windows marked CH1, OUT and CH2. Two black plug-in terminal blocks are fitted. A round ABB warranty seal sticker is visible on the housing. The unit is shown with an open ABB box whose label reads 2TLA010041R0600, BSR23, QTY 1, 24 VDC, 5W (19.2-27.6 VDC), Fuse 4A and Made in Germany, and with a printed instruction sheet in French. No damage is visible in the photos.

Sold as surplus, untested. This unit has not been powered on or tested by MRO Exchange, and the relay contacts, terminals and indicators have not been verified.

Stock # 0326-01038
