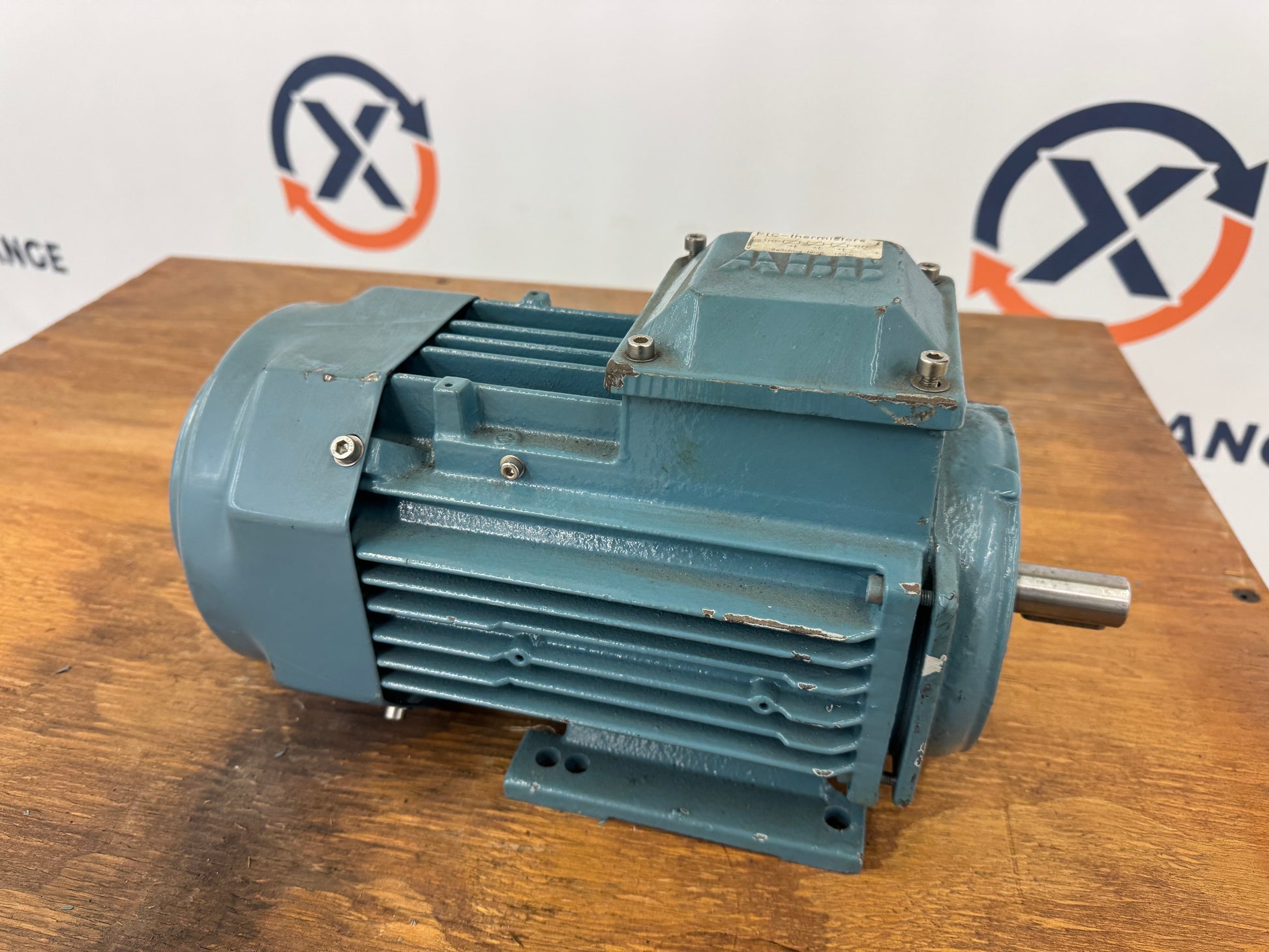

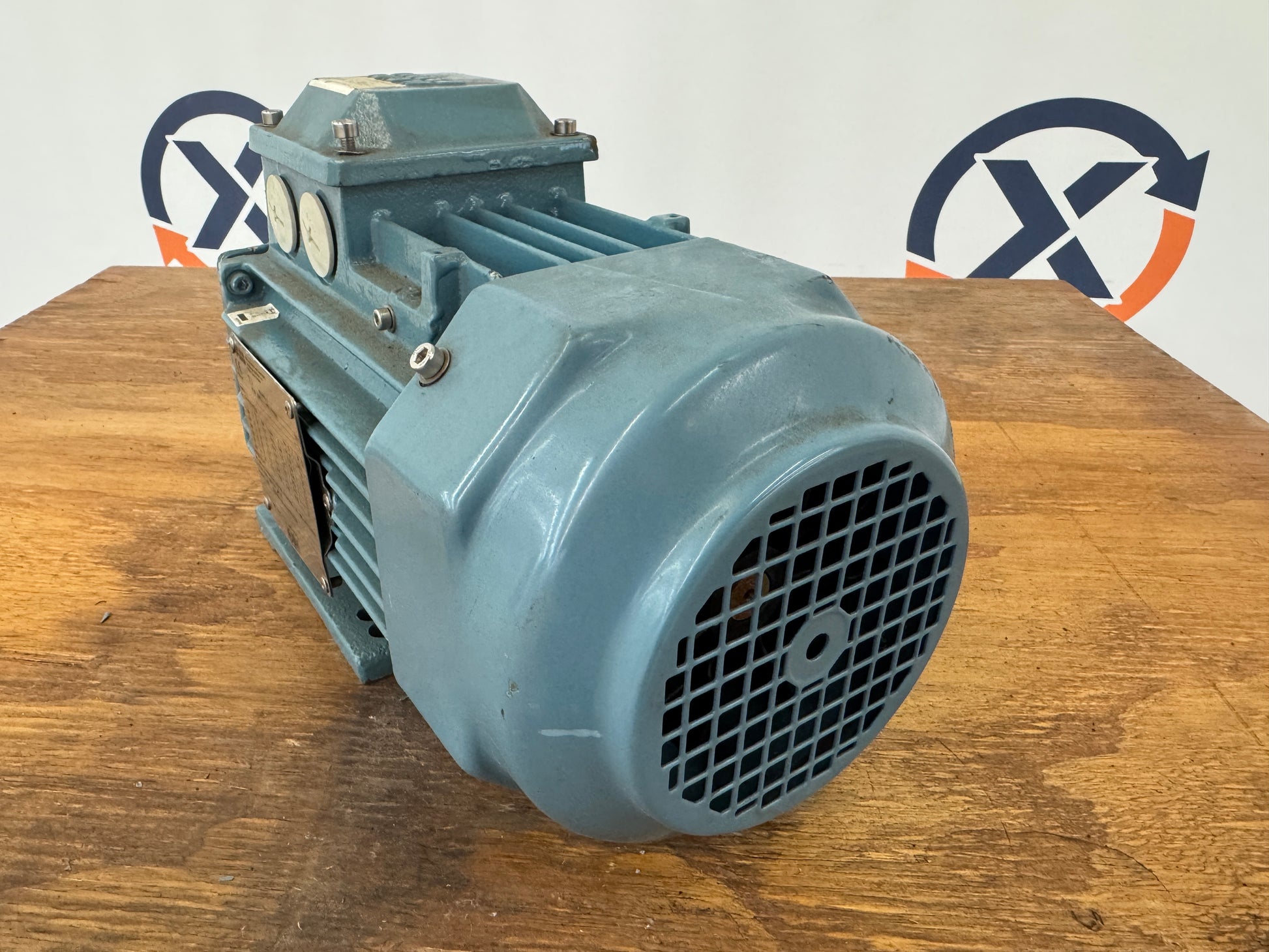

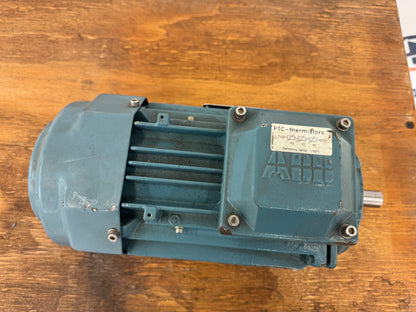

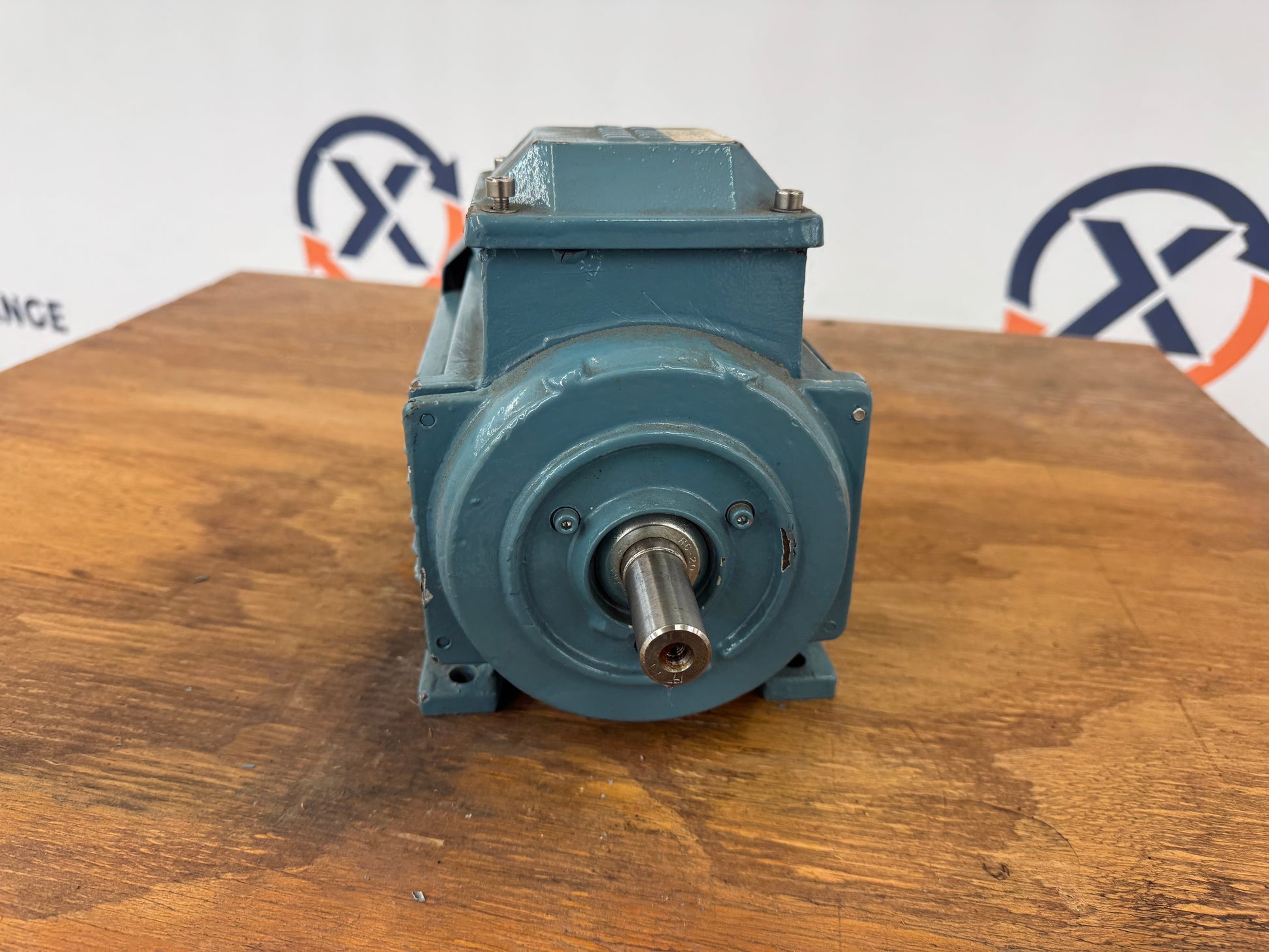

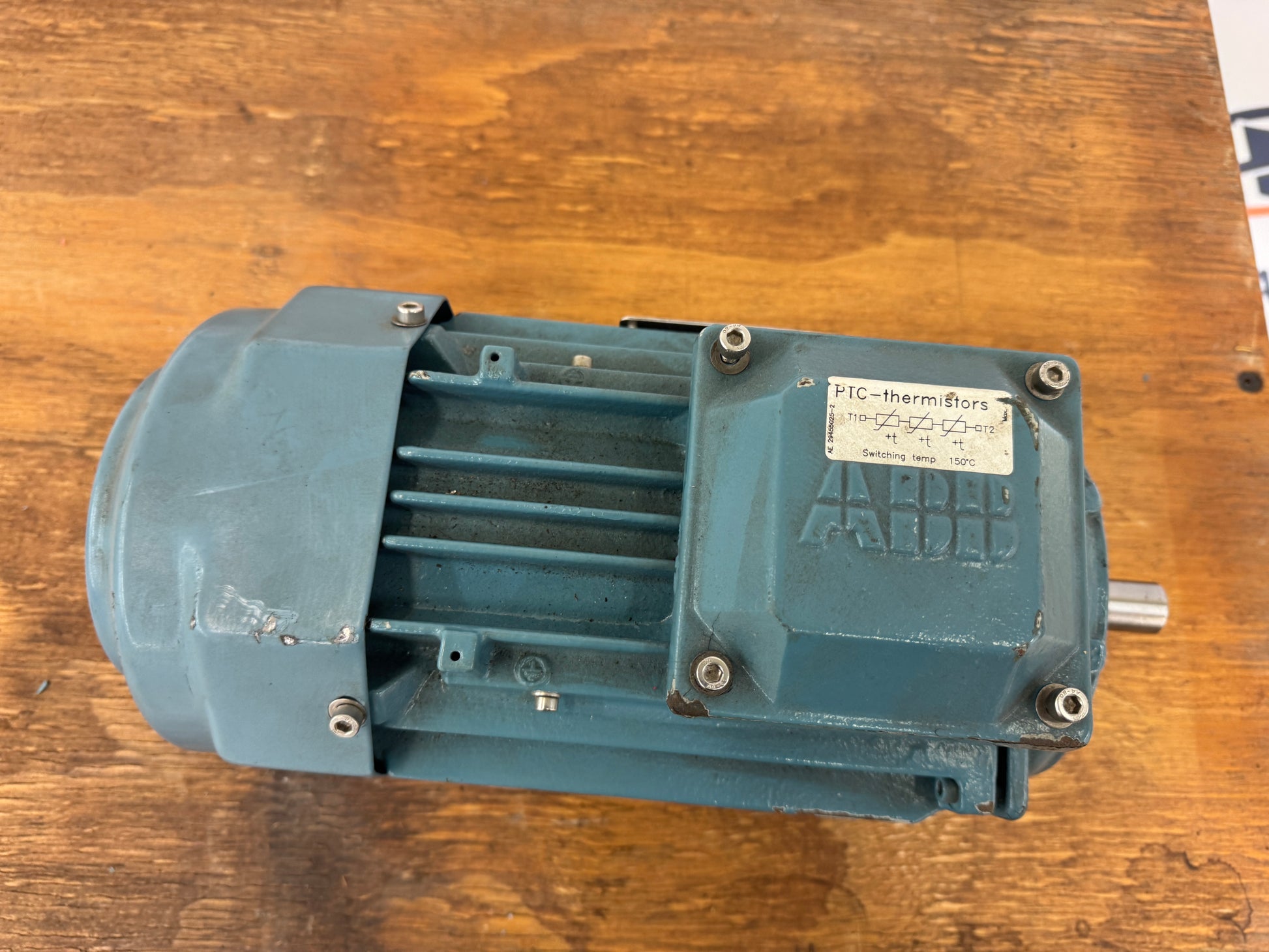

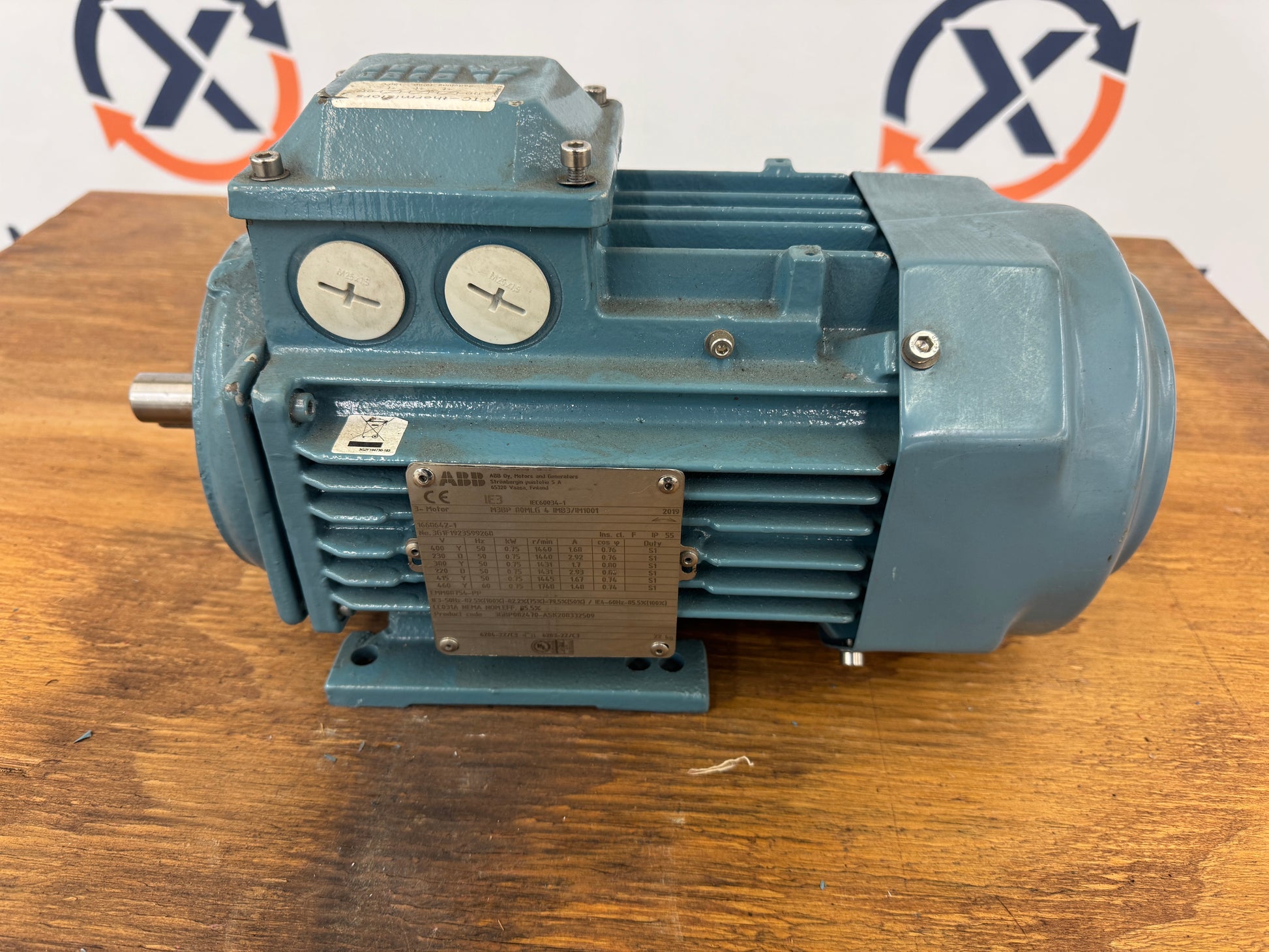

ABB M3BP 80MLG 4 IMB3/IM1001 3 Phase AC Motor 1 HP 1800 RPM
ABB M3BP 80MLG 4 IMB3/IM1001 3 Phase AC Motor 1 HP 1800 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

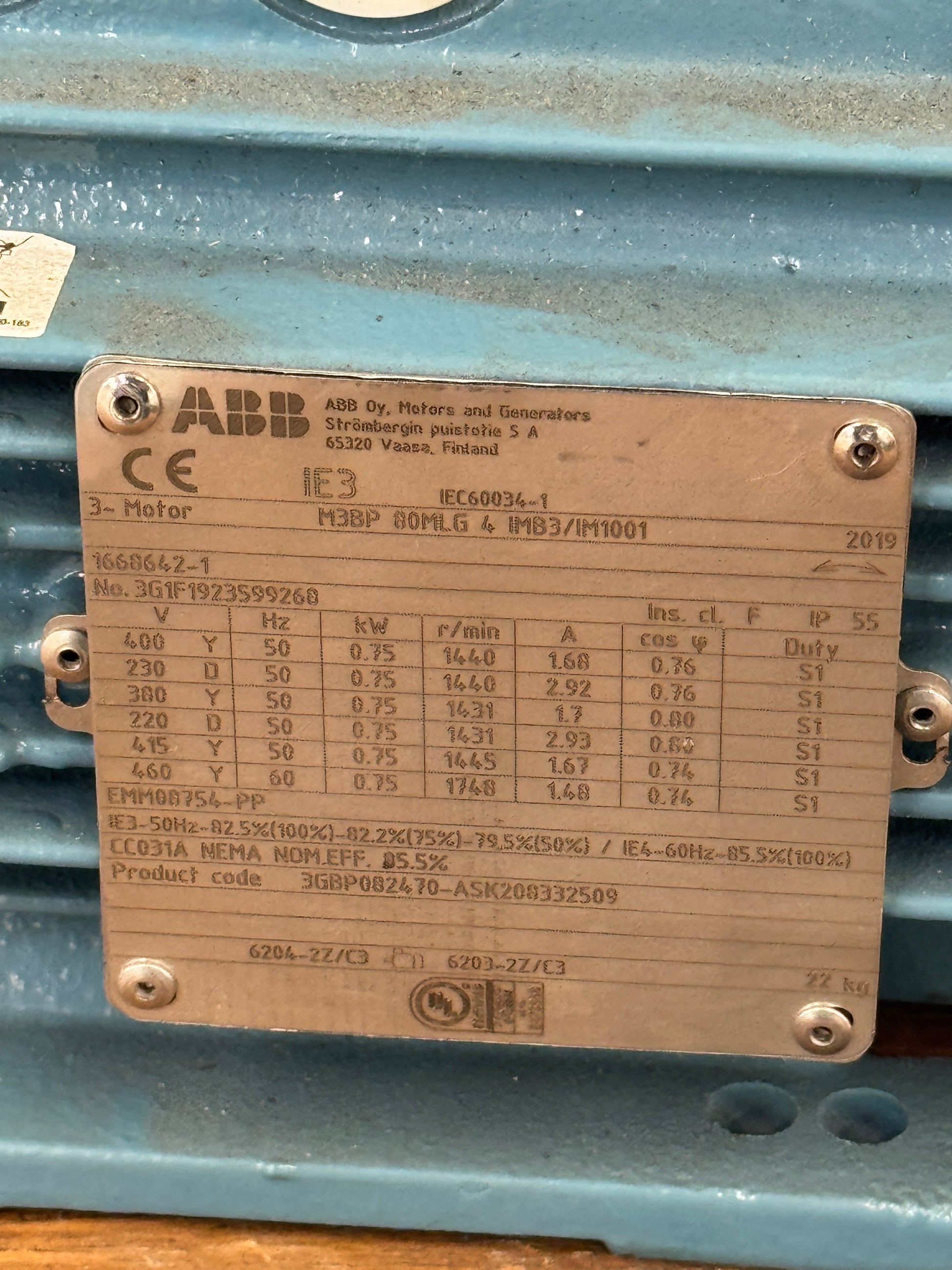

The ABB M3BP 80MLG 4 is a three phase asynchronous AC induction motor from the M3BP Process Performance cast iron series, manufactured by ABB Oy Motors and Generators in Vaasa, Finland. Product code 3GBP082470 ASK20933250 9, serial number 3G1F1923599260, production year 2019. Rated 0.75 kW (approximately 1 HP), 4 pole, with IE3 premium efficiency classification per IEC 60034 1 and CC031A NEMA nominal efficiency of 85.5 percent. Mounting configuration is IMB3 / IM1001 (foot mount, B3). The motor supports multi voltage operation including 400V Y at 50 Hz (1440 r/min, 1.68 A), 230V D at 50 Hz (1440 r/min, 2.92 A), 380V Y at 50 Hz (1431 r/min, 1.7 A), 220V D at 50 Hz (1431 r/min, 2.93 A), 415V Y at 50 Hz (1445 r/min, 1.67 A), and 460V Y at 60 Hz (1740 r/min, 1.48 A). Power factor ranges from 0.74 to 0.80 across configurations. Insulation class F, IP55 ingress protection, duty class S1 (continuous duty). Bearing arrangement uses 6204 2Z/C3 on the drive end and 6203 2Z/C3 on the non drive end. Frame weight is 22 kg. Frame designation EMM08754 PP. Compliant with IE3 efficiency thresholds of 82.5 percent (100 percent load), 82.2 percent (75 percent load), and 79.5 percent (50 percent load) at 50 Hz, and 85.5 percent at 60 Hz IE4 reference. Suitable for general industrial applications including pumps, fans, conveyors, and process machinery.
Stock # 0226-109
