ABB Safety Expansion Relay BSR23 / 2TLA010041R0600 24 VDC
ABB Safety Expansion Relay BSR23 / 2TLA010041R0600 24 VDC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 2TLA010041R0600
Stock #: 0326-01109

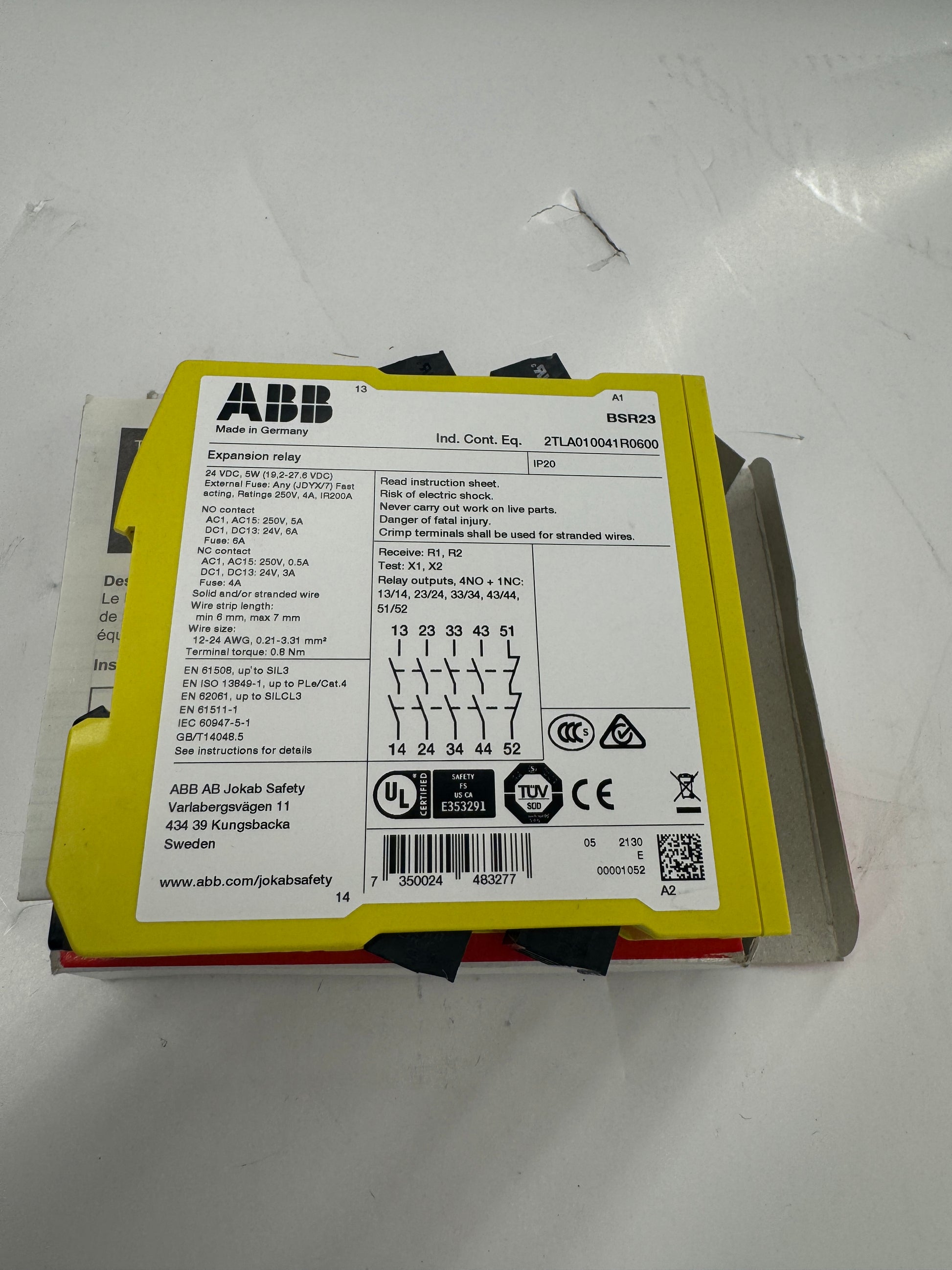

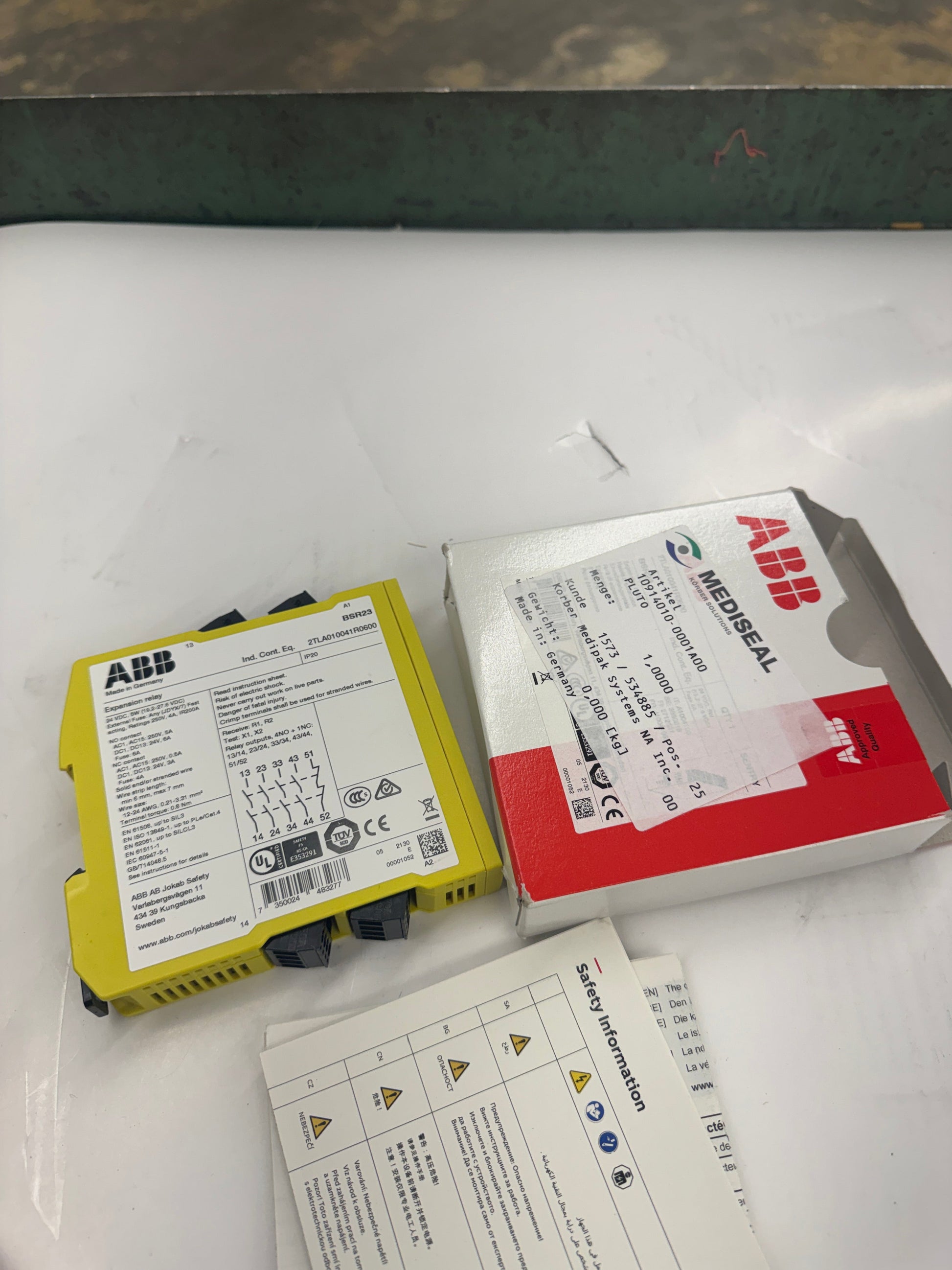

The ABB Jokab Safety BSR23, part number 2TLA010041R0600, is a Sentry series safety expansion relay designed to increase the number of safe outputs on an existing safety relay or safety PLC. It provides 4 normally open (NO) and 1 normally closed (NC) relay output contacts, with a supply voltage of 24 VDC (19.2 to 27.6 VDC) and a power consumption of 5W. NO contact ratings are AC1, AC15 at 250V, 5A and DC1, DC13 at 24V, 6A; NC contact ratings are AC1, AC15 at 250V, 0.5A and DC1, DC13 at 24V, 3A. The receive inputs are R1 and R2, with test inputs X1 and X2. Relay output terminal pairs are 13/14, 23/24, 33/34, 43/44, and 51/52. The module is DIN rail mounted, rated IP20, and accepts 12 to 24 AWG solid or stranded wire with a terminal torque of 0.8 Nm. Safety certifications include EN 61508 up to SIL3, EN ISO 13849-1 up to PLe/Cat.4, EN 62061 up to SILCL3, EN 61511-1, and IEC 60947-5-1. The unit carries UL, TUV SOD, and CE marks and is manufactured in Germany. The Mediseal label visible on the packaging indicates prior use in pharmaceutical packaging machinery.
Stock # 0326-1109
