Acopian Triple Output Power Supply 51515T9A
Acopian Triple Output Power Supply 51515T9A
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

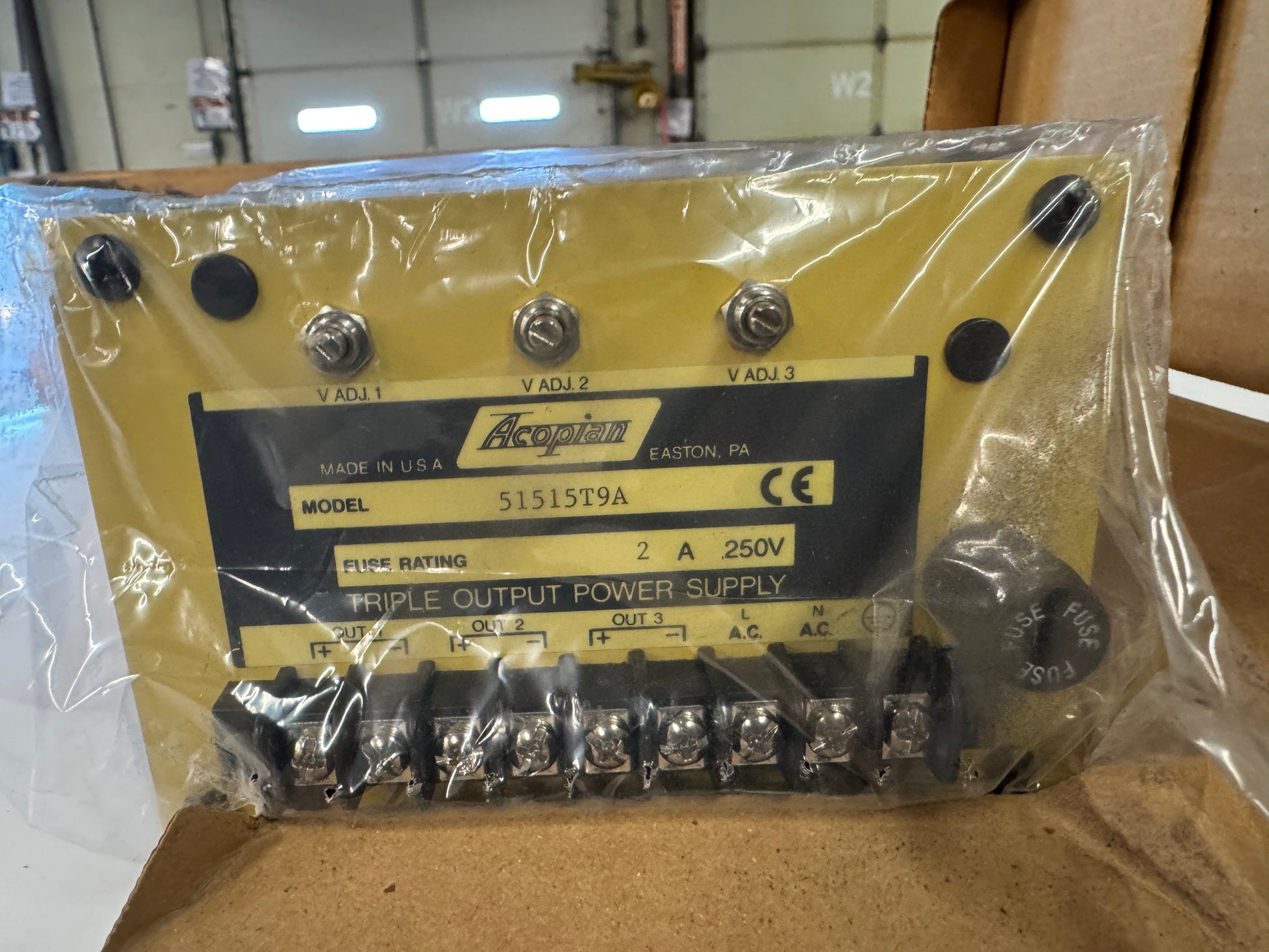

The Acopian 51515T9A is a triple output linear power supply manufactured in Easton, PA, USA. This unit belongs to Acopian's Gold Box series and is housed in the GT9 case size, featuring a perforated metal enclosure for passive cooling. The nameplate confirms a fuse rating of 2 A at 250V and identifies the unit as a Triple Output Power Supply with CE marking.
The 51515T9A accepts a 105 to 125 VAC single phase input and delivers three regulated DC outputs: 5 VDC at 6 A, 15 VDC at 1 A, and 15 VDC at 1 A. Each output channel is independently adjustable via the V ADJ.1, V ADJ.2, and V ADJ.3 trim potentiometers located on top of the unit. Separate overvoltage protection circuitry is provided on each of the three outputs.
Field connections are made through a barrier terminal strip along the front edge, with dedicated terminals for OUT 1 (+/), OUT 2 (+/), OUT 3 (+/), and L/N AC input. The unit includes a panel-mounted fuse holder on the front face. Acopian Gold Box supplies in the GT9 case are commonly applied in instrumentation, laboratory test equipment, semiconductor production tooling, medical electronics, and industrial control systems requiring multiple regulated low voltage rails from a single chassis.

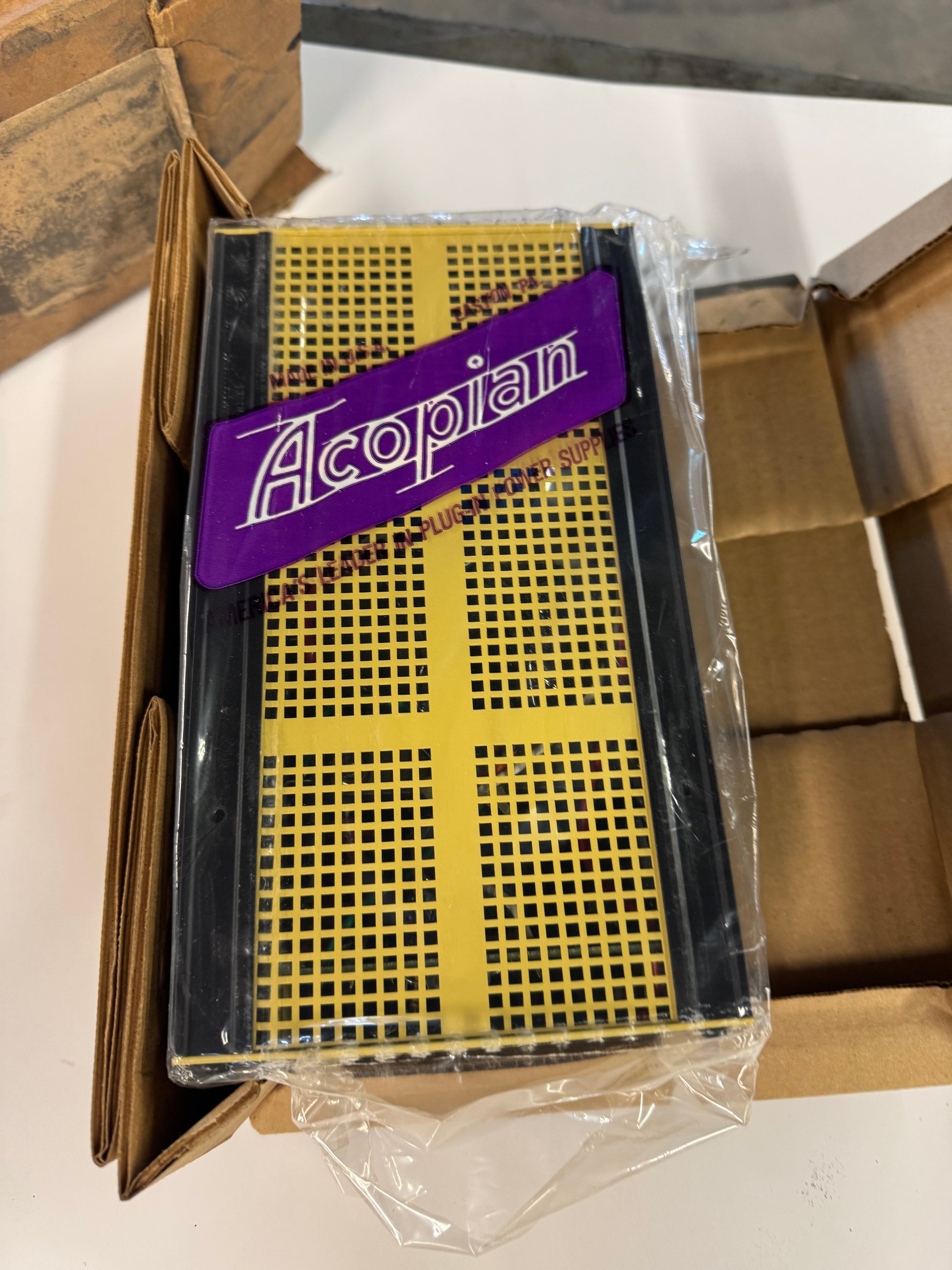

The unit is sealed in its original anti-static bag inside the original Acopian shipping carton. MPN 51515T9A is also published by Acopian under option variants including 3V51515T9A, 51515T9AF, 51515T9AM, and 51515T9A-230 for 210 to 250 VAC input applications.
Stock # 0526-02252
