Advanced Digital Research 100001-128 Advanced Machine Interface Board Assembly

$769.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: 100001-128
Stock #: 0226-00535

Product Specifications

Manufacturer: Advanced Digital Research (ADR Inc.)
MPN / Model: 100001-128
Product Type: Advanced Machine Interface (AMI) DNC / BTR Board
Memory: 128K RAM
Communication: RS-232 / RS-422 Host Port
Made In: USA
Serial Number: 363309

Product Description

The Advanced Digital Research (ADR Inc.) Advanced Machine Interface, model 100001-128, is a Behind the Tape Reader (BTR) DNC interface board designed to connect older NC and CNC machine controls to computers via RS-232 or RS-422 serial communication. ADR identifies this product line under the AMI designation, and the 100001-128 is the 128K RAM configuration of the board.

This board serves as a universal BTR adapter, allowing CNC machines to receive and transmit program files without a physical tape reader. The board mounts behind the tape reader interface of the CNC and connects to a host PC running DNC software. The 100001-128 is listed as obsolete on the current ADR price list, making surplus units the primary acquisition channel for buyers maintaining older machine configurations.

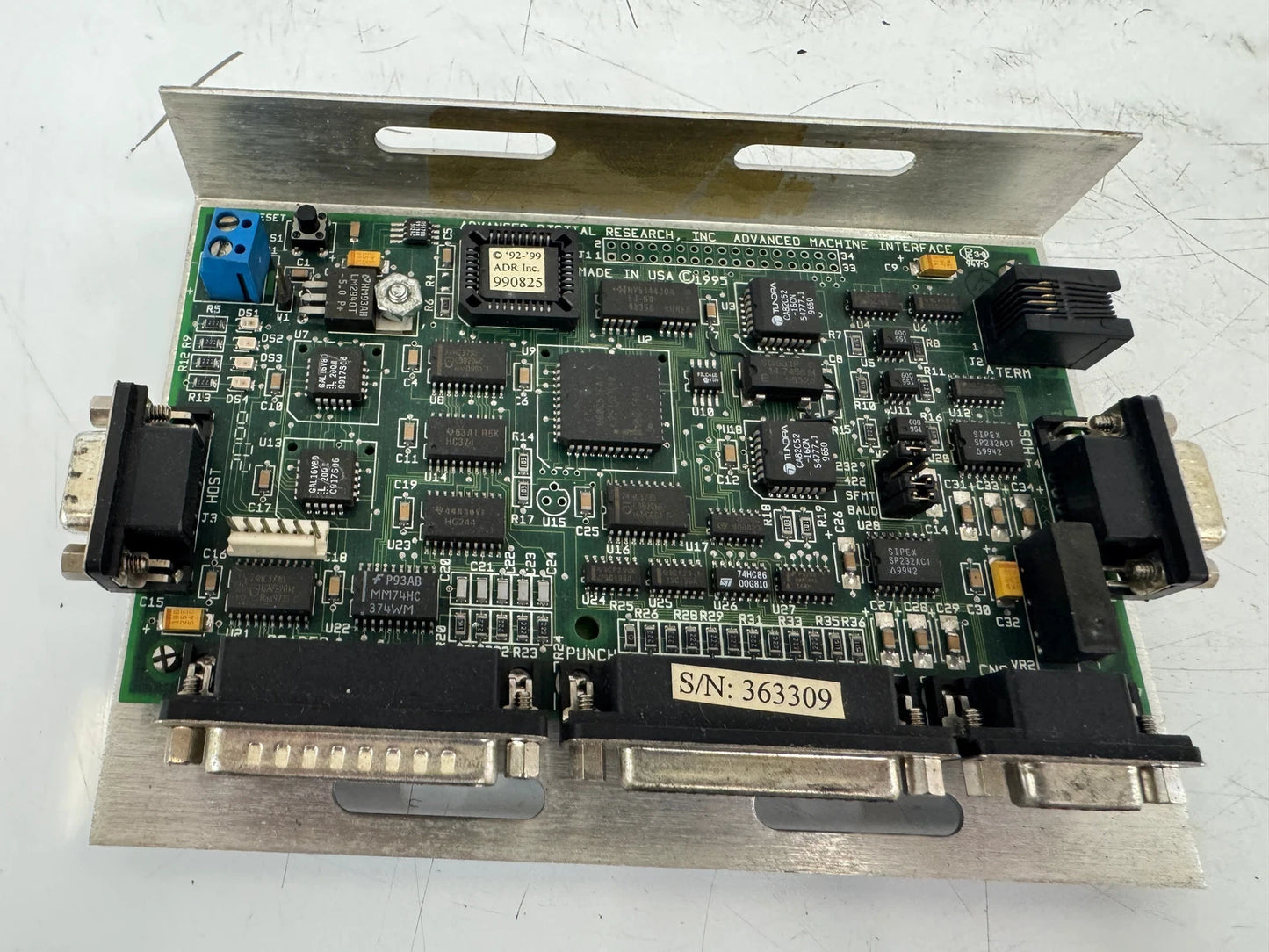

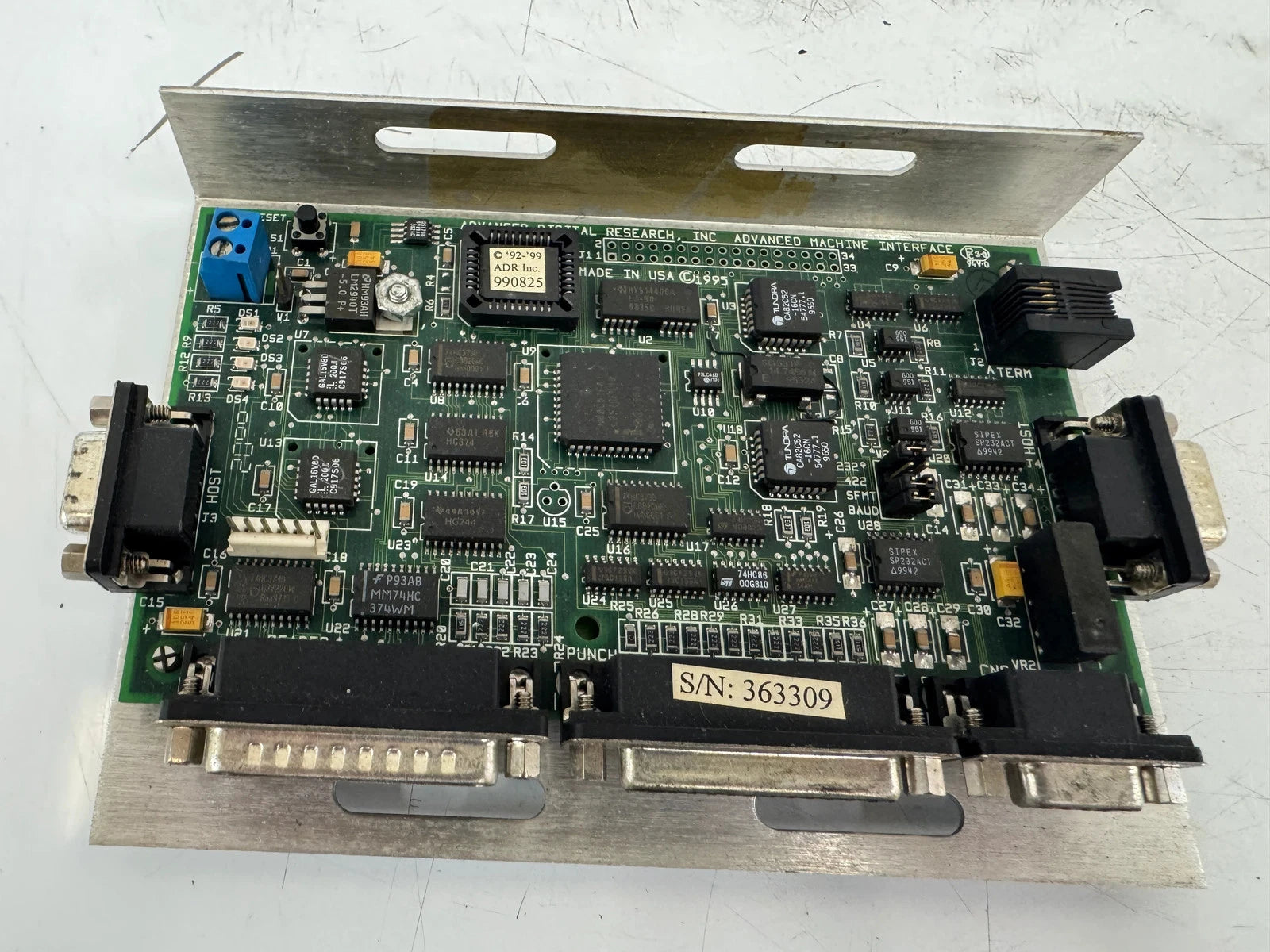

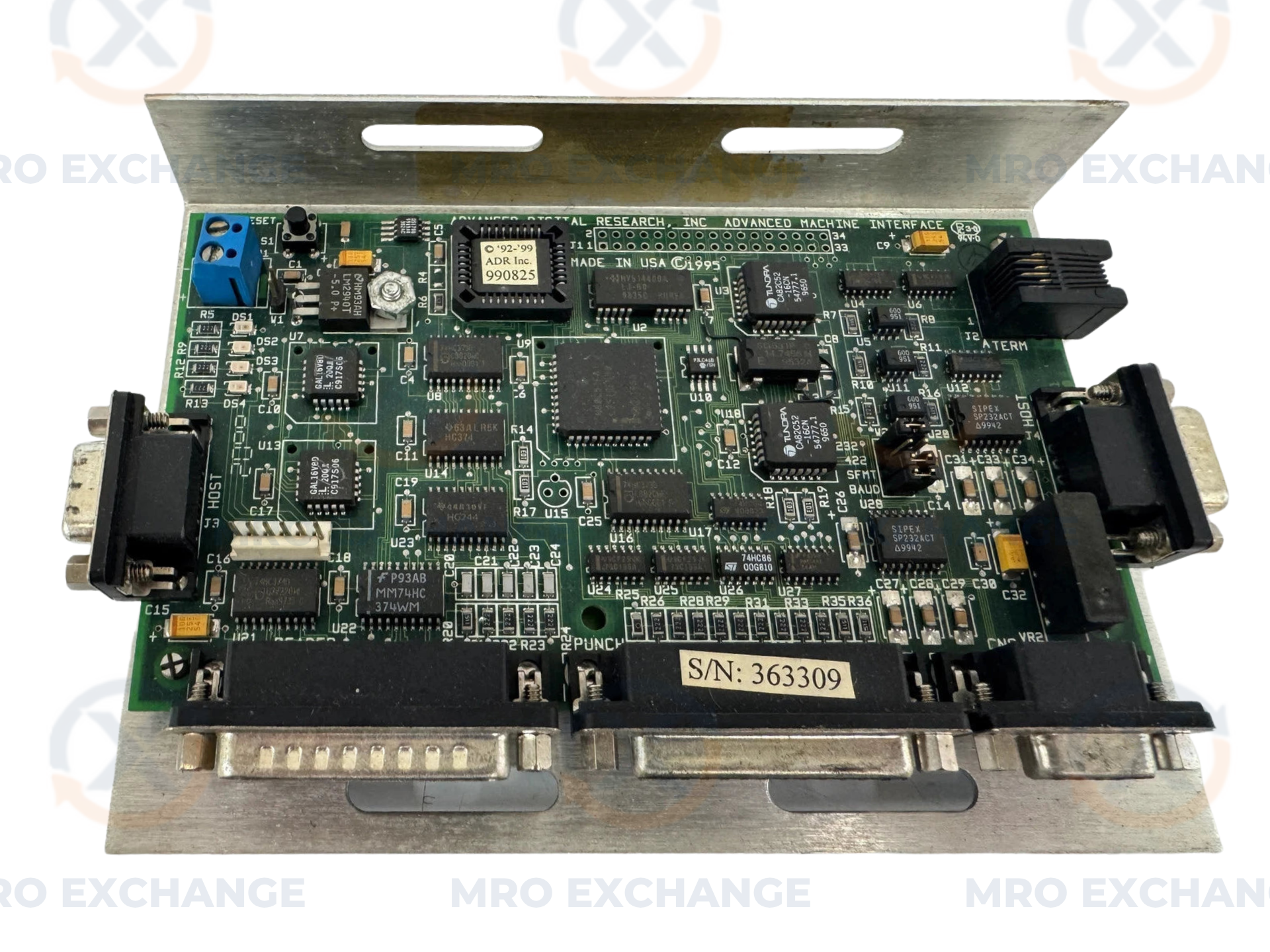

This listing is for a used surplus unit, serial number 363309, made in the USA. The board is mounted on a metal bracket. Buyers sourcing a replacement or spare 100001-128 should confirm compatibility with their specific CNC model and existing adapter cables.
