Lincoln Electric AF4P10TC61 AC Motor - 125 - 10 HP 1800 RPM
Lincoln Electric AF4P10TC61 AC Motor - 125 - 10 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

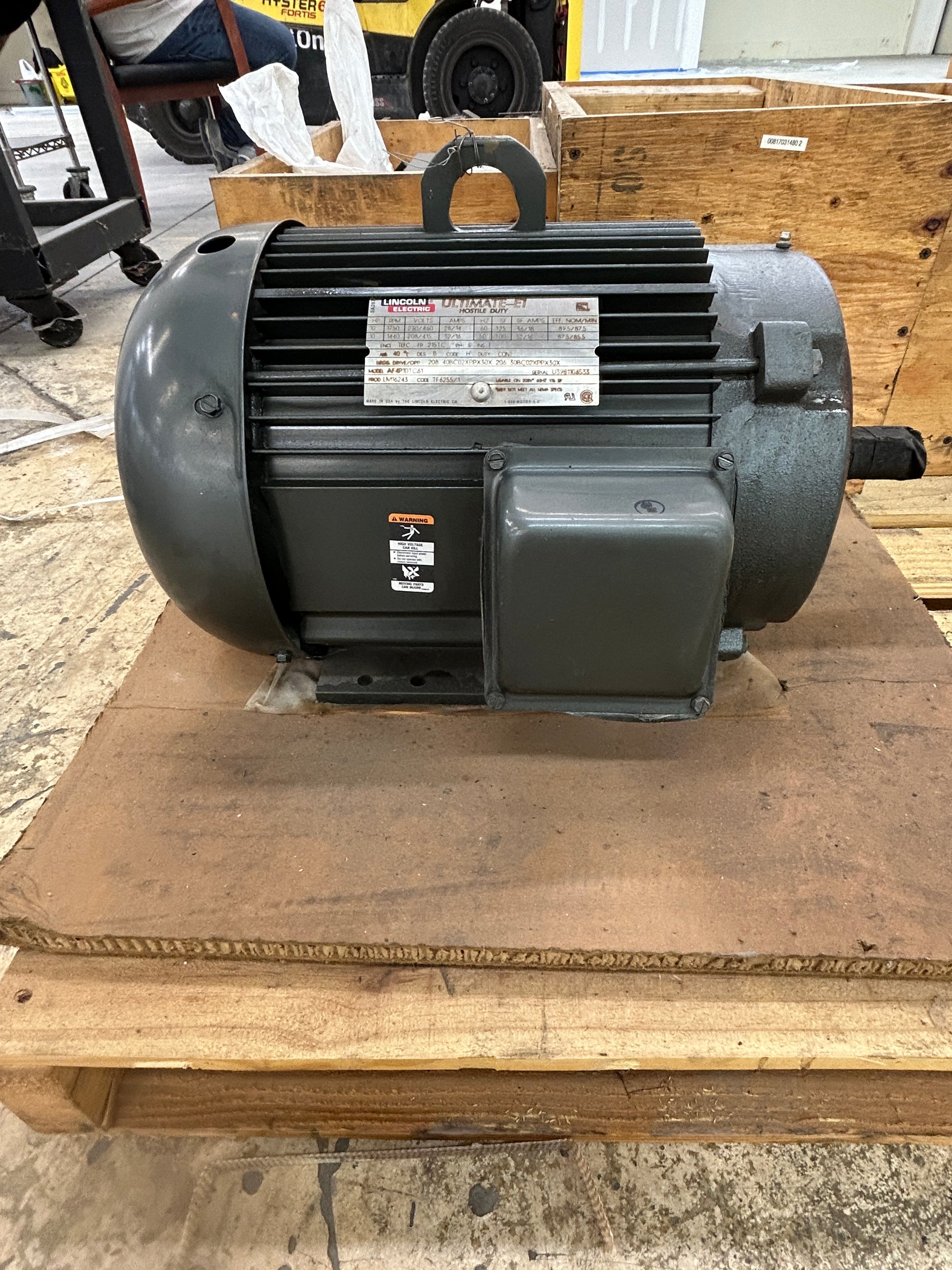

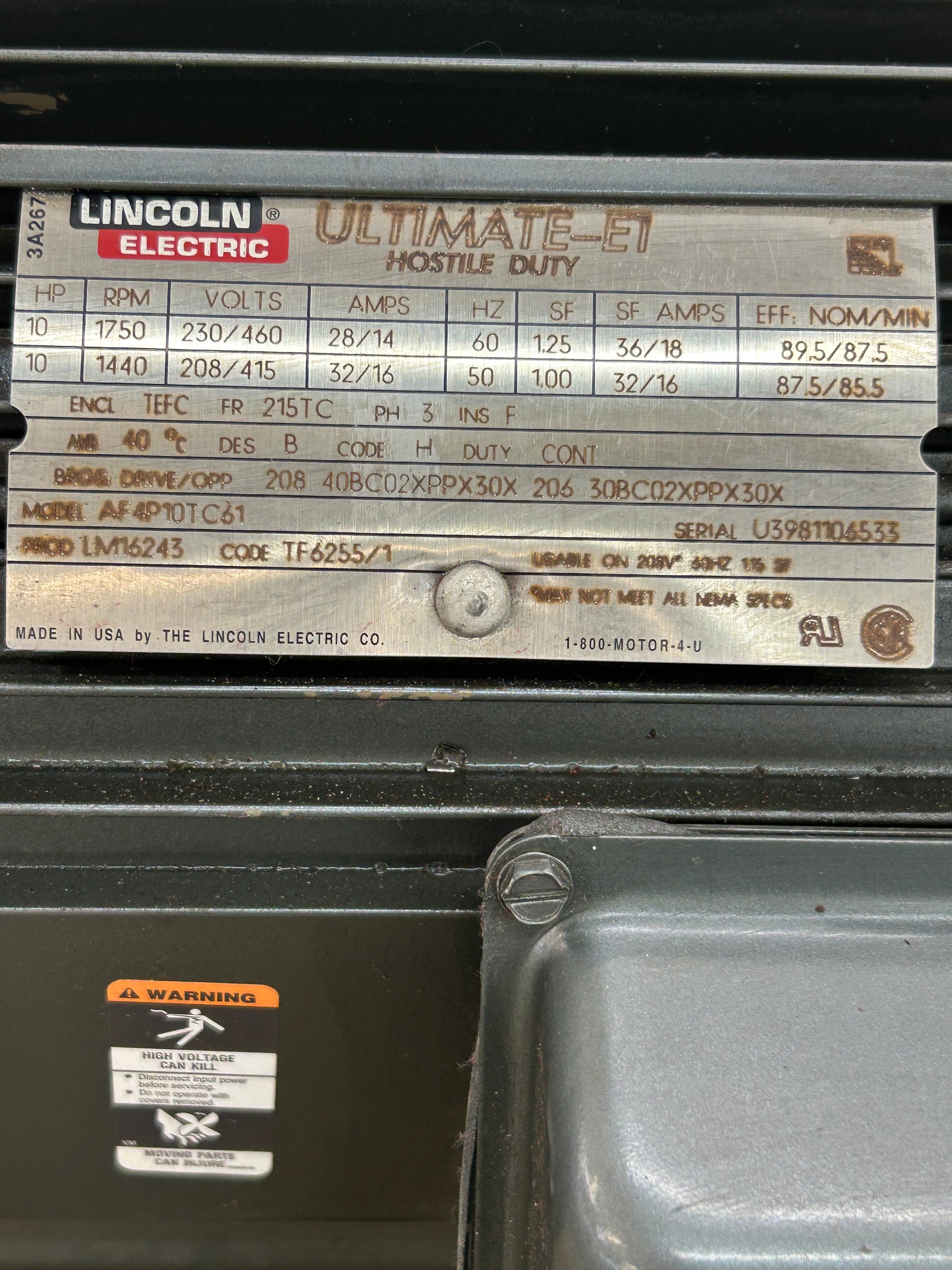

The Lincoln Electric Ultimate E1 AF4P10TC61 is a 10 HP three phase TEFC AC induction motor built for hostile duty industrial environments. Serial number U3981106533. Production code LM16243, code TF6255/1. The nameplate lists dual voltage 230/460V at 60 Hz with full load amps of 28/14, and 208/415V at 50 Hz with full load amps of 32/16. Synchronous speed is 1750 RPM at 60 Hz and 1440 RPM at 50 Hz. Service factor is 1.25 at 60 Hz with SF amps of 36/18, and 1.00 at 50 Hz with SF amps of 32/16. Nominal/minimum efficiency is 89.5/87.5 at 60 Hz and 87.5/85.5 at 50 Hz.

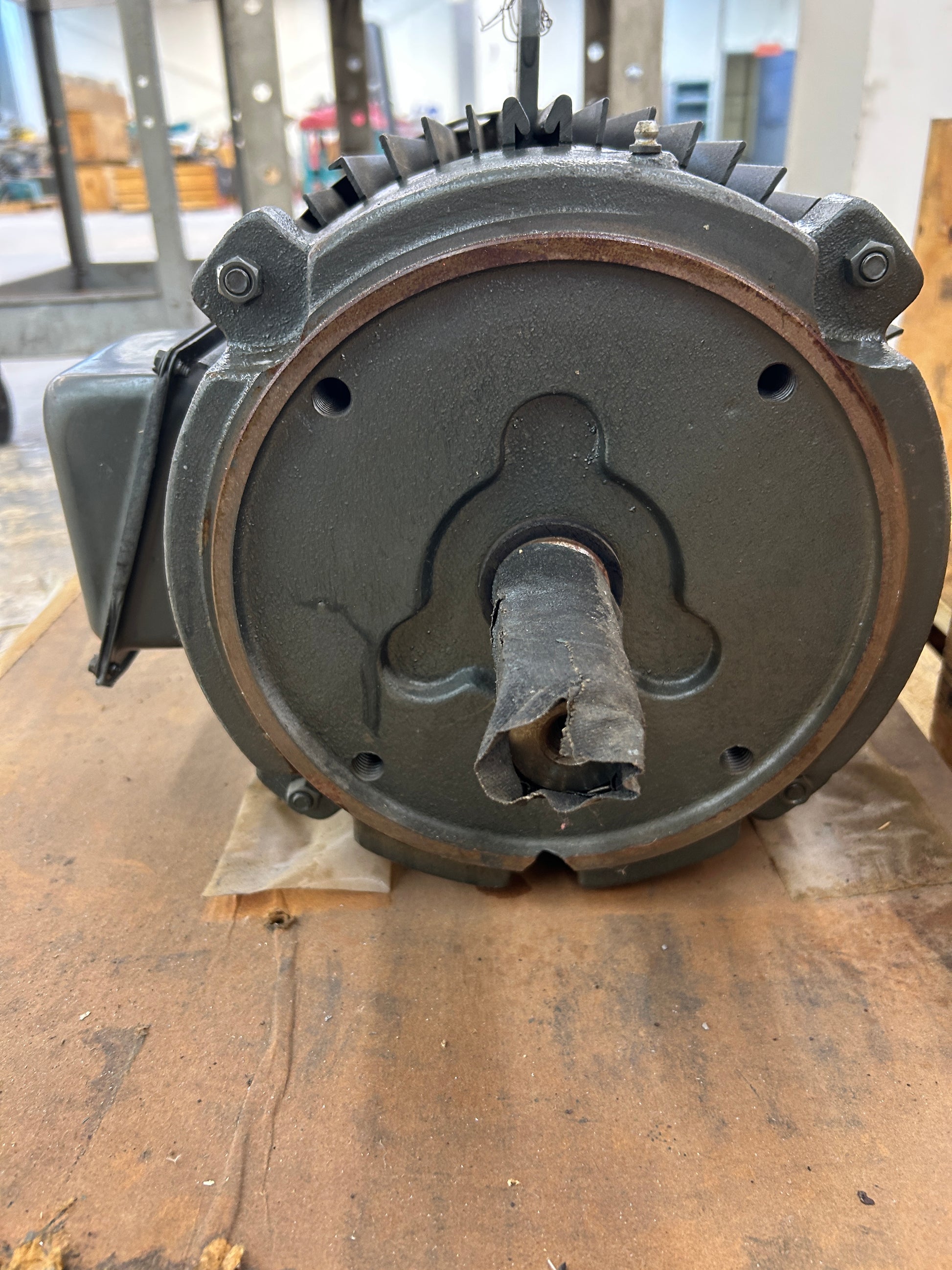

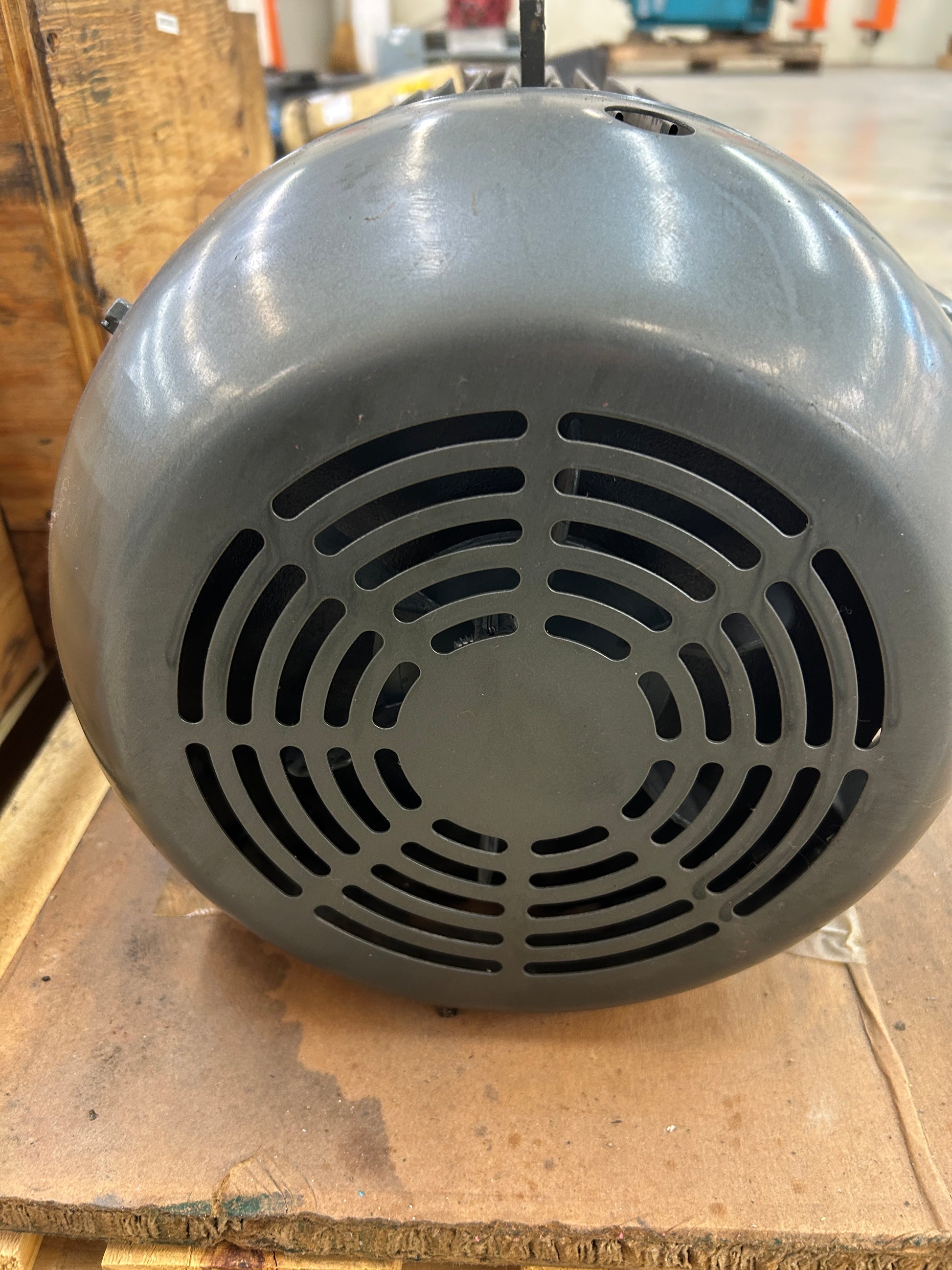

Frame size is 215TC with a TEFC (Totally Enclosed Fan Cooled) enclosure. Insulation class F, ambient temperature rating 40 degrees C, NEMA Design B, KVA code H, continuous duty. Bearings are 208 40BC02XPPX30X (drive end) and 206 30BC02XPPX30X (opposite drive end). The motor is also usable on 208V 60 Hz at 1.15 service factor and may not meet all NEMA specifications at that rating. Constructed with cast iron frame, integral lifting eye, and conduit box on the side. The Ultimate E1 line is part of Lincoln Electric's hostile duty severe environment motor family, suited for applications including pumps, compressors, blowers, conveyors, fans, and general machine drive in manufacturing and process environments. Made in USA.
Stock # 0226-125
