Alberti Right Angle Head T90-3.5 | CAT50 | ER32 Output, 40 Bar Coolant | Orientation: Radial | Coolant Through

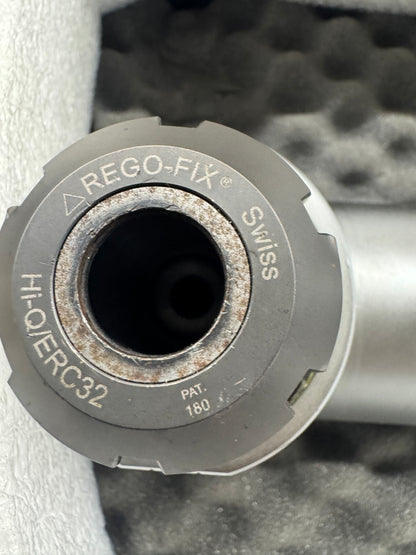

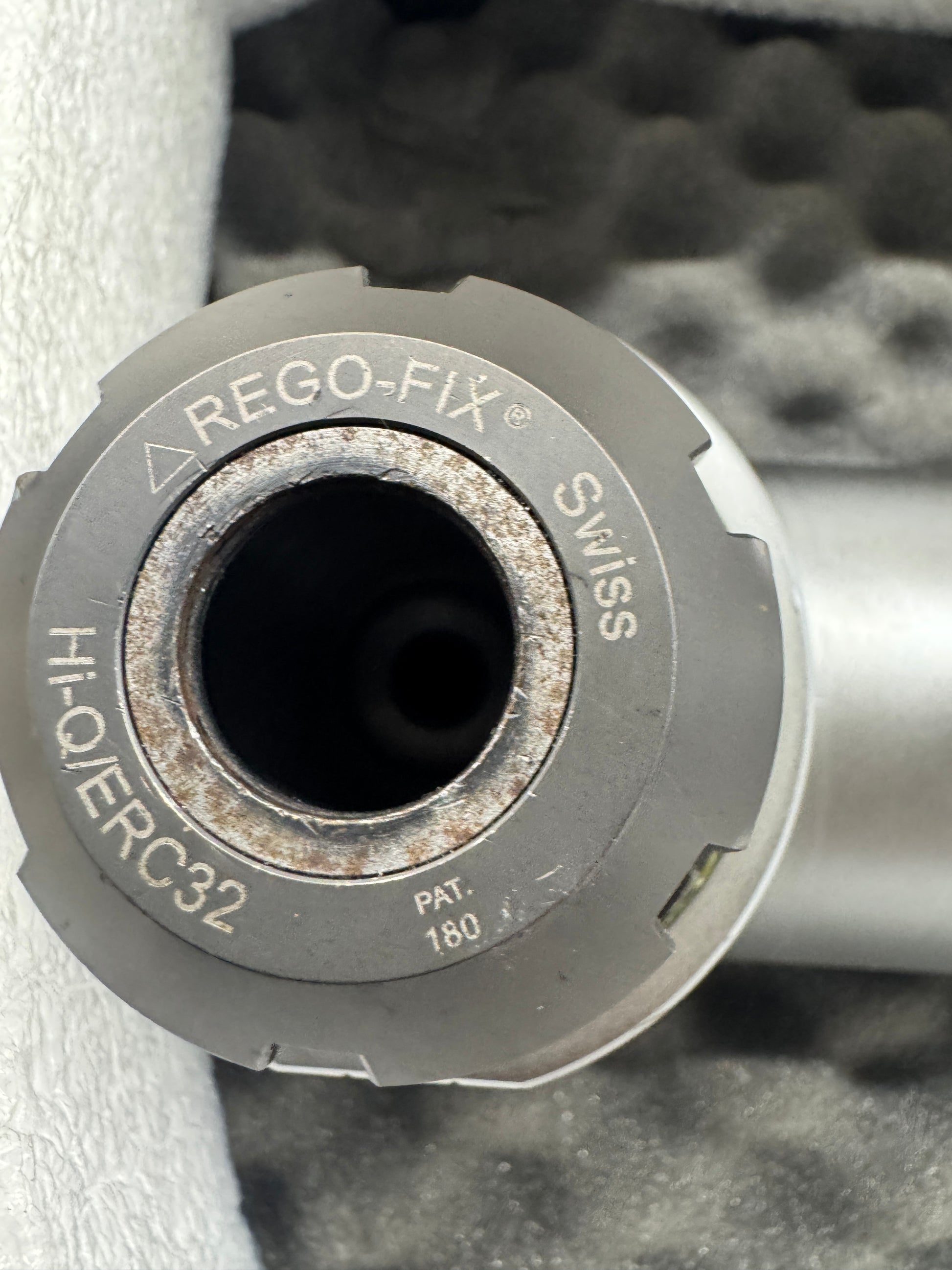

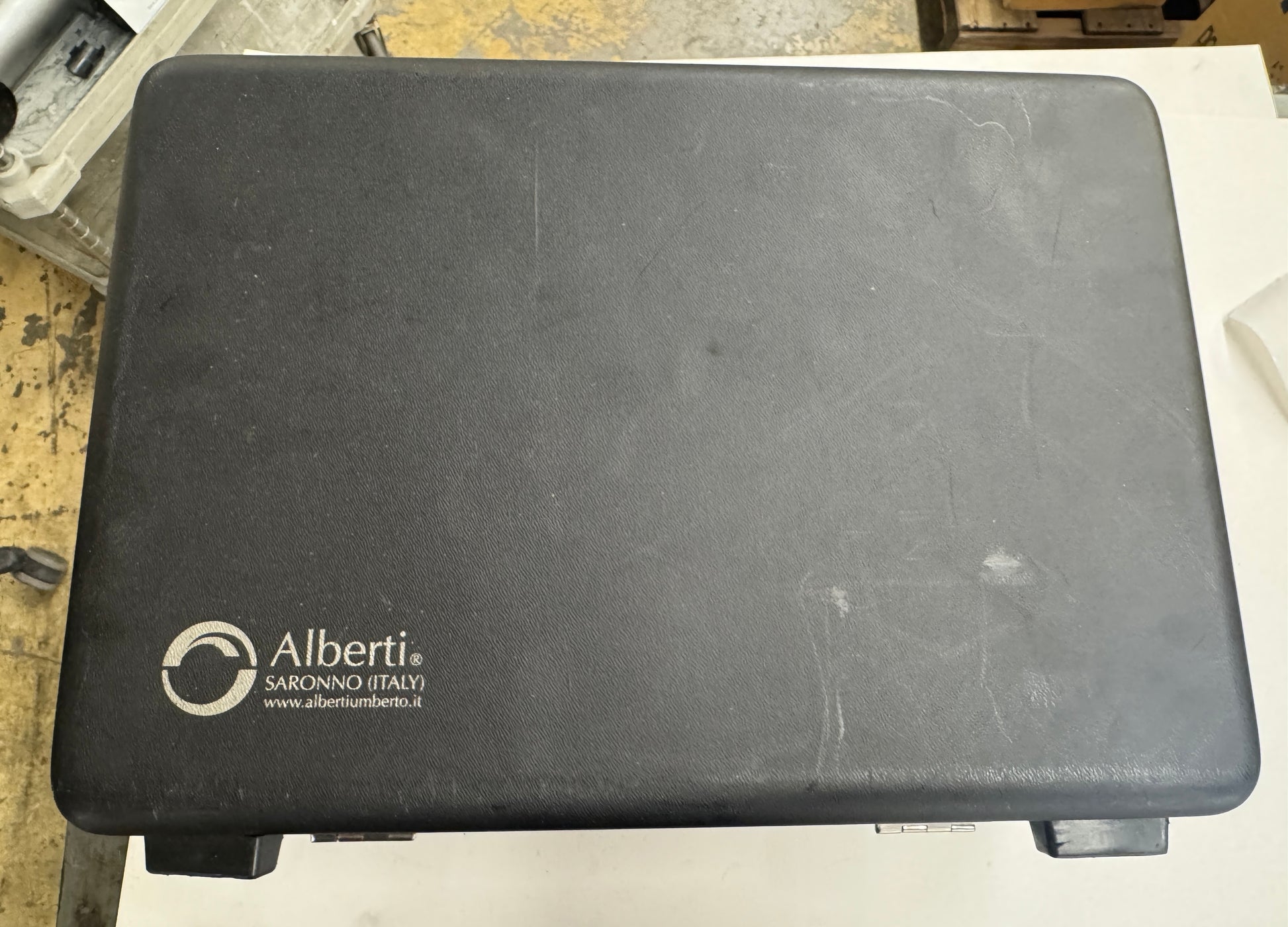

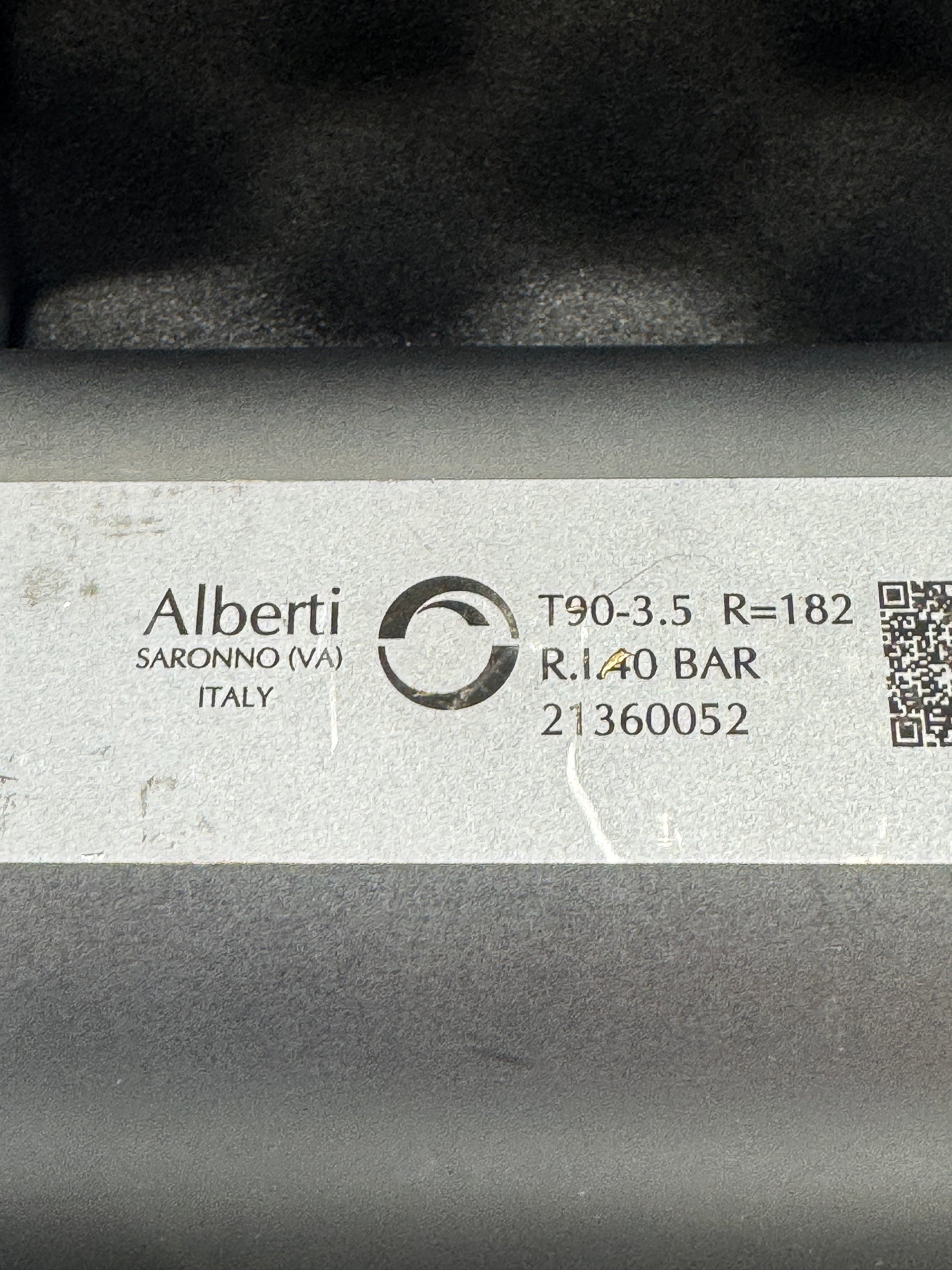

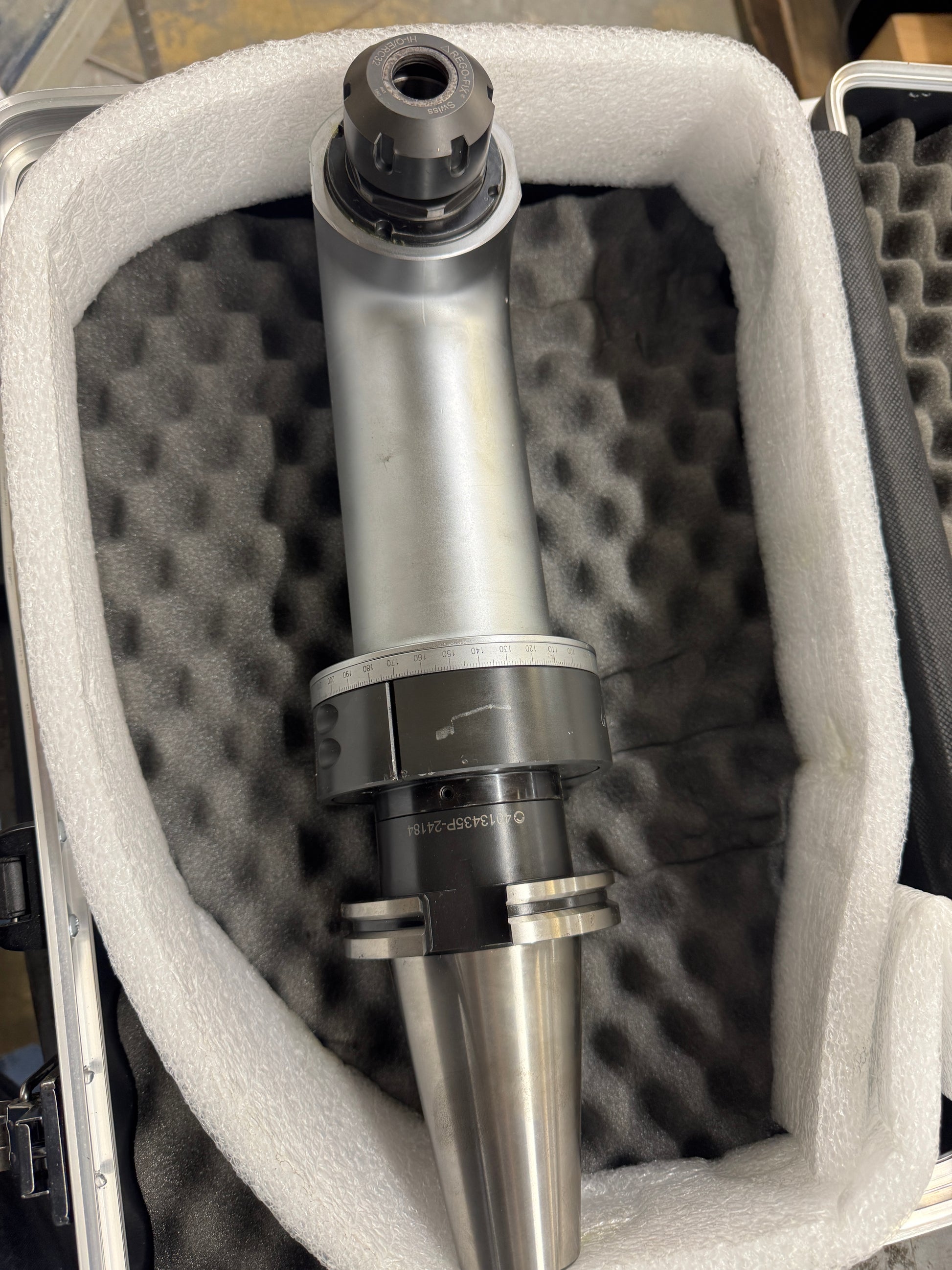

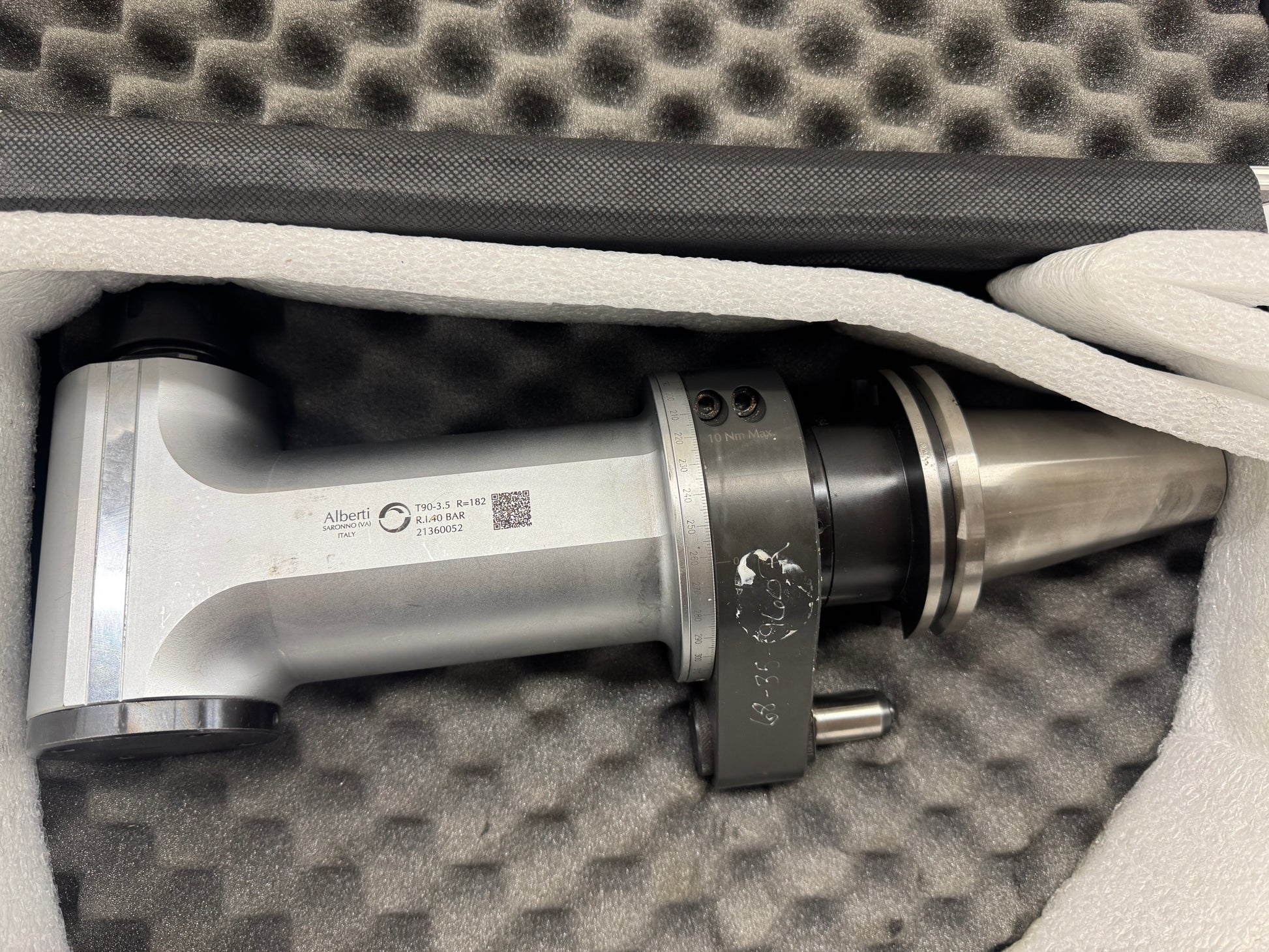

The Alberti T90-3.5 is a 90-degree right angle milling head from Alberti Umberto Snc, Saronno, Italy, designed for use in horizontal and vertical machining centers requiring perpendicular spindle access. The nameplate confirms model T90-3.5, gear ratio R=182, internal coolant rated at 40 bar, and serial number 21360052. The output spindle is fitted with a Rego-Fix Hi-Q ERC32 Swiss-made collet chuck, accepting ER32 series collets with a maximum tool diameter of 20 mm per published Alberti specifications for this model. Published specifications for the T90-3.5 include a maximum torque of 32 Nm, maximum power input of 11.8 kW, and a maximum output speed of 4,000 RPM at a 1:1 gear ratio. Internal coolant delivery is supported through the output spindle at up to 40 bar operating pressure. The head body is constructed from cast aluminum alloy with hardened steel internal gearing. ABEC 7 and 9 class bearings are used per Alberti published design specifications for the T90 series. An adjustable orientation ring allows 360-degree positioning of the output spindle axis relative to the machine spindle. The unit is stored in the original Alberti branded hard-shell foam-lined carrying case. A Rego-Fix collet nut assembly marked 013435P-24184 is installed on the output chuck. The T90-3.5 Neo series represents Alberti's current generation design for this capacity class.

Stock # 0426-02120
