Alberti Right Angle Head T90-3.5,R=242 / Serial 17360011 | CAT40 | ER32 Collet Output, 4000 RPM Max, 1:1 Ratio | Orientation: Radial
Alberti Right Angle Head T90-3.5,R=242 / Serial 17360011 | CAT40 | ER32 Collet Output, 4000 RPM Max, 1:1 Ratio | Orientation: Radial
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: T90-3.5
Stock #: 0426-02123

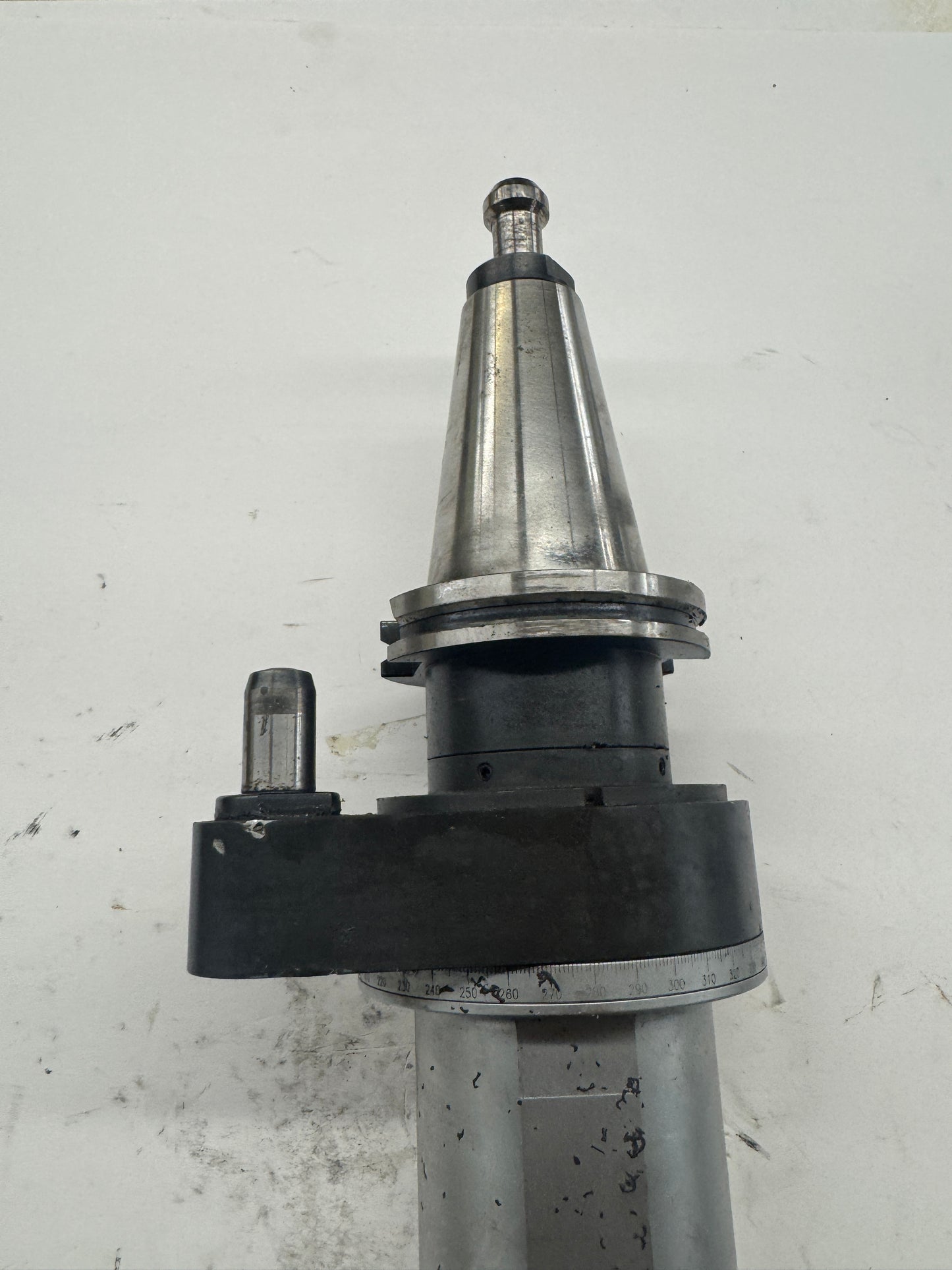

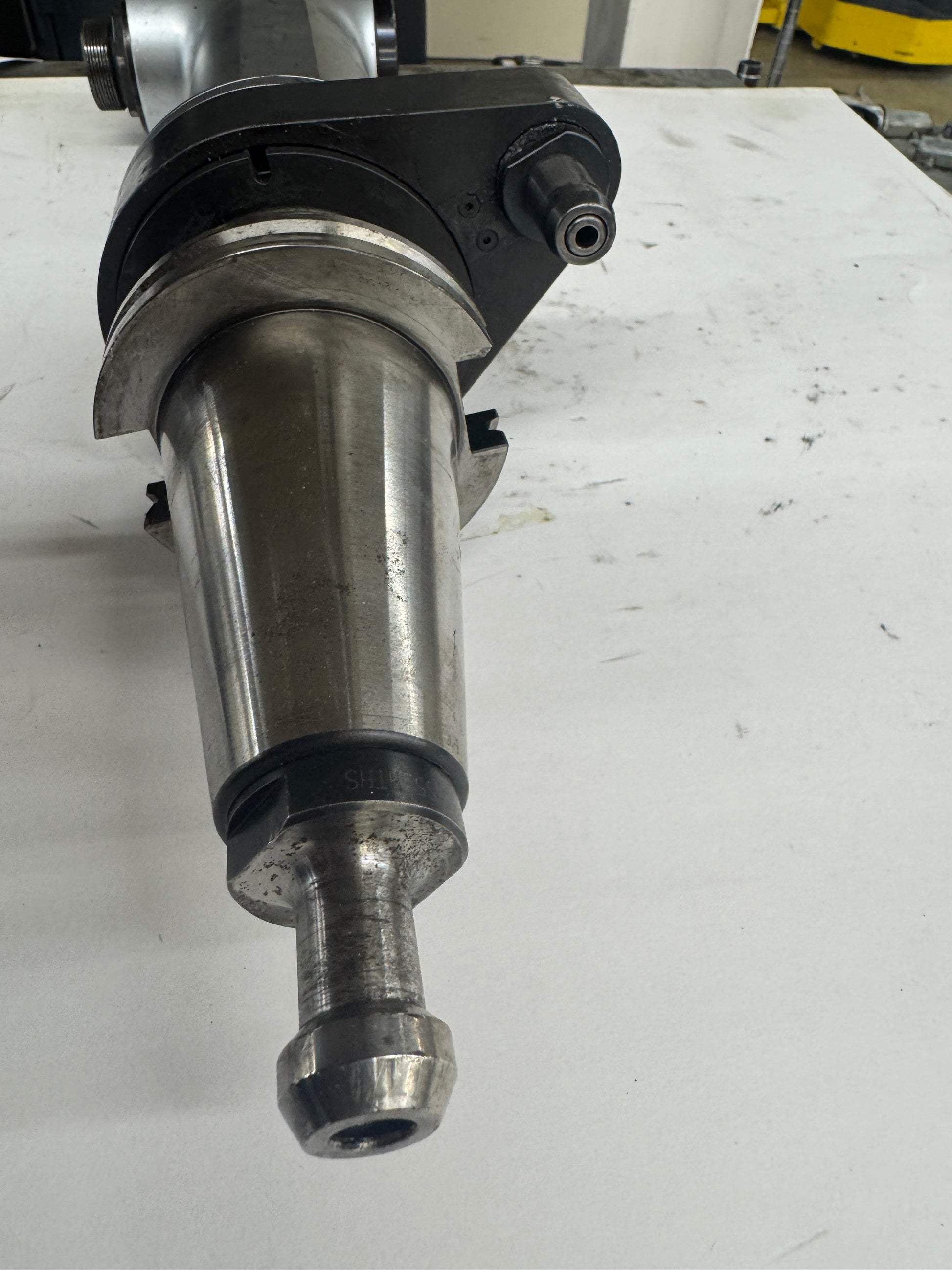

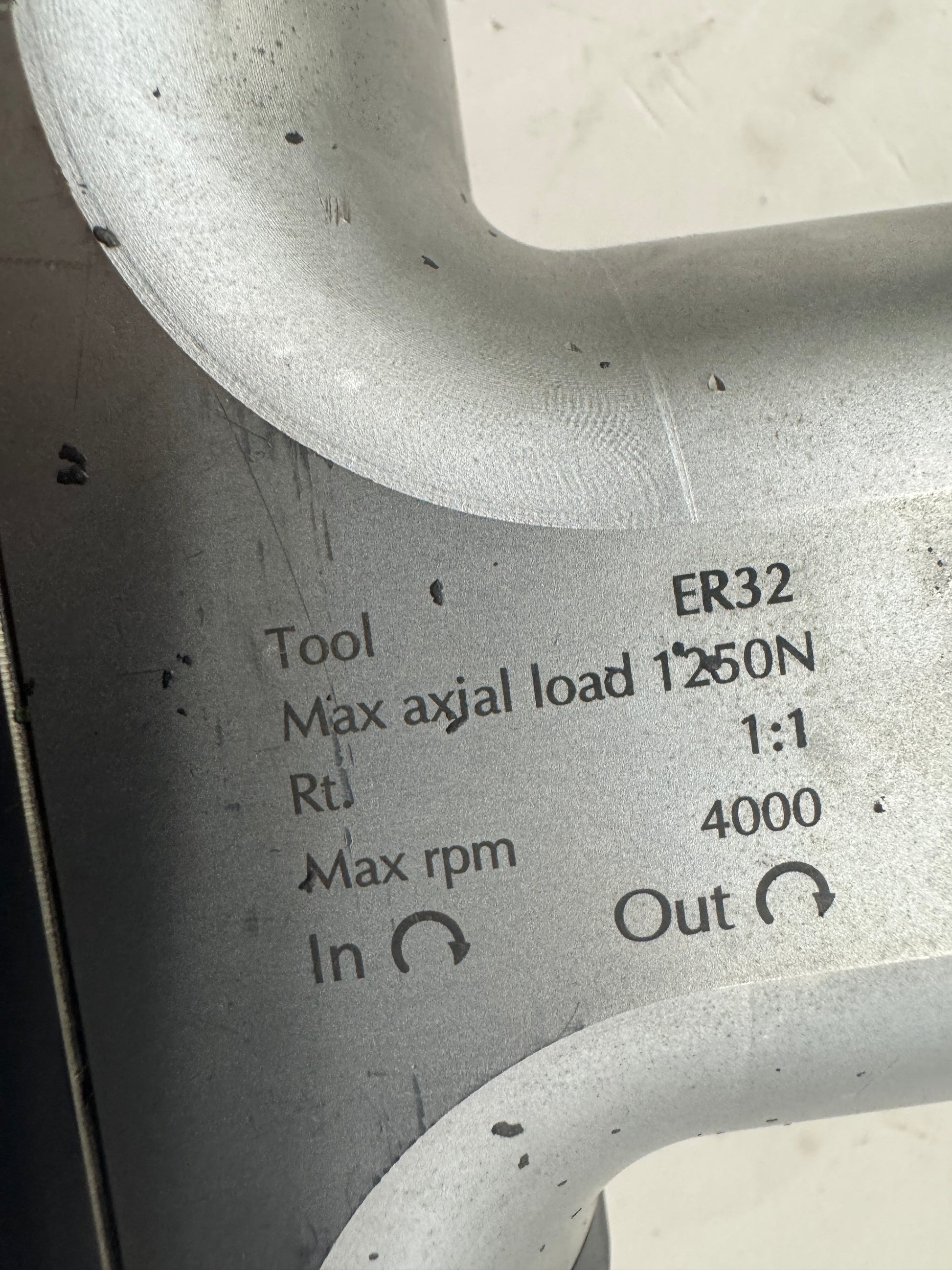

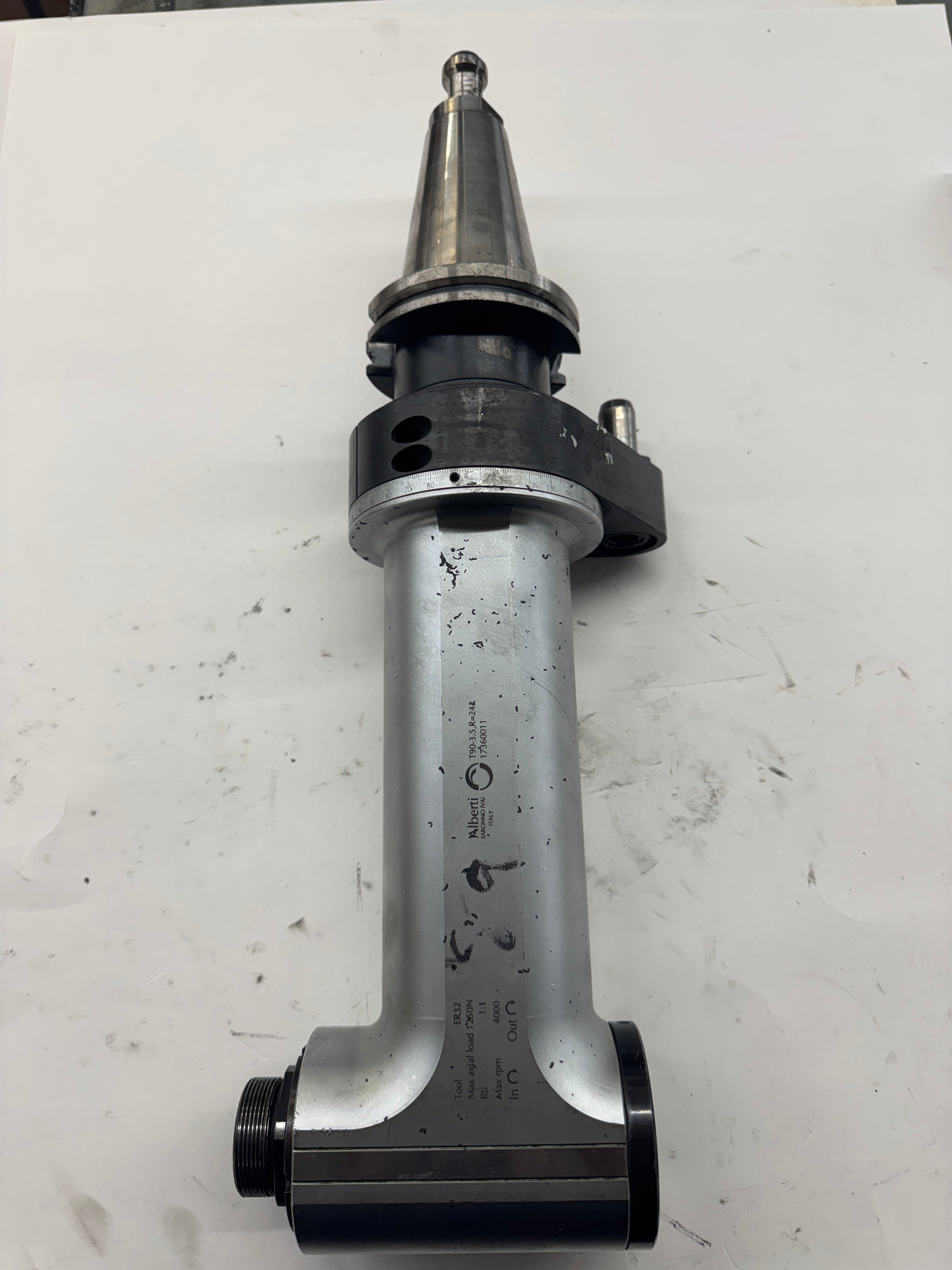

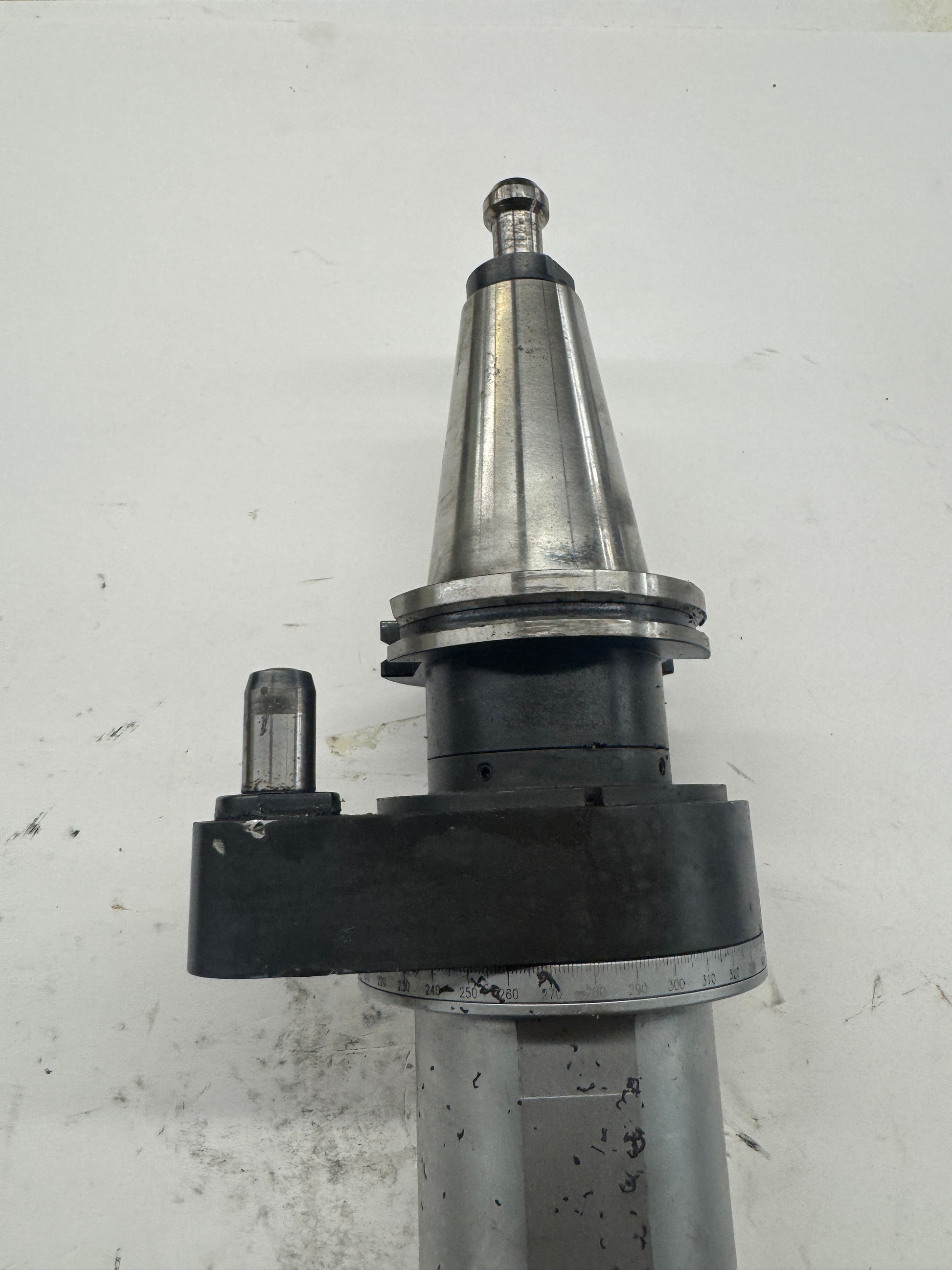

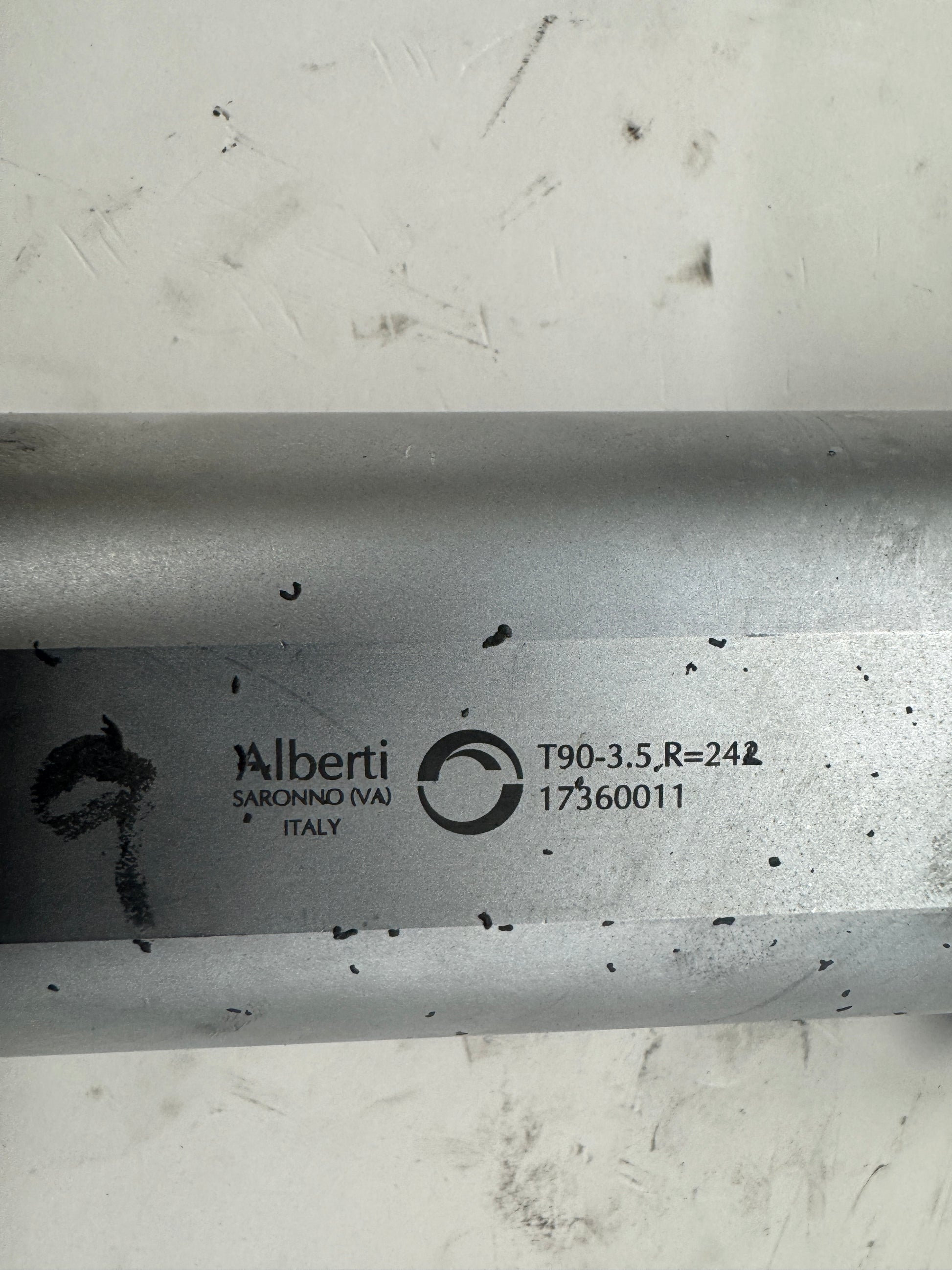

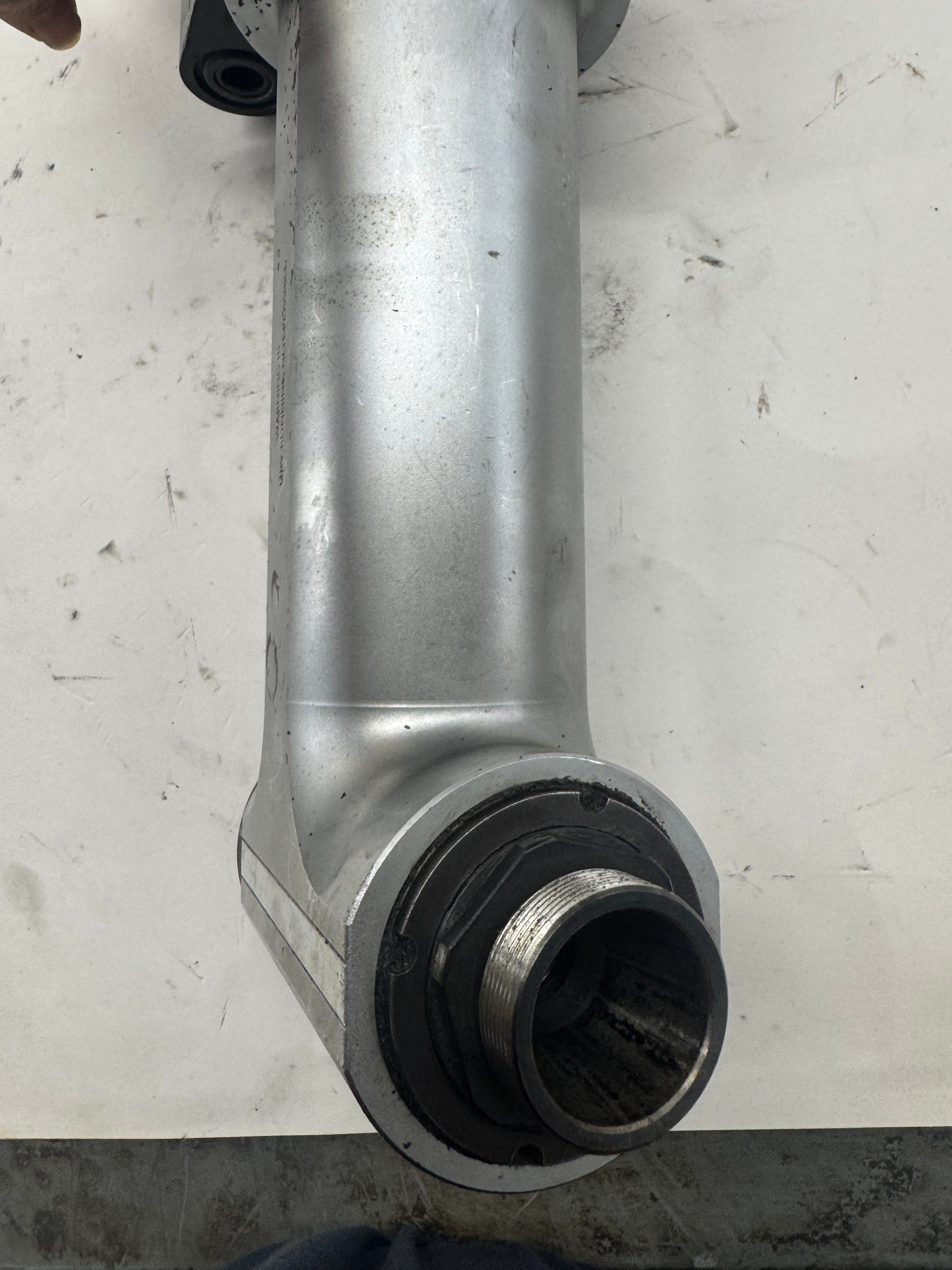

Used in CNC machining centers requiring right angle output from a standard spindle, the Alberti T90-3.5 is a modular 90 degree angle head built for demanding milling and drilling applications. Manufactured by Alberti of Saronno, Italy, this unit accepts a CAT40 taper shank and delivers output through an ER32 collet system with a 1:1 gear ratio. The nameplate confirms a maximum speed of 4000 RPM and a maximum axial load of 1250 N. The serial number 17360011 is visible on the body. Model designation T90-3.5,R=242 is stamped directly on the housing. The unit features a precision graduated collar for angular adjustment and a side-mounted anti-rotation stop pin, both characteristic of the Alberti T90 modular series. The ER32 collet interface accommodates a broad range of shank diameters, making this angle head compatible with a wide variety of tooling. The CAT40 input taper is compatible with standard ATC equipped vertical and horizontal machining centers. Alberti is an Italian manufacturer recognized in the CNC tooling industry for precision angle head and right angle milling attachment products. The T90 series uses a modular architecture that allows configuration changes across compatible bodies and output heads.
Stock # 0426-02123
