Allen-Bradley 1336-MOD-KB005 Dynamic Brake Untested Surplus
Allen-Bradley 1336-MOD-KB005 Dynamic Brake Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 1336-MOD-KB005
Stock #: 0526-01430
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 1336-MOD-KB005
- Product Type: Dynamic Brake Unit
- Series: D
- Compatible Drives: 1336, 1336VT, 1336 PLUS, 1336 PLUS II, 1336 FORCE
- Input Voltage: 680 to 750 VDC
- Input Current: 2.5 ADC (RMS)
- Compatible Drive Input: 380 to 460V AC
- Max Output Heat Dissipation: 375 Watts
- HP Rating: 5 HP
- Enclosure Rating: NEMA Type 1 / IP20

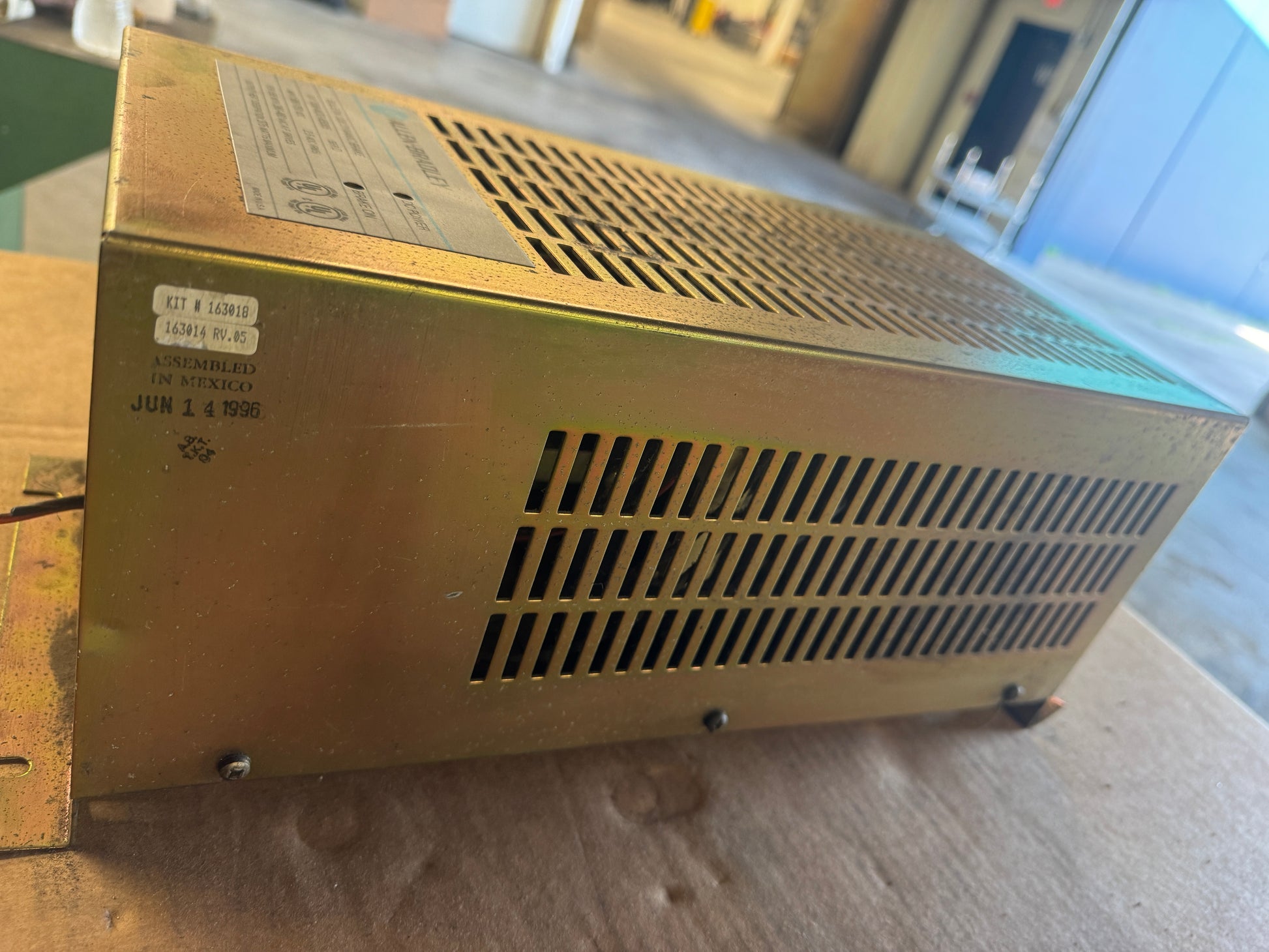

- Kit Number: 16301B, Revision 05
- Assembly Date: June 1996
- Certifications: UL Listed
- Status: Discontinued June 2010
Product Description

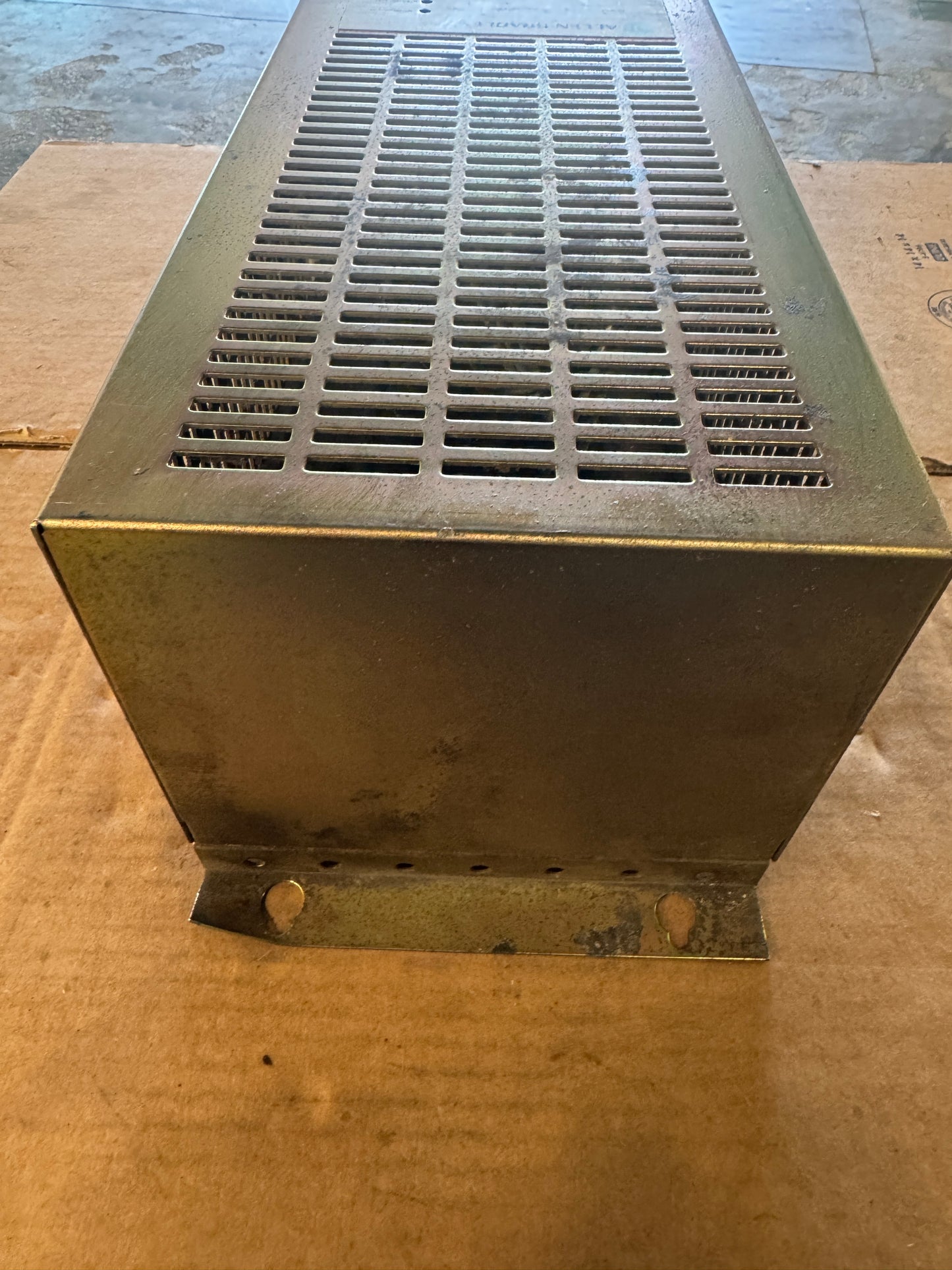

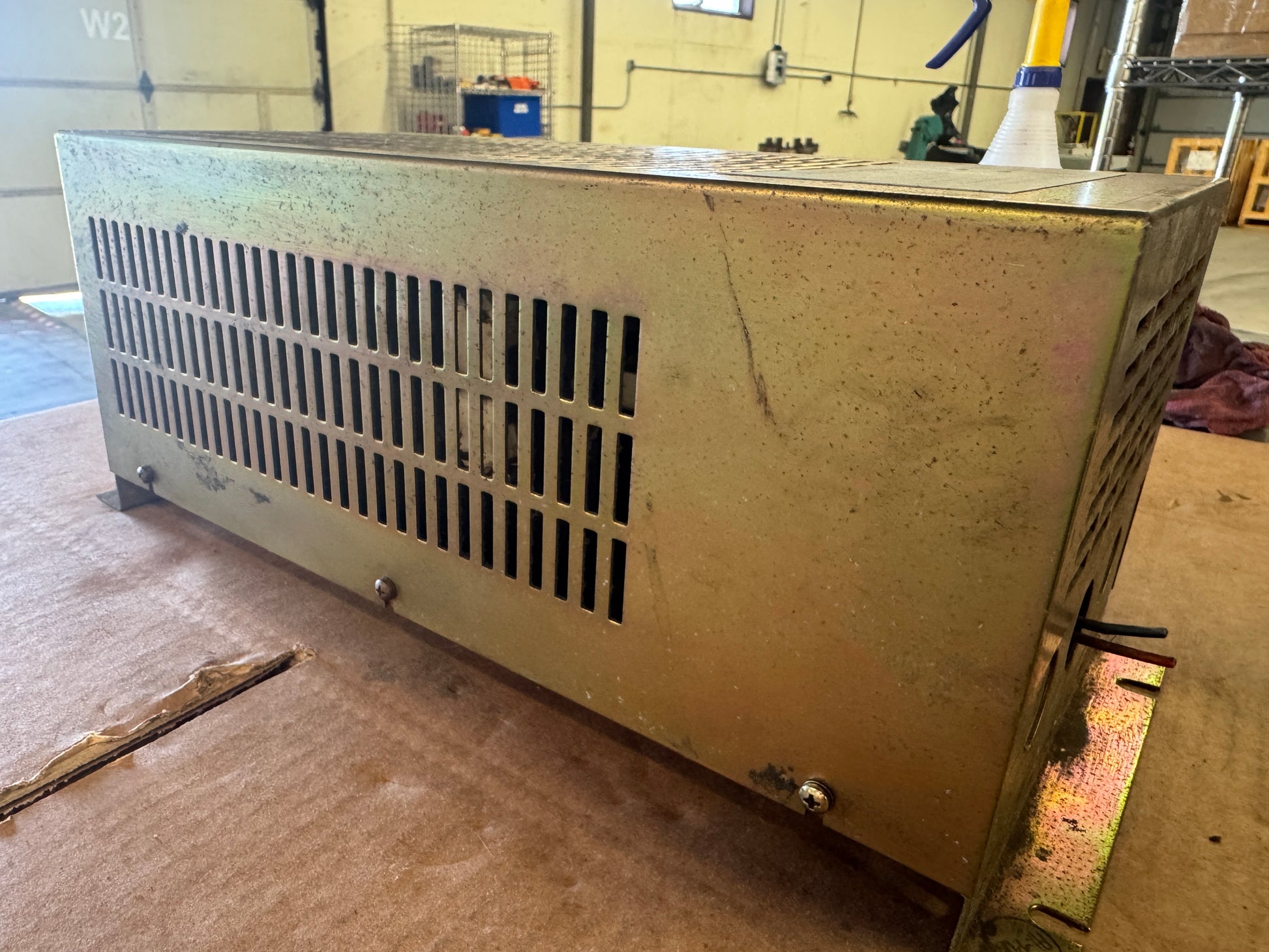

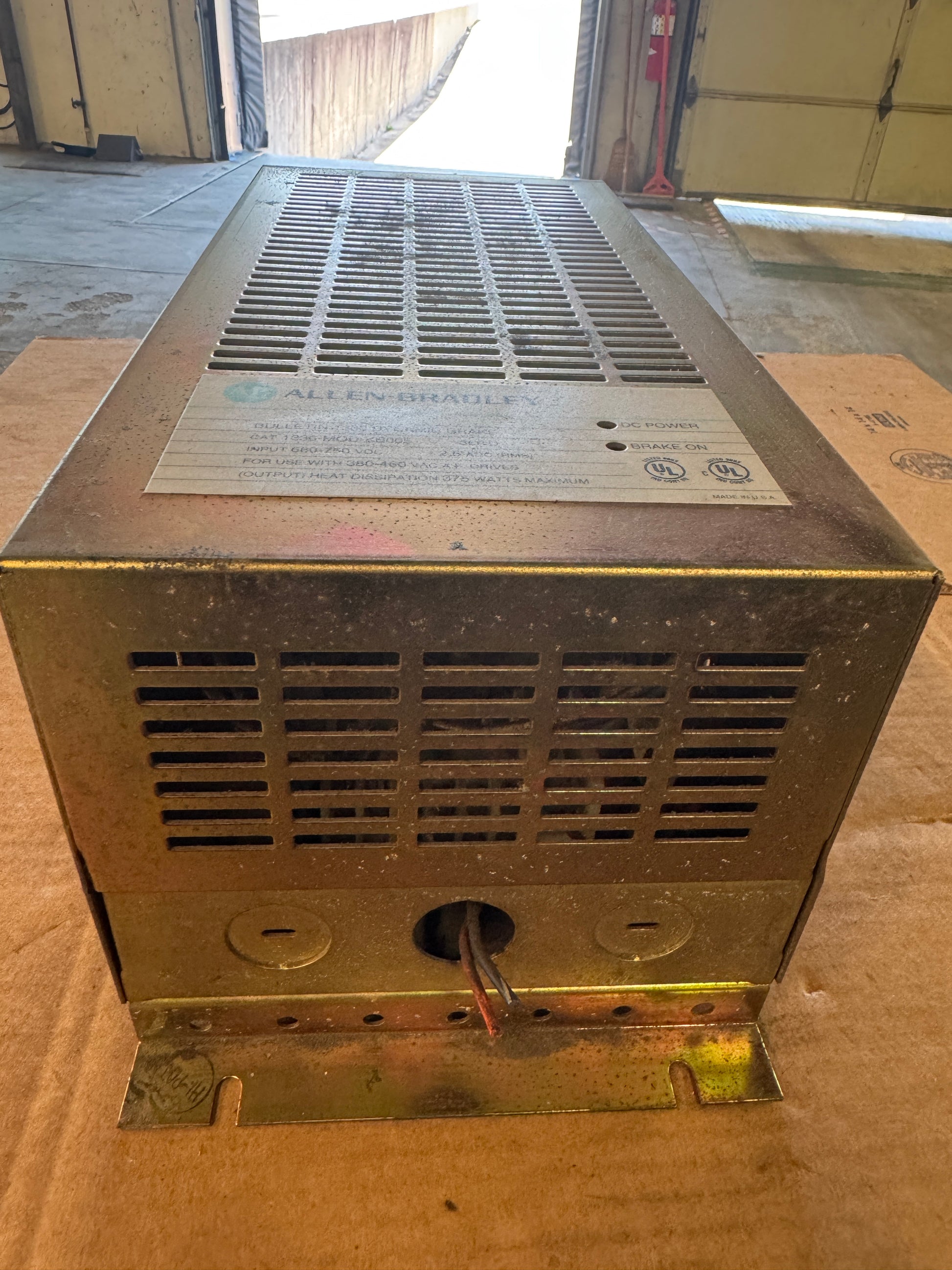

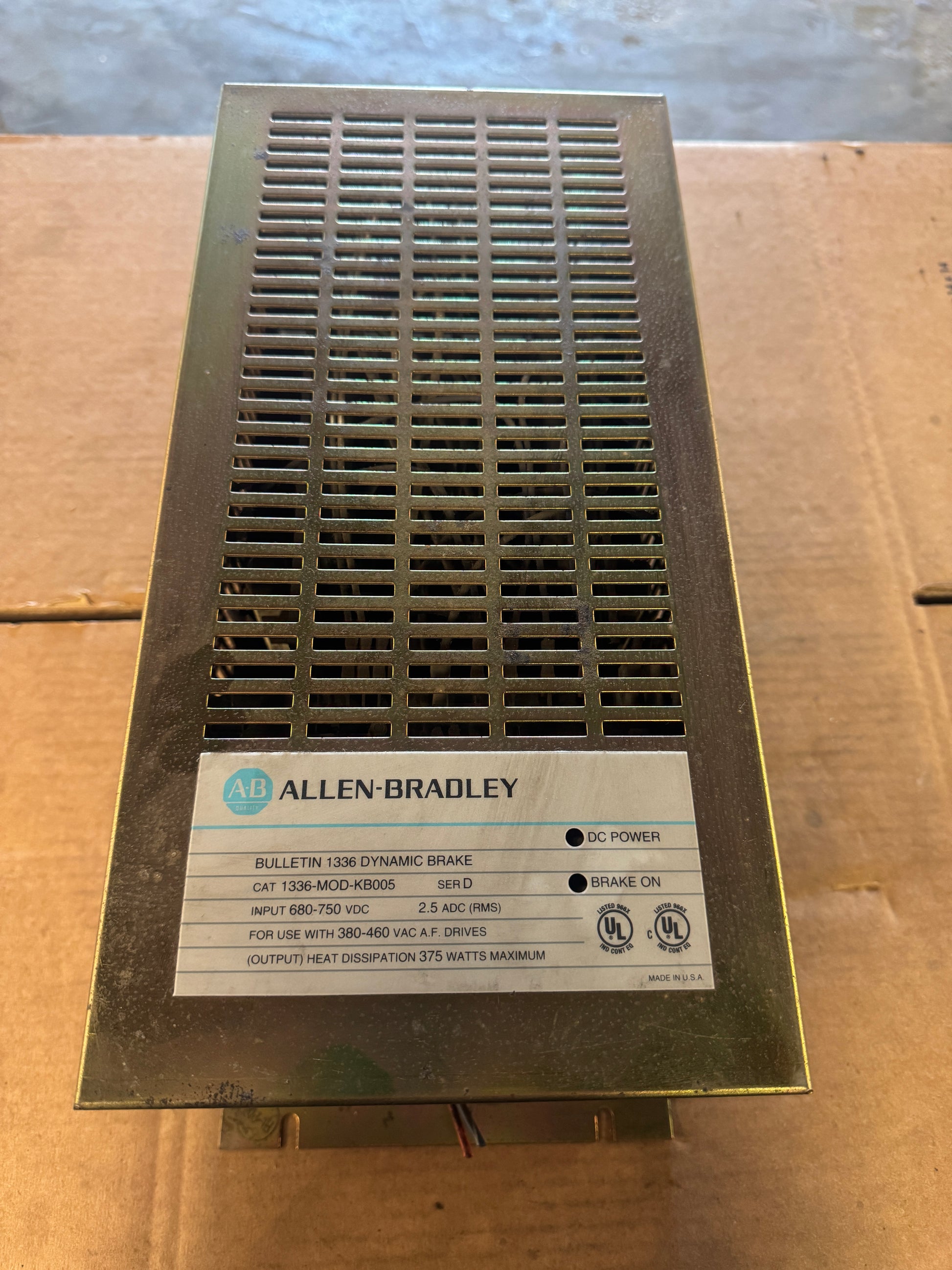

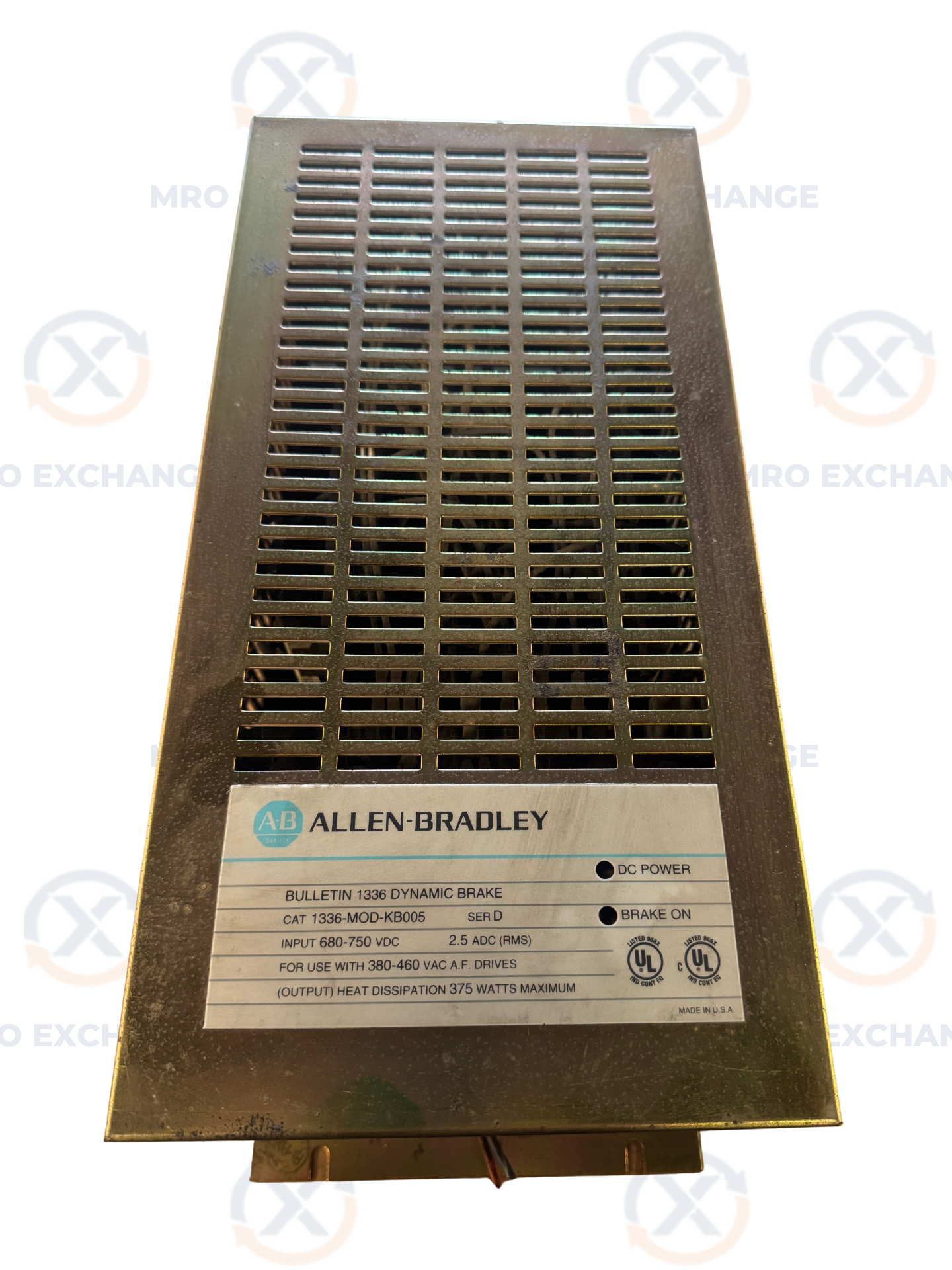

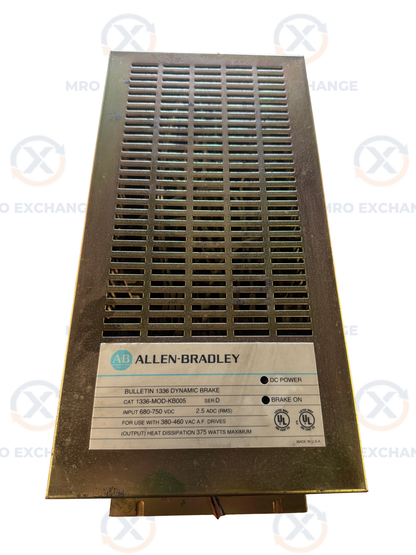

The Allen-Bradley 1336-MOD-KB005 is a Bulletin 1336 Dynamic Brake unit rated for 680 to 750 VDC input at 2.5 ADC (RMS), designed for use with 380 to 460V AC adjustable frequency drives in the 1336, 1336VT, 1336 PLUS, 1336 PLUS II, and 1336 FORCE series. The unit provides dynamic braking capability by dissipating regenerative energy as heat, with a maximum output heat dissipation rating of 375 watts. Two status indicators are present on the front panel: DC Power and Brake On. The enclosure features a louvered steel construction with a mounting flange base. Series D designation, assembled June 1996. Kit number 16301B, revision 05. UL Listed per markings on the nameplate. Compatible with NEMA Type 1 / IP20 installation environments. Part number 1336-MOD-KB005 is the market-recognized MPN for this specific 5 HP / 375 watt dynamic brake accessory in the 1336 drive family. Discontinued by the manufacturer as of June 2010.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
