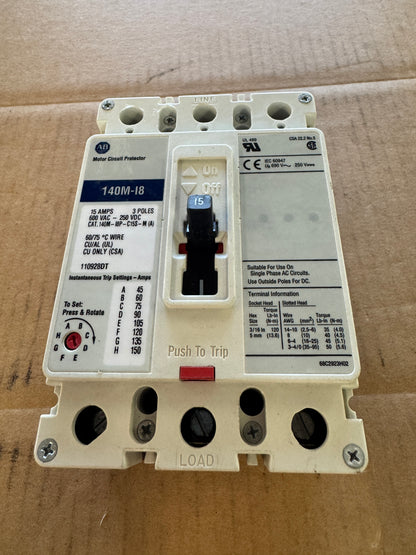

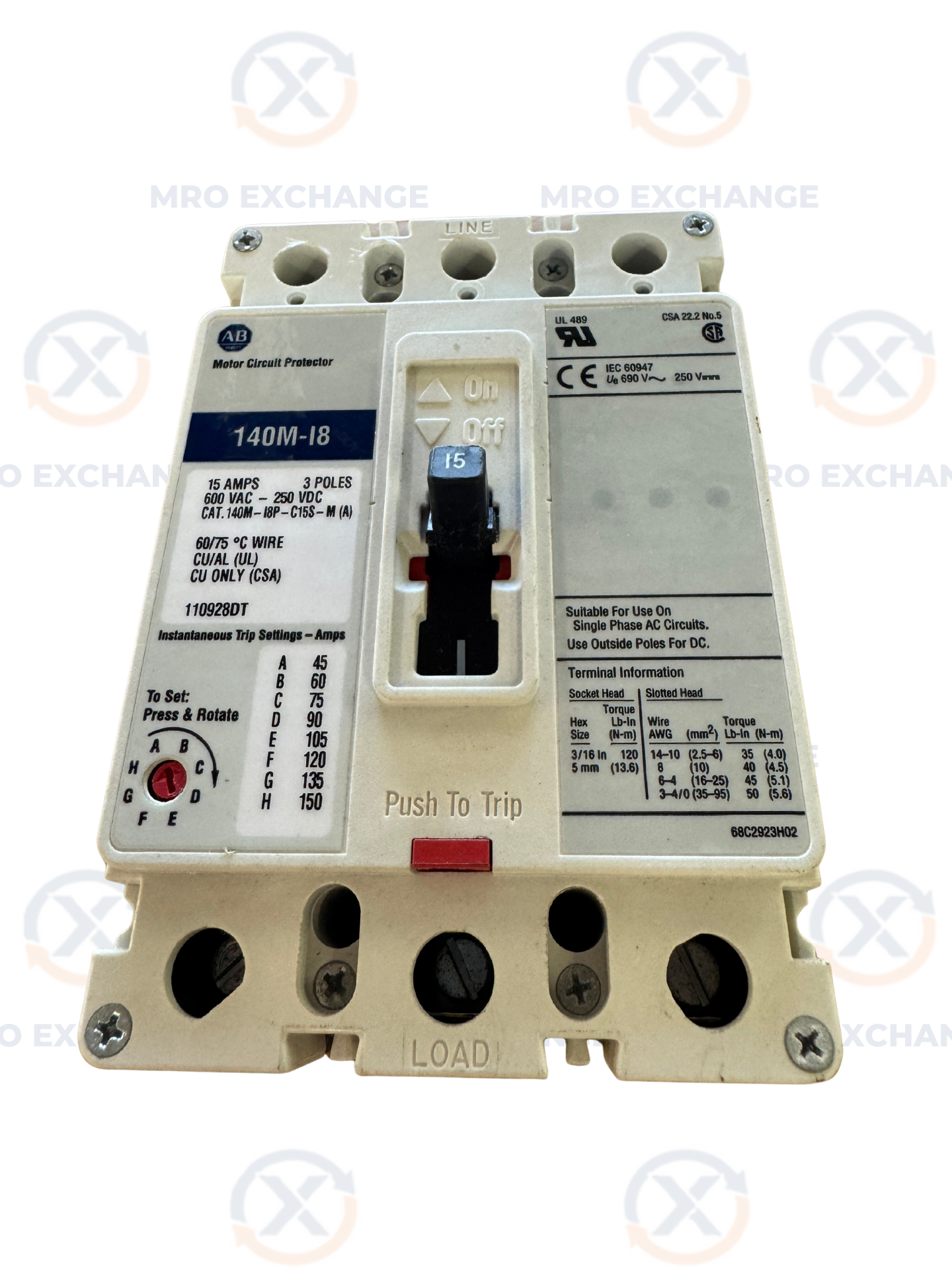

Allen-Bradley 140M-I8P-C15S-M Motor Circuit Protector 600 VAC / 250 VDC
Allen-Bradley 140M-I8P-C15S-M Motor Circuit Protector 600 VAC / 250 VDC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 140M-I8P-C15S-M
Stock #: 0626-01491
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 140M-I8P-C15S-M
- Catalog Number: 140M-I8P-C15S-M (A)
- Product Type: Motor Circuit Protector
- Frame: 140M-I8
- Amperage: 15 Amps
- Poles: 3
- Voltage: 600 VAC / 250 VDC
- Instantaneous Trip Range: 45, 60, 75, 90, 105, 120, 135, 150 Amps (Settings A through H)
- Wire Rating: 60/75 degrees C, CU/AL (UL), CU Only (CSA)
- Certifications: UL 489, IEC 60947, CSA 22.2 No. 5
- Date Code: 110928DT
- Assembled In: Dominican Republic
Product Description

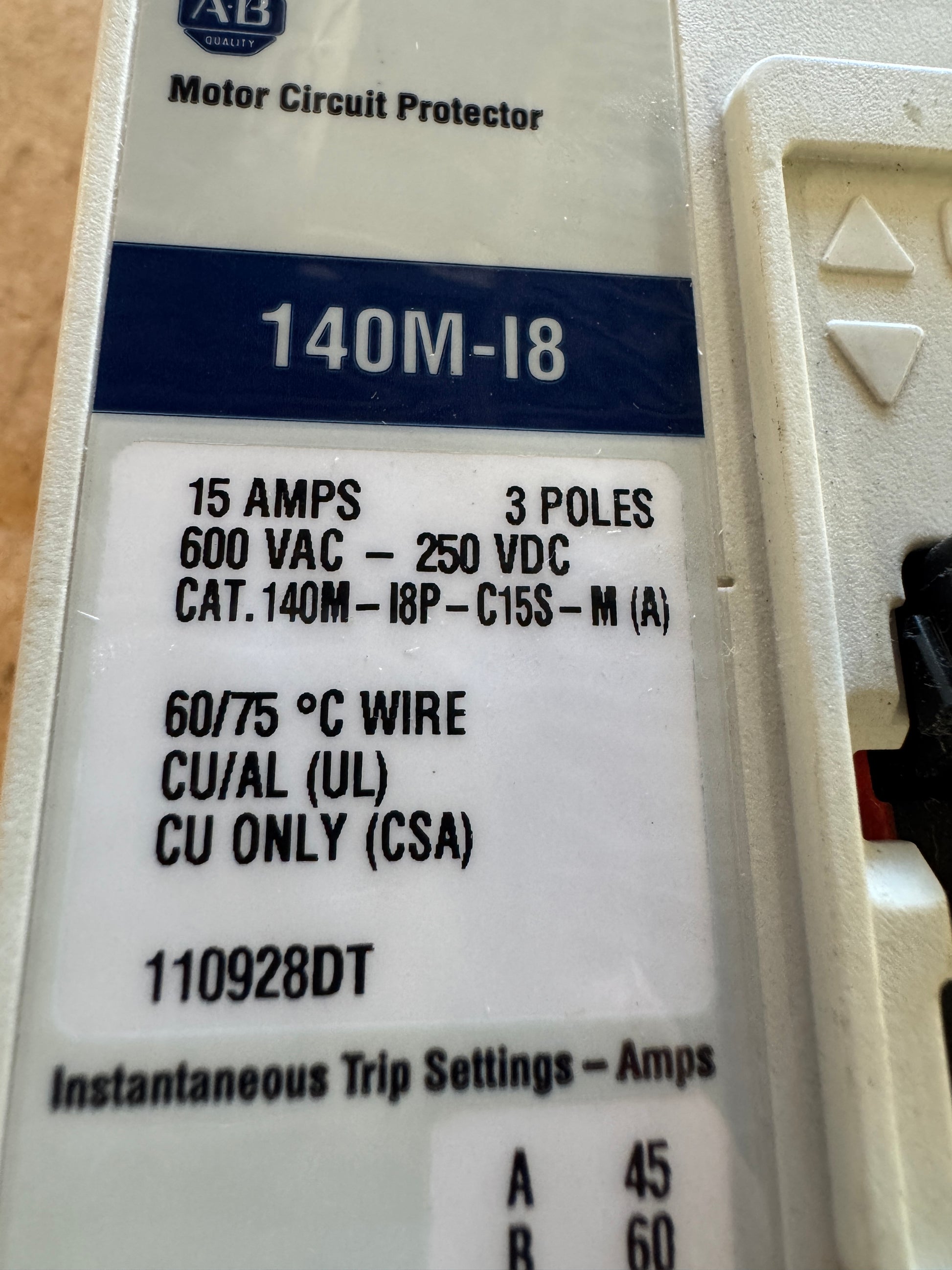

The Allen-Bradley 140M-I8P-C15S-M is a 3-pole Motor Circuit Protector from the Bulletin 140M I-frame series, rated 15 Amps at 600 VAC and 250 VDC. The catalog number visible on the nameplate reads 140M-I8P-C15S-M (A), confirming the Series A designation. Instantaneous trip is adjustable across eight settings ranging from 45 to 150 Amps by rotating the selector dial, accommodating a range of motor starting currents. Wire terminations are rated for 60/75 degrees C conductors, CU/AL under UL, and CU only under CSA. Certifications include UL 489, IEC 60947, and CSA 22.2 No. 5. The date code 110928DT and Dominican Republic assembly are visible on the unit. This item is listed as surplus and untested.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
