Allen-Bradley 1494V-M50 Circuit Breaker Disconnect Operating Mechanism 600V
Allen-Bradley 1494V-M50 Circuit Breaker Disconnect Operating Mechanism 600V
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

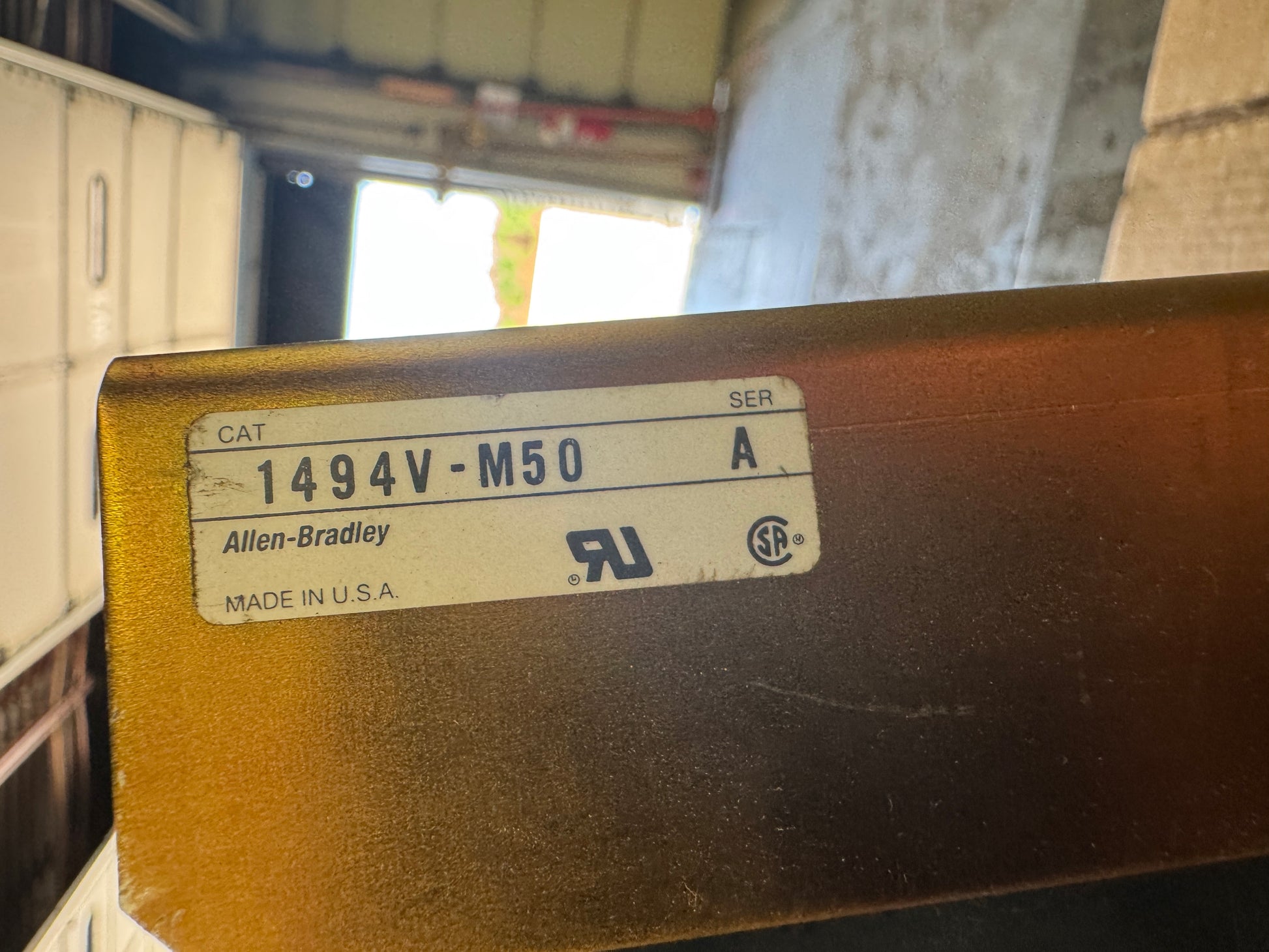

MPN: 1494V-M50
Stock #: Stock # 0626-01671
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 1494V-M50
- Series: A
- Product Type: Variable Depth Flange Operated Circuit Breaker Operating Mechanism
- Compatible Breaker Frames: Cutler-Hammer JD, JDB, JDC, HJD, HMCP

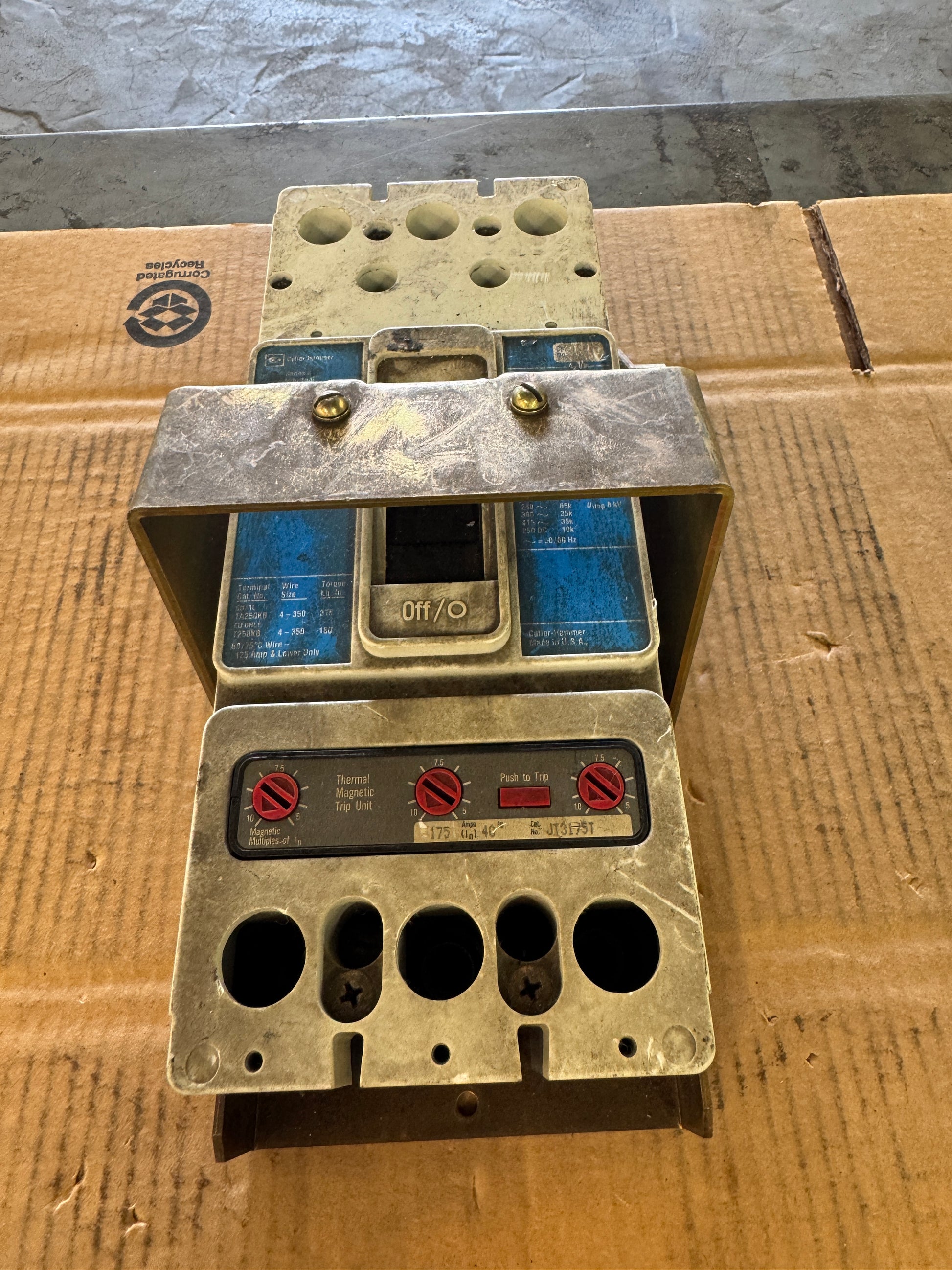

- Installed Breaker Trip Unit: Cutler-Hammer JT3175T, 175A, 3 Pole, 600 VAC, Thermal Magnetic
- Installed Breaker Frame: Cutler-Hammer Series II J Frame, TA250KB / T250KB terminals

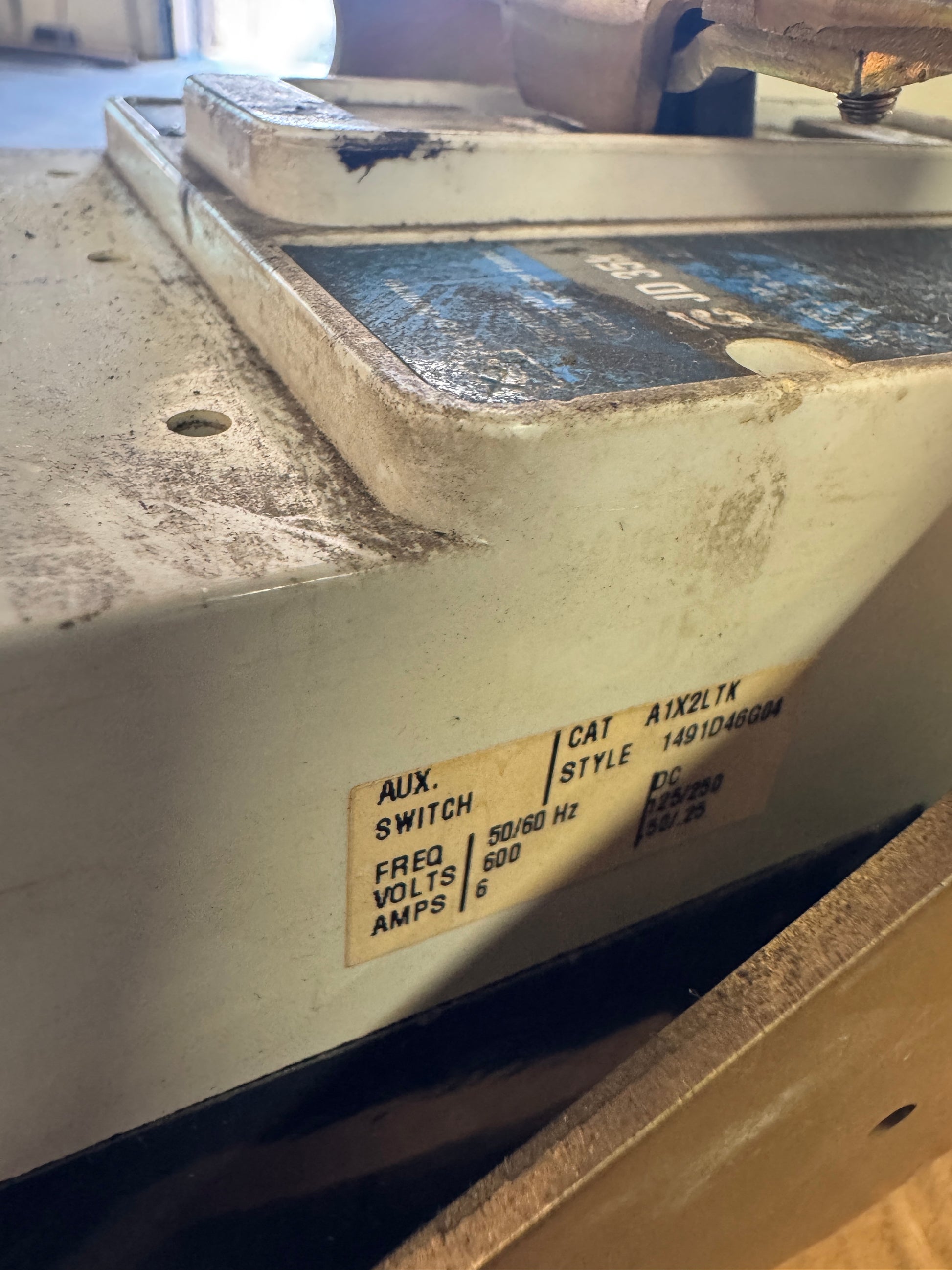

- Auxiliary Switch: Allen-Bradley Cat A1X2LTK, Style 1491D46G04, 600 Volts, 6 Amps, 50/60 Hz
- Country of Origin: Made in U.S.A.
Product Description

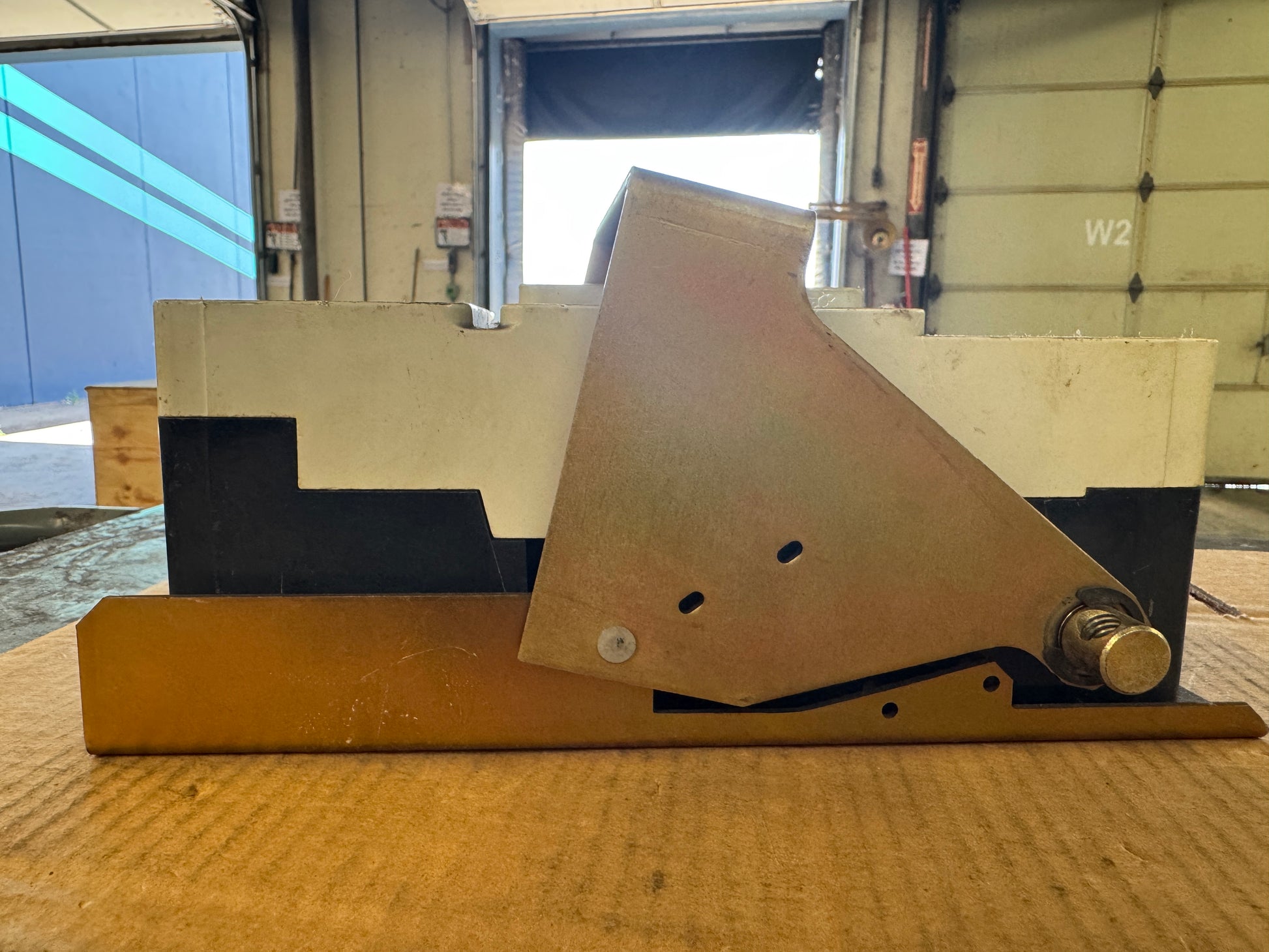

The Allen-Bradley 1494V-M50 is a variable depth, flange operated operating mechanism used to convert a Cutler-Hammer molded case circuit breaker into a door interlocked disconnect. This Series A unit is configured for Cutler-Hammer JD, JDB, JDC, HJD, and HMCP frame breakers and is supplied here as a complete assembly built around a Cutler-Hammer Series II J frame breaker fitted with a JT3175T thermal magnetic trip unit rated 175 amps, 3 pole, 600 VAC.

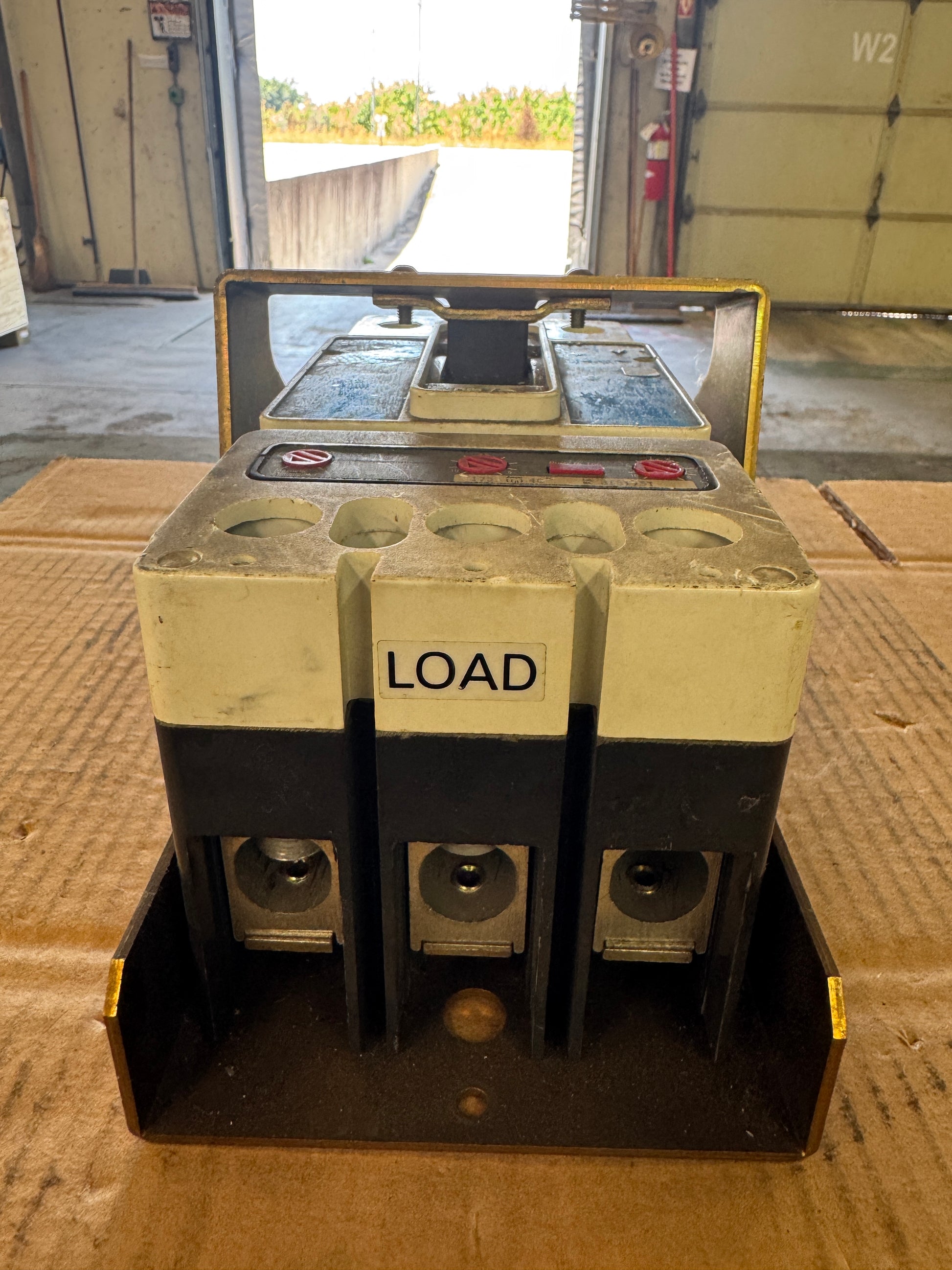

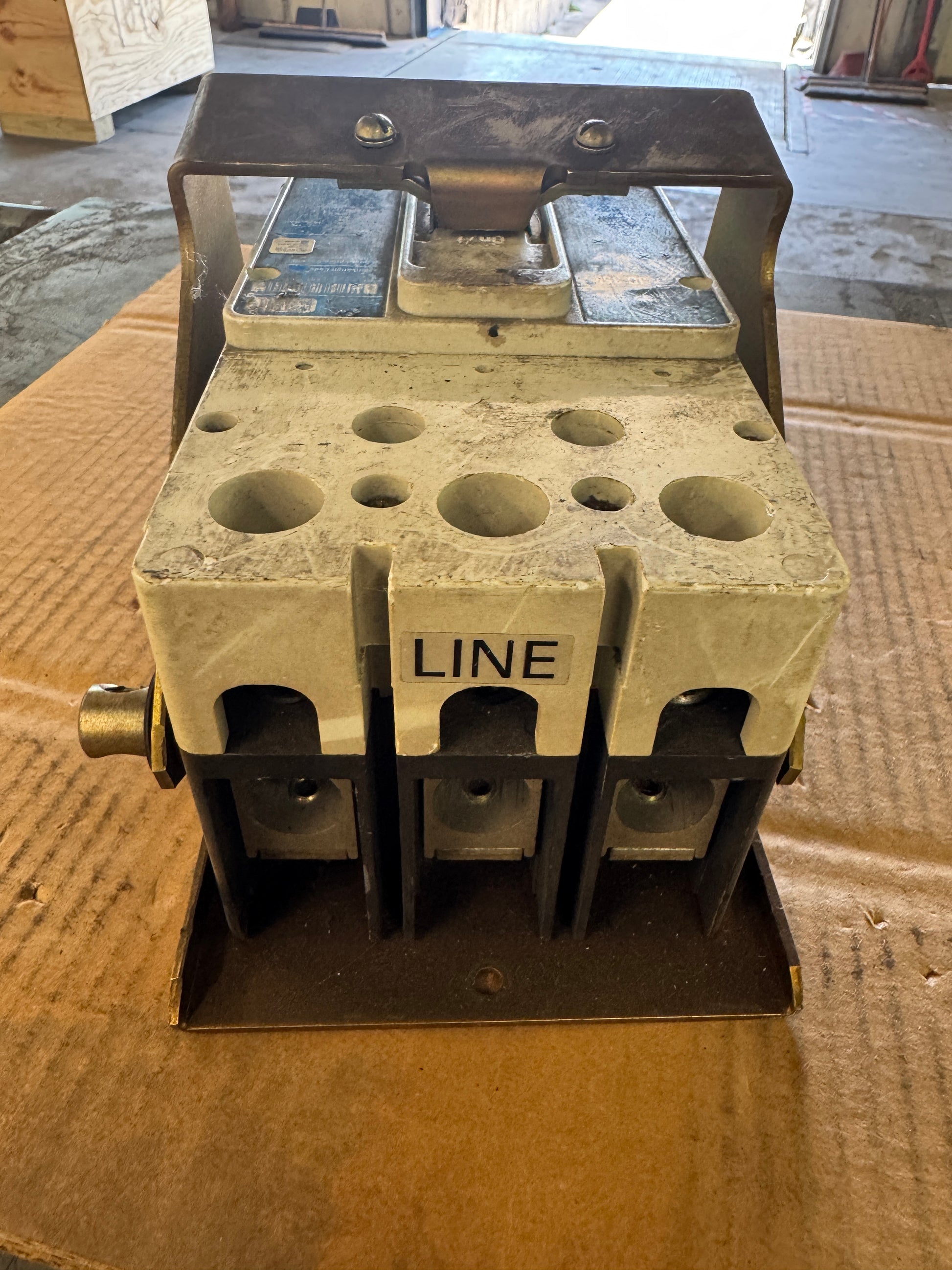

The assembly also includes an Allen-Bradley auxiliary switch identified by Cat A1X2LTK and Style 1491D46G04, rated 600 volts and 6 amps at 50/60 Hz. Line and Load terminal positions are labeled on the housing, and the unit is marked Made in U.S.A. Buyers can match the exact catalog numbers 1494V-M50 and JT3175T to confirm compatibility with an existing enclosure, breaker frame, or replacement requirement. This listing is useful for sourcing a surplus flange operated disconnect mechanism together with a matching J frame breaker for maintenance, spare inventory, or panel rebuild needs.
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
