Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 160-BA10NPS1
Stock #: 0626-01523
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 160-BA10NPS1
- Series: C
- Product Type: Variable Frequency Drive (Smart Speed Controller)
- Control Mode: Preset Speed (PS)
- Firmware Revision Number: 7.04
- Motor Rating: 3.73 kW / 5 HP
- Input Voltage: 380-460V AC, 3-Phase
- Input Current: 12.2 A
- Input Frequency: 50/60 Hz
- Input Power: 9700 VA
- Output Voltage: 380-460V AC, 3-Phase
- Output Current: 10.5 A
- Output Frequency: 0-240 Hz
- Enclosure Rating: IP20
- Operating Ambient Temperature: 0-50 degrees C
- Short Circuit Current Rating: 10 kA
- Power Terminal Wire: 4 mm2 to 0.75 mm2 (12-18 AWG), 75 degrees C Cu wire, torque 1.35 Nm (12 in-lbs)
- Country of Origin: Made in U.S.A.
- Certifications: UL Listed, CE, IND. CONT. EQ. 966X

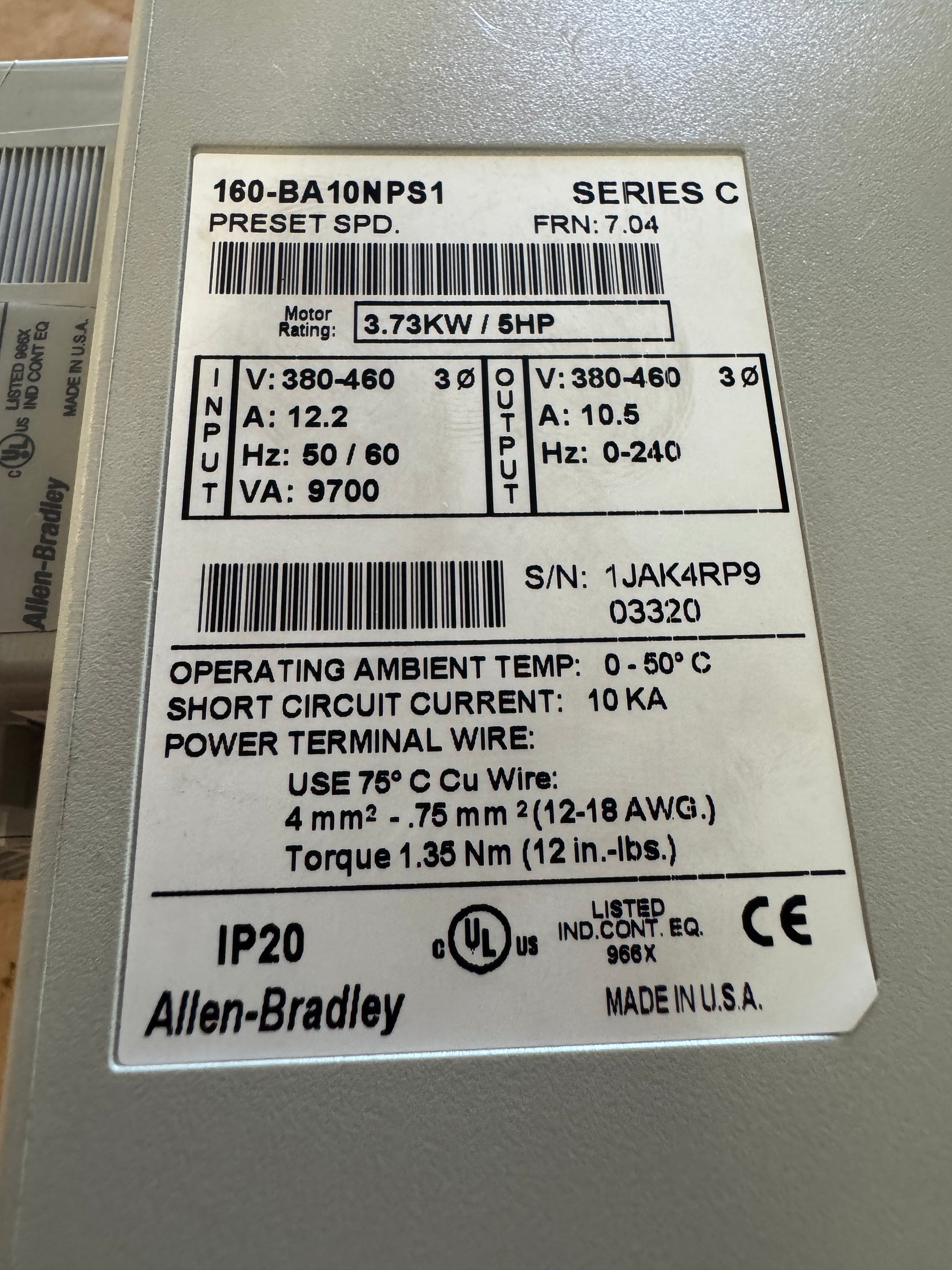

- Serial Number: 1JAK4RP9 03320
- Installed Communication Module: Allen-Bradley 160-DN2, Series A, FRN 3.002 (DeviceNet Communication Module)
Product Description
The Allen-Bradley 160-BA10NPS1 is a 5 HP (3.73 kW) variable frequency drive from the Bulletin 160 Smart Speed Controller (SSC) series, Series C with firmware revision 7.04. The drive is rated for 380-460V AC three-phase input at 12.2 A and delivers 380-460V three-phase output at 10.5 A across an output frequency range of 0-240 Hz. Control mode is Preset Speed (PS), supporting up to eight user-configurable preset frequencies. Enclosure rating is IP20 (open type) with an operating ambient temperature range of 0 to 50 degrees C. The unit is Made in the U.S.A. and carries UL, CE, and IND. CONT. EQ. 966X certifications.
This unit includes an Allen-Bradley 160-DN2 Series A DeviceNet Communication Module (FRN 3.002) installed on the drive. The 160-DN2 adds DeviceNet network capability to the host 160 SSC drive, enabling communication at selectable baud rates of 125, 250, and 500 kbps and integration with ControlLogix, CompactLogix, SLC 500, and PLC-5 platforms via the appropriate DeviceNet scanner modules. Serial number on the drive nameplate is 1JAK4RP9 03320. The 160-BA10NPS1 was discontinued by the manufacturer. Buyers matching this catalog number for maintenance or replacement sourcing should use the exact MPN and series designation to confirm compatibility with their application.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
