Allen-Bradley 1756-DMD30 ControlLogix Drive Control Module
The Allen-Bradley 1756-DMD30 (also listed as 1756DMD30, AB 1756-DMD30) is a single-slot ControlLogix drive control module from the Rockwell Automation 1756 series.

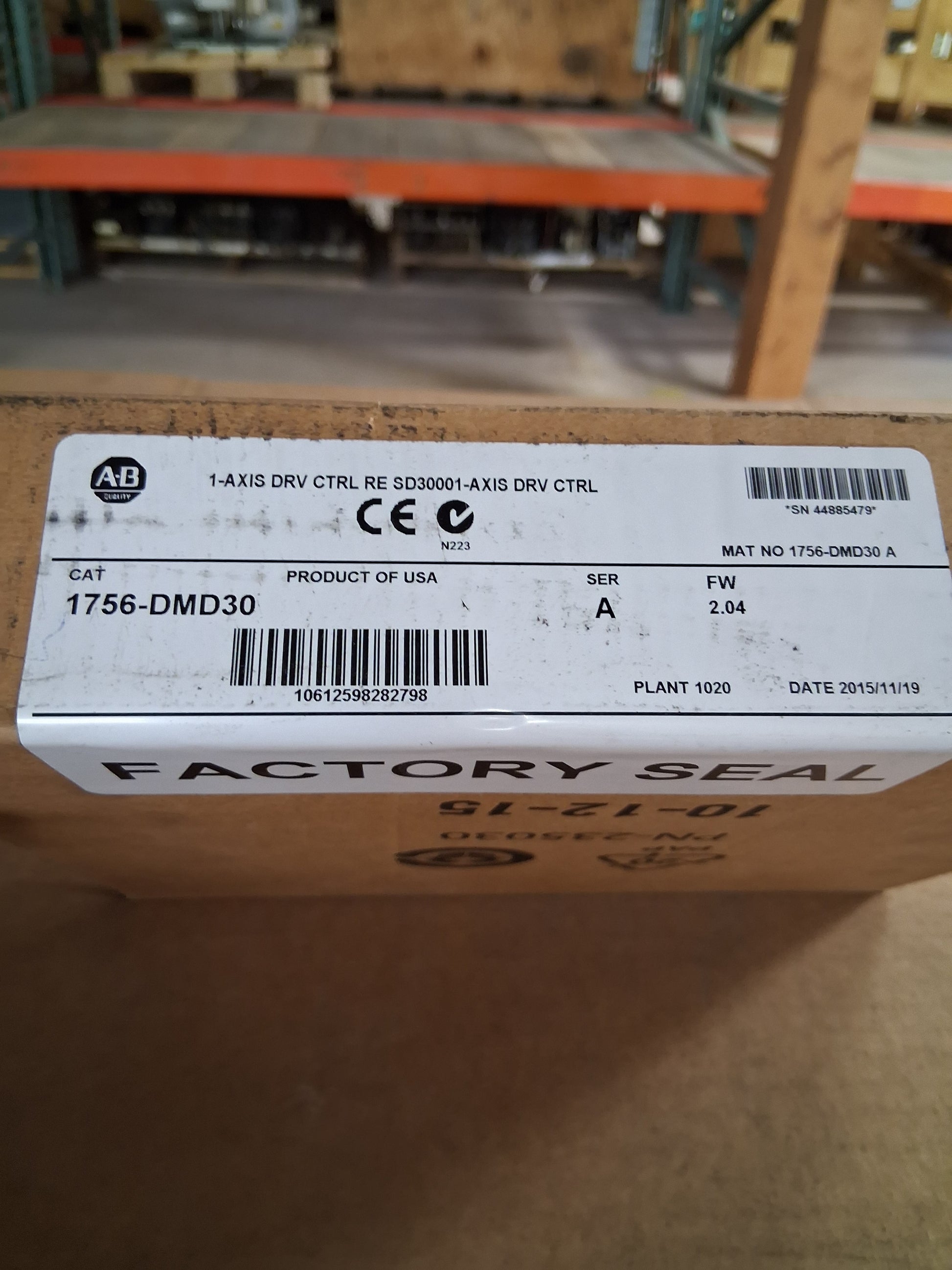

Unit Identification
- Catalog Number: 1756-DMD30
- Series: A
- Firmware Revision: 2.04
- Material Number: 1756-DMD30 A
- Serial Number: 44885479
- Date Code: 2015/11/19
Manufacturer-Published Specifications
Per publicly available Rockwell Automation documentation, the 1756-DMD30 is documented with the following specifications:
Communication
- 5 Mbps SynchLink communication
- 10 Mbps Drive Communication
- Fiber optic cabling interface
Documented Drive Compatibility
- SD3000 6 Pulse DC drive systems (S6 and S6R)
- SD3000 12 Pulse DC drive systems (S12 and S12R)
- Interfaces with Power Module Interface (PMI) processor
Power
- Backplane Power: 24 VDC at 3 mA, 5.1 VDC at 1.35 A
- Peak Power Dissipation: 6.96 W
- Thermal Dissipation: 23.7 BTU/hr
Environmental
- Operating Temperature: 32 to 140 degrees Fahrenheit
- Storage Temperature: -40 to 185 degrees Fahrenheit
- Operating Shock: 30 G
- Ambient Relative Humidity: 5 to 95 percent
Diagnostics and Certifications
- Status Indicators: Green and red LEDs
- Markings: CE, N223
Condition and Notices

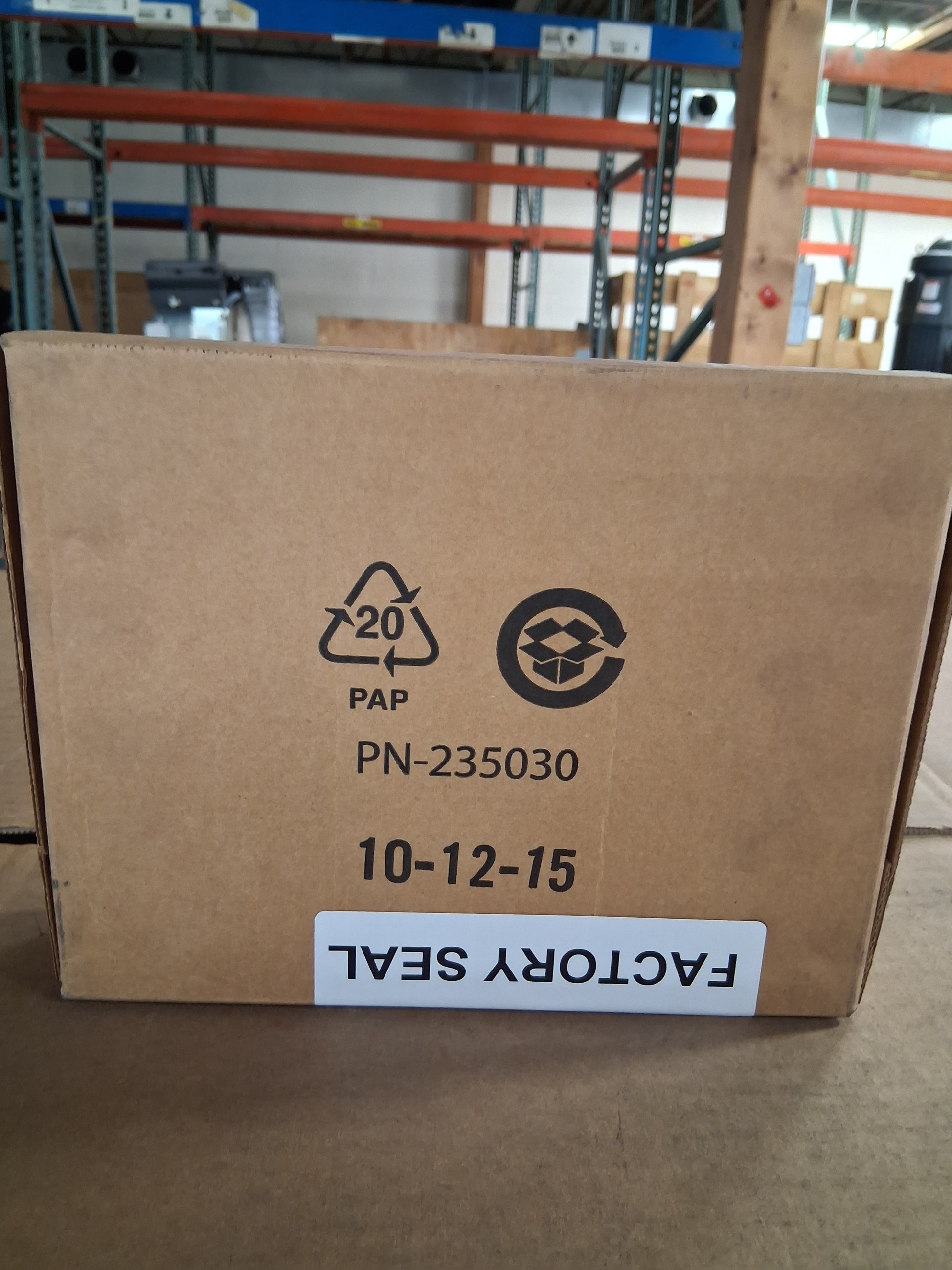

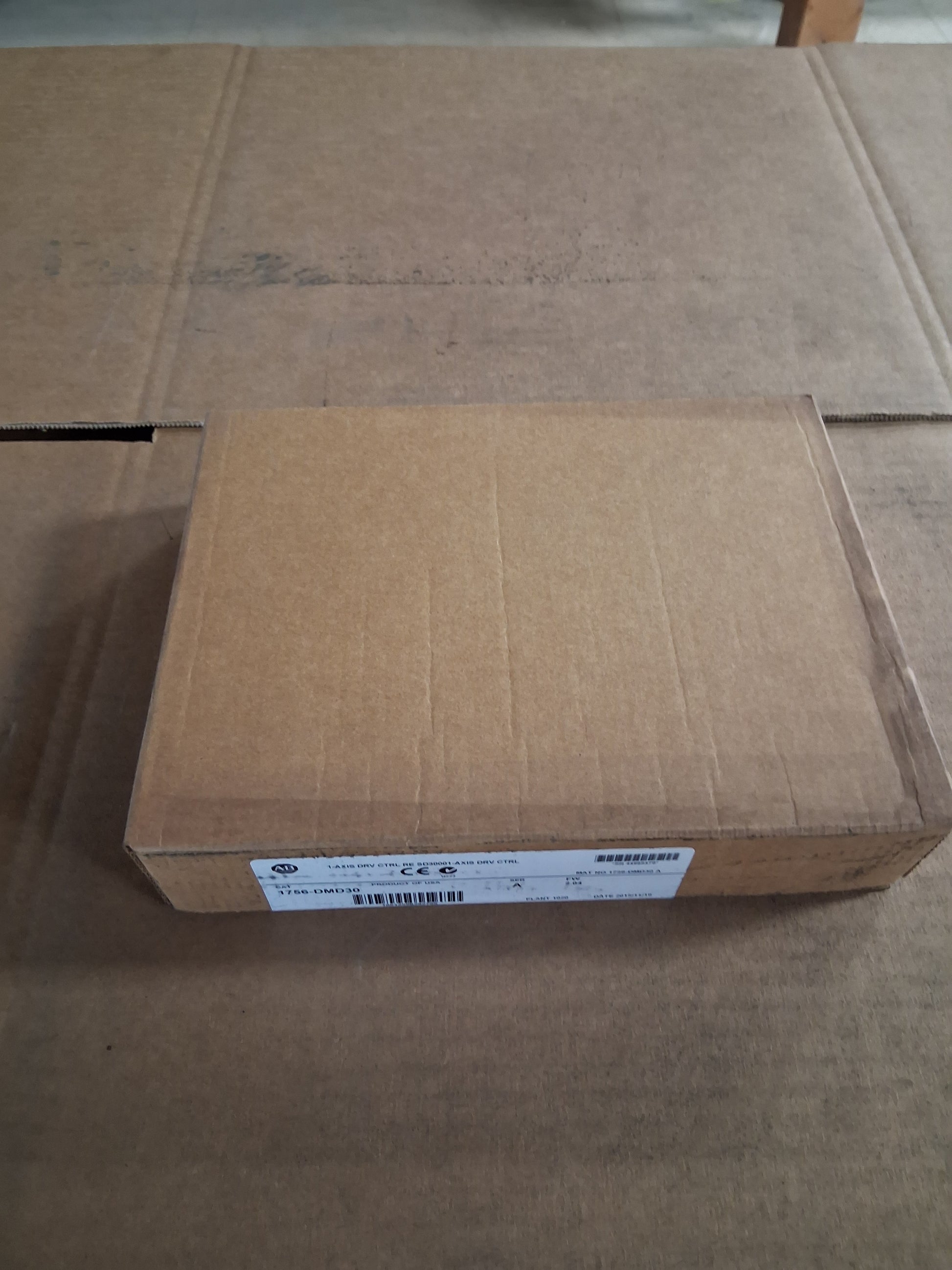

This unit is surplus inventory, boxed and unopened, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
Specifications are sourced from publicly available manufacturer documentation and are provided for identification purposes only. MRO Exchange does not warrant the accuracy of specifications or guarantee product performance or compatibility. Buyers are responsible for confirming suitability for their application against current manufacturer documentation.
