Allen-Bradley 1761-NET-DNI DeviceNet Interface Module 11 to 25 VDC
Allen-Bradley 1761-NET-DNI DeviceNet Interface Module 11 to 25 VDC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 1761-NET-DNI
Stock #: 0626-01533
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 1761-NET-DNI
- Product Type: DeviceNet Interface Module
- Series: B
- Firmware Revision Number (FRN): 2.02
- WIN: 211P0RN0SS
- Mfg Date: 0700 (July 2000)
- FAC: 1P
- Input Voltage: 11 to 25 VDC
- Current Draw: 200 mA at 24 VDC / 350 mA at 11 VDC
- Power Class: N.E.C. Class 2

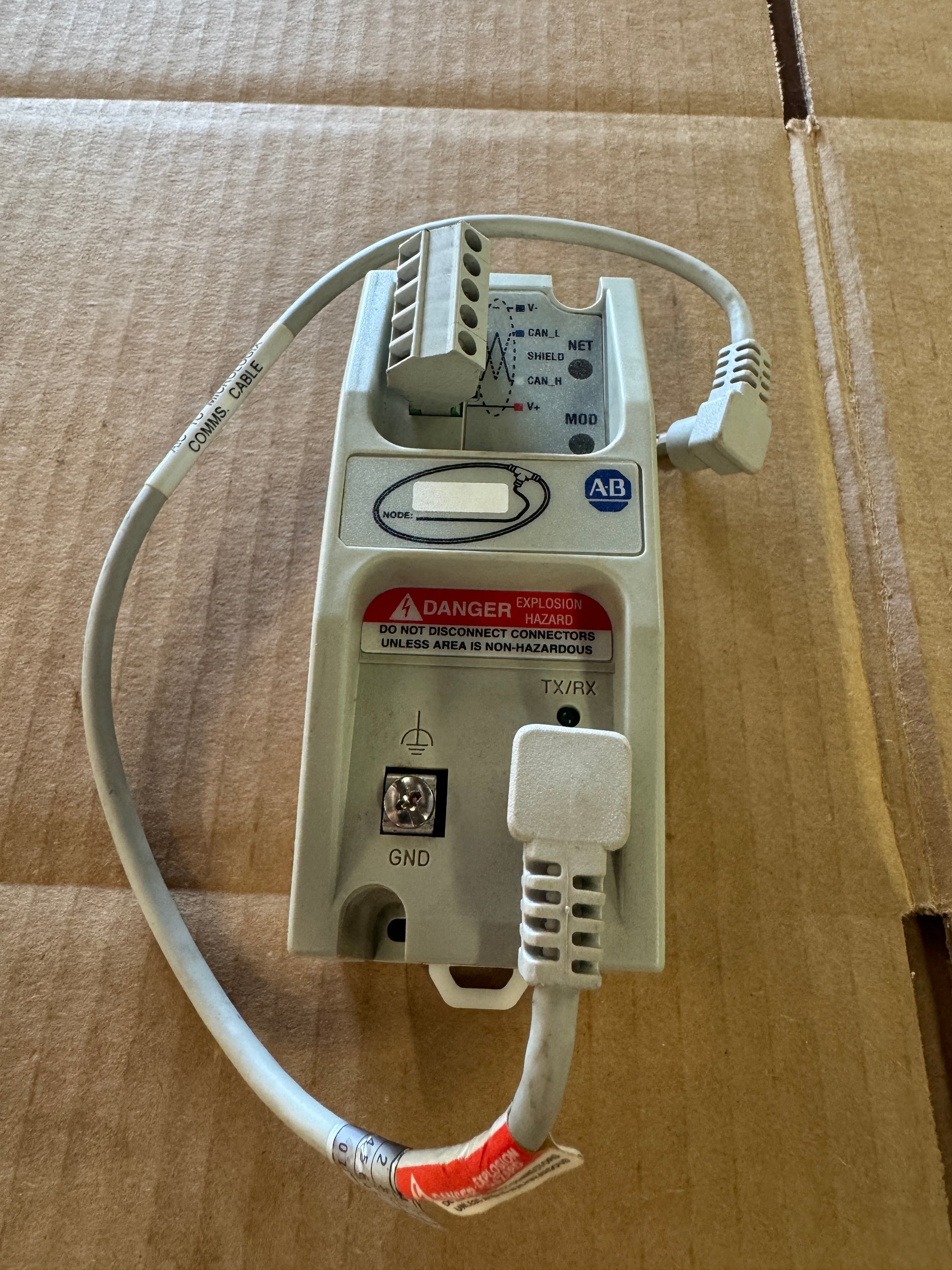

- DeviceNet Connections: CAN_L, CAN_H, Shield, V+, V (5-pin open-style)
- RS-232 Port: 8-pin mini-DIN circular connector
- Hazardous Location Rating: Class I, Groups A, B, C and D, Div. 2
- Certifications: UL Listed (Industrial Control Equipment, Hazardous Locations A168), CE
- Country of Origin: USA
- UPC: 662072776902
- Condition: Used Surplus

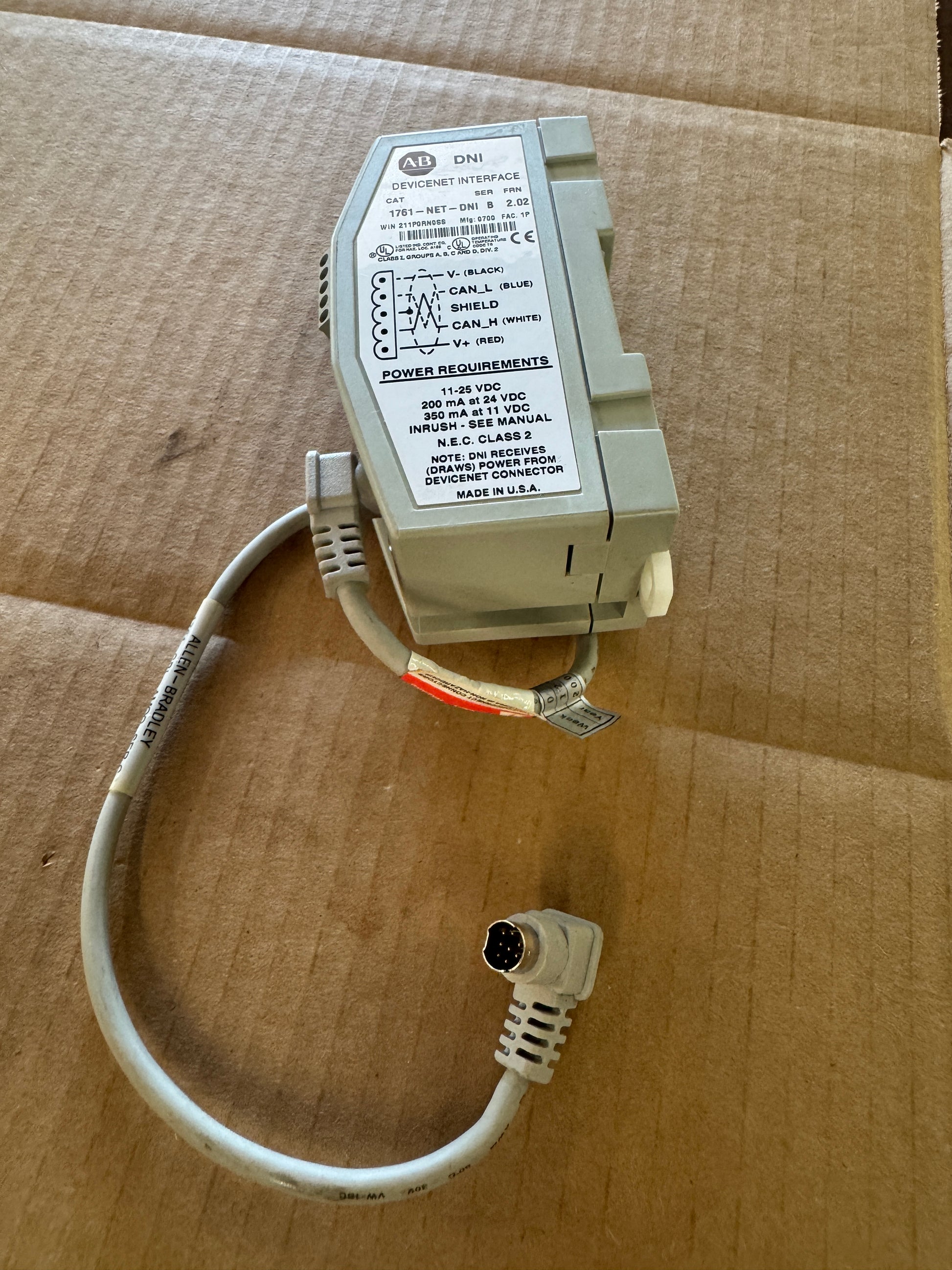

- Included Accessories: Allen-Bradley RS-232 comms cable with 8-pin mini-DIN connector (cable present in photos)
Product Description

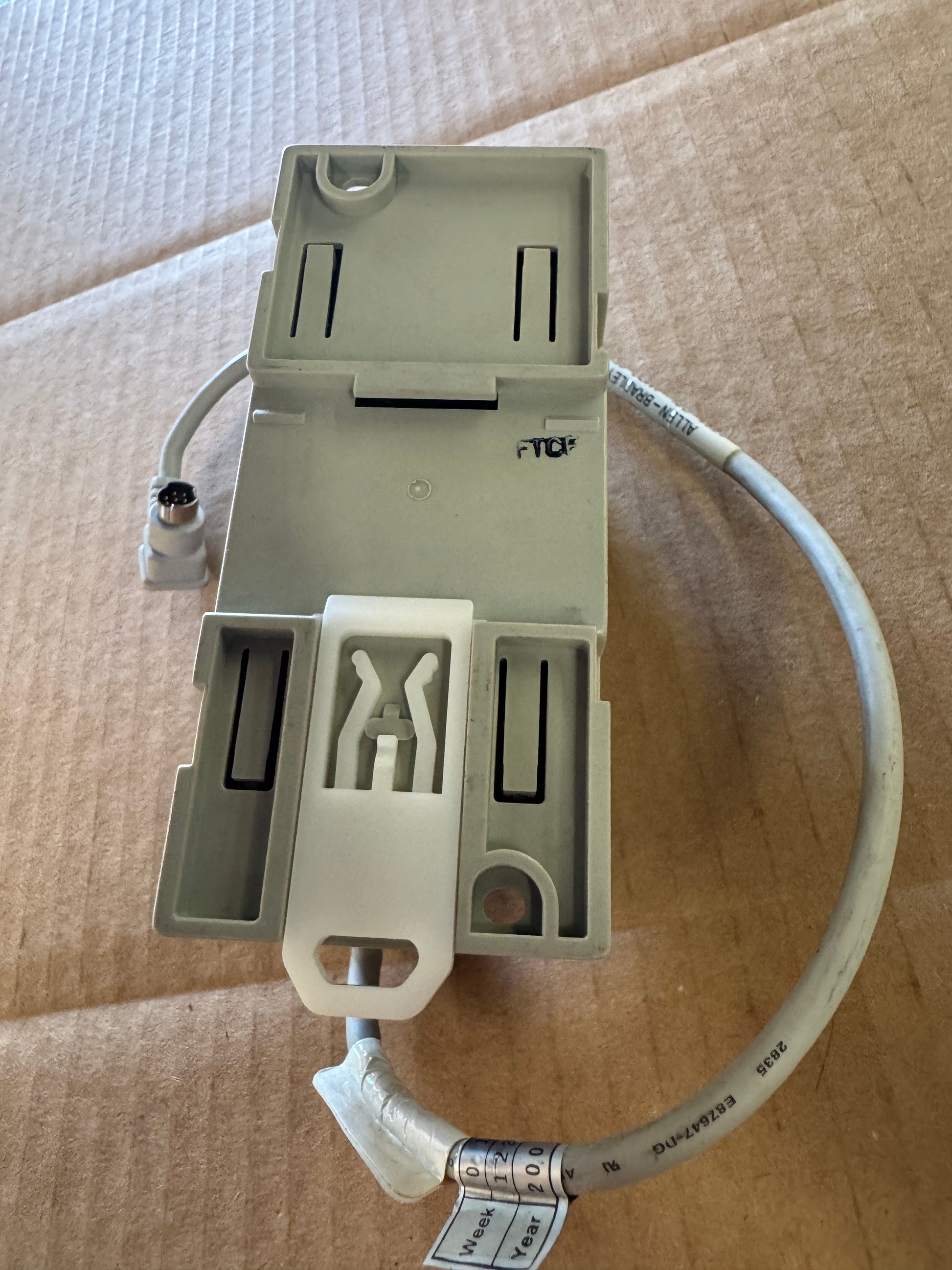

The Allen-Bradley 1761-NET-DNI is a standalone DeviceNet to DF1 protocol conversion interface module, catalog number 1761-NET-DNI, Series B, Firmware Revision Number 2.02. It is manufactured by Allen-Bradley (Rockwell Automation) and is discontinued by the manufacturer. The module is DIN rail or panel mountable and connects RS-232 DF1 devices to a DeviceNet network, operating as a peer-to-peer communicator and DeviceNet slave. Compatible devices include MicroLogix controllers and DF1 Full-Duplex compliant products such as SLC 5/03 and higher processors, PLC-5 controllers, and operator interface devices.

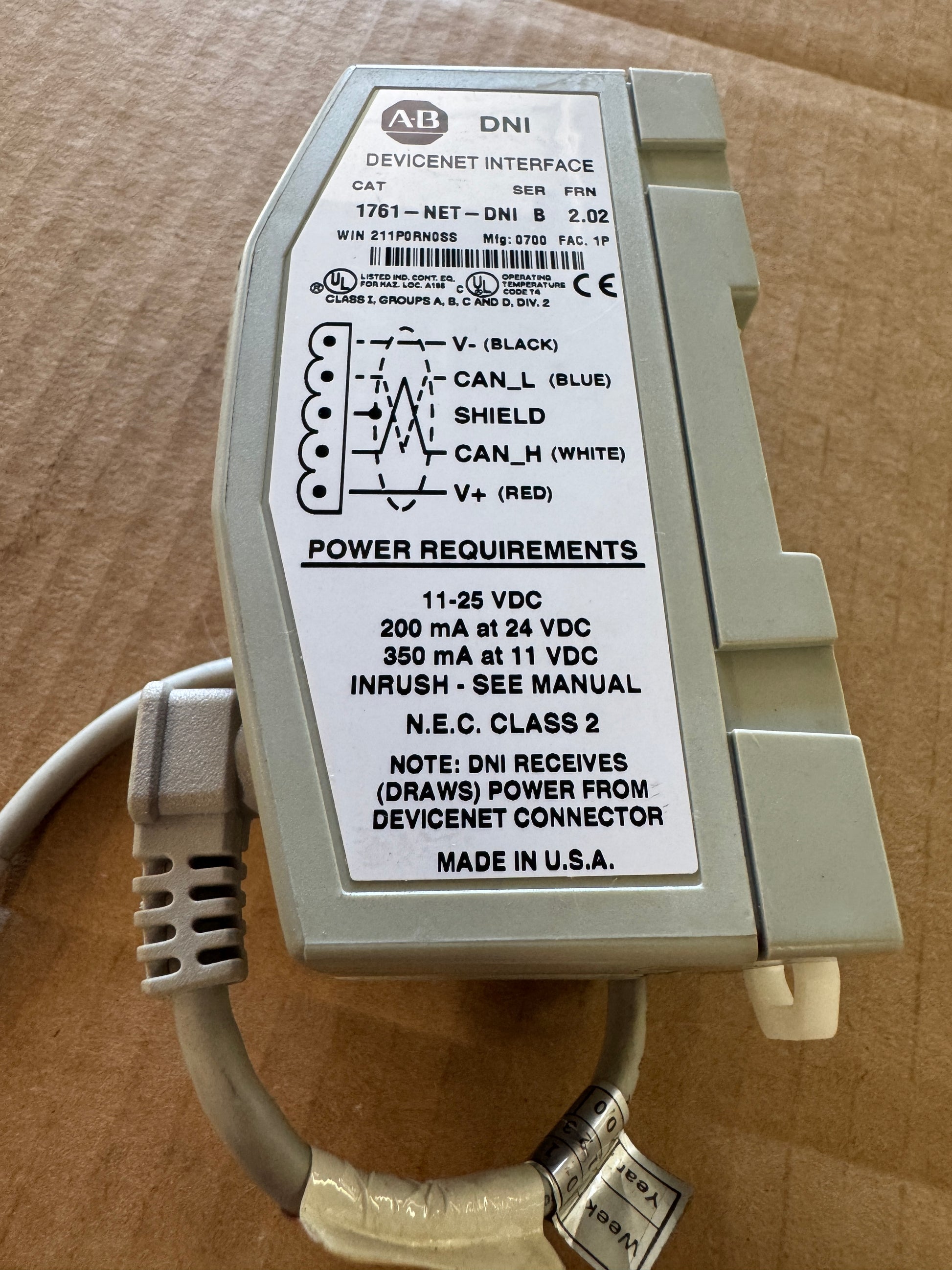

Nameplate data confirms Series B, FRN 2.02, WIN 211P0RN0SS, manufactured July 2000, FAC 1P. Power requirements are 11 to 25 VDC, drawing 200 mA at 24 VDC and 350 mA at 11 VDC. The unit draws power from the DeviceNet connector. DeviceNet baud rates supported are 125K, 250K, and 500K. The module carries Class I, Groups A, B, C and D, Div. 2 hazardous location ratings, UL listing, and CE marking. An RS-232 comms cable with 8-pin mini-DIN connector is present with the unit as shown in the photos. This listing is for used surplus; the item is untested and sold as-is consistent with standard surplus resale practice.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
