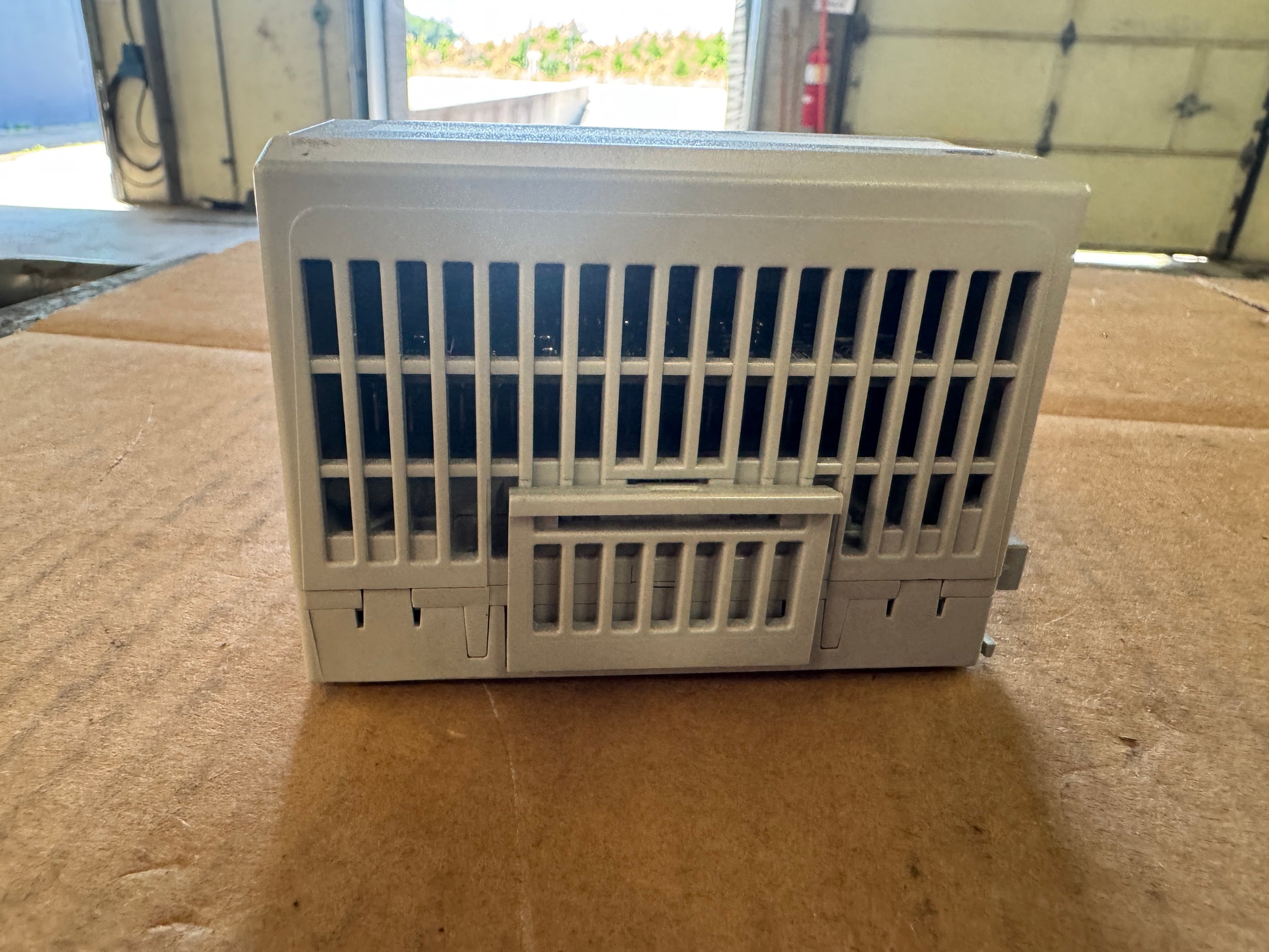

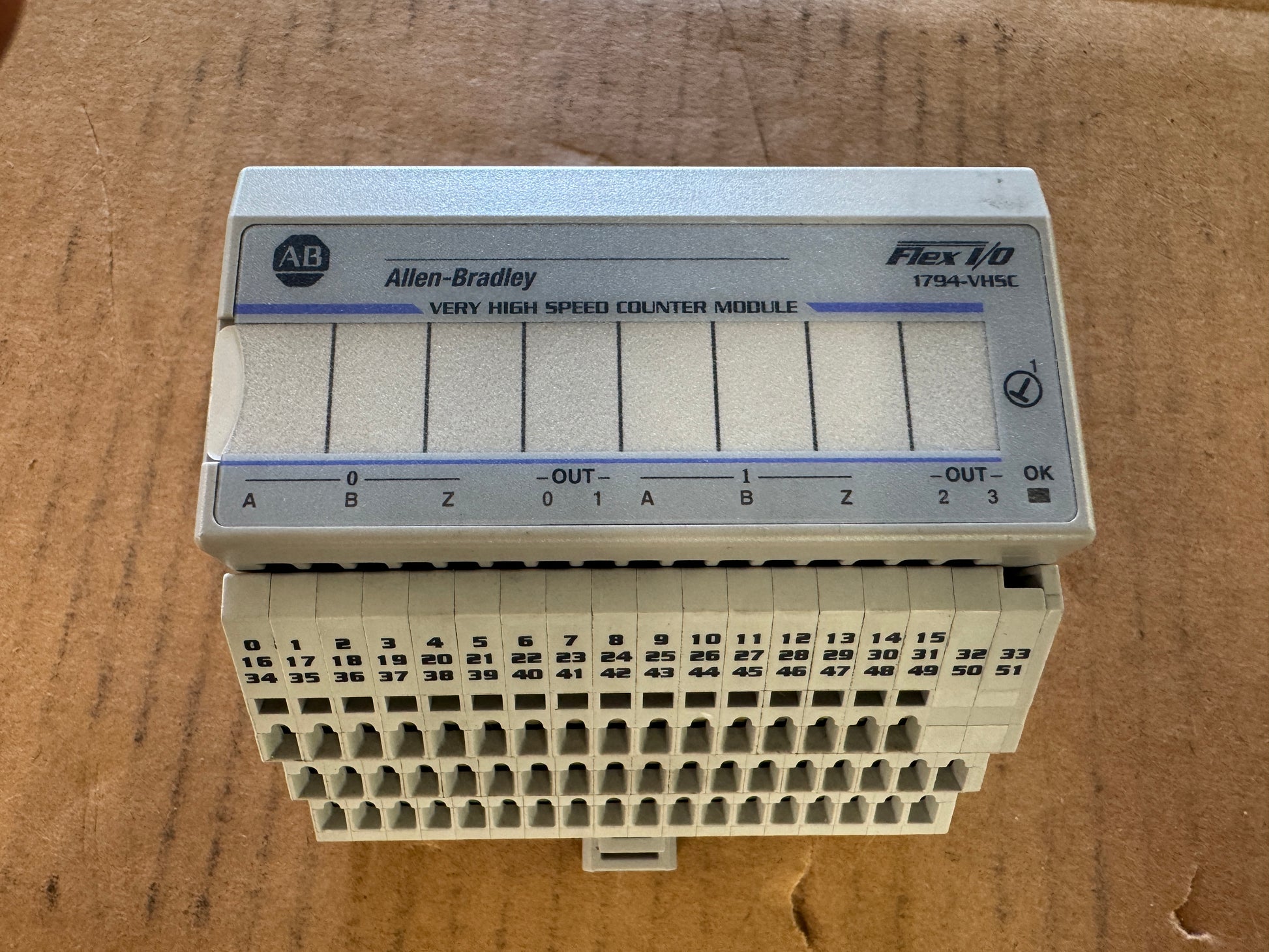

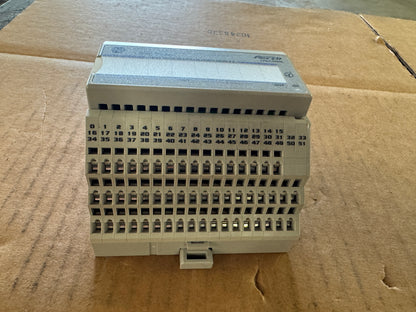

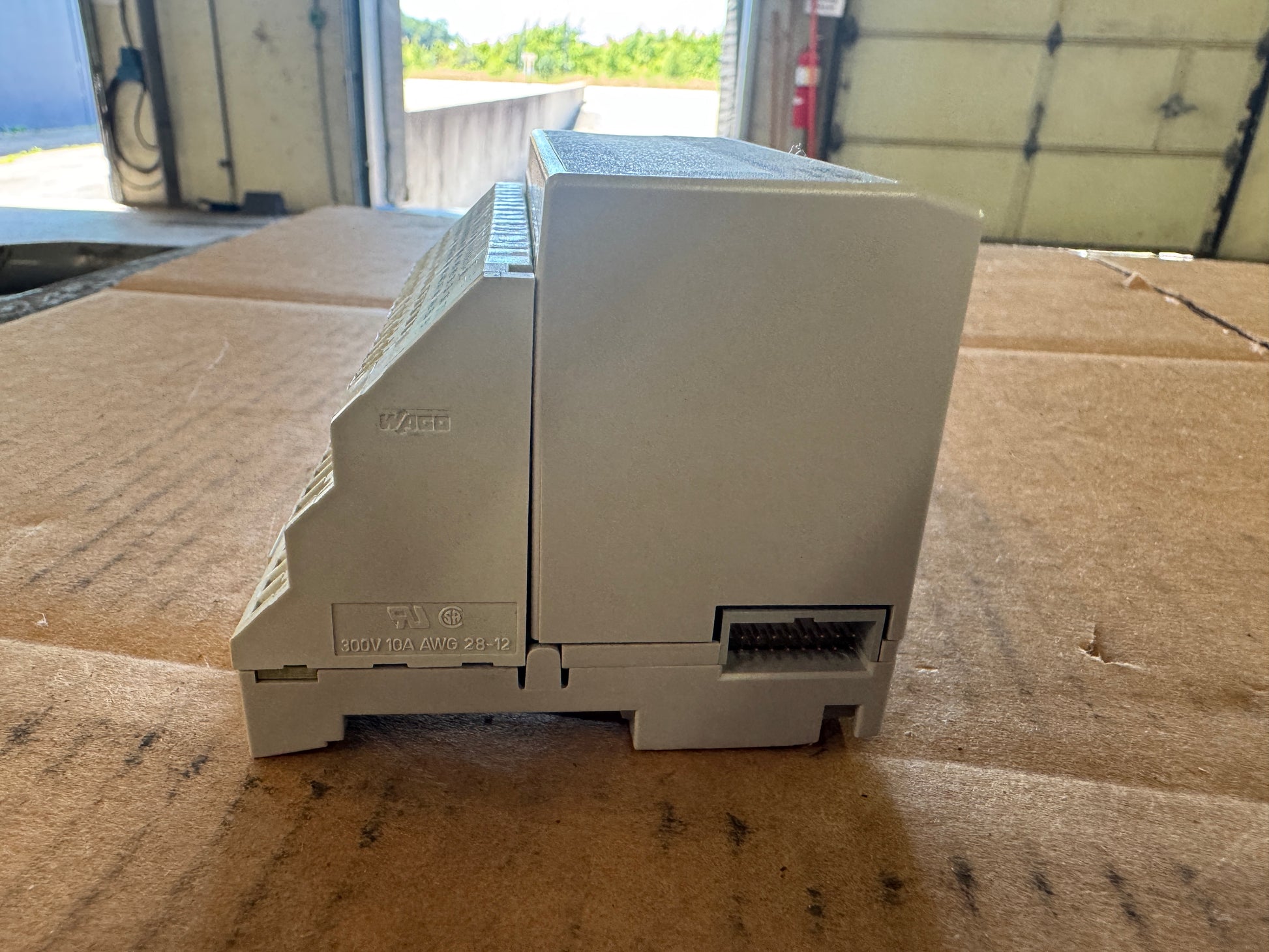

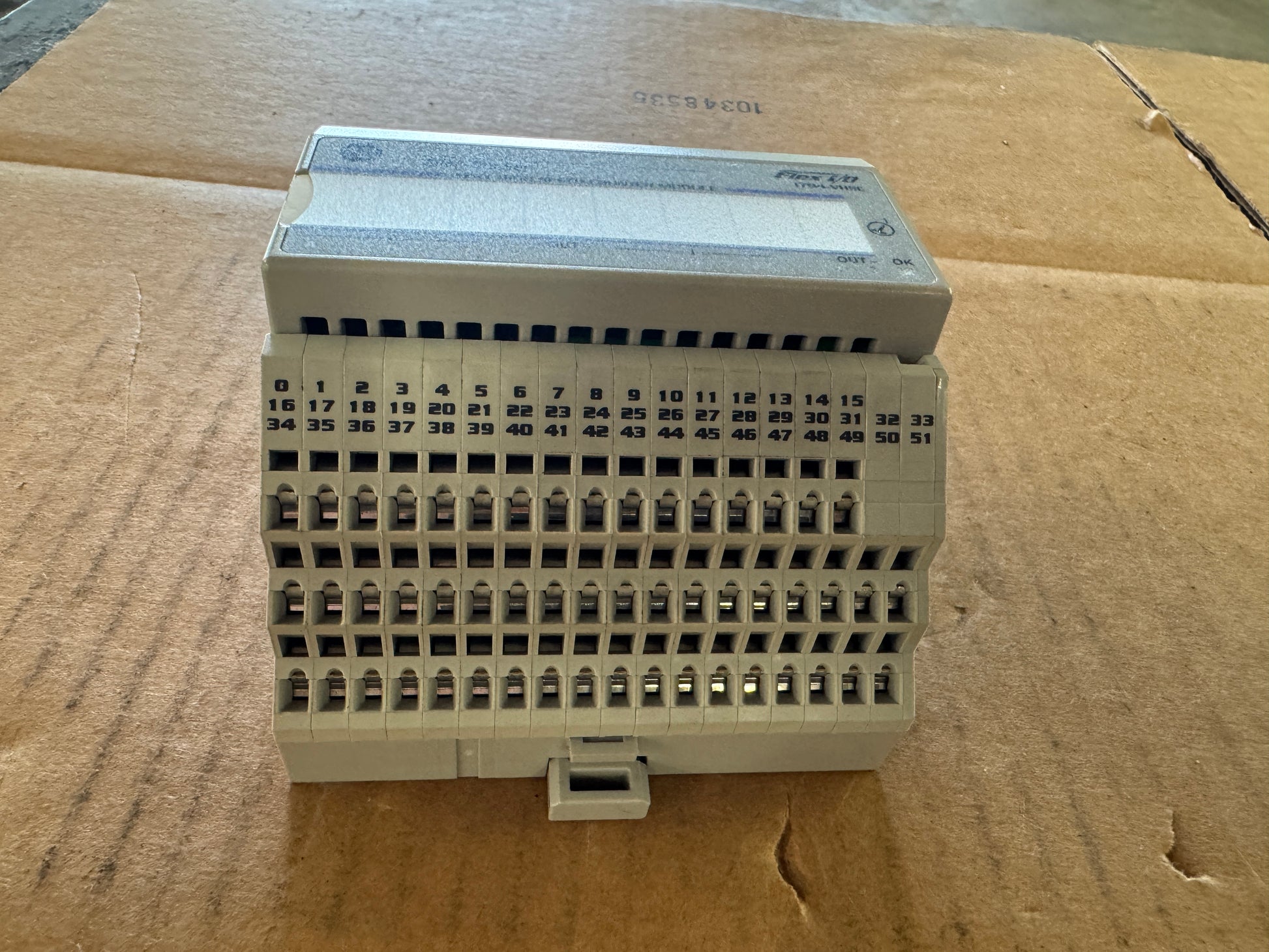

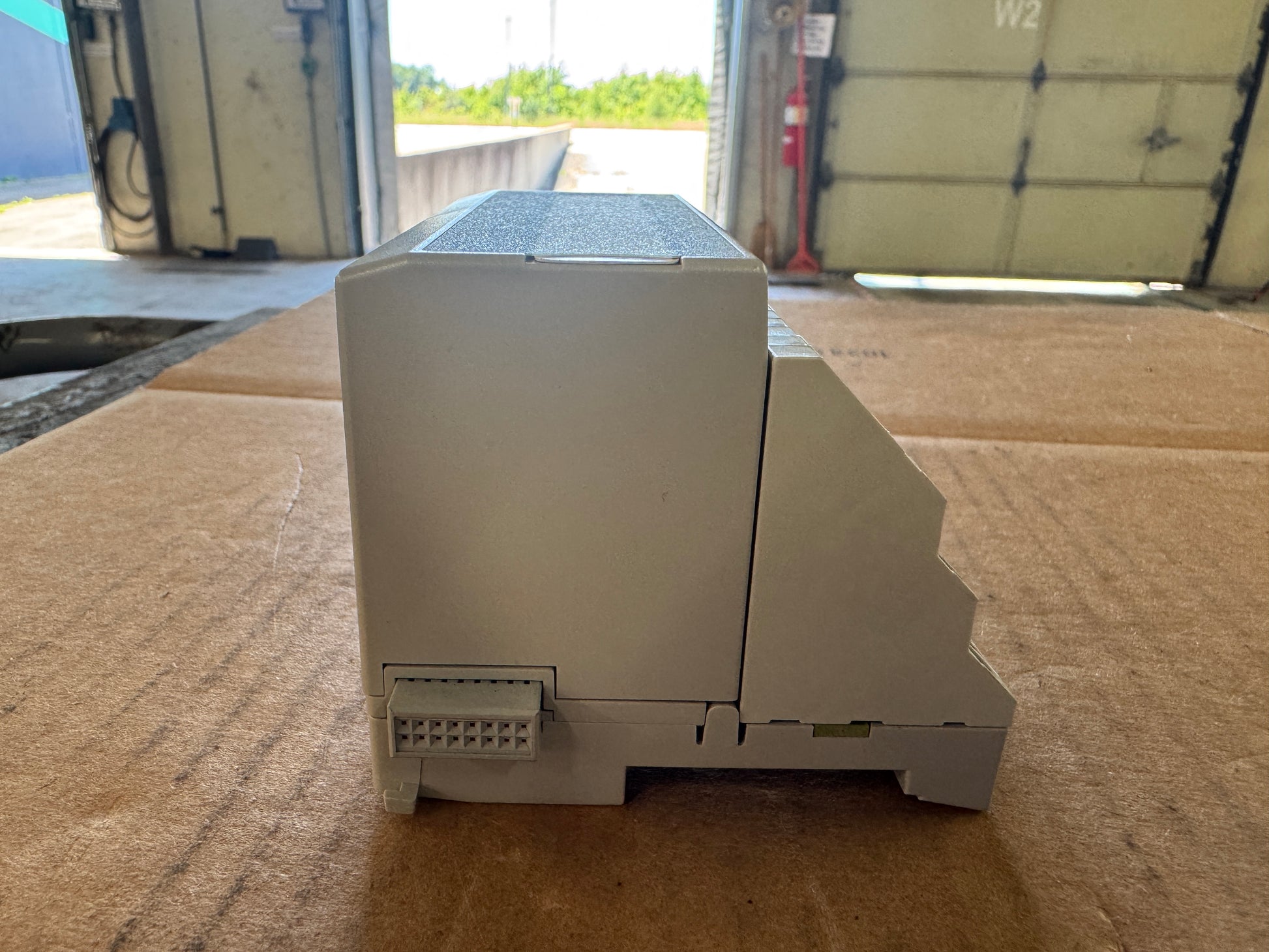

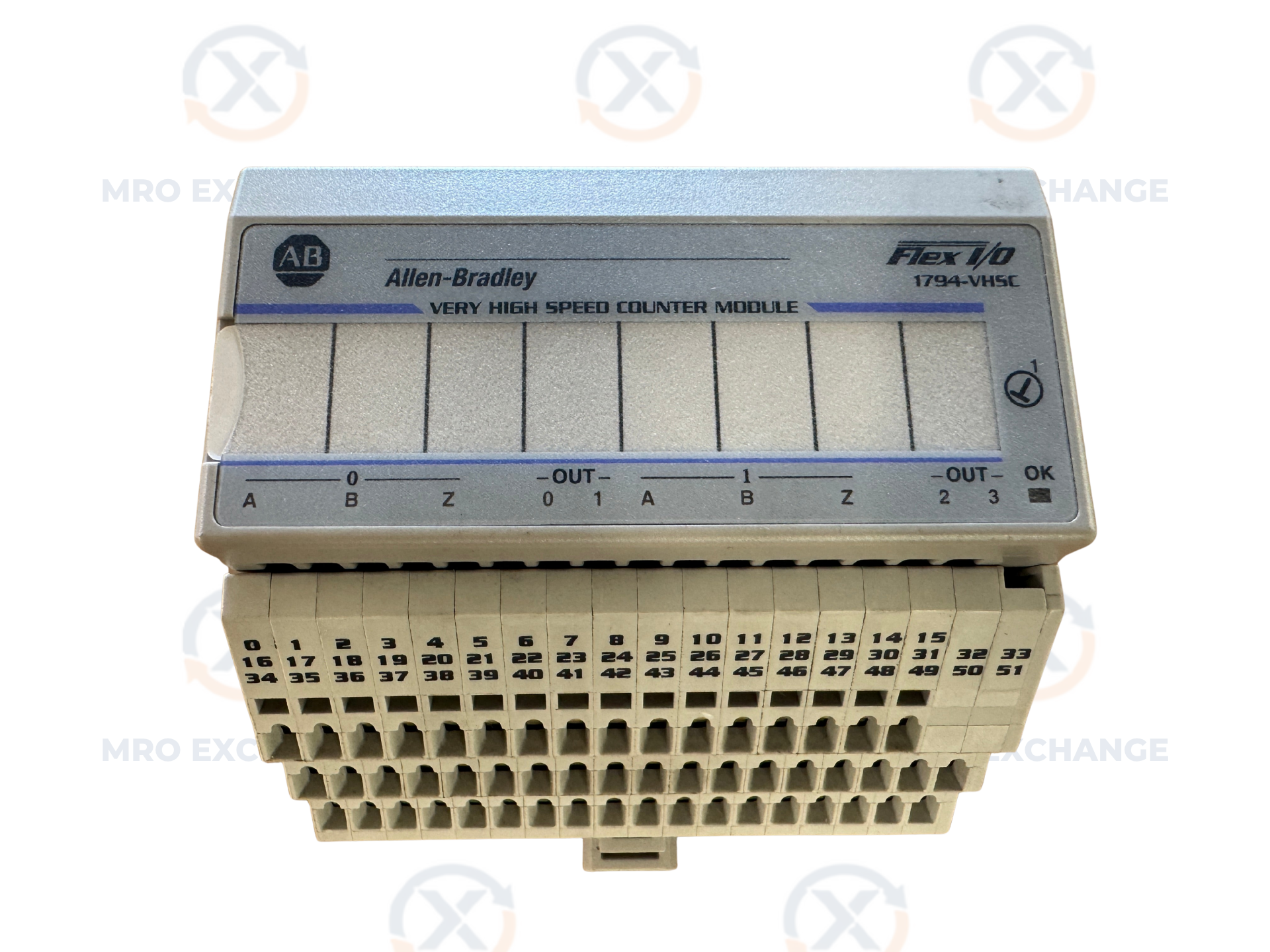

Allen-Bradley 1794-VHSC Very High Speed Counter Module 5V DC / 24V DC
Allen-Bradley 1794-VHSC Very High Speed Counter Module 5V DC / 24V DC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 1794-VHSC
Stock #: 0626-01527
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 1794-VHSC
- Product Type: Very High Speed Counter Module
- Series: Flex I/O
- Series Revision: A
- Input Channels: 2
- Input Voltage: 5V DC or 15 to 24V DC
- Input Frequency: Up to 1 MHz
- Outputs: 2 isolated outputs, 2 groups
- Output Rating: 0.5A at 5V DC; 1.0A at 12 to 24V DC
- Mounting Type: DIN Rail
- Enclosure Rating: IP20 (Open Style)
- UPC: 612598205493
Product Description
The Allen-Bradley 1794-VHSC is a Flex I/O Very High Speed Counter Module, catalog number 1794-VHSC, Series A. It provides two independent input channels capable of counting pulse inputs at frequencies up to 1 MHz, with support for 5V DC or 15 to 24V DC terminations. The module supports multiple operating modes including counter, encoder X1, X2, and X4, and period/rate measurement. Two isolated output groups are included, rated at 0.5A at 5V DC and 1.0A at 12 to 24V DC. The module mounts on DIN rail in an open-style IP20 enclosure and connects to the Flex I/O bus via a terminal base such as the 1794-TB3G or 1794-TB3GS. This listing is for a used, field-removed unit. Buyers matching this exact catalog number for replacement, maintenance sourcing, or spare inventory should confirm series and terminal base compatibility with their existing system configuration. The successor replacement identified by Rockwell Automation is the 5094-HSC.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
