Allen-Bradley 20AD011A3AYNANC0 Variable Frequency Drive 480V AC 3-Phase
Allen-Bradley 20AD011A3AYNANC0 Variable Frequency Drive 480V AC 3-Phase
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

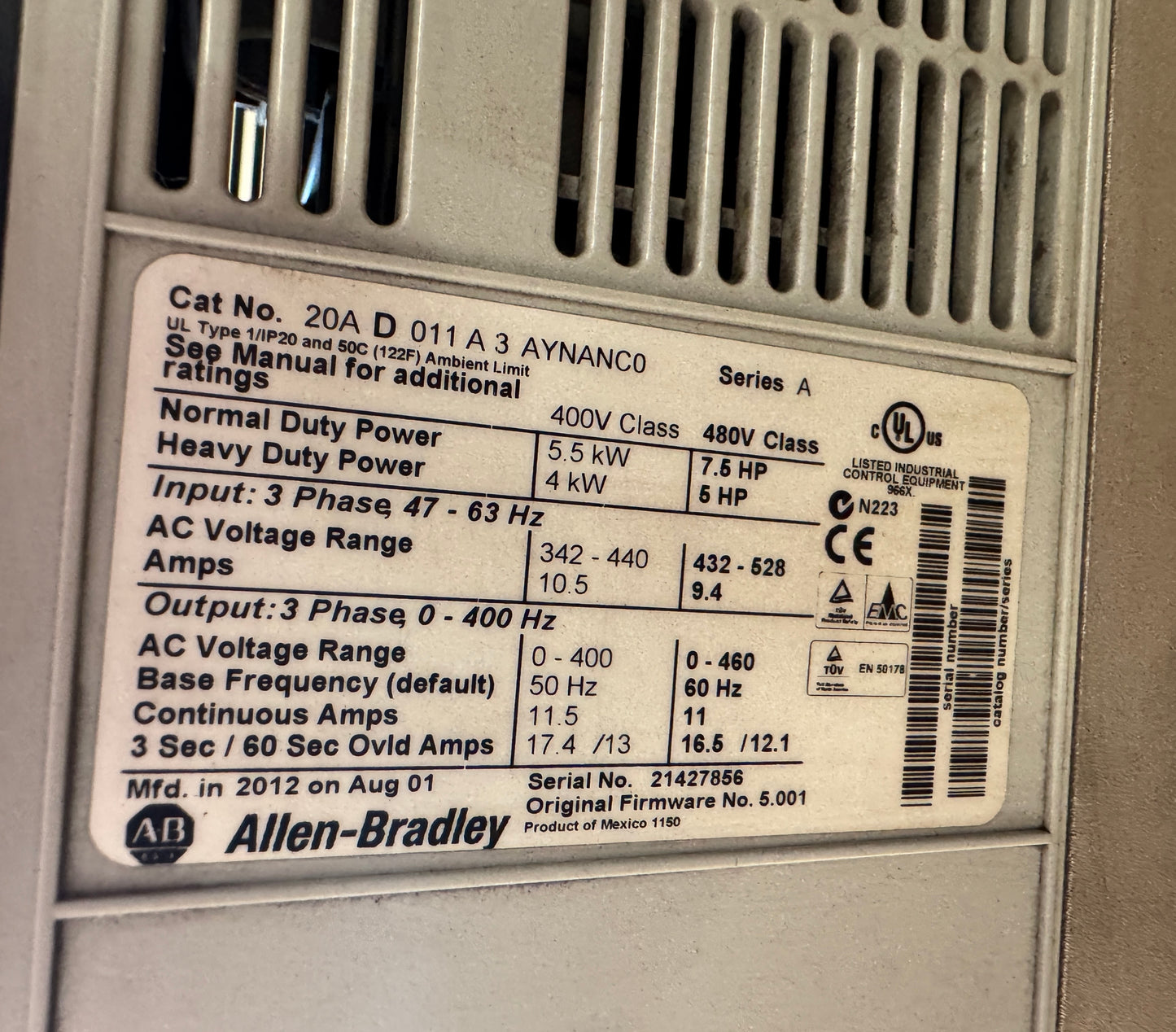

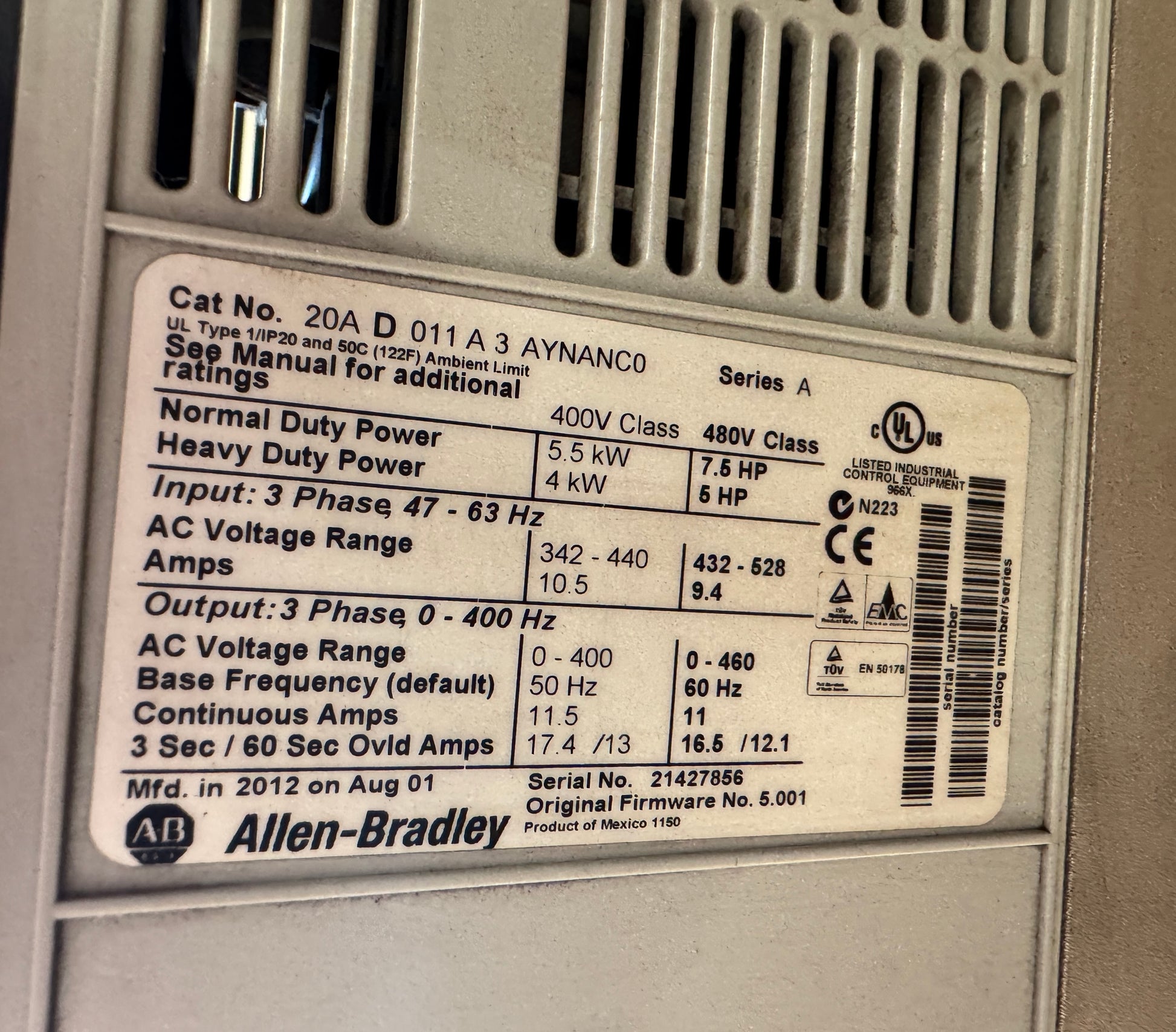

MPN: 20AD011A3AYNANC0
Stock #: 0626-01535
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 20AD011A3AYNANC0
- Product Type: Variable Frequency Drive (VFD)
- Series: PowerFlex 70
- Series A
- Enclosure: IP20 / NEMA UL Type 1 (Panel Mount)
- Input: 3 Phase, 47 to 63 Hz
- Input Voltage Range (400V Class): 342 to 440V AC
- Input Voltage Range (480V Class): 432 to 528V AC
- Input Amps (400V Class): 10.5 A
- Input Amps (480V Class): 9.4 A
- Output: 3 Phase, 0 to 400 Hz
- Output Voltage Range (400V Class): 0 to 400V AC
- Output Voltage Range (480V Class): 0 to 460V AC
- Normal Duty Power: 5.5 kW (400V Class) / 7.5 HP (480V Class)
- Heavy Duty Power: 4 kW (400V Class) / 5 HP (480V Class)
- Continuous Output Amps (400V Class): 11.5 A
- Continuous Output Amps (480V Class): 11 A
- 3 Sec Overload Amps (400V / 480V): 17.4 A / 16.5 A
- 60 Sec Overload Amps (400V / 480V): 13 A / 12.1 A
- Base Frequency (400V Class): 50 Hz
- Base Frequency (480V Class): 60 Hz
- Interface Module: Full Numeric LCD (included)
- Control Type: Enhanced Control
- Brake: With Brake
- Emission Class: Filtered
- UL Type: 1 / IP20 and 50C (122F) Ambient Limit
- Certifications: UL Listed Industrial Control Equipment, CE, TUV, EMC, N223
- Serial Number: 21427856
- Original Firmware No.: 5.001
- Manufacture Date: August 1, 2012
- Country of Origin: Mexico (Plant 1150)
- UPC: 0082091923987 8
Product Description
The Allen-Bradley 20AD011A3AYNANC0 is a PowerFlex 70 variable frequency drive rated for 7.5 HP (480V Class) and 5.5 kW (400V Class), with 11-amp continuous output on the 480V side. Catalog number 20AD011A3AYNANC0 identifies this as a Series A, Frame C, panel mount (IP20) unit with Enhanced Control, a Full Numeric LCD interface module, and internal brake resistor option.

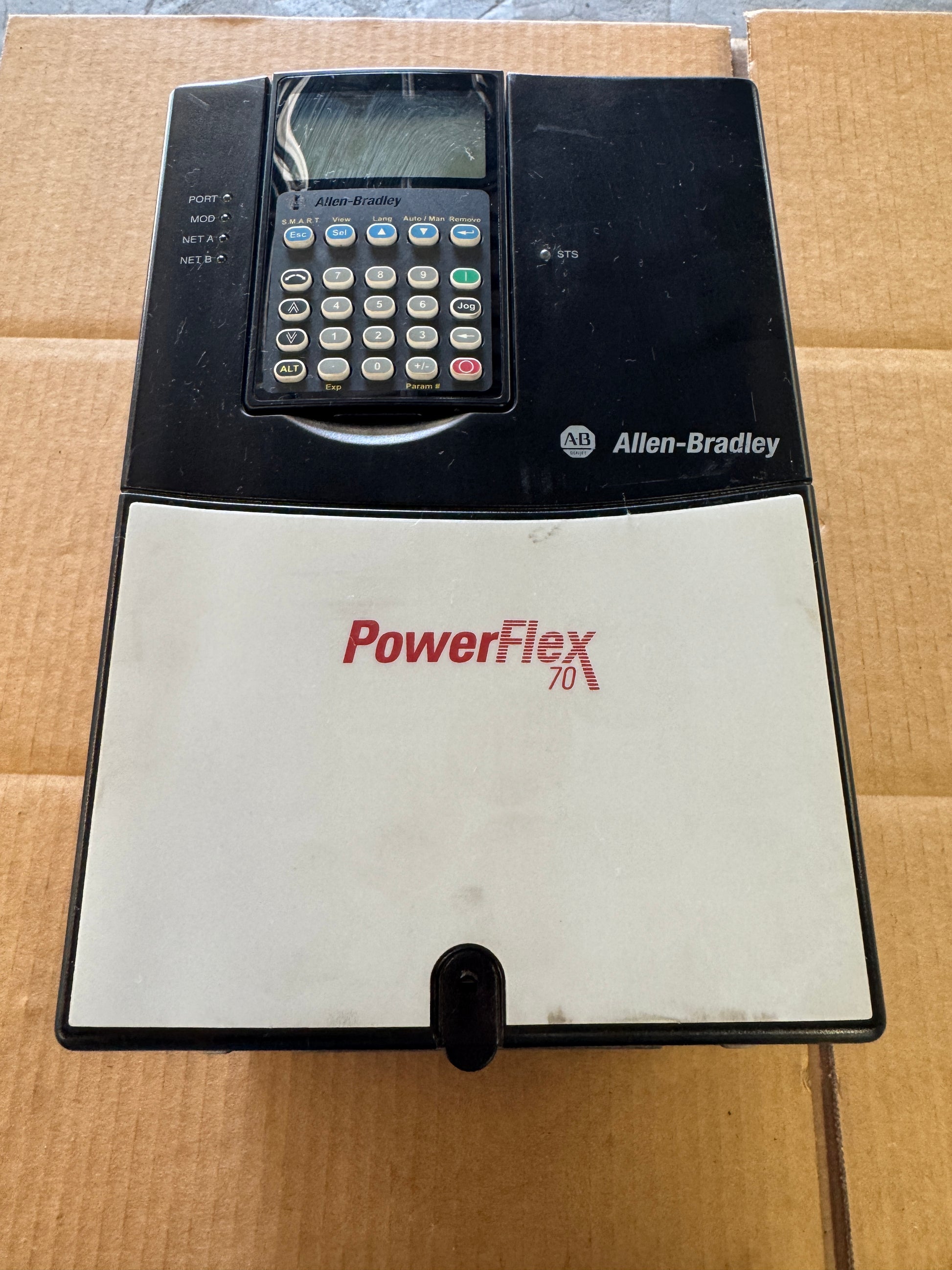

Input is 3-phase 47 to 63 Hz across a 432 to 528V range for 480V Class operation. Output is 3-phase variable frequency 0 to 400 Hz. The drive includes the standard full numeric LCD HIM visible in the photos. Serial number 21427856, original firmware 5.001, manufactured August 2012 at Rockwell Automation Plant 1150 in Mexico.
Rockwell Automation has announced the PowerFlex 70 (IP20/NEMA UL Type 1 version) will be discontinued as of September 30, 2026. The PowerFlex 750 family is the recommended migration path. This unit is listed as used surplus. Buyers should confirm catalog number, series, and firmware compatibility with their application before purchase.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
