Allen-Bradley 20AD011A3AYNANC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01424

$1,999.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: 20AD011A3AYNANC0
Stock #: 0526-01424

Product Specifications

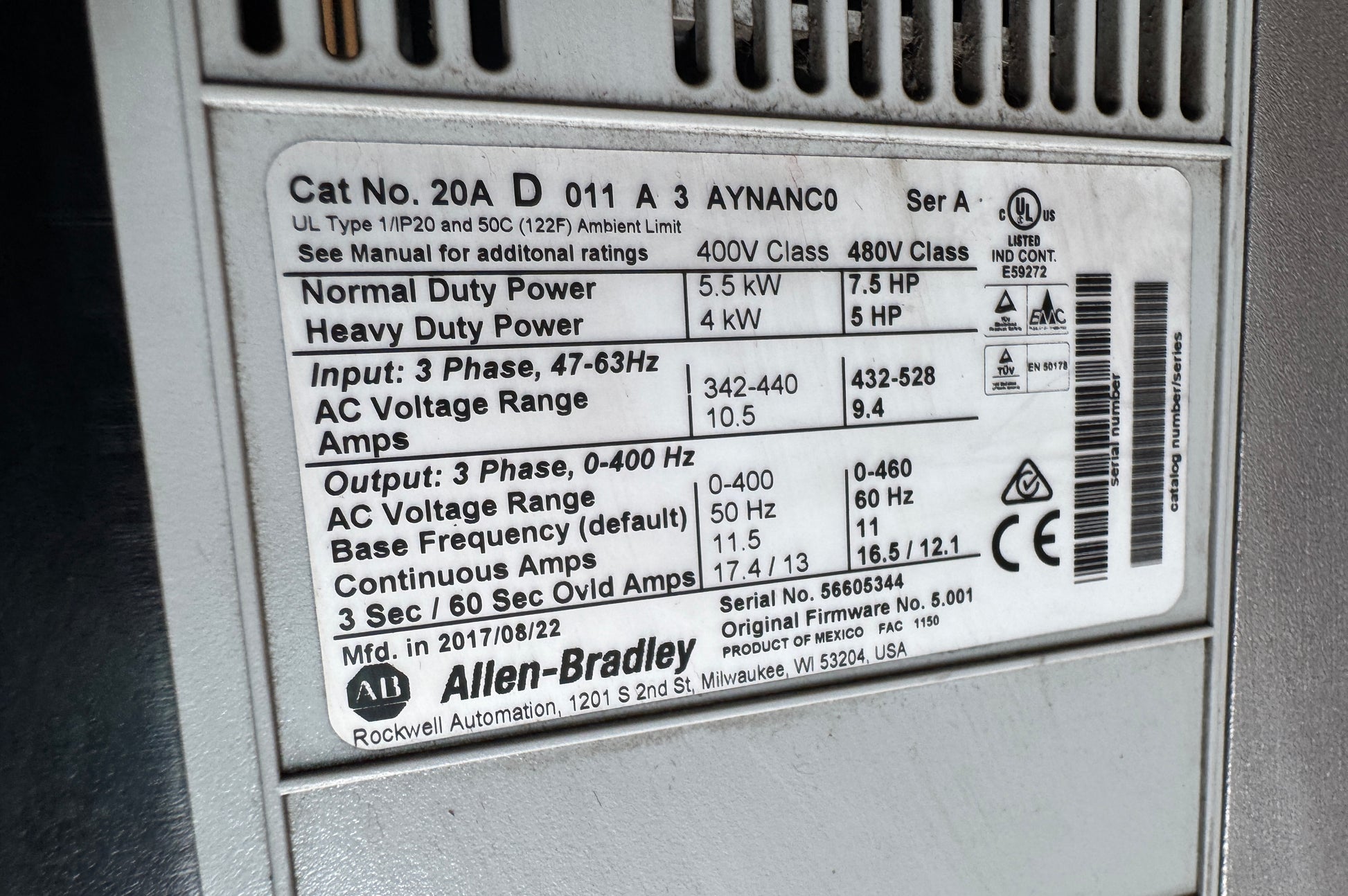

Manufacturer: Allen-Bradley
MPN / Model: 20AD011A3AYNANC0
Product Type: AC Variable Frequency Drive
Series: PowerFlex 70, Series A
Input Voltage: 480V AC, 3-Phase
Input Voltage Range: 432 to 528V AC
Input Frequency: 47 to 63 Hz
Output Voltage: 0 to 460V AC
Output Frequency: 0 to 400 Hz
Output Current: 11.5A Continuous
Overload Current: 16.5A for 3 Seconds, 12.1A for 60 Seconds
Normal Duty Power: 5.5 kW / 7.5 HP
Heavy Duty Power: 4 kW / 5 HP
Enclosure Rating: UL Type 1 / IP20
HIM: Full Numeric LCD with Keypad
Control Type: Enhanced Control, No Feedback
Braking Transistor: Integrated IGBT
EMC Filter: Filtered Emission Class
Firmware Version: 5.001
Serial Number: 56605344
Manufacture Date: August 22, 2017
Country of Origin: Mexico

Product Description

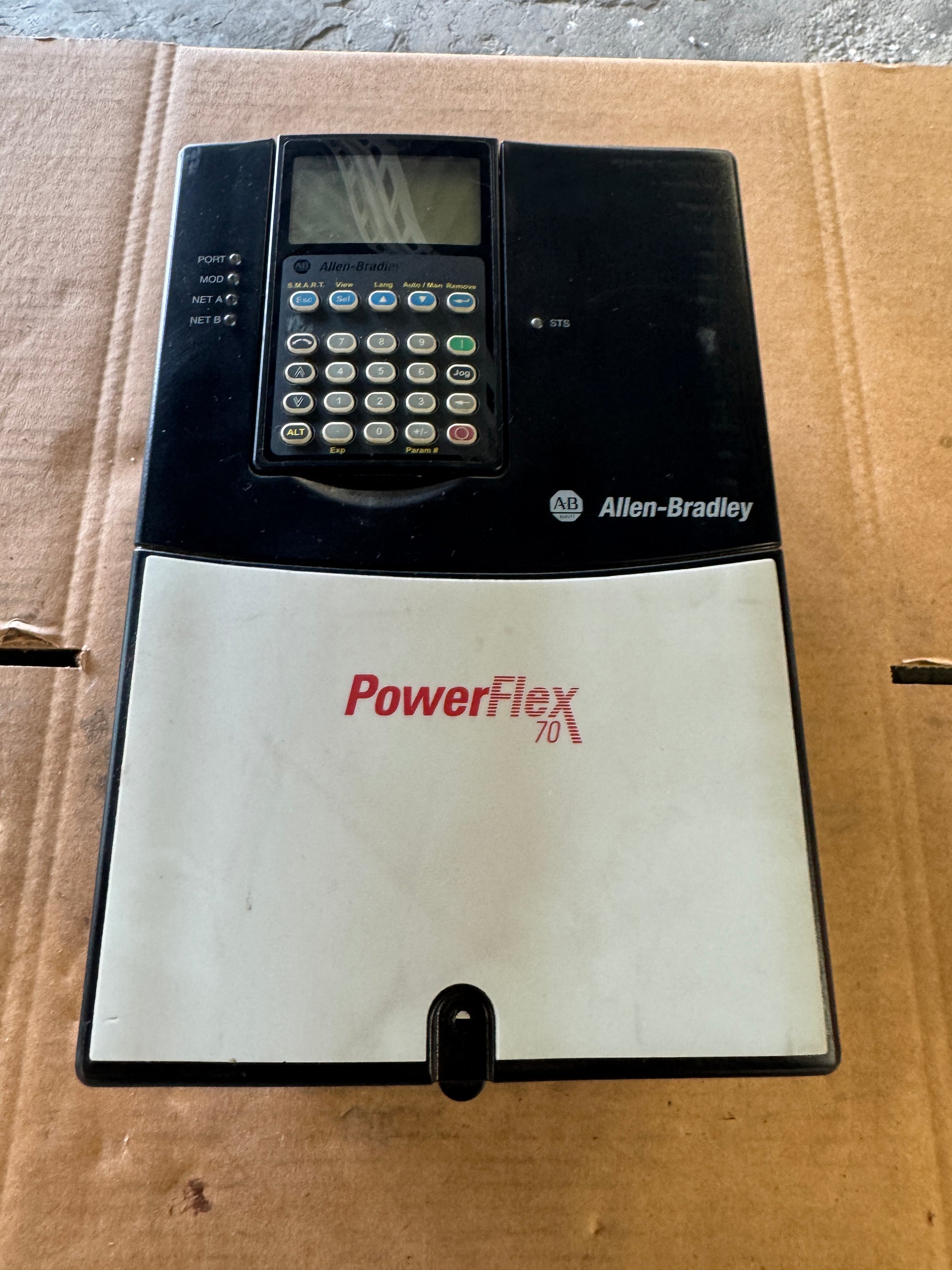

The Allen-Bradley PowerFlex 70, catalog number 20AD011A3AYNANC0, Series A, is an AC variable frequency drive rated for 480V Class operation with 3-phase input at 47 to 63 Hz and an AC voltage range of 432 to 528V. Normal duty power output is 7.5 HP (5.5 kW) and heavy duty power is rated at 5 HP (4 kW). Continuous output amperage is 11.5A at 480V class, with 3-second and 60-second overload ratings of 16.5A and 12.1A respectively. The drive features a full numeric LCD human interface module with S.M.A.R.T. programming functionality. The unit is panel mount configuration, UL Type 1 / IP20 enclosure, with enhanced control and filtered emission class. Internal brake IGBT is included. No encoder feedback option is present per the catalog string. Serial number 56605344, manufactured August 22, 2017 in Mexico, original firmware version 5.001.

This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
