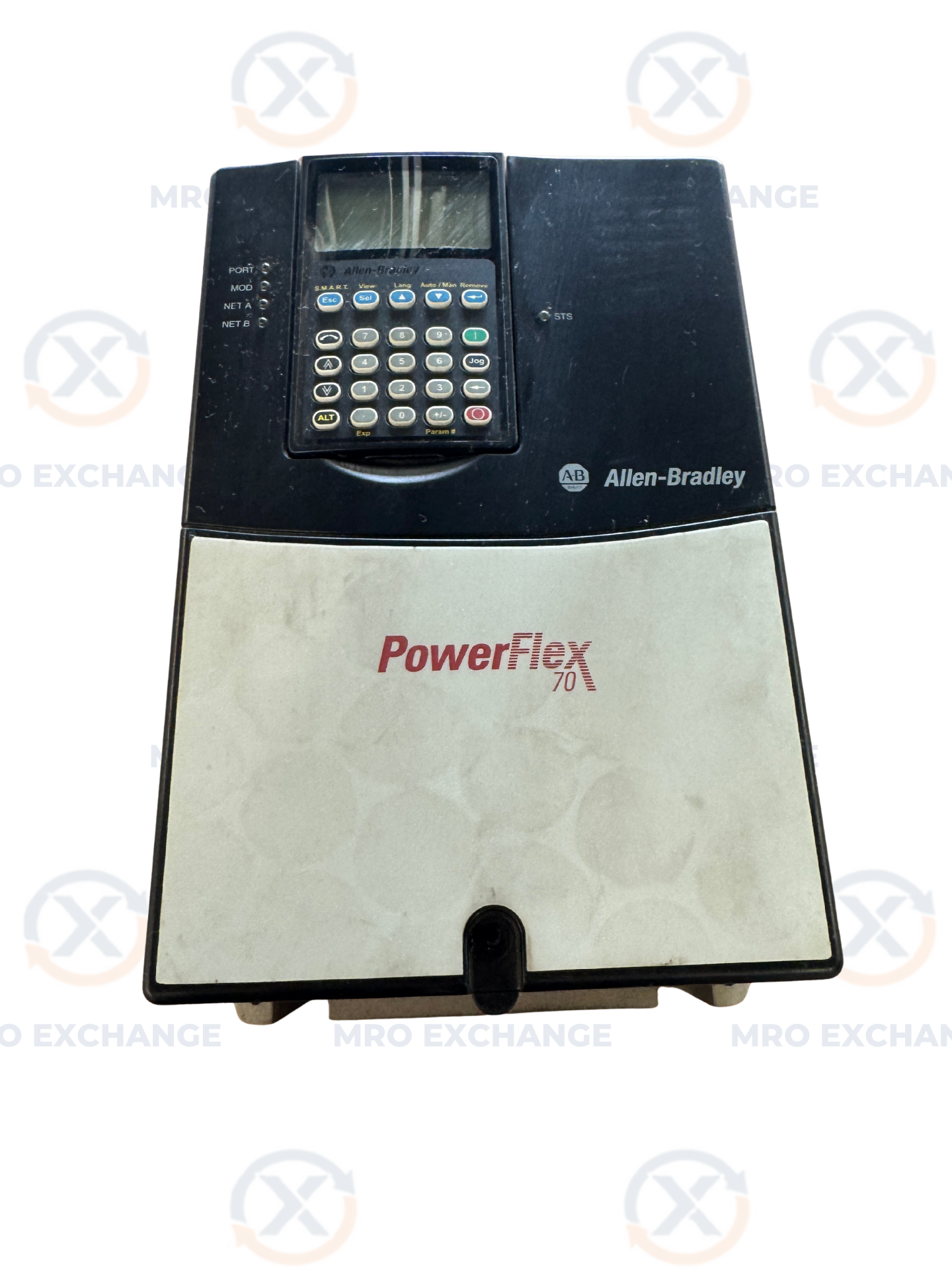

Allen-Bradley 20AD011A3AYNANC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01458
Allen-Bradley 20AD011A3AYNANC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01458
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 20AD011A3AYNANC0
Stock #: 0626-01458
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 20AD011A3AYNANC0
- Product Type: AC Variable Frequency Drive
- Series: PowerFlex 70, Series A
- Serial Number: 20901167
- Firmware Version: 5.001
- Manufacture Date: July 2012
- Country of Origin: Mexico
- Input Voltage: 480V AC, 3-Phase
- Input Voltage Range: 432 to 528V
- Input Frequency: 47 to 63 Hz
- Output Voltage: 0 to 460V AC
- Output Frequency: 0 to 400 Hz
- Horsepower: 7.5 HP Normal Duty / 5 HP Heavy Duty
- Power (kW): 5.5 kW Normal Duty / 4 kW Heavy Duty
- Continuous Output Current: 11A Normal Duty
- Overload Current: 16.5A for 3 Seconds
- Enclosure Rating: IP20 / NEMA Type 1
- HIM: Full Numeric LCD with Keypad
- Control Type: Enhanced Control
- Braking Transistor: Integrated IGBT
- EMC Filter: Included, C3 Classification
- Communication Module: None Fitted
- Certifications: UL Listed, CE, TUV
Product Description

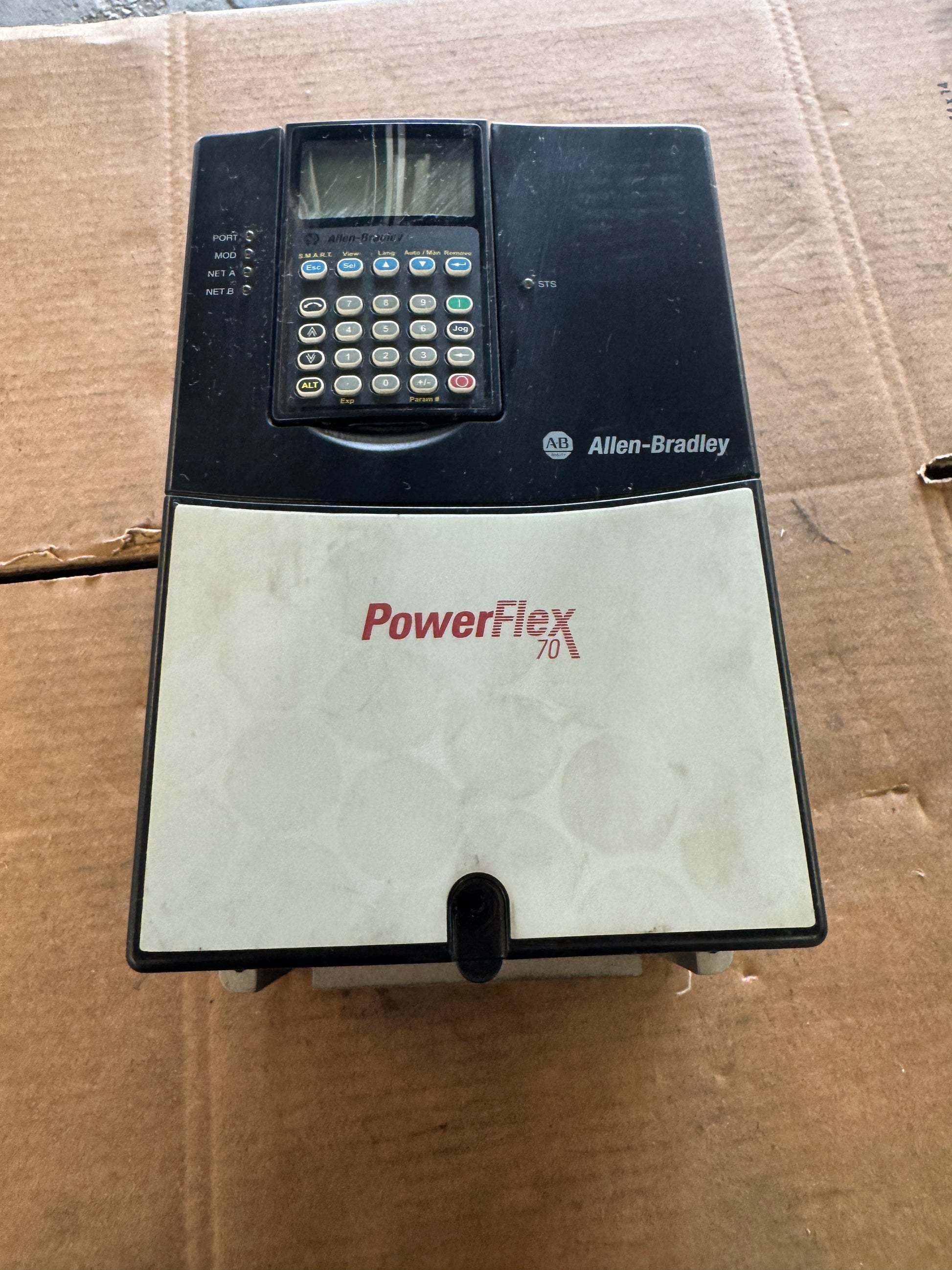

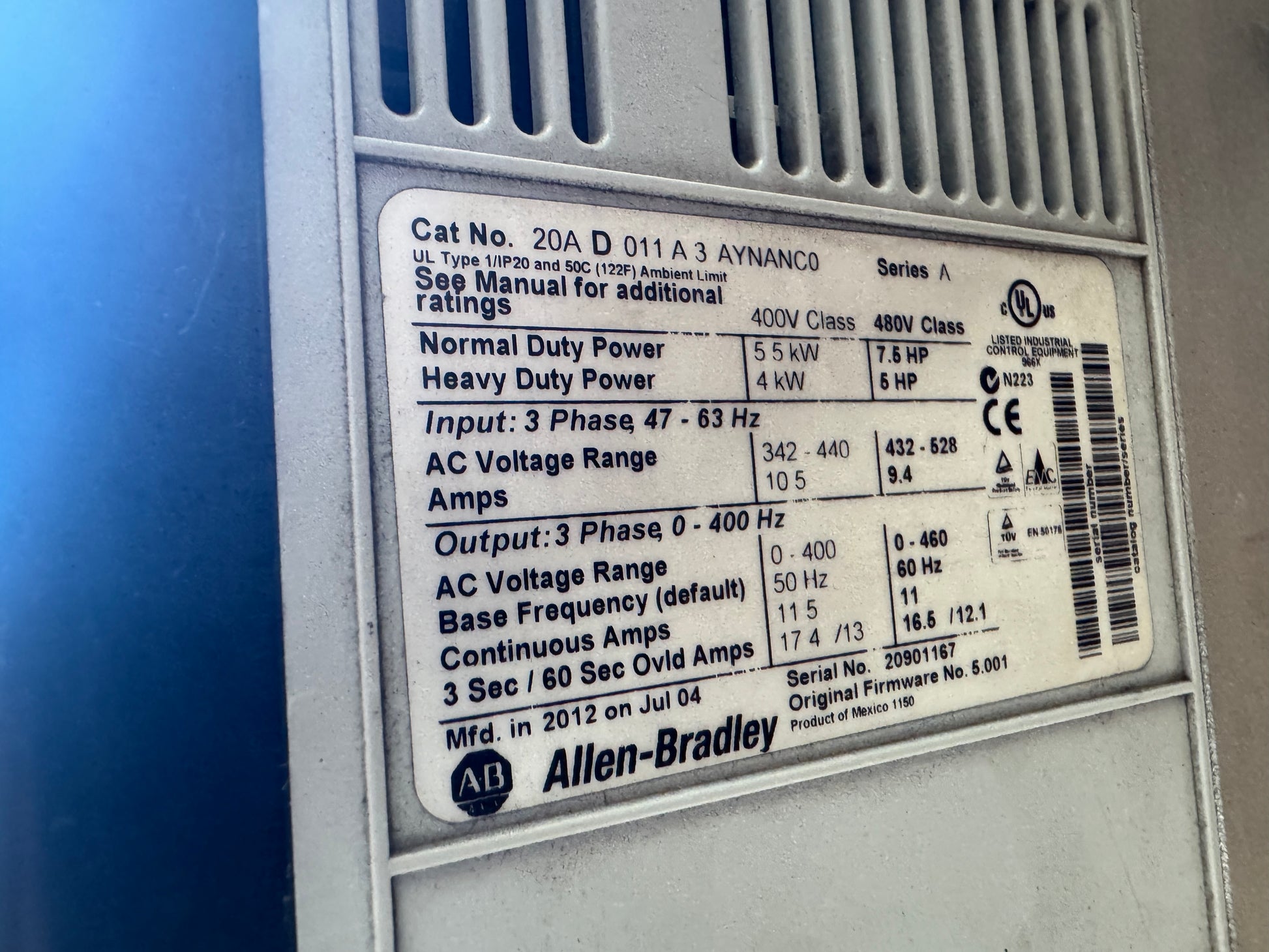

The Allen-Bradley 20AD011A3AYNANC0 is a PowerFlex 70 series adjustable frequency AC drive rated at 480V AC, 3-phase input. Normal duty output is 7.5 HP (5.5 kW) at 11 continuous amps; heavy duty output is 5 HP (4 kW). Input AC voltage range is 432 to 528V, 3-phase, 47 to 63 Hz. Output frequency range is 0 to 400 Hz with an output voltage range of 0 to 460V AC. Continuous output amps are 11A (normal duty) and 16.5A for 3-second overload. This unit carries catalog number 20AD011A3AYNANC0, Series A, serial number 20901167, original firmware revision 5.001, manufactured July 2012 in Mexico. Enclosure is IP20 / NEMA Type 1 panel mount. The drive includes the Full Numeric LCD HIM with keypad, visible and attached in photos. Enhanced control board is installed with no communication module fitted. Brake IGBT and EMC filter (C3 classification) are included per catalog string. The PowerFlex 70 platform supports optional DeviceNet, ControlNet, EtherNet/IP, and other communication adapter modules via the integrated port. Certifications include UL Listed, CE, and TUV per nameplate.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
