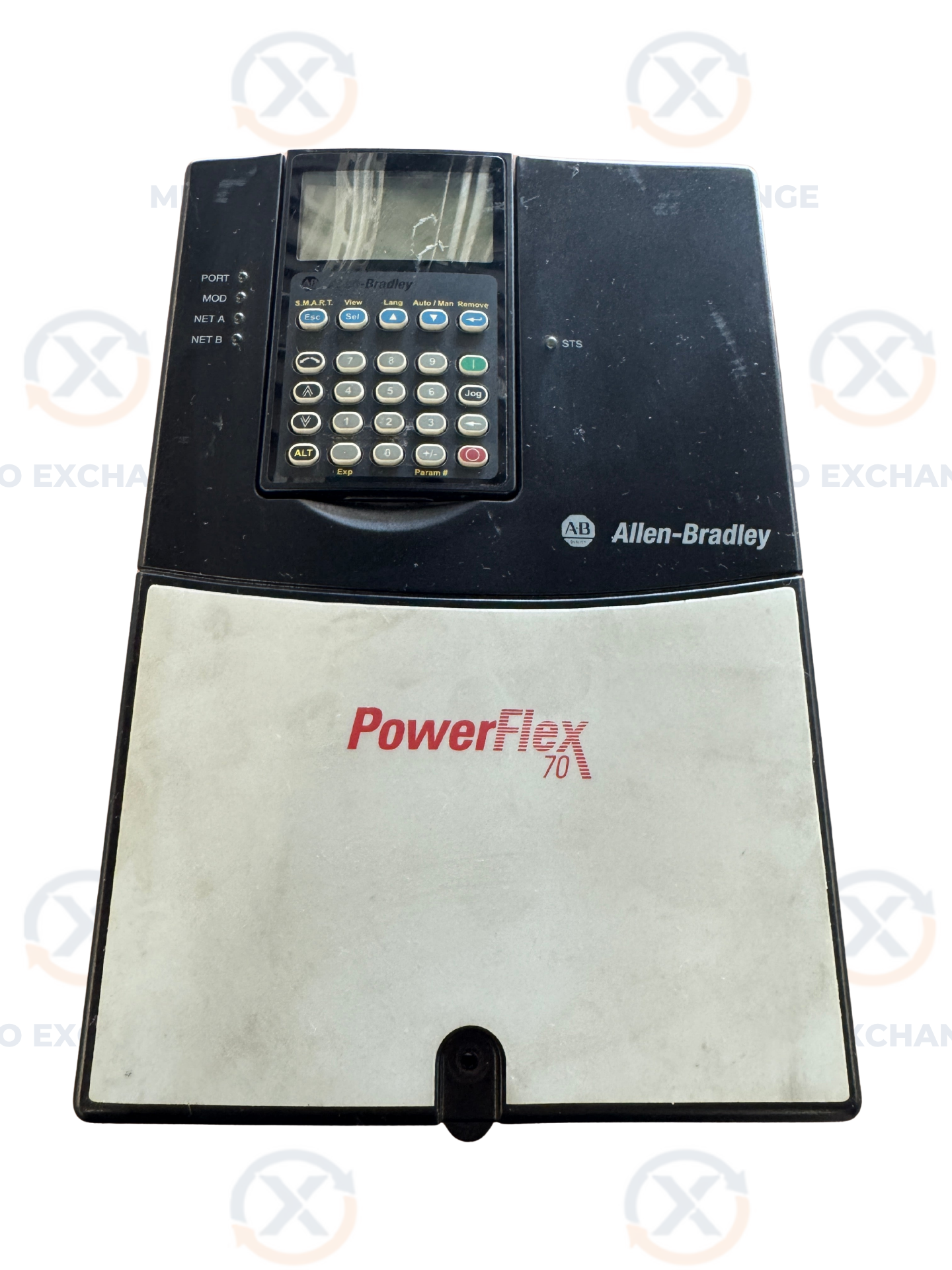

Allen-Bradley 20AD011A3AYNANC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01459
Allen-Bradley 20AD011A3AYNANC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01459
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 20AD011A3AYNANC0
Stock #: 0626-01459
Product Specifications

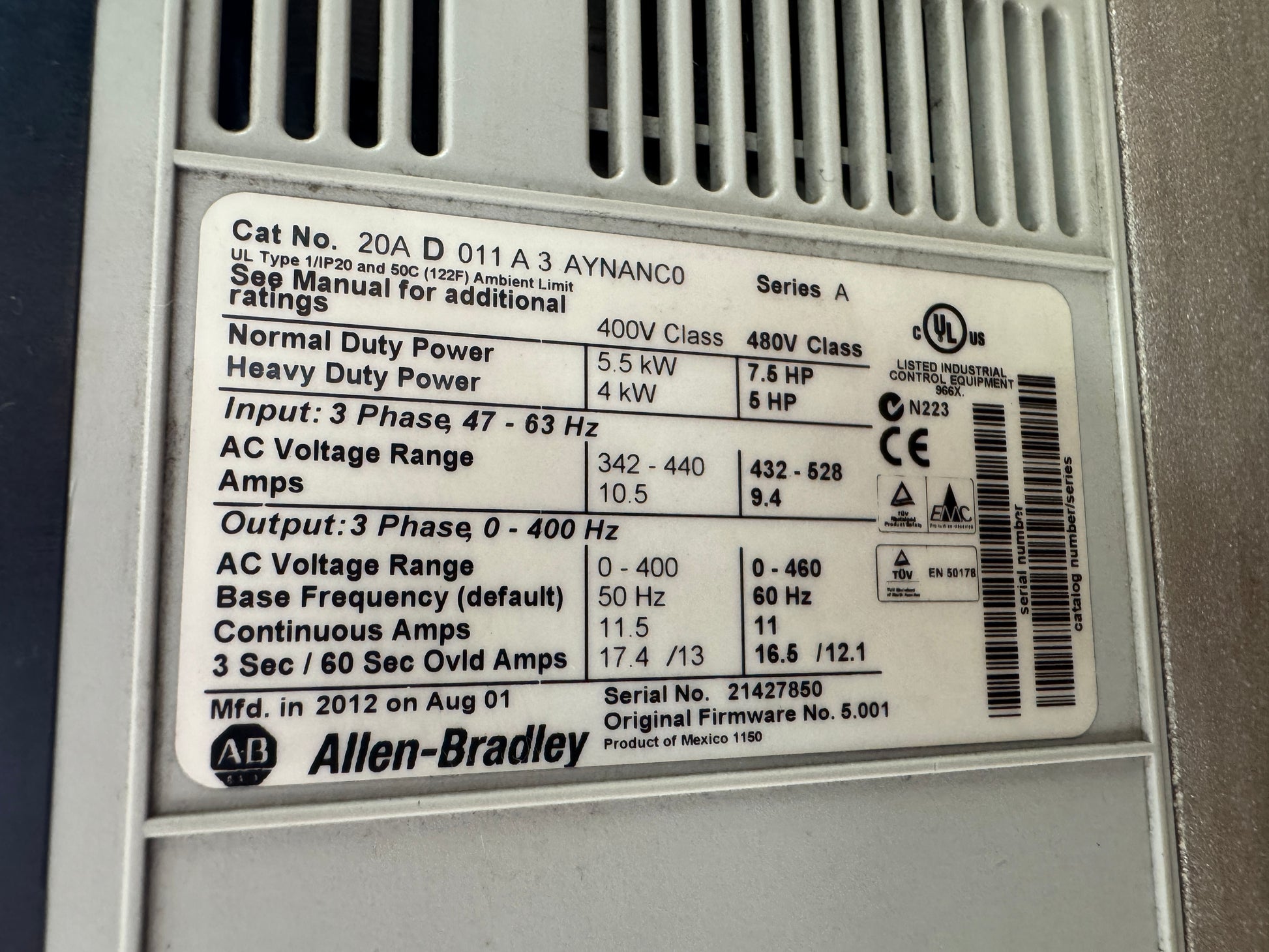

- Manufacturer: Allen-Bradley
- MPN / Model: 20AD011A3AYNANC0
- Product Type: AC Variable Frequency Drive
- Series: PowerFlex 70, Series A
- Frame Size: C
- Serial Number: 21427850
- Firmware Version: 5.001
- Manufacture Date: August 2012
- Country of Origin: Mexico
- Input Voltage: 480V AC, 3-Phase
- Input Voltage Range: 432 to 528V
- Input Frequency: 47 to 63 Hz
- Input Amperage: 9.4A at 480V Class
- Output Voltage: 0 to 460V AC
- Output Frequency: 0 to 400 Hz
- Horsepower: 7.5 HP Normal Duty / 5 HP Heavy Duty
- Power (kW): 5.5 kW Normal Duty / 4 kW Heavy Duty
- Continuous Output Current: 11A
- 3-Second Overload Rating: 16.5A
- 60-Second Overload Rating: 12.1A
- Enclosure Rating: UL Type 1 / IP20
- Ambient Temperature Rating: 50 degrees C (122 degrees F)
- HIM: Full Numeric LCD with Keypad
- Control Type: Enhanced Control, No Feedback
- Braking Resistor: None
- Communication Module: None Fitted
- Certifications: cULus, CE, TUV
Product Description
The Allen-Bradley 20AD011A3AYNANC0 is a PowerFlex 70 adjustable frequency AC drive rated for 480V 3-phase input at 47 to 63 Hz. Normal duty output power is 5.5 kW (7.5 HP) and heavy duty output is 4 kW (5 HP). Input amperage is 9.4A at 480V class with an AC voltage range of 432 to 528V. Output is 3-phase, 0 to 400 Hz, with a continuous output of 11A at 0 to 460V. The 3-second overload rating is 16.5A and the 60-second overload rating is 12.1A at 480V class.
Catalog number 20AD011A3AYNANC0 designates the full numeric LCD human interface module (HIM), enhanced control, no feedback, no internal brake resistor, and filtered emission class. The unit is UL Type 1 / IP20 enclosure rated for ambient temperatures up to 50 degrees C (122 degrees F). Certifications include cULus, CE, and TUV. Serial number 21427850, manufactured in August 2012, original firmware revision 5.001, product of Mexico. Frame size is C.
The PowerFlex 70 platform supports optional communication adapter modules for EtherNet/IP, DeviceNet, ControlNet, and other industrial networks via the integrated communication slot. This drive is discontinued by the manufacturer; replacement units are sourced through the industrial surplus and aftermarket supply chain.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
