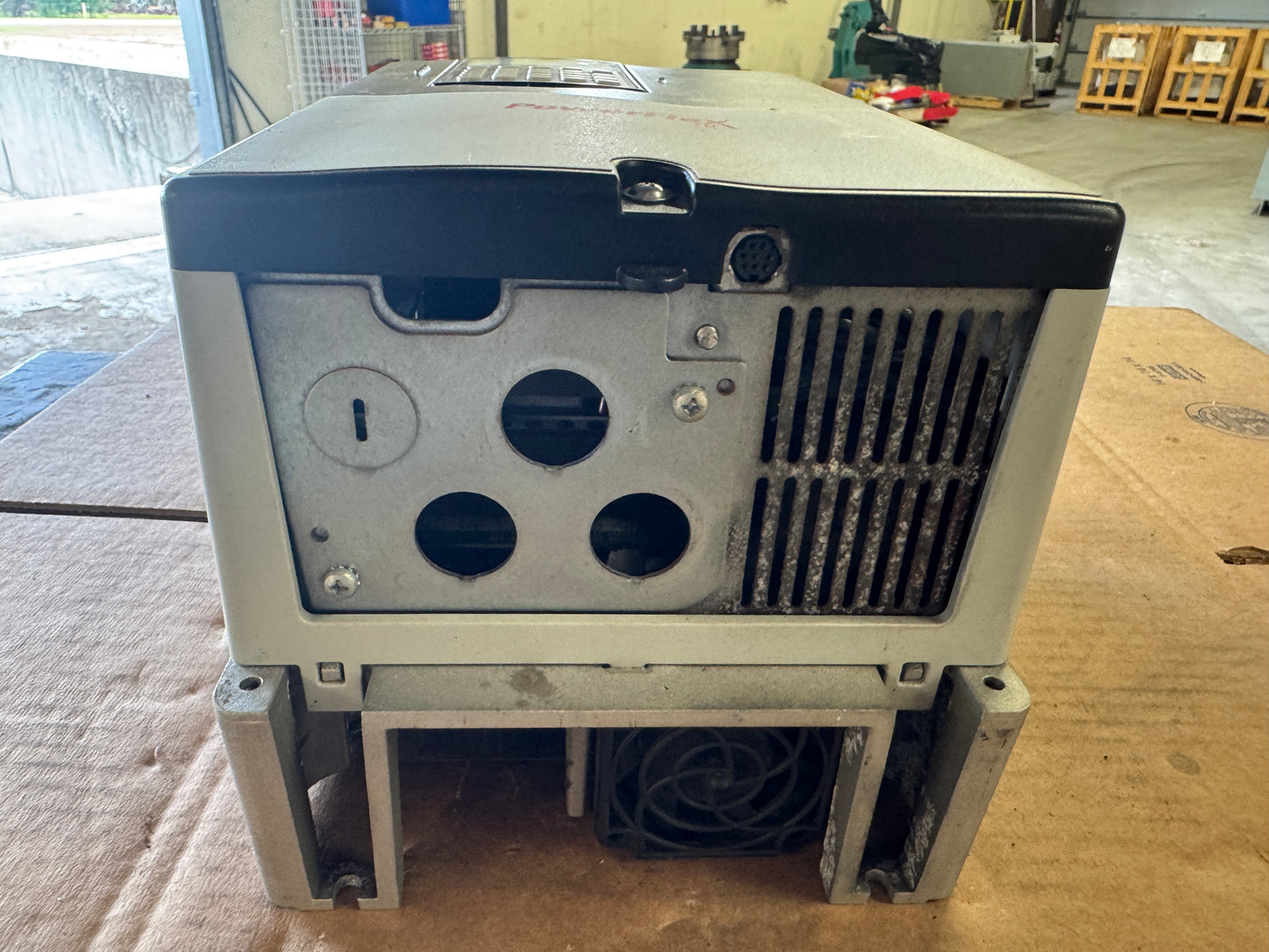

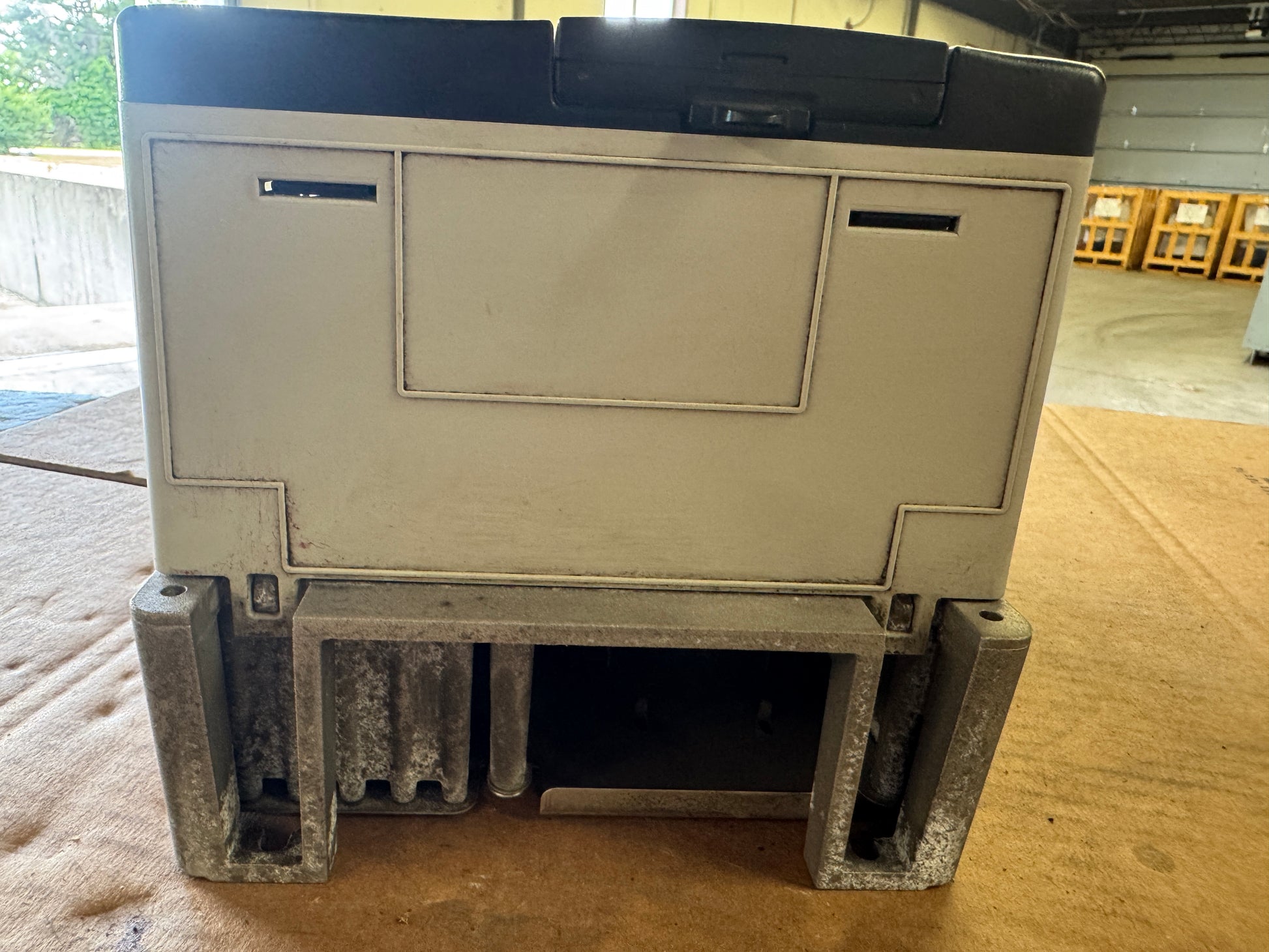

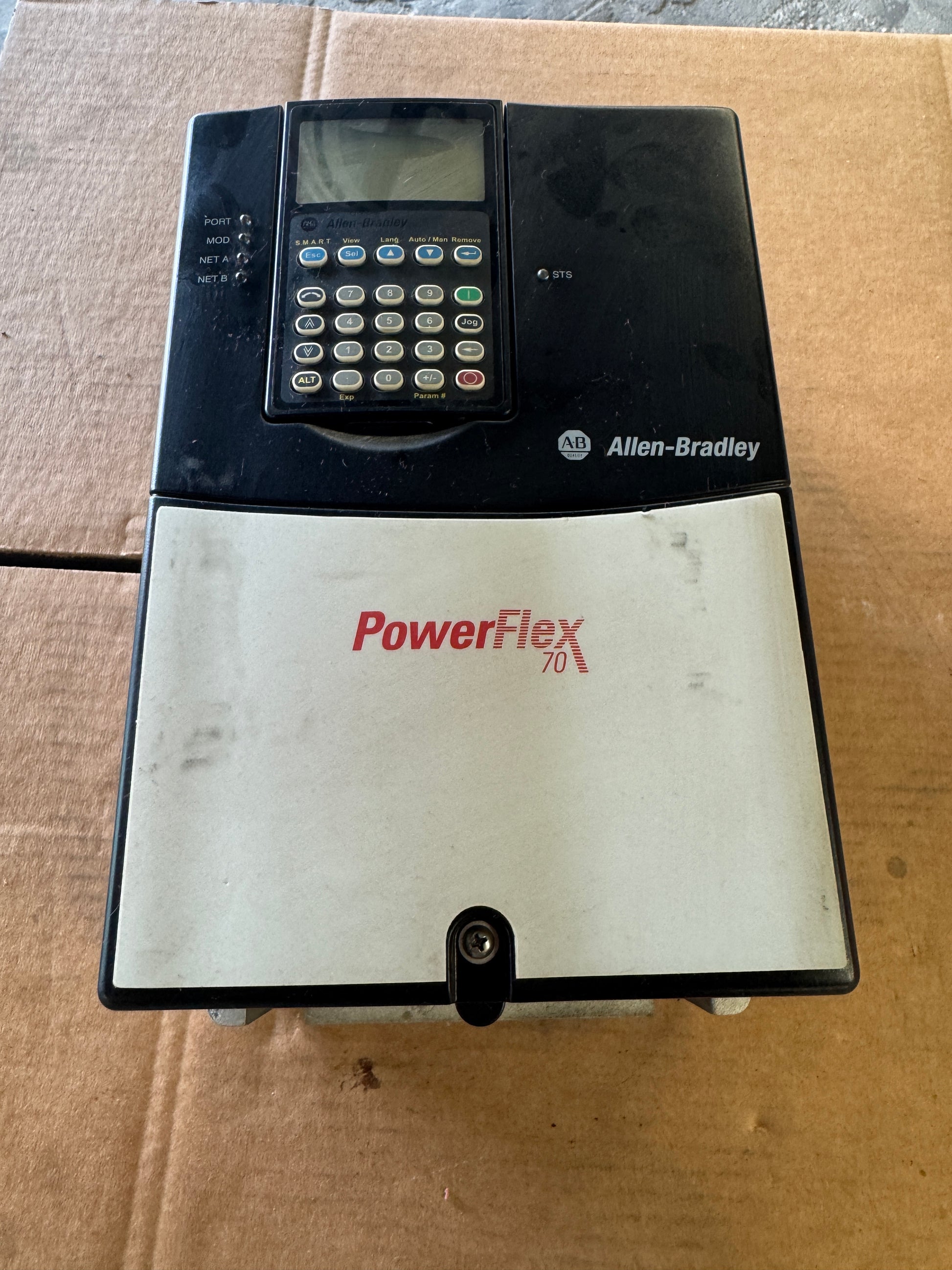

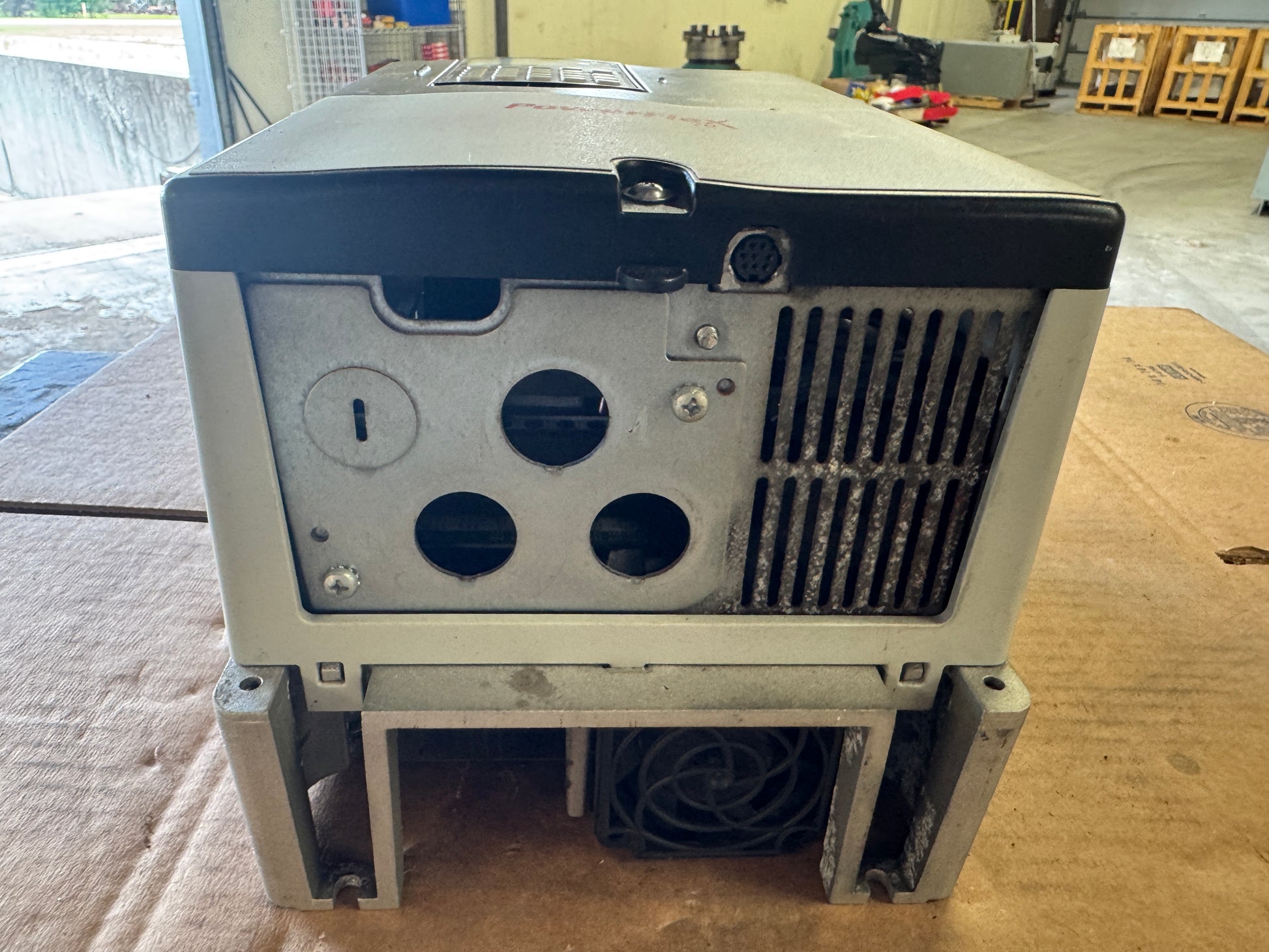

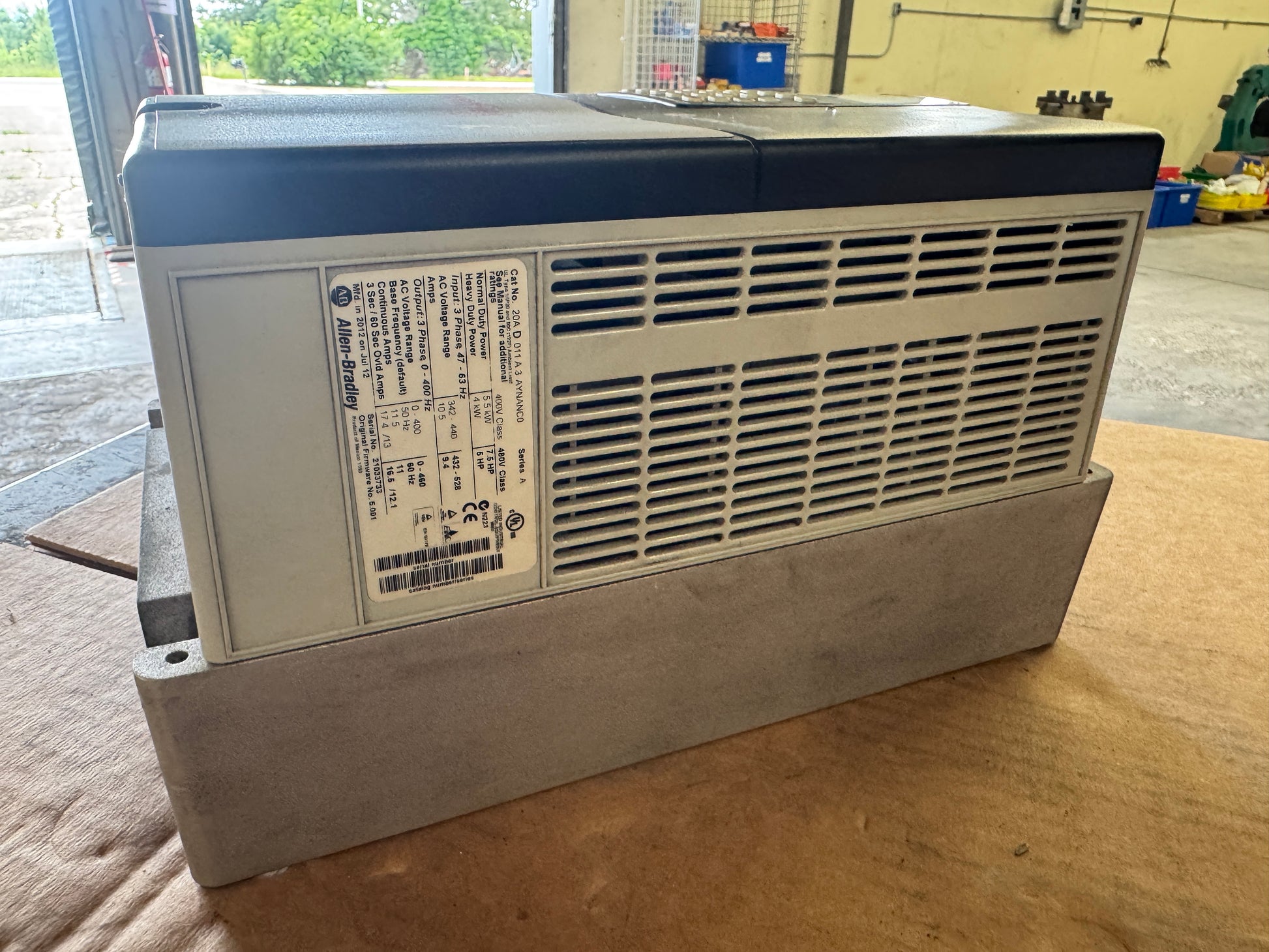

Allen-Bradley 20AD011A3AYNANC0 Variable Frequency Drive 480V AC, 3-Phase

$1,999.00 USD

Sale Sold out

ConditionSurplus - Untested MPN20AD011A3AYNANC0 Stock #0526-01423

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 25.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

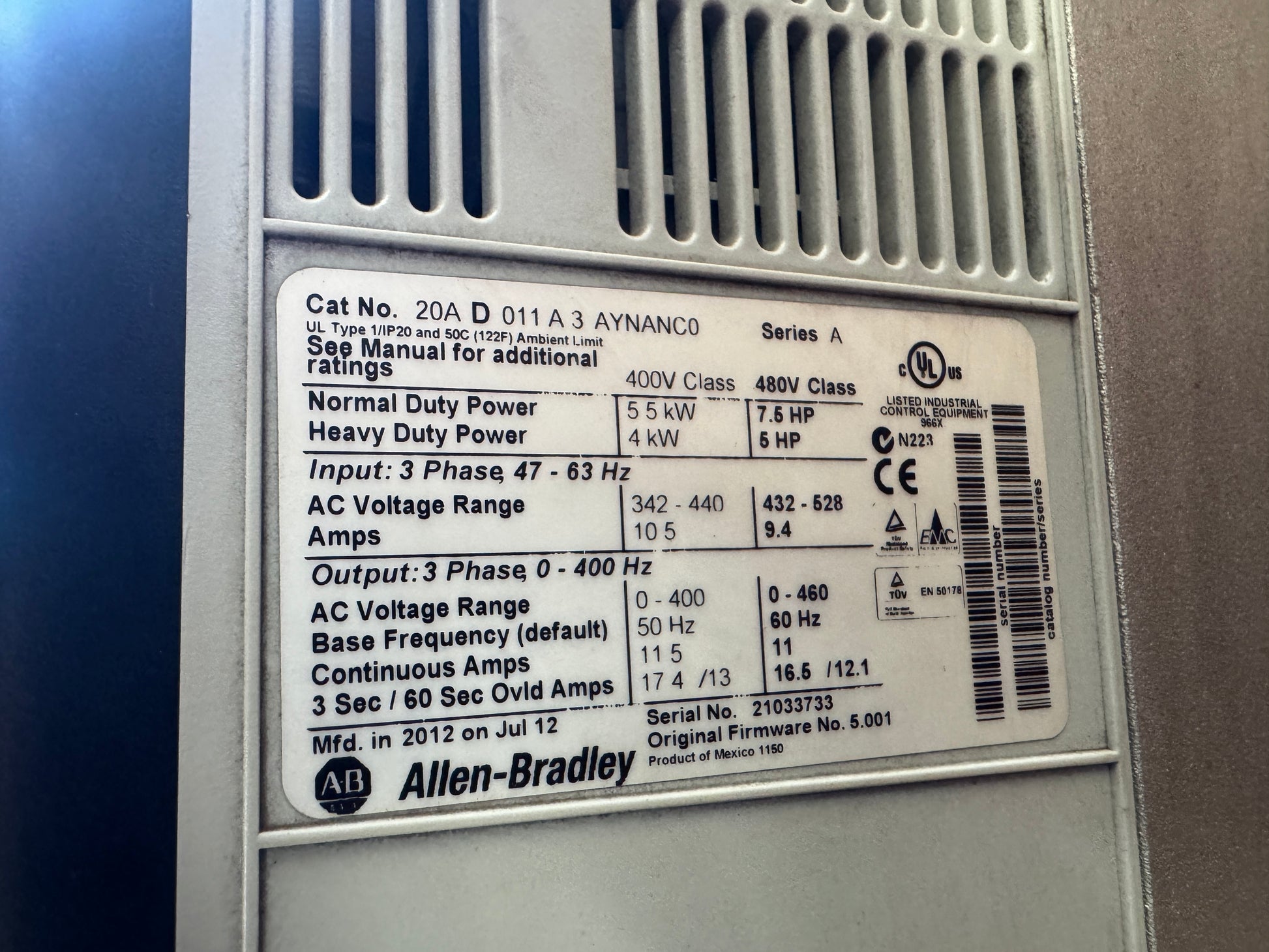

Product Specifications

Manufacturer: Allen-Bradley
MPN / Model: 20AD011A3AYNANC0
Product Type: AC Variable Frequency Drive
Series: PowerFlex 70, Series A
Input Voltage: 480V AC, 3-Phase
Input Voltage Range: 432 to 528V AC
Input Frequency: 47 to 63 Hz
Input Amperage: 9.4A
Output Voltage: 0 to 460V AC
Output Frequency: 0 to 400 Hz
Output Current: 11A Continuous
Normal Duty Power: 5.5 kW / 7.5 HP
Heavy Duty Power: 4 kW / 5 HP
Enclosure Rating: UL Type 1 / IP20
HIM: Full Numeric LCD with Keypad
Control Type: Enhanced Control, No Feedback
Braking Transistor: Integrated IGBT
EMC Filter: Filtered Emission Class
Communication Module: None
Firmware Version: 5.001
Serial Number: 20133733
Manufacture Date: July 2012
Country of Origin: Mexico

Product Description

The Allen-Bradley PowerFlex 70, catalog number 20AD011A3AYNANC0, Series A, is a general-purpose adjustable frequency AC drive rated for 480V Class operation with a normal duty output of 7.5 HP (5.5 kW) and a heavy duty output of 5 HP (4 kW). Input is three-phase, 47 to 63 Hz, with an AC voltage range of 432 to 528V and an input current of 9.4 amps. Output is three-phase, 0 to 400 Hz, with an AC voltage range of 0 to 460V and continuous output current of 11 amps. The drive is rated UL Type 1 and IP20 for panel mount installation. The unit is equipped with the Full Numeric LCD Human Interface Module, which provides keypad-based parameter entry and drive status display. The drive features enhanced control with no feedback, includes an internal brake IGBT, and carries a filtered emission class designation. No communication option card is installed. Serial number 20133733, manufactured July 2012 in Mexico, original firmware revision 5.001.

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
