Allen-Bradley 20AD034A3AYNANC0 Variable Frequency Drive 480V AC 3-Phase 01609
Allen-Bradley 20AD034A3AYNANC0 Variable Frequency Drive 480V AC 3-Phase 01609
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 20AD034A3AYNANC0
Stock #: Stock # 0626-01609

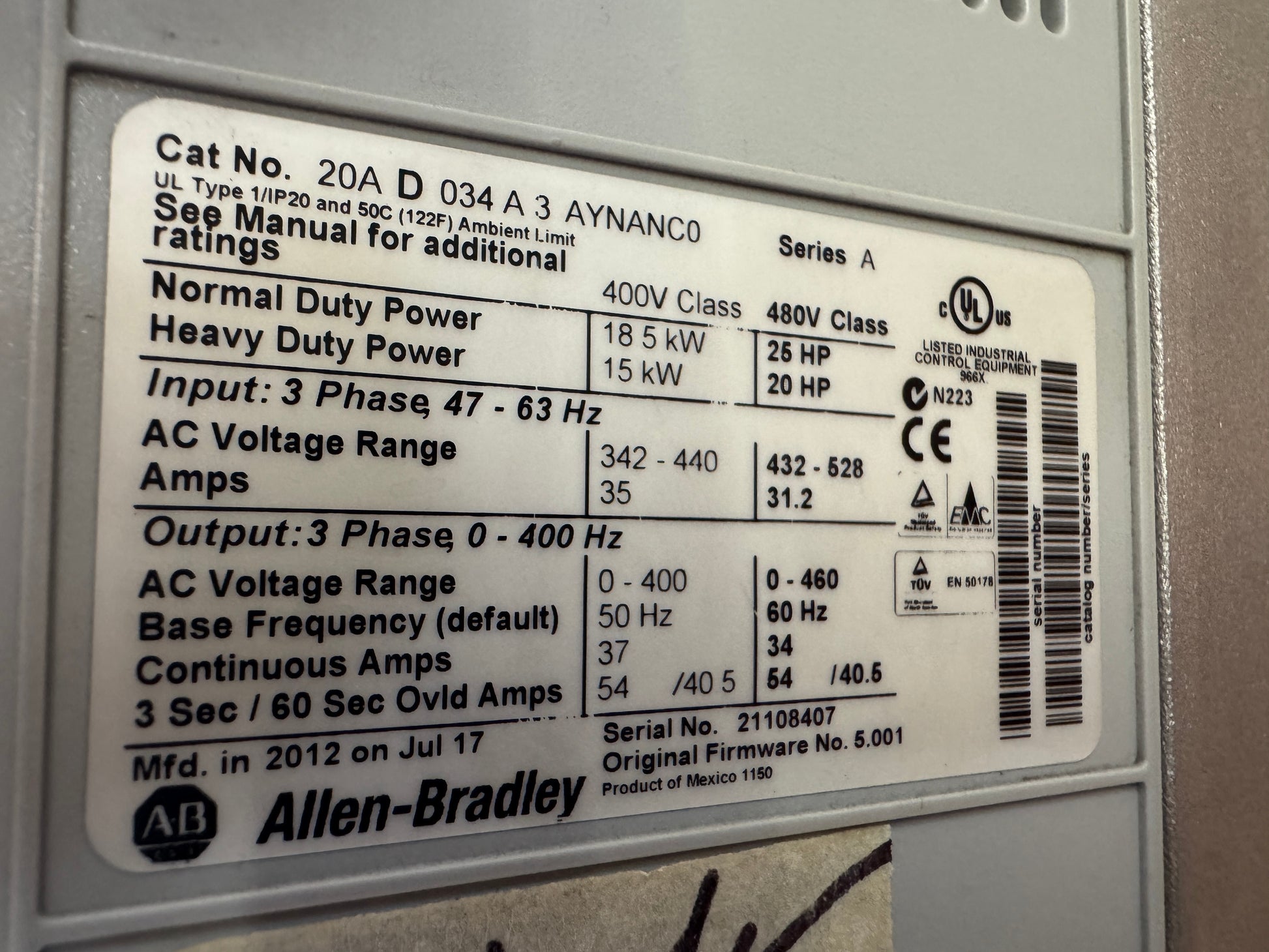

Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 20AD034A3AYNANC0
- Product Type: Variable Frequency Drive (VFD)
- Series: PowerFlex 70
- Series: Series A
- Input Voltage: 480V Class, 3 Phase, 47 to 63 Hz
- Input AC Voltage Range: 432 to 528V
- Input Amps: 31.2 A
- Normal Duty Power: 25 HP / 18.5 kW
- Heavy Duty Power: 20 HP / 15 kW
- Output: 3 Phase, 0 to 400 Hz
- Output AC Voltage Range: 0 to 460V
- Output Continuous Amps: 34 A
- 3 Sec / 60 Sec Overload Amps: 54 / 40.5 A
- Enclosure: UL Type 1 / IP20
- Frame Size: D
- Serial Number: 21108407
- Original Firmware: No. 5.001
- Manufactured: July 17, 2012
Product Description

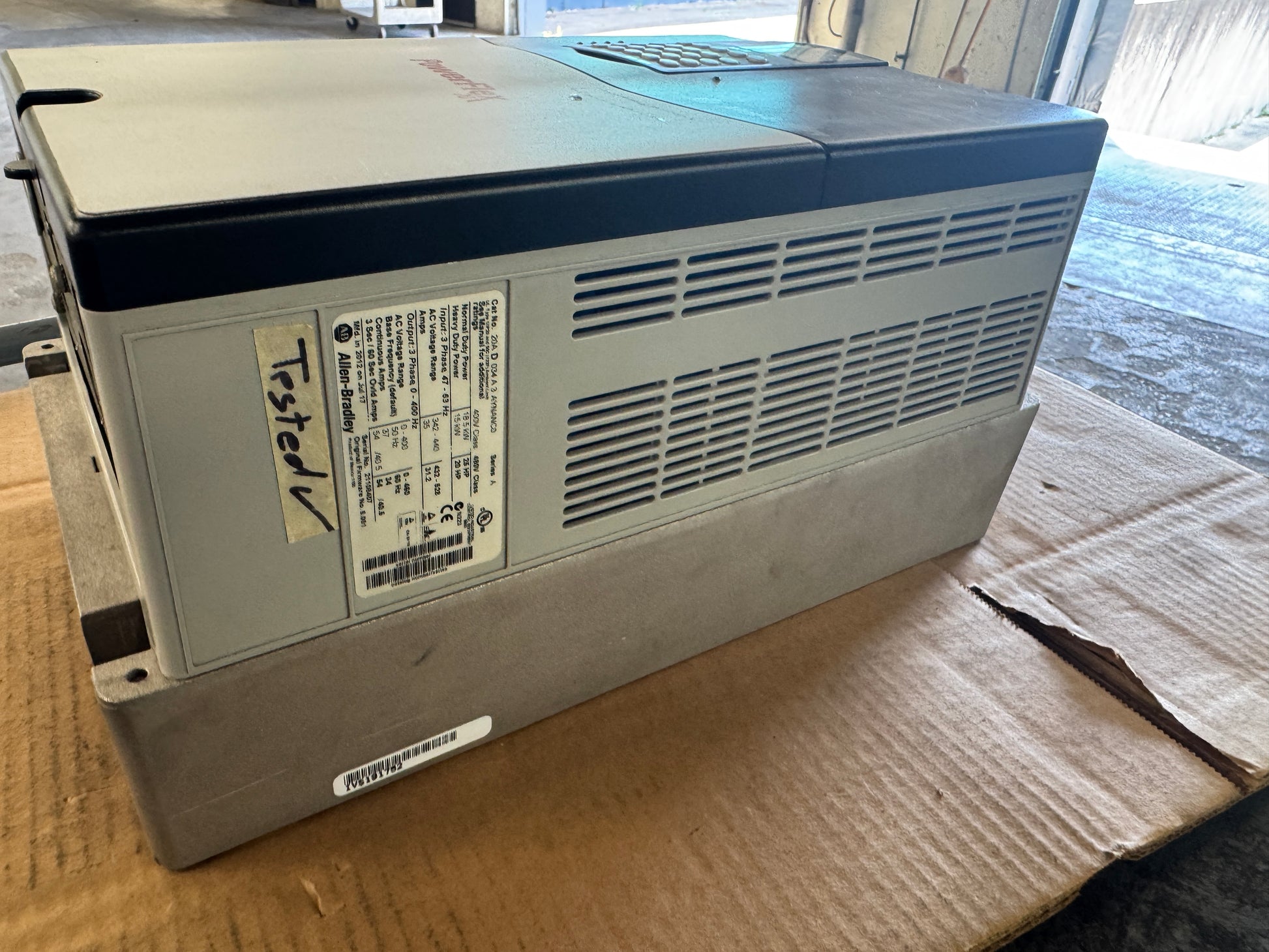

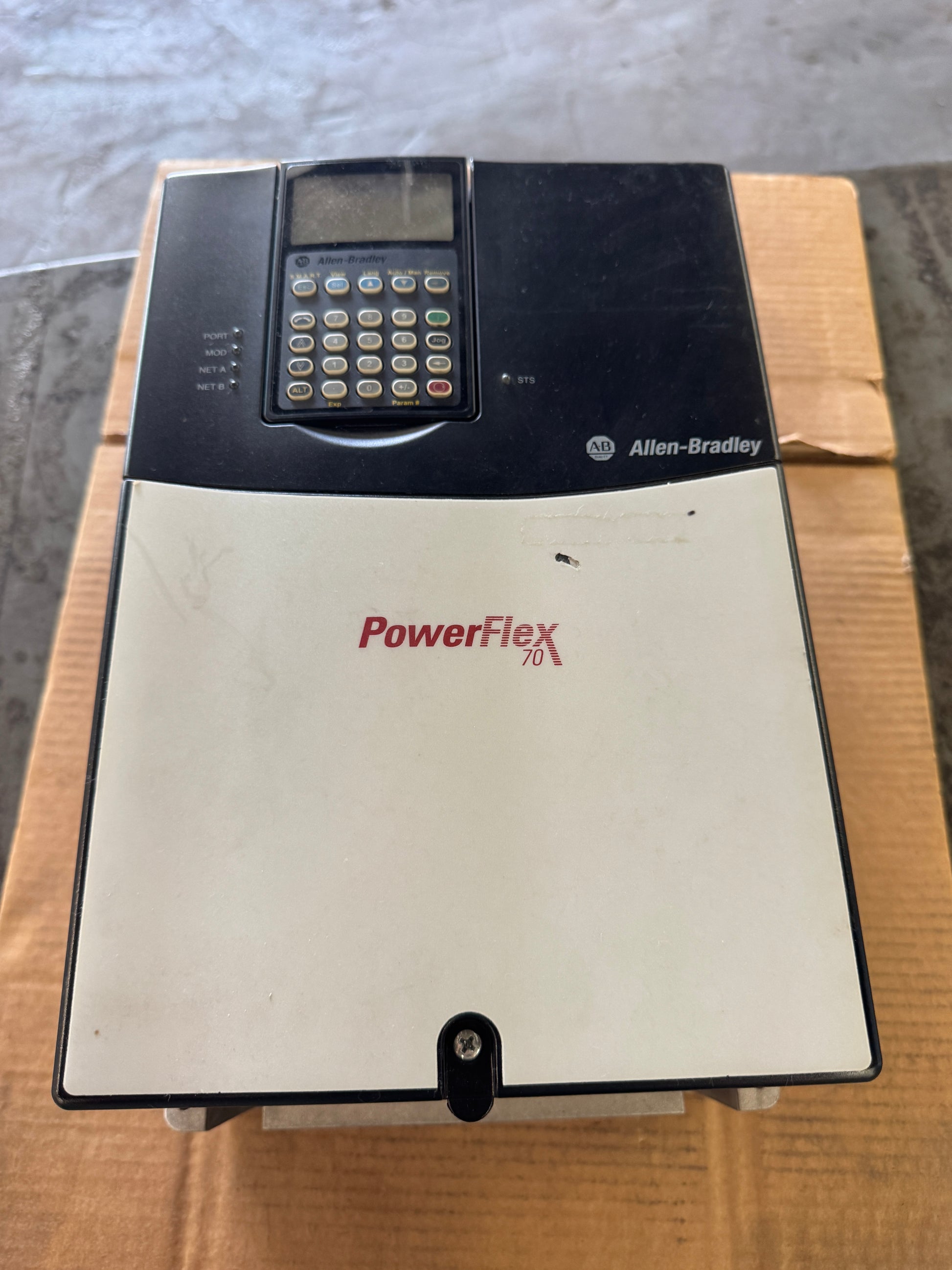

The Allen-Bradley PowerFlex 70 AC drive, catalog number 20AD034A3AYNANC0, is a 25 HP (18.5 kW normal duty) / 20 HP (15 kW heavy duty) variable frequency drive rated for 480V Class, 3-phase input. The unit is a Series A, Frame D drive with a UL Type 1 / IP20 enclosure and features a numeric keypad LCD display with enhanced control. Confirmed nameplate data includes 34 A continuous output, input voltage range of 432 to 528V, and output frequency range of 0 to 400 Hz. Serial number 21108407, Original Firmware No. 5.001, manufactured July 2012. A hand-written label on the unit reads "Tested" with a checkmark. Note: Rockwell Automation has announced the PowerFlex 70 (IP20/NEMA UL Type 1 version) will be discontinued and no longer available for sale as of September 30, 2026; the recommended successor is the PowerFlex 750 family.
