Allen-Bradley 20AD034A3AYNANC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus
Allen-Bradley 20AD034A3AYNANC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 20AD034A3AYNANC0
Stock #: 0526-01429
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 20AD034A3AYNANC0
- Product Type: AC Variable Frequency Drive
- Series: PowerFlex 70, Series A
- Frame Size: D
- Input Voltage: 480V AC, 3-Phase
- Input Voltage Range: 432 to 528V AC
- Input Amperage: 31.2A
- Output Voltage: 0 to 460V AC
- Output Frequency: 0 to 400 Hz
- Output Current: 34A Continuous
- Overload Current: 40.5A for 60 Seconds
- Normal Duty Power: 25 HP
- Heavy Duty Power: 20 HP
- Enclosure Rating: UL Type 1 / IP20
- HIM: Full Numeric LCD with Keypad
- Control Type: Enhanced Control with 24V I/O
- Braking Transistor: Integrated IGBT, No Internal Brake Resistor
- EMC Filter: Included with Common Mode Choke
- Communication Module: None
- Feedback: None
- Firmware Version: 5.001
- Serial Number: 21197981
- Manufacture Date: 2012
Product Description

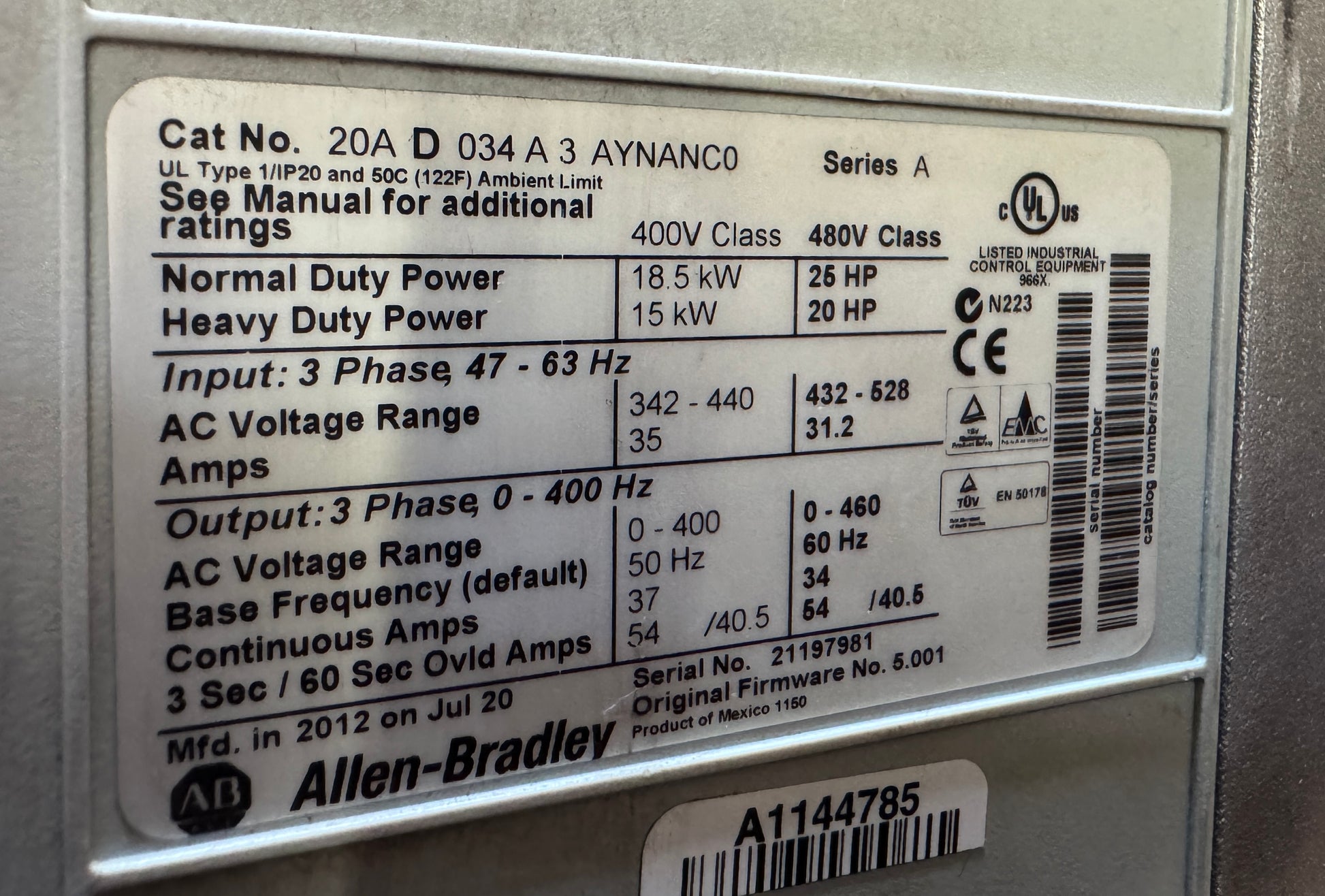

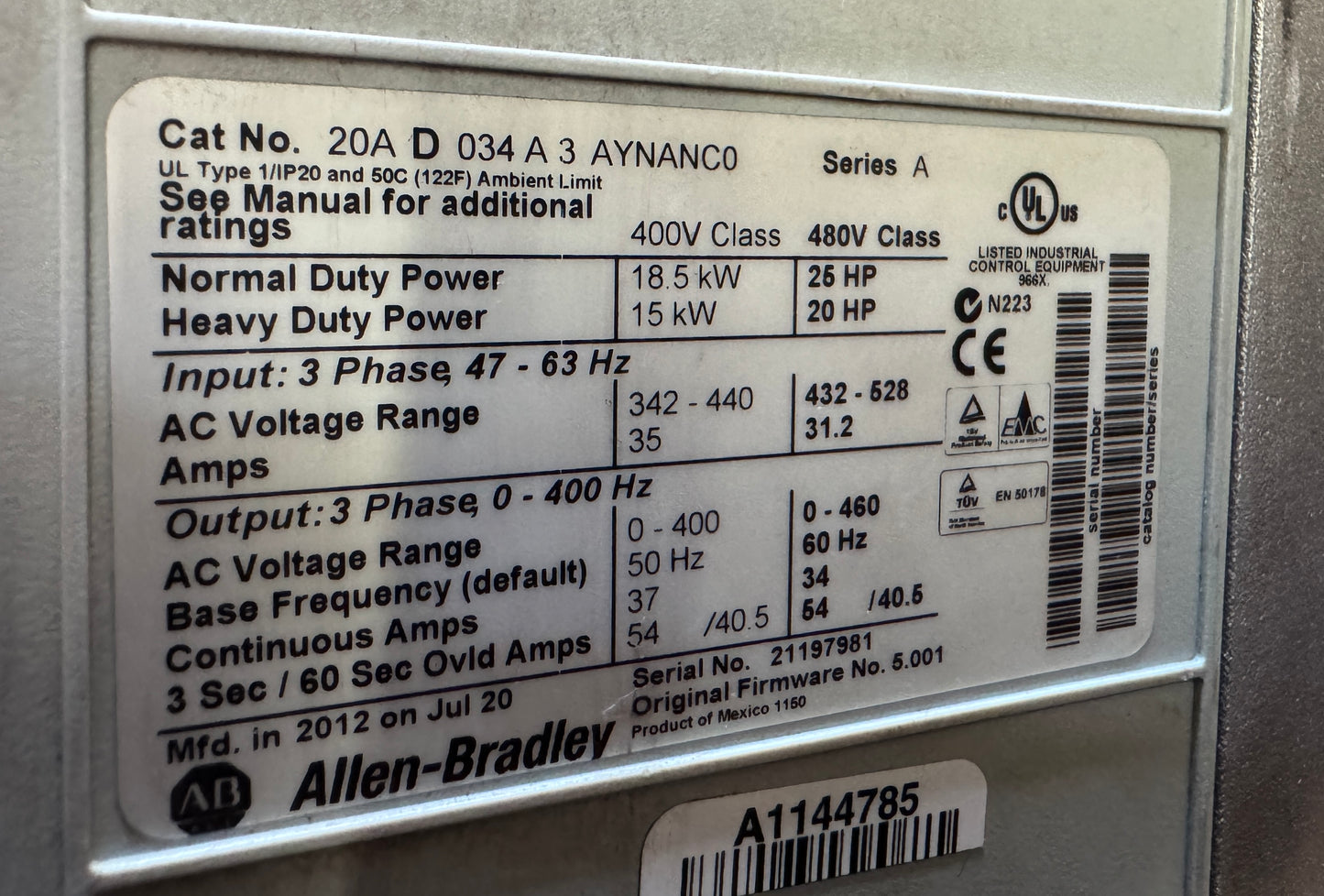

The Allen-Bradley PowerFlex 70, catalog number 20AD034A3AYNANC0, is a 25 HP normal duty and 20 HP heavy duty variable frequency drive rated for 480V AC three-phase input. Manufactured in 2012, identified as Series A with original firmware version 5.001, serial number 21197981. The drive accepts an input voltage range of 432 to 528V AC at 31.2 amps and delivers a three-phase output with an AC voltage range of 0 to 460V at up to 34 continuous amps, with 60-second overload capacity of 40.5 amps.

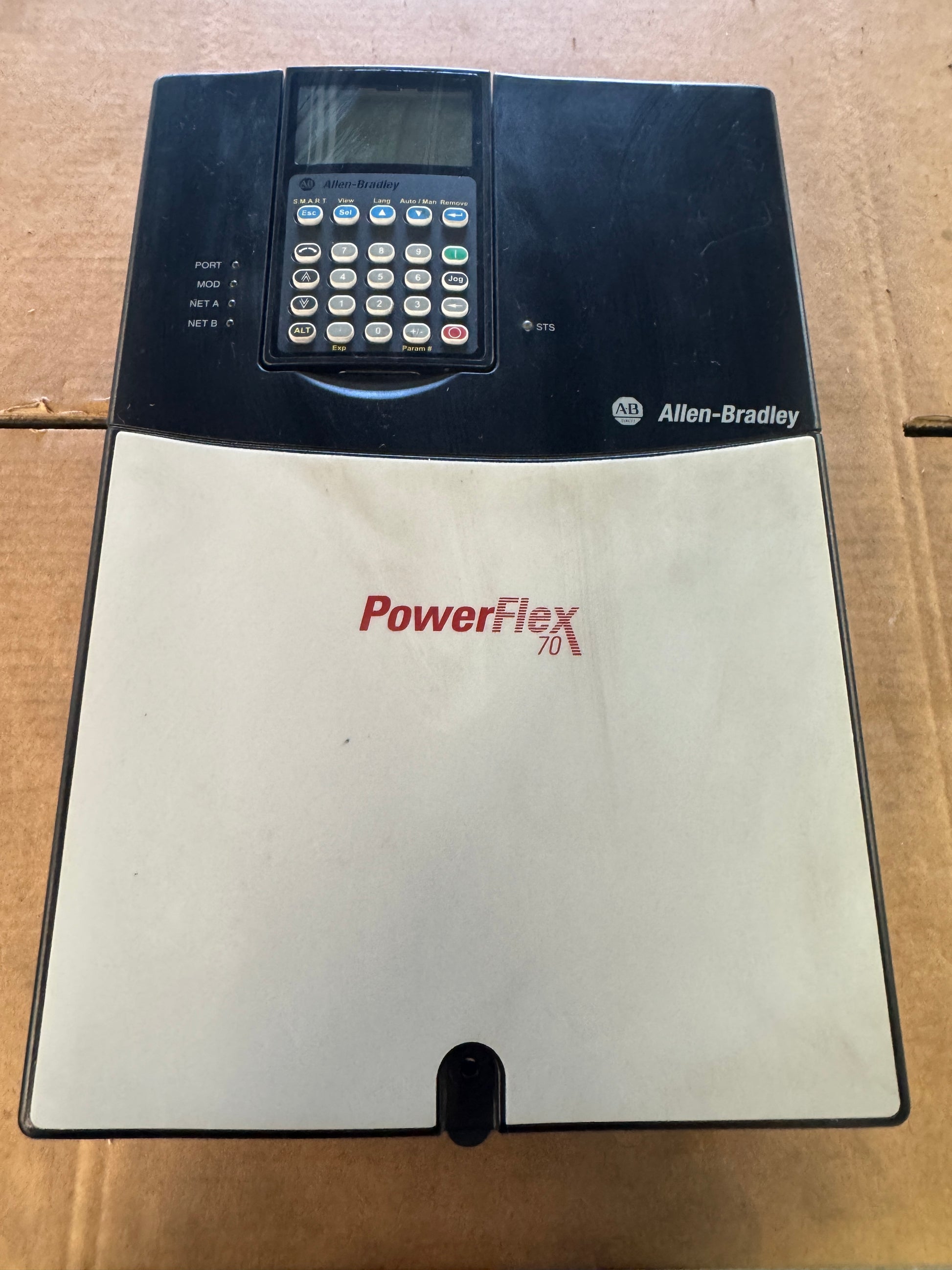

The catalog number string confirms enhanced control with 24V I/O, a full numeric LCD human interface module with keypad, EMC filter with common mode choke, and brake IGBT installed without an internal brake resistor. No feedback or communication module is included. The Frame D enclosure is rated UL Type 1 and IP20, suitable for panel mounting. Output frequency range is 0 to 400 Hz. The HIM display panel with S.M.A.R.T. keypad is present and attached.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
