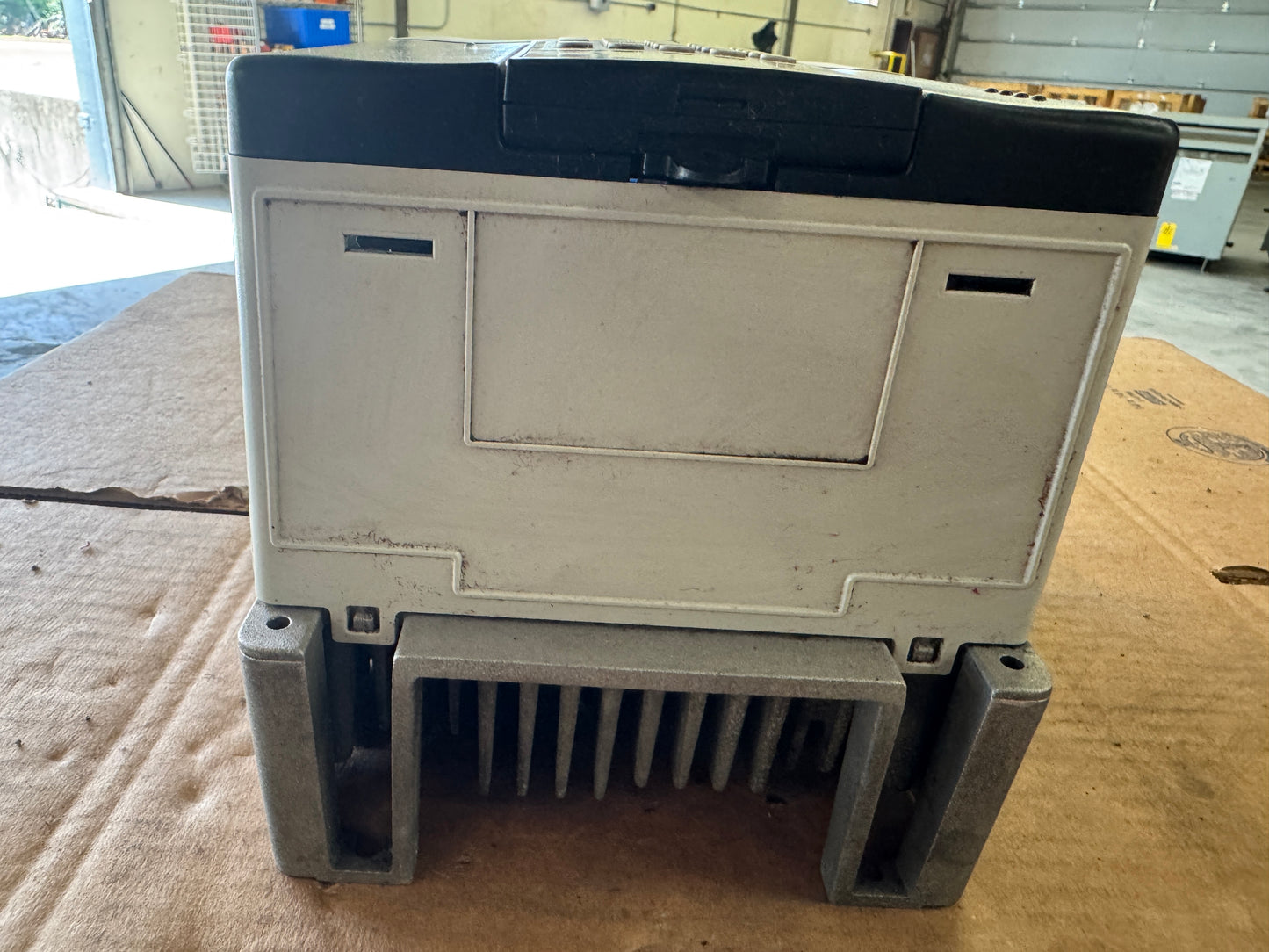

Allen-Bradley 20AD5P0A0AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01425
Allen-Bradley 20AD5P0A0AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01425
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 20AD5P0A0AYNNNC0
Stock #: 0526-01425

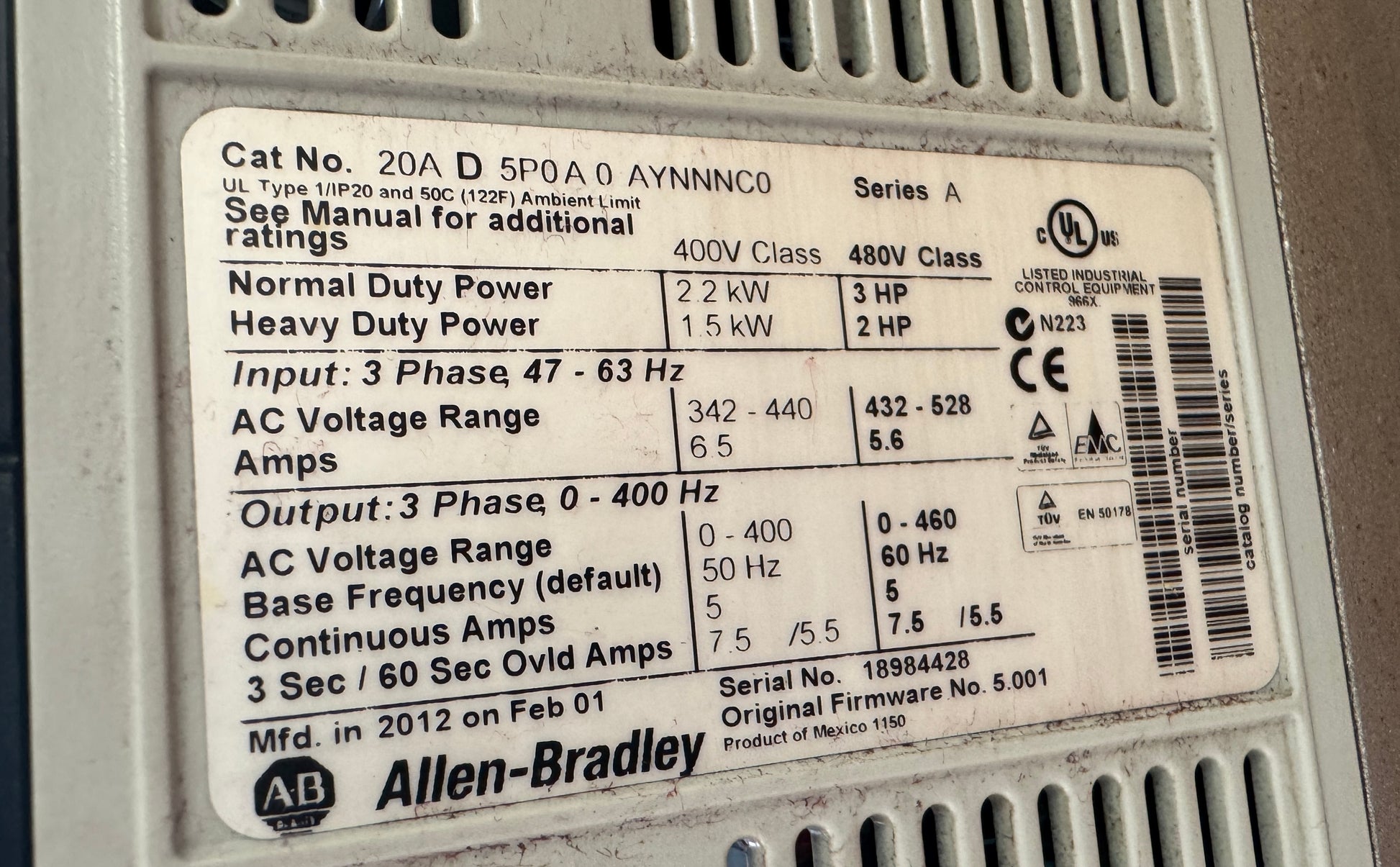

Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 20AD5P0A0AYNNNC0
- Product Type: AC Variable Frequency Drive
- Series: PowerFlex 70, Series A
- Input Voltage: 480V AC, 3-Phase
- Input Voltage Range: 432 to 528V AC
- Input Frequency: 47 to 63 Hz
- Output Voltage: 0 to 460V AC
- Output Frequency: 0 to 400 Hz
- Output Base Frequency: 60 Hz
- Output Current: 7.5A Continuous
- Overload Current: 7.5A for 3 Seconds, 5.5A for 60 Seconds
- Normal Duty Power: 2.2 kW / 3 HP
- Heavy Duty Power: 2 HP
- Enclosure Rating: IP20 / UL Type 1
- Ambient Temperature Rating: 50 degrees C (122 degrees F)

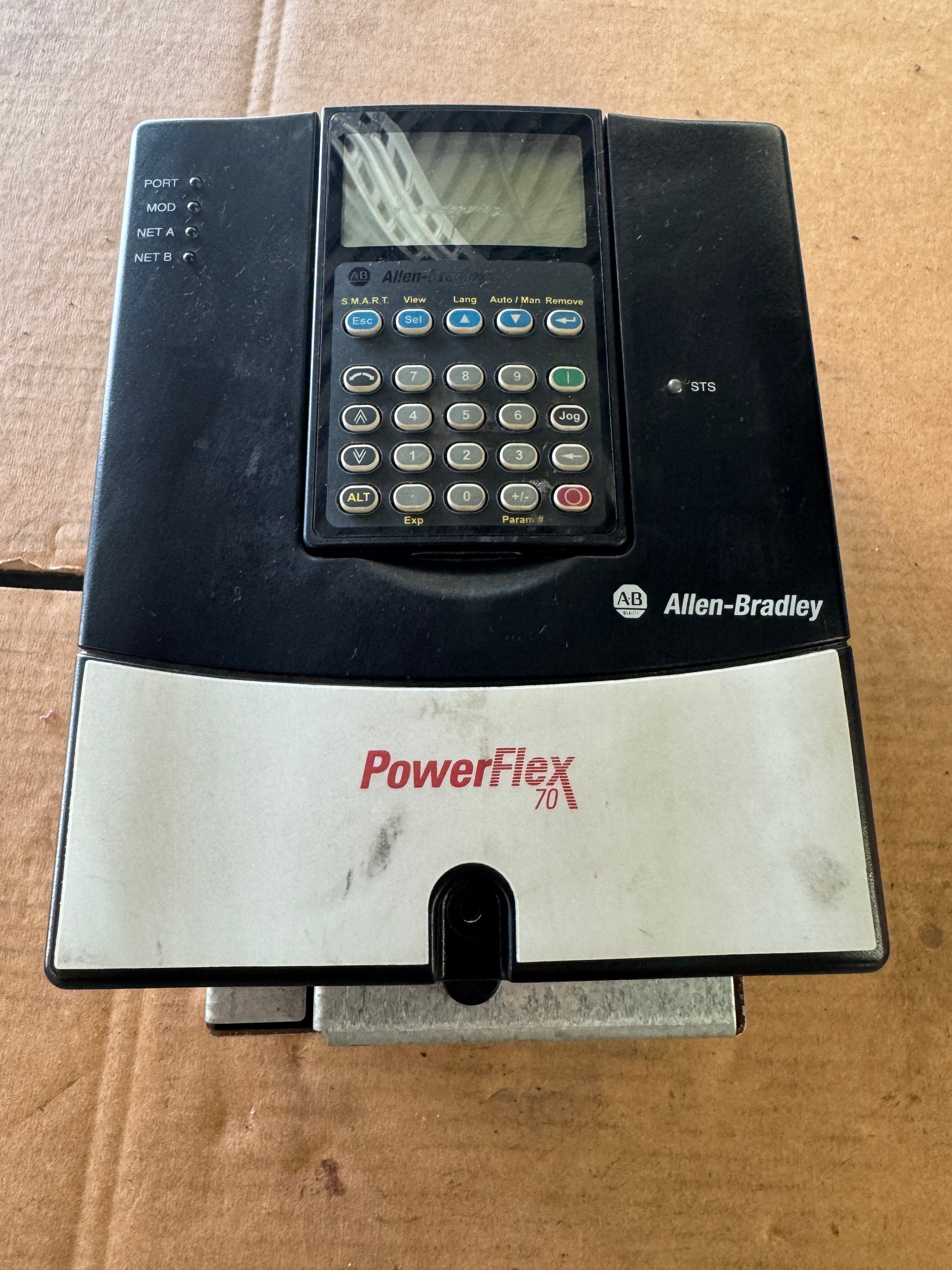

- HIM: Full Numeric LCD with Keypad
- Control Type: Enhanced Control, No Feedback
- Braking Transistor: Integrated IGBT
- EMC Filter: None
- Firmware Version: 5.001
- Serial Number: 18934428
- Manufacture Date: February 2012
Product Description

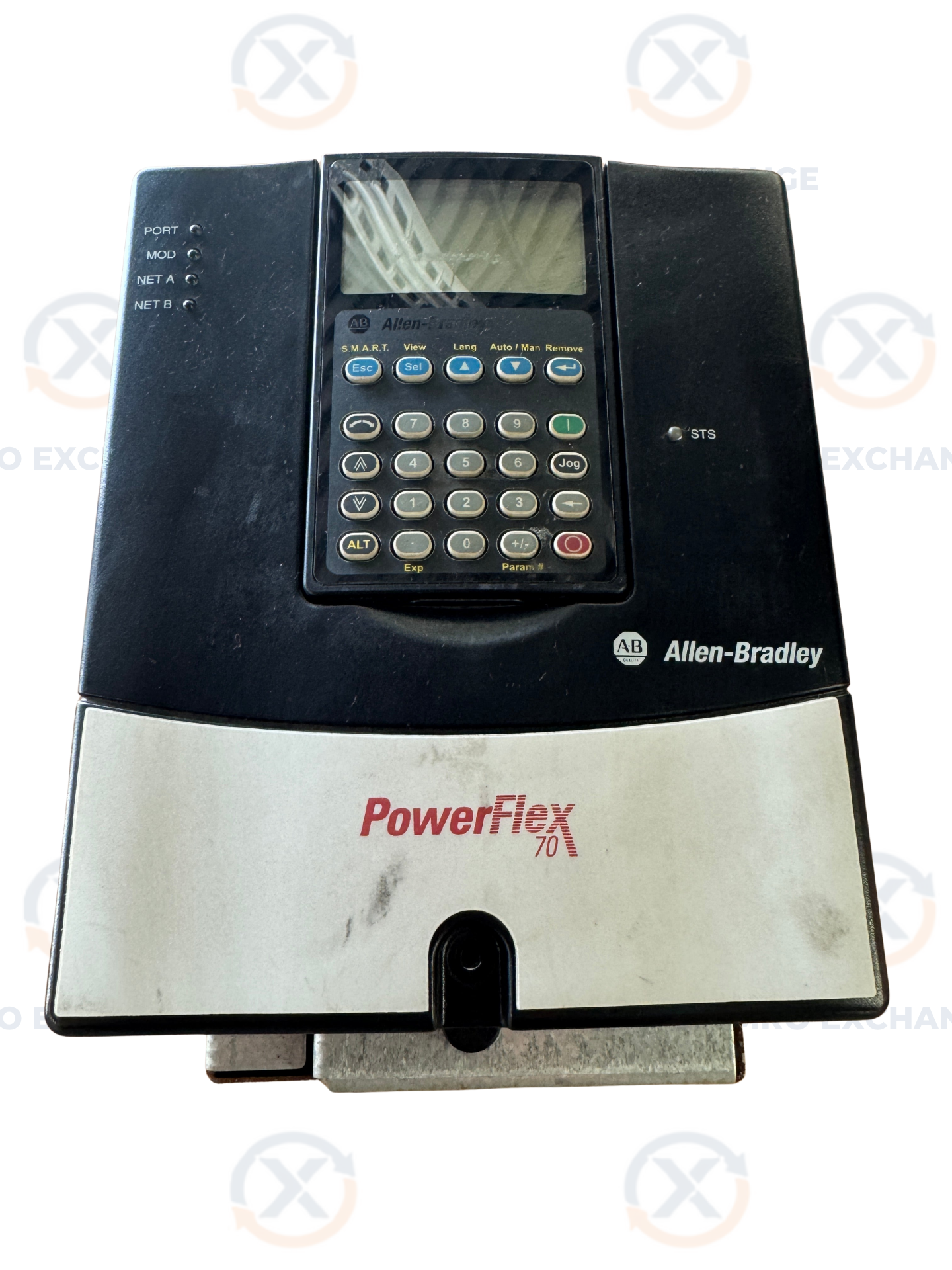

The Allen-Bradley PowerFlex 70, catalog number 20AD5P0A0AYNNNC0, Series A, is a 3 HP (2.2 kW) adjustable frequency AC drive designed for 3-phase 480V applications. The unit carries a normal duty rating of 3 HP at 5 amps input and a heavy duty rating of 2 HP at 6.5 amps input. The AC voltage input range spans 432 to 528V at 3-phase, 47 to 63 Hz. Output is 3-phase, 0 to 460V AC across a frequency range of 0 to 400 Hz, with a base frequency default of 60 Hz. Continuous output current is rated at 7.5 amps with a 3-second overload capacity of 7.5 amps and 60-second overload capacity of 5.5 amps. The drive is enclosed in a panel mount IP20 / UL Type 1 housing rated for 50 degrees C ambient and features an integrated Full Numeric LCD human interface module with S.M.A.R.T. keypad. The unit includes a brake IGBT, enhanced control with no feedback, and is not EMC filtered. Serial number 18934428, manufactured February 2012, original firmware version 5.001.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
