Allen-Bradley 20AD5P0A0AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01426
Allen-Bradley 20AD5P0A0AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01426
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 20AD5P0A0AYNNNC0
Stock #: 0526-01426
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 20AD5P0A0AYNNNC0
- Product Type: AC Variable Frequency Drive
- Series: PowerFlex 70, Series A
- Input Voltage: 480V AC, 3-Phase
- Input Voltage Range: 432 to 528V AC
- Input Frequency: 47 to 63 Hz
- Output Voltage: 0 to 460V AC
- Output Frequency: 0 to 400 Hz
- Output Base Frequency: 60 Hz
- Output Current: 5A Continuous
- Overload Current: 7.5A for 3 Seconds, 5.5A for 60 Seconds
- Normal Duty Power: 2.2 kW / 3 HP
- Heavy Duty Power: 1.5 kW / 2 HP
- Enclosure Rating: IP20 / UL Type 1
- HIM: Full Numeric LCD with Keypad
- Control Type: Enhanced Control, No Feedback
- Braking Transistor: Integrated IGBT
- EMC Filter: None
- UPC: 820919204579
- Firmware Version: 5.001
- Serial Number: 20219509
- Manufacture Date: May 2012
Product Description

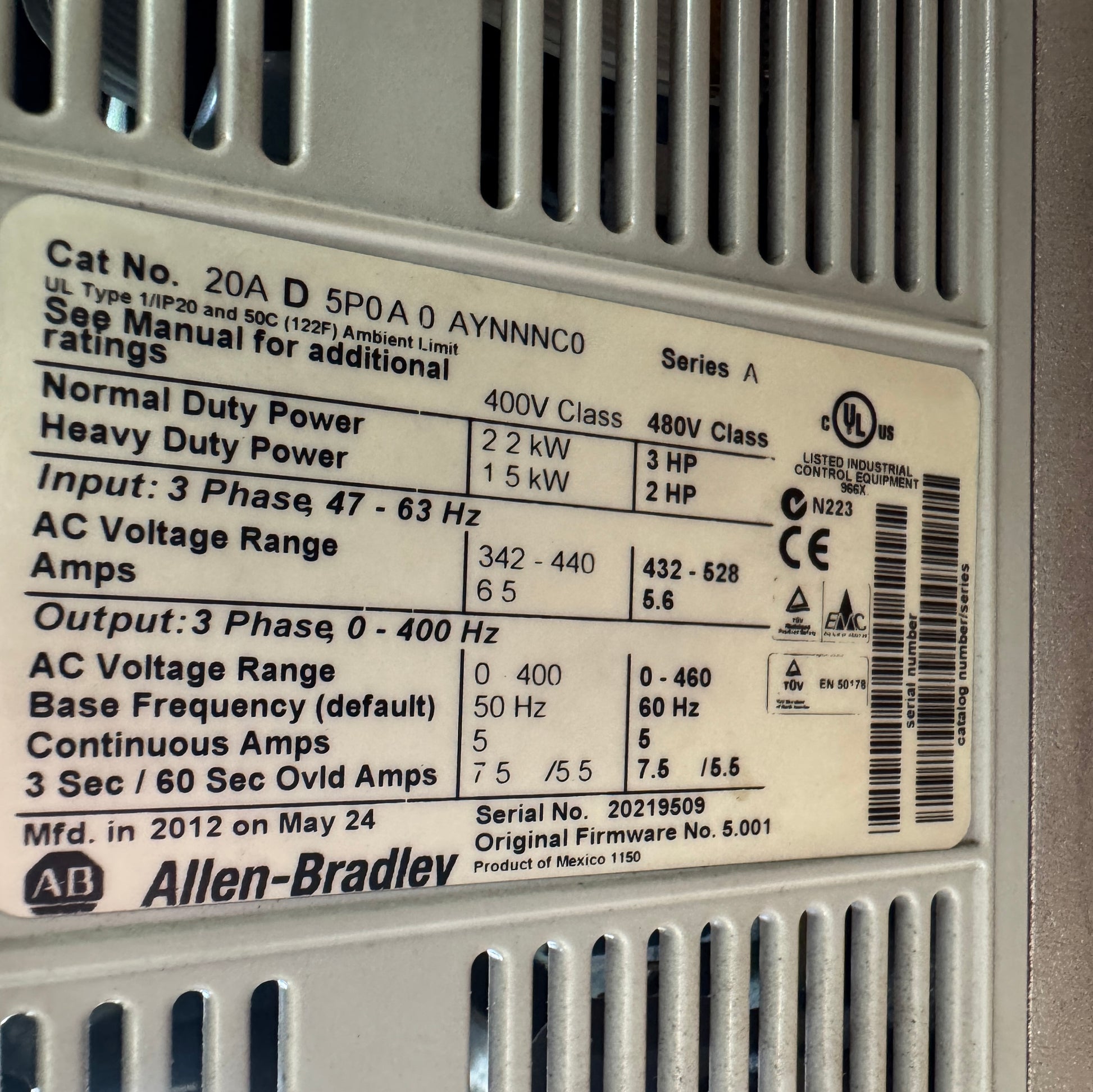

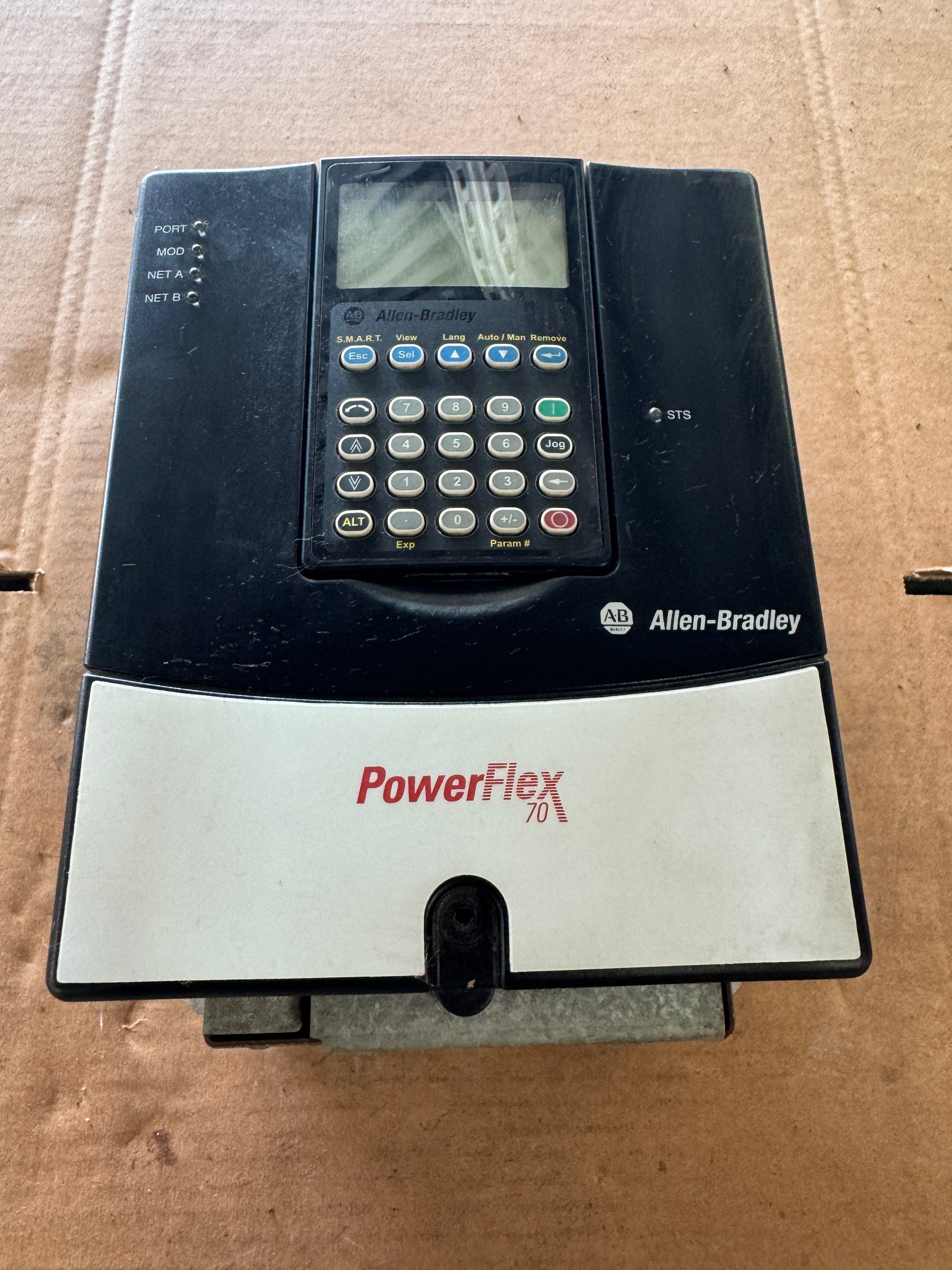

The Allen-Bradley 20AD5P0A0AYNNNC0 is a PowerFlex 70 adjustable frequency AC drive rated for 480V AC three-phase input at 5 continuous amps. Normal duty power is 3 HP (2.2 kW) and heavy duty power is 2 HP (1.5 kW). Input frequency range is 47 to 63 Hz with an AC voltage input range of 432 to 528V. Output is three-phase variable frequency from 0 to 400 Hz, with an output voltage range of 0 to 460V and a base frequency default of 60 Hz. Continuous output current is 5 amps with 3-second and 60-second overload ratings of 7.5 and 5.5 amps respectively. The catalog number string specifies enhanced control, brake IGBT installed, no CE filter, no communication module, no feedback device, and a panel mount IP20 / UL Type 1 enclosure. Series A. Serial number 20219509, manufactured May 2012. The unit includes the full-featured LCD Human Interface Module with S.M.A.R.T. keypad and PORT, MOD, NET A, and NET B status indicators. UPC 820919204579.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
