Allen-Bradley 20AD5P0A0AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01438
Allen-Bradley 20AD5P0A0AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01438
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 20AD5P0A0AYNNNC0
Stock #: 0626-01438
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 20AD5P0A0AYNNNC0
- Product Type: AC Variable Frequency Drive
- Series: PowerFlex 70
- Series Designation: Series A
- Firmware Version: 5.001
- Manufacture Date: May 2012
- Input Voltage: 480V AC, 3-Phase
- Input Voltage Range: 432 to 528 VAC
- Input Frequency: 47 to 63 Hz
- Output Voltage: 0 to 460 VAC
- Output Frequency: 0 to 400 Hz
- Output Base Frequency: 60 Hz
- Horsepower: 3 HP Normal Duty / 2 HP Heavy Duty
- Power (kW): 2.2 kW Normal Duty / 1.5 kW Heavy Duty
- Continuous Output Current: 5.0 A
- Enclosure Rating: IP20 / UL Type 1
- Ambient Temperature Rating: 50 degrees Celsius
- HIM: Full Numeric LCD with Keypad
- Control Type: Enhanced Control with Integrated Brake IGBT
- Braking Resistor: None
- Encoder Feedback Card: None
- Serial Number: 20219514
Product Description

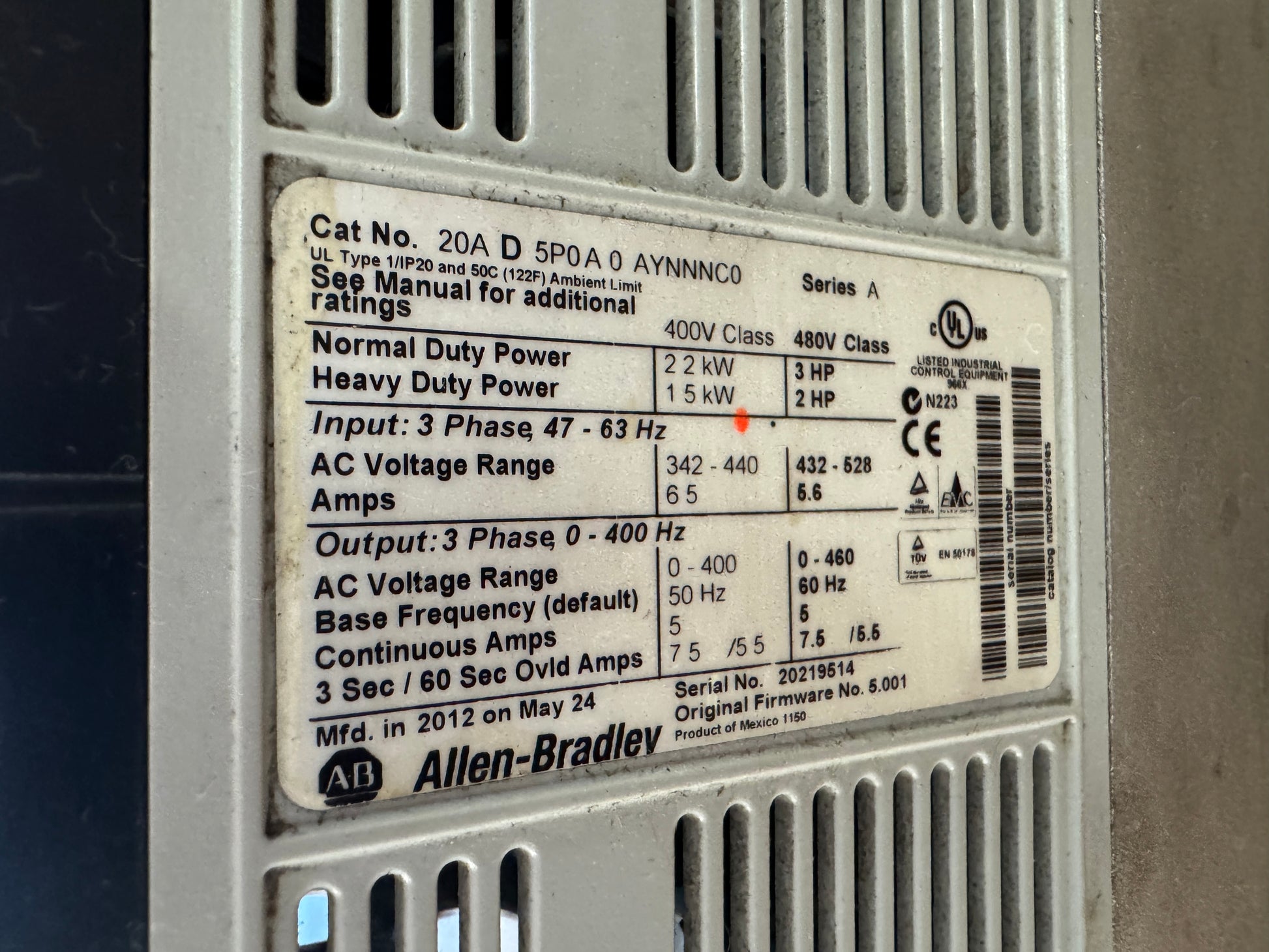

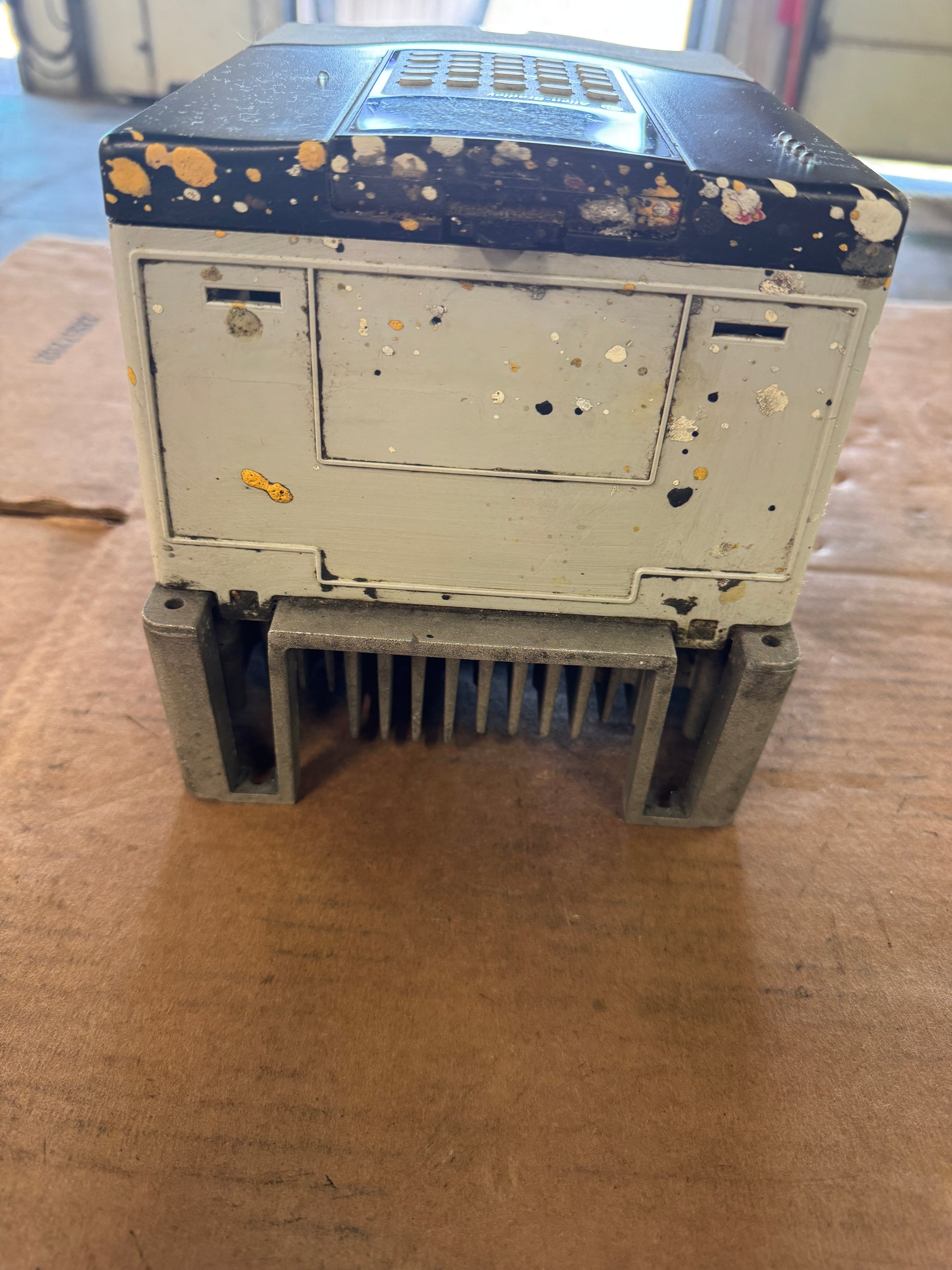

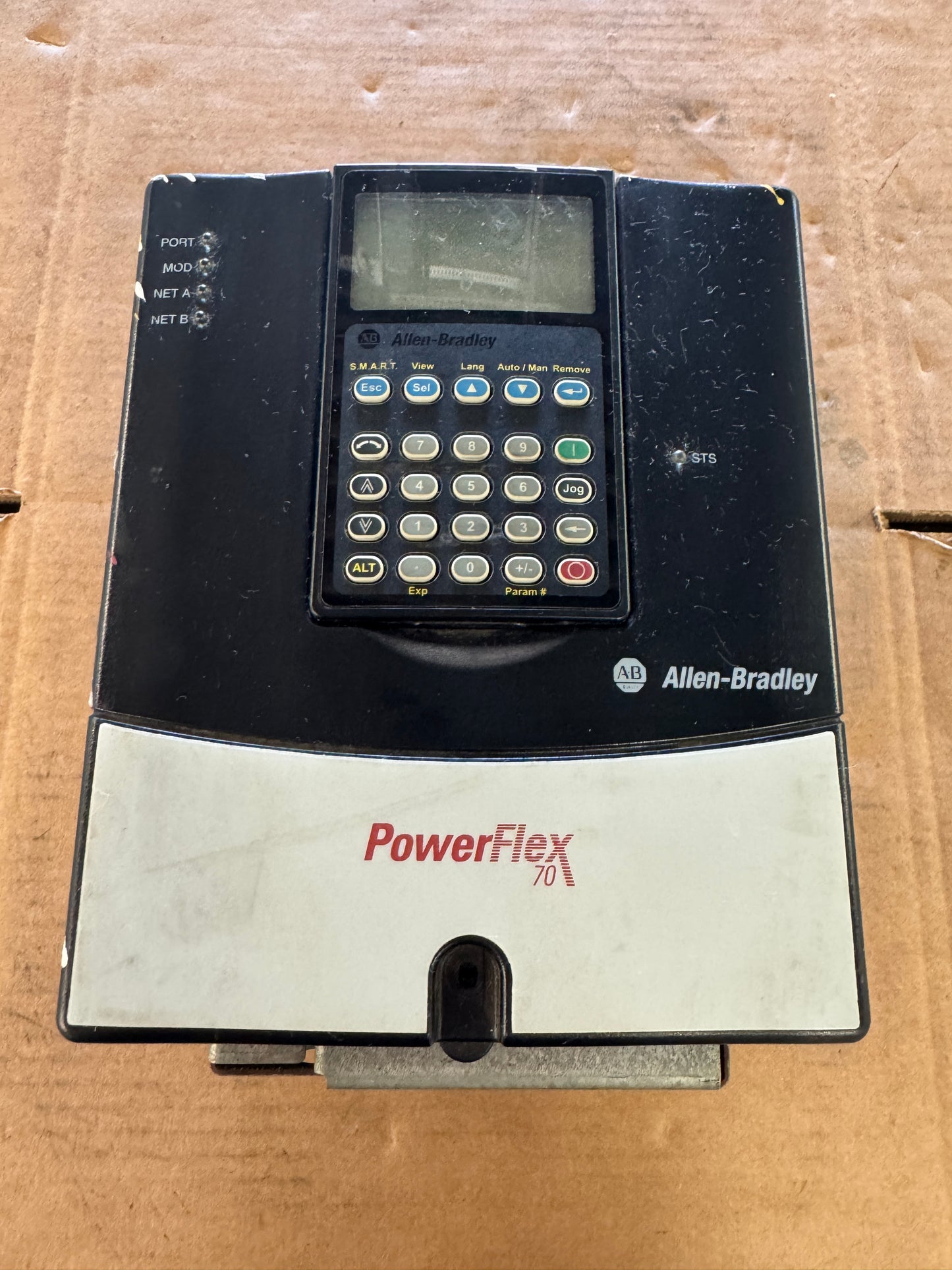

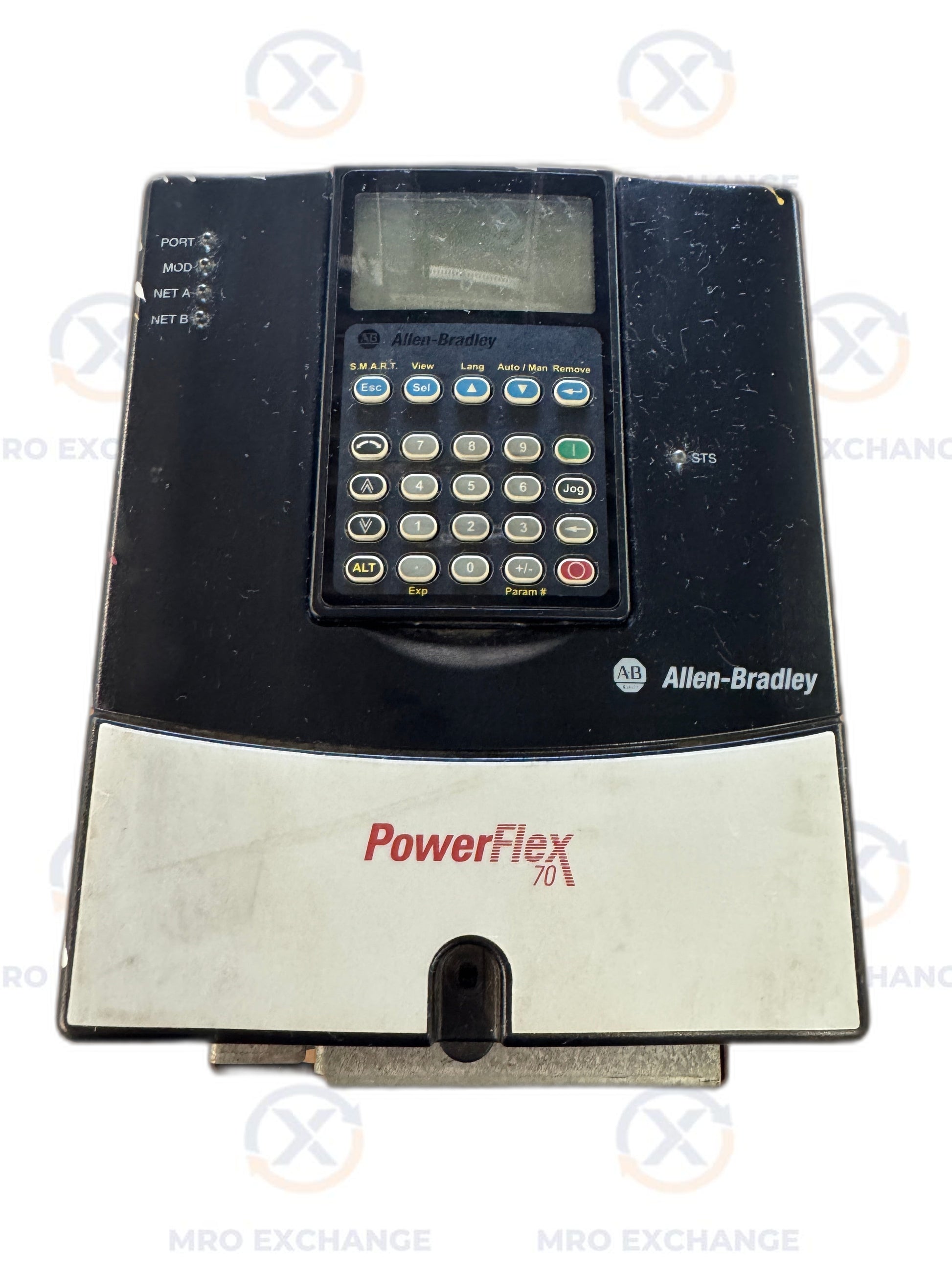

Used in general industrial motor control applications, the Allen-Bradley PowerFlex 70 is a compact adjustable frequency AC drive designed for three-phase motor control in panel-mount configurations. Catalog number 20AD5P0A0AYNNNC0 identifies a 480V AC input, 3-phase unit rated at 2.2 kW (3 HP normal duty) and 1.5 kW (2 HP heavy duty), with a continuous output current of 5.0 amps at 480V class. The drive accepts input across 432 to 528 VAC at 47 to 63 Hz and delivers a variable output from 0 to 460 VAC at 0 to 400 Hz. Series A, manufactured May 2012, serial number 20219514, original firmware version 5.001. The enclosure is IP20 / UL Type 1, rated for 50 degrees Celsius ambient. This unit includes the full numeric LCD keypad module (HIM) mounted to the front face, with PORT, MOD, NET A, and NET B status indicators visible. The drive features enhanced control with integrated brake IGBT. Output base frequency is 60 Hz at the 480V class setting. The PowerFlex 70 platform supports Volts/Hz, sensorless vector, and closed-loop vector control modes. This specific catalog configuration includes no internal brake resistor and no encoder feedback card. The bottom cooling fan and heatsink assembly are present and intact. Offered as surplus industrial equipment.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
