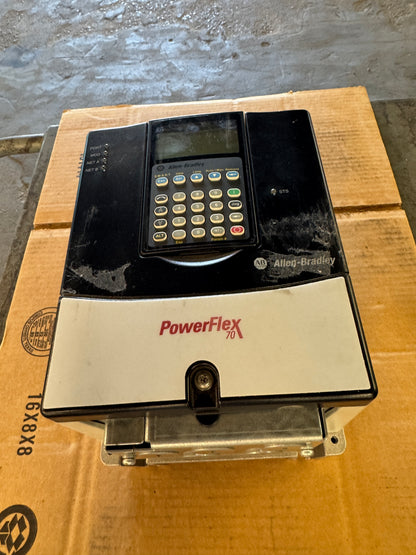

Allen-Bradley 20AD5P0A3AYNNNC0 Variable Frequency Drive 480V 3-Phase
Allen-Bradley 20AD5P0A3AYNNNC0 Variable Frequency Drive 480V 3-Phase
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Inspected Surplus - Appears Unused
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 20AD5P0A3AYNNNC0
Stock #: Stock # 0626-01622
Product Specifications
- Manufacturer: Allen-Bradley (Rockwell Automation)
- MPN / Model: 20AD5P0A3AYNNNC0
- Product Type: Variable Frequency Drive (VFD)
- Model Name: PowerFlex 70
- Series: A
- Frame Size: B
- Normal Duty Power: 2.2 kW / 3 HP
- Heavy Duty Power: 1.5 kW / 2 HP
- Input: 3 Phase, 47-63 Hz
- Input AC Voltage Range: 432-528V (480V Class)
- Input Amps: 5.6 A
- Output: 3 Phase, 0-400 Hz
- Output AC Voltage Range: 0-460V
- Base Frequency (Default): 60 Hz
- Continuous Output Amps: 5 A
- 3 Sec / 60 Sec Overload Amps: 7.5 / 5.5 A
- Enclosure Rating: IP20 / NEMA/UL Type 1
- Firmware: 5.001 (Original)
- Serial Number: 86195120
- Manufactured: 2021/04/16
Product Description

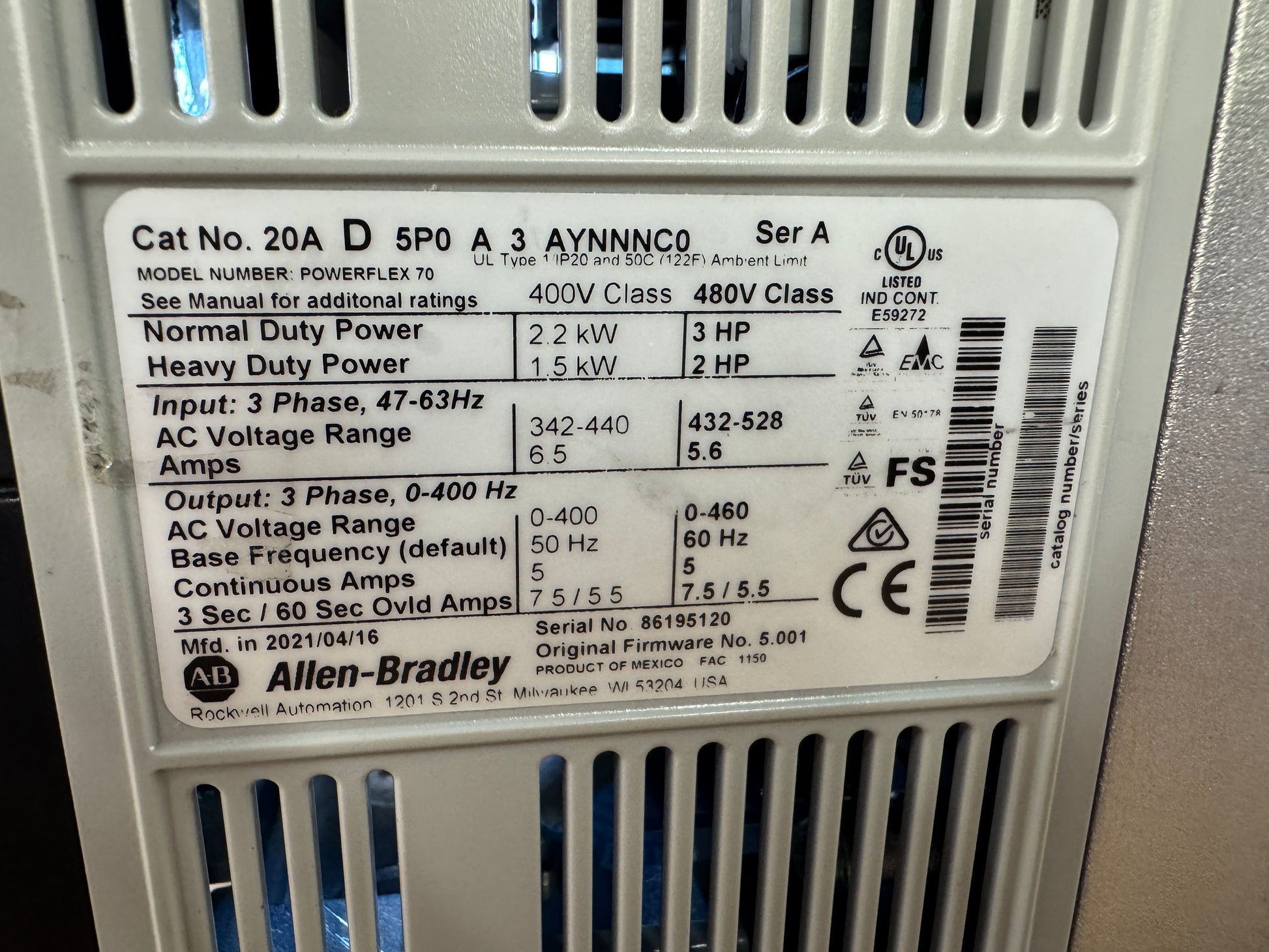

The Allen-Bradley 20AD5P0A3AYNNNC0 is a PowerFlex 70 variable frequency drive rated for 480V Class, 3-phase input. Catalog number 20AD5P0A3AYNNNC0 identifies a Frame B unit with Normal Duty output of 2.2 kW (3 HP) and Heavy Duty output of 1.5 kW (2 HP). Input is 3-phase, 47-63 Hz, with an operating voltage range of 432-528V and 5.6 A input current. Output is 3-phase, 0-460V, 0-400 Hz, with 5 A continuous output current and 7.5 / 5.5 A overload capacity at 3 and 60 seconds respectively. The unit is Series A, Frame B, and carries an IP20 / NEMA/UL Type 1 enclosure rating. Original firmware is revision 5.001. Serial number 86195120 is visible on the nameplate. Manufactured April 2021. Note: Rockwell Automation has announced the PowerFlex 70 (IP20/NEMA UL Type 1 version) will be discontinued as of September 30, 2026; the recommended successor is the PowerFlex 750 family.
