Allen-Bradley 20AD5P0A3AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01420
Allen-Bradley 20AD5P0A3AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01420
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 20AD5P0A3AYNNNC0
Stock #: 0526-01420

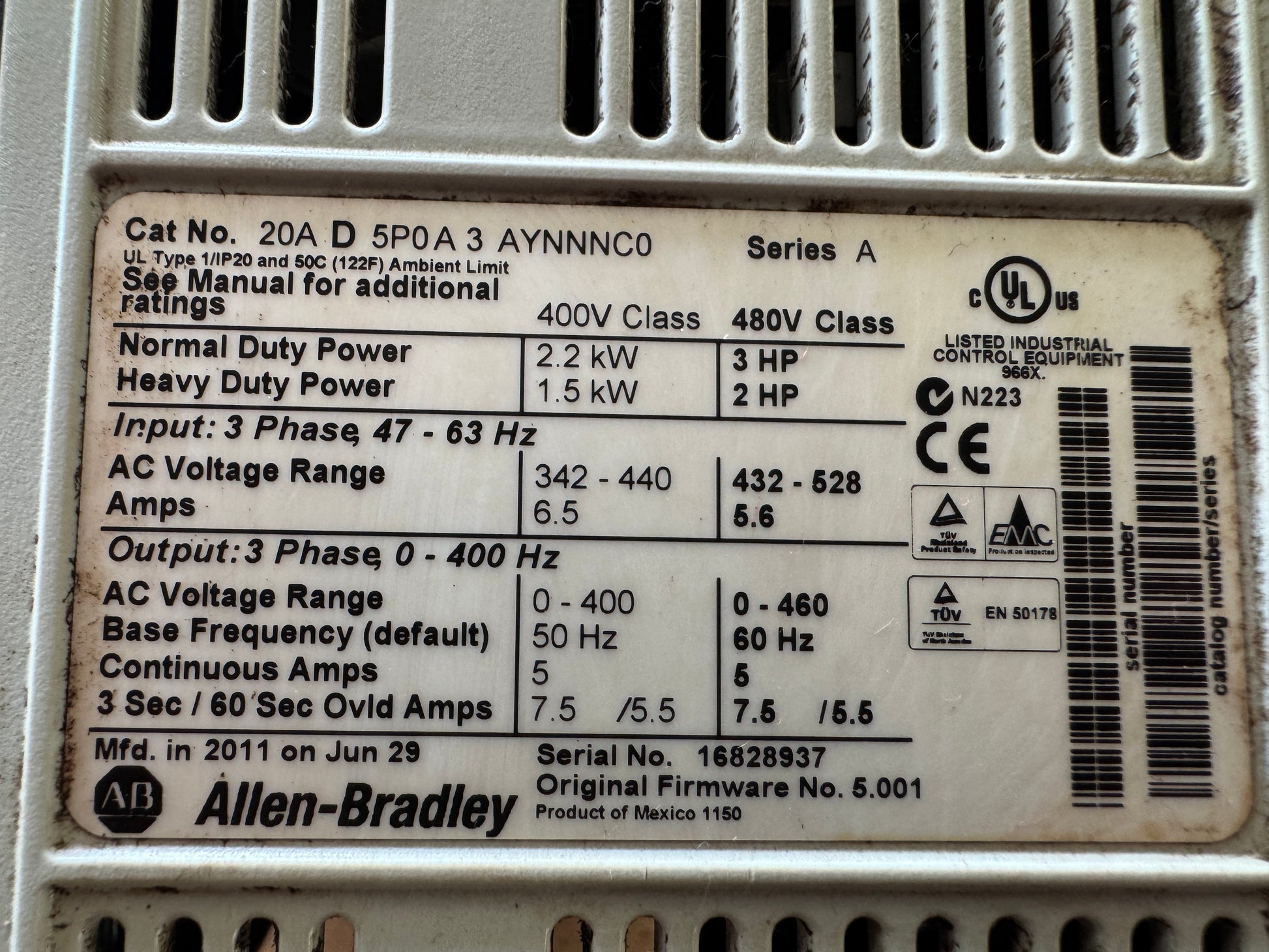

Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 20AD5P0A3AYNNNC0
- Product Type: AC Variable Frequency Drive
- Series: PowerFlex 70, Series A
- Frame Size: B
- Input Voltage: 480V AC, 3-Phase
- Input Voltage Range: 432 to 528V AC
- Input Frequency: 47 to 63 Hz
- Input Amperage: 5.6A
- Output Voltage: 0 to 460V AC
- Output Frequency: 0 to 400 Hz
- Output Base Frequency: 60 Hz
- Output Current: 5A Continuous
- Normal Duty Power: 2.2 kW / 3 HP
- Heavy Duty Power: 1.5 kW / 2 HP
- Enclosure Rating: IP20 / UL Type 1
- HIM: Full Numeric LCD with Keypad
- Control Type: Enhanced Control, No Feedback
- Braking Transistor: Integrated IGBT
- Certifications: UL Listed, CE, TUV (EN 50178)
- Firmware Version: 5.001
- Serial Number: 16828937
Product Description

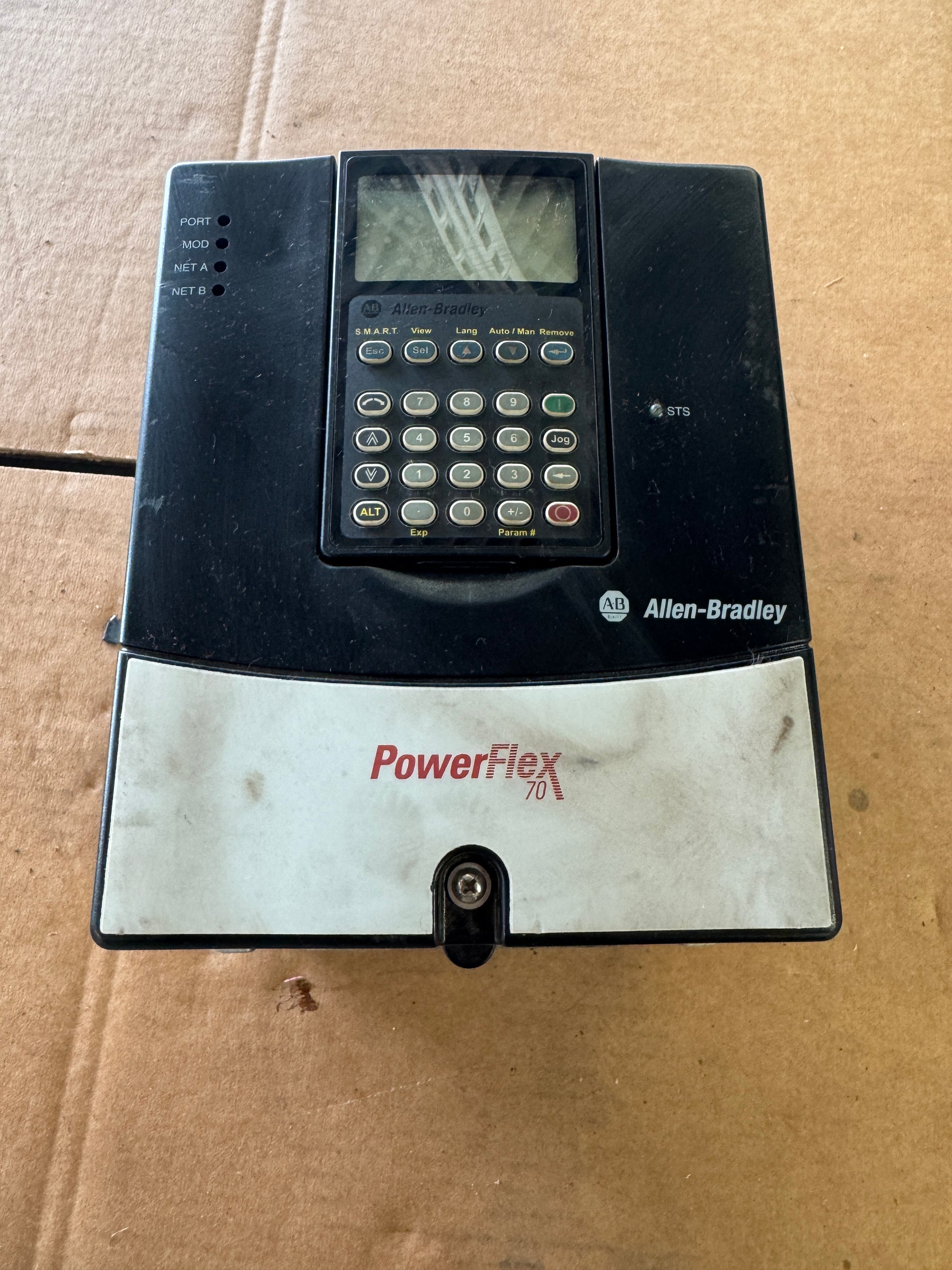

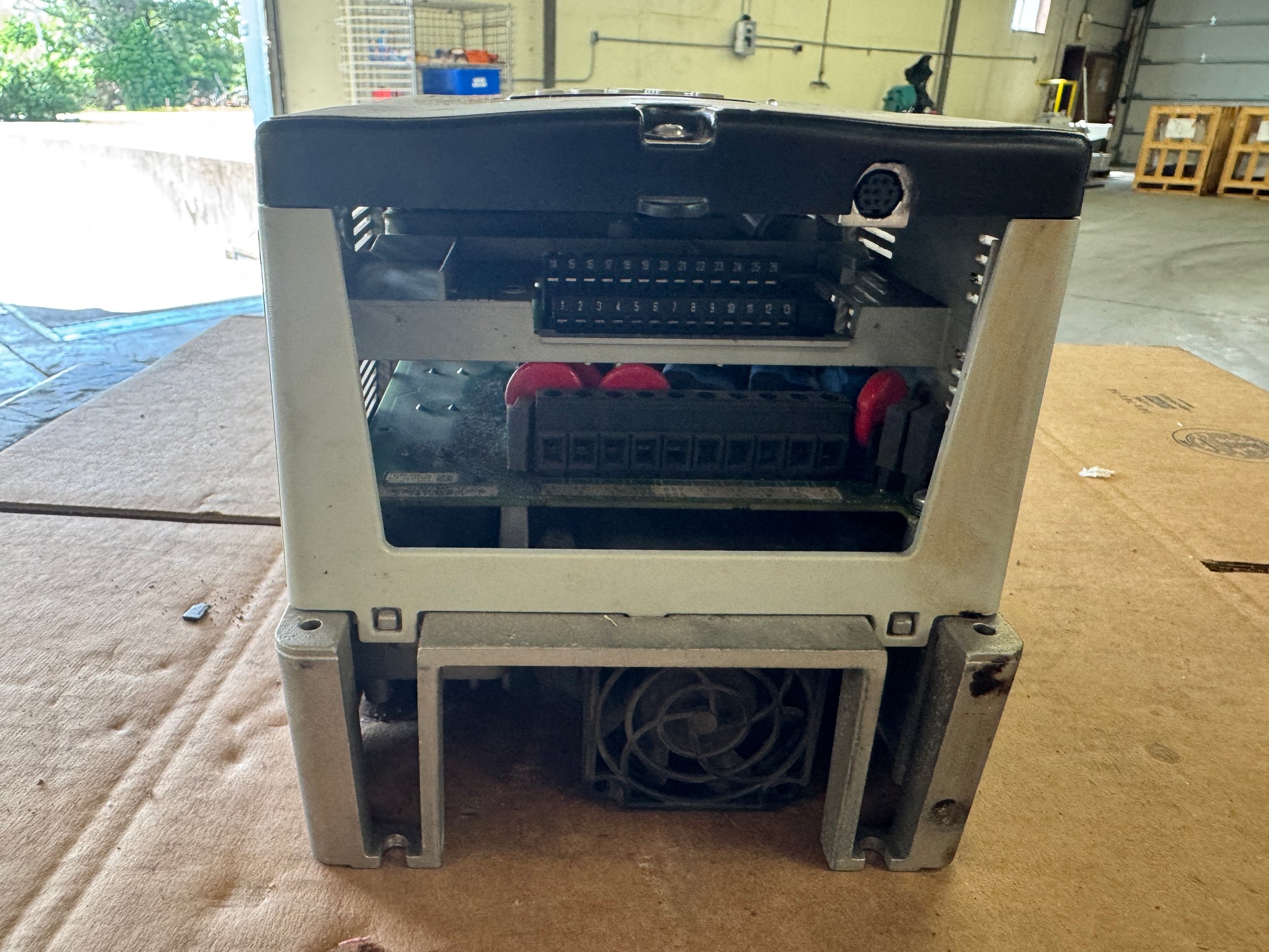

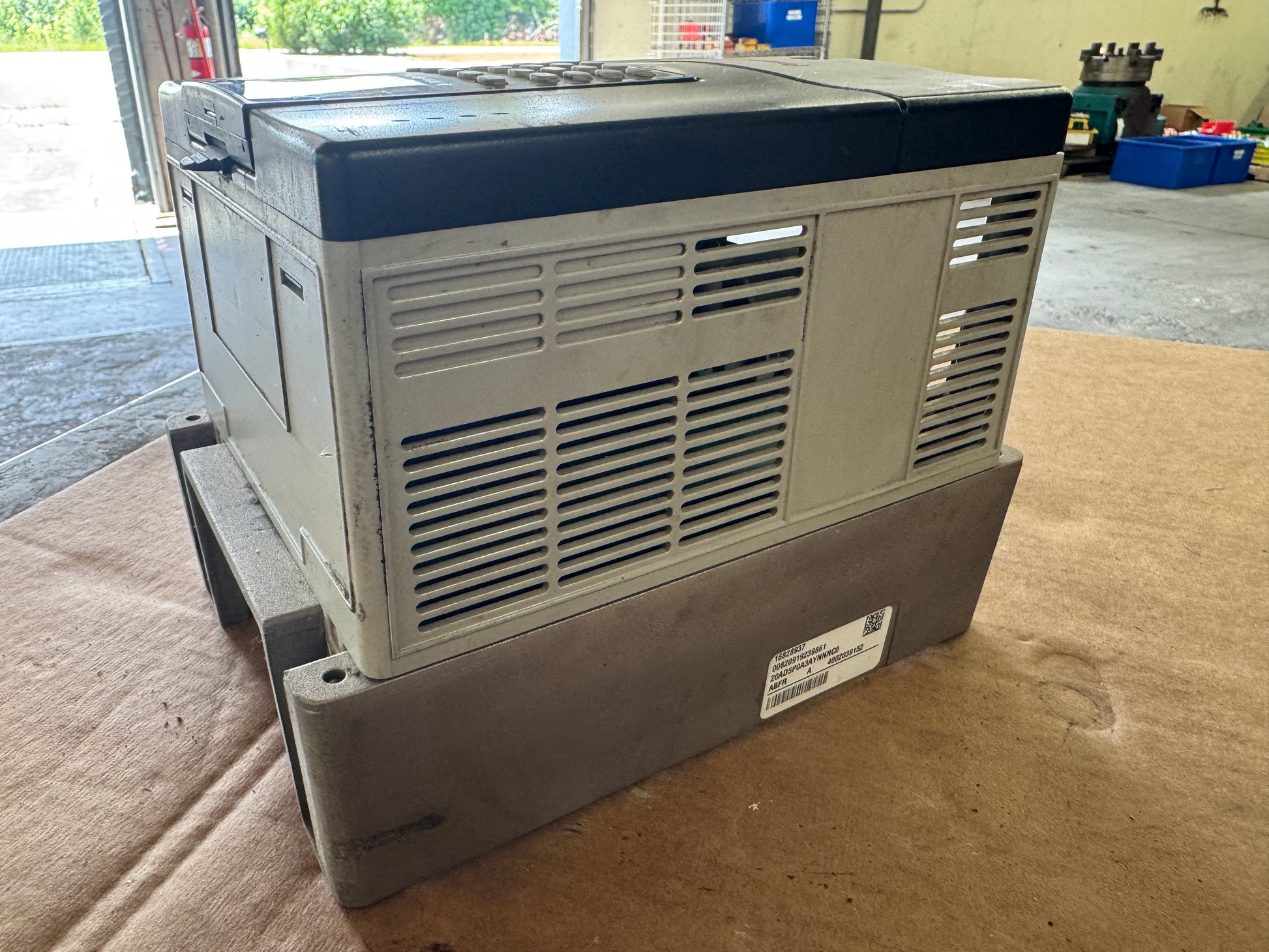

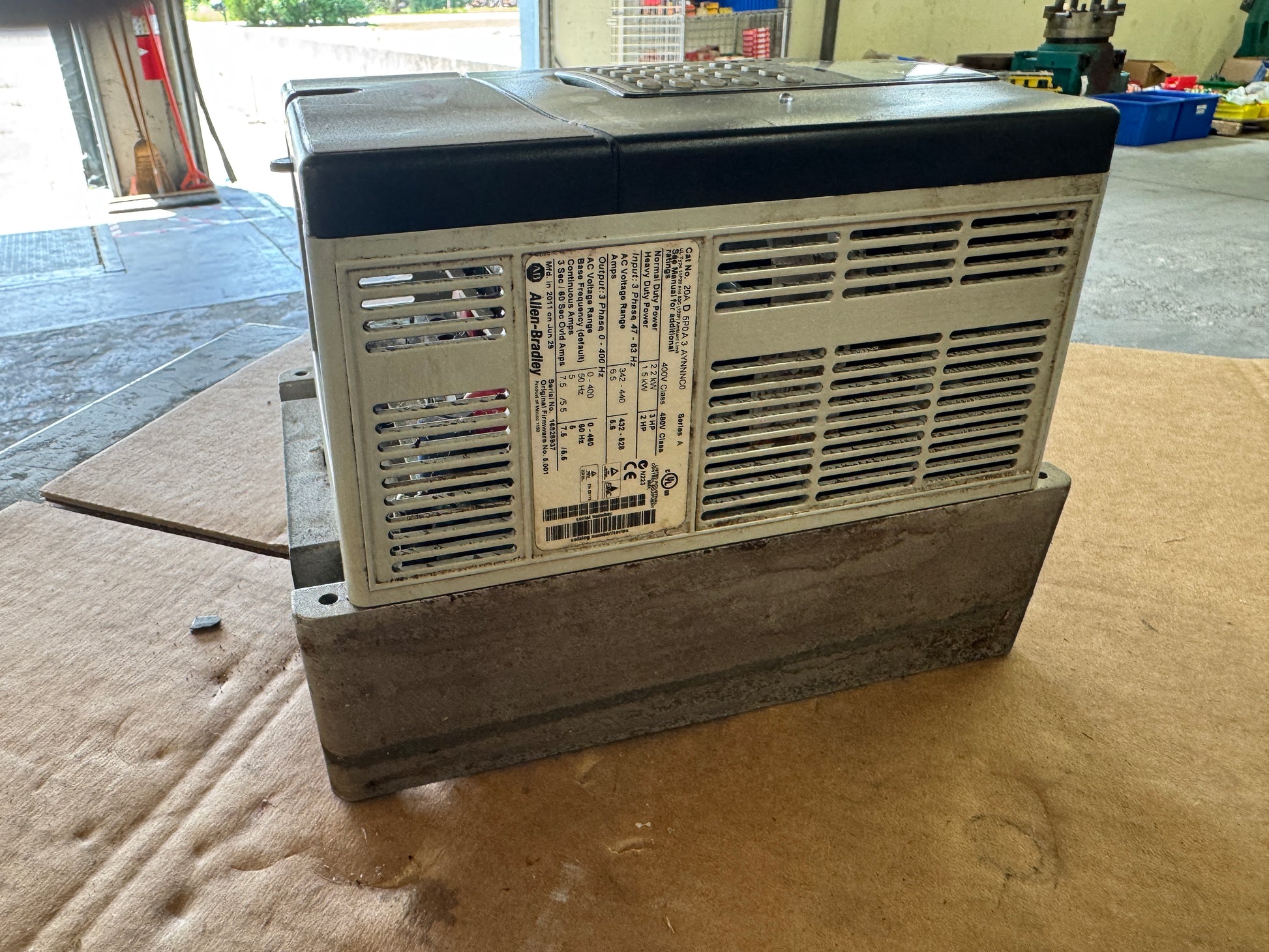

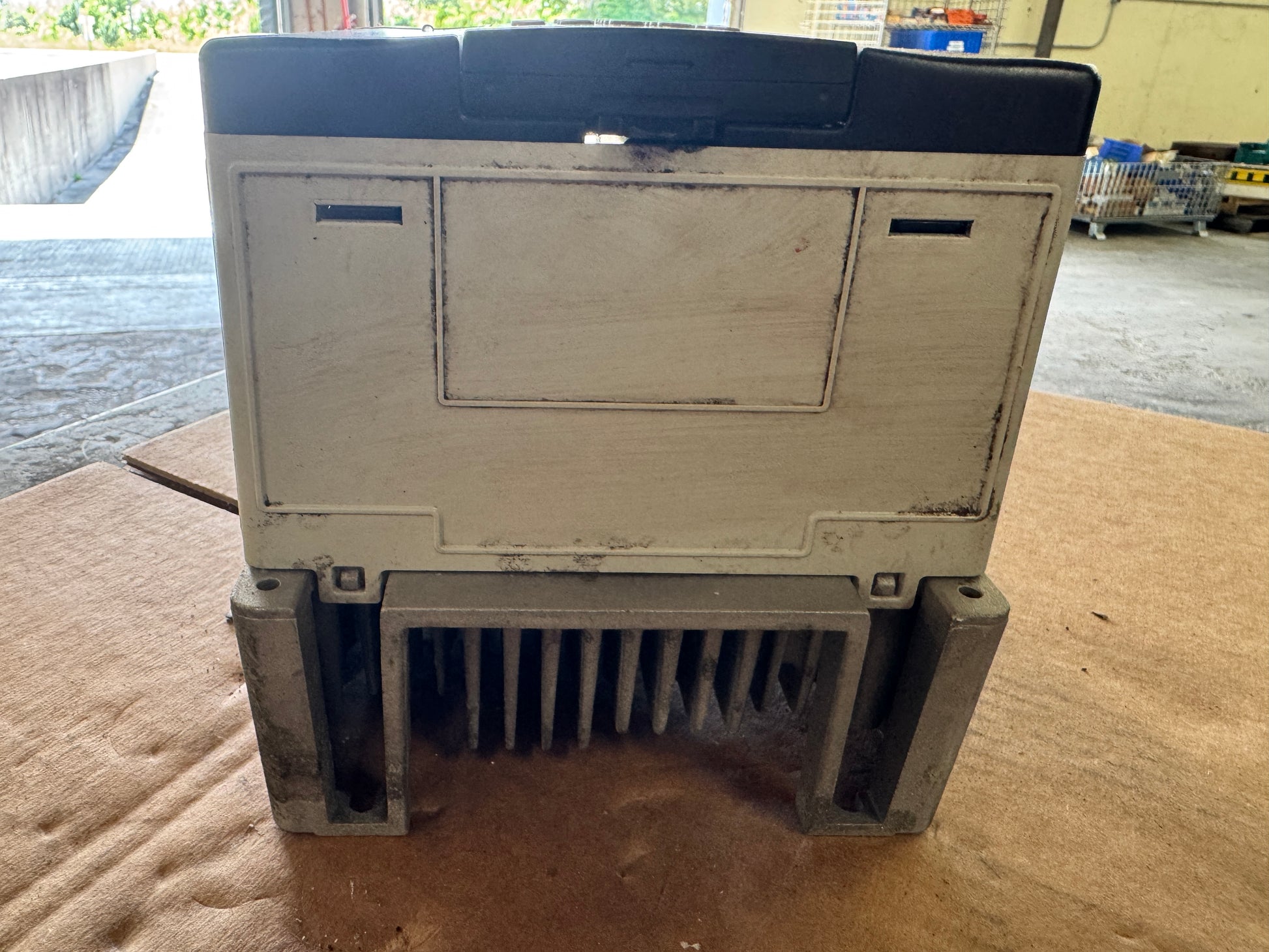

The Allen-Bradley PowerFlex 70, catalog number 20AD5P0A3AYNNNC0, Series A, is a 3 HP adjustable frequency AC drive rated for 480V AC three-phase input. This Frame B drive carries a normal duty rating of 2.2 kW (3 HP) and a heavy duty rating of 1.5 kW (2 HP). Input accepts three-phase power from 432 to 528V AC at 5.6 amps. Output delivers three-phase voltage from 0 to 460V AC across a frequency range of 0 to 400 Hz, with a continuous output of 5 amps and a base frequency of 60 Hz. The drive features enhanced control with full numeric LCD human interface module, IGBT braking capability, and no feedback encoder module. Enclosure type is IP20 / UL Type 1, rated for panel mounting. Certifications include UL Listed, CE, and TUV to EN 50178. Serial number 16828937, original firmware revision 5.001. The drive includes visible terminal block connections on the bottom and a rear-mounted cooling fan assembly.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
