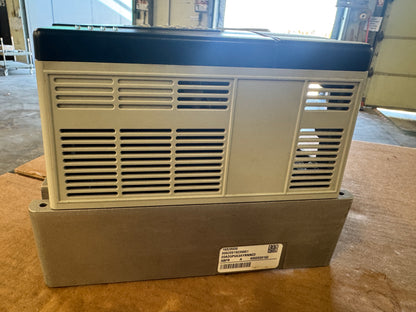

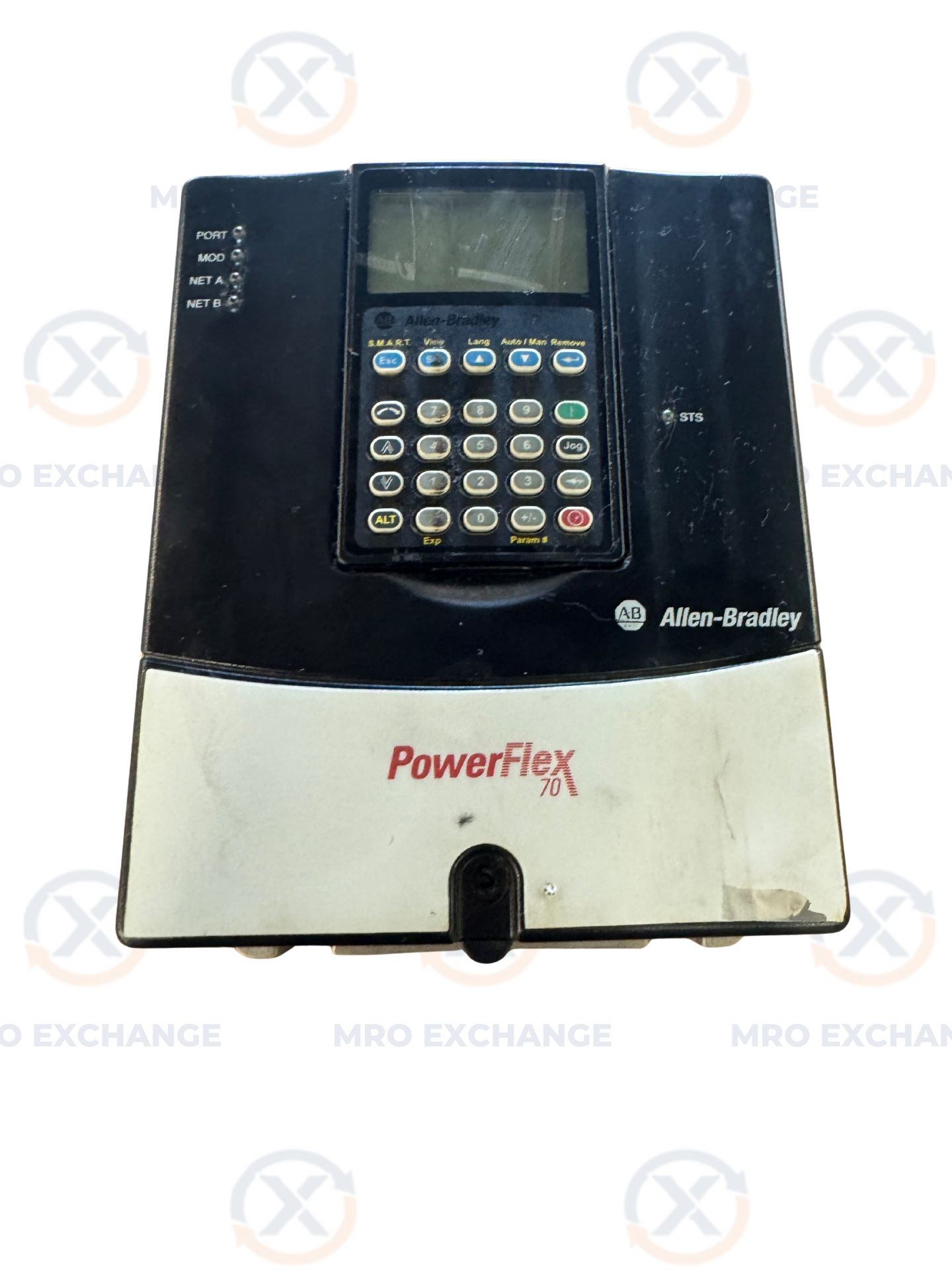

Allen-Bradley 20AD5P0A3AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01435
Allen-Bradley 20AD5P0A3AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01435
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 20AD5P0A3AYNNNC0
Stock #: 0626-01435

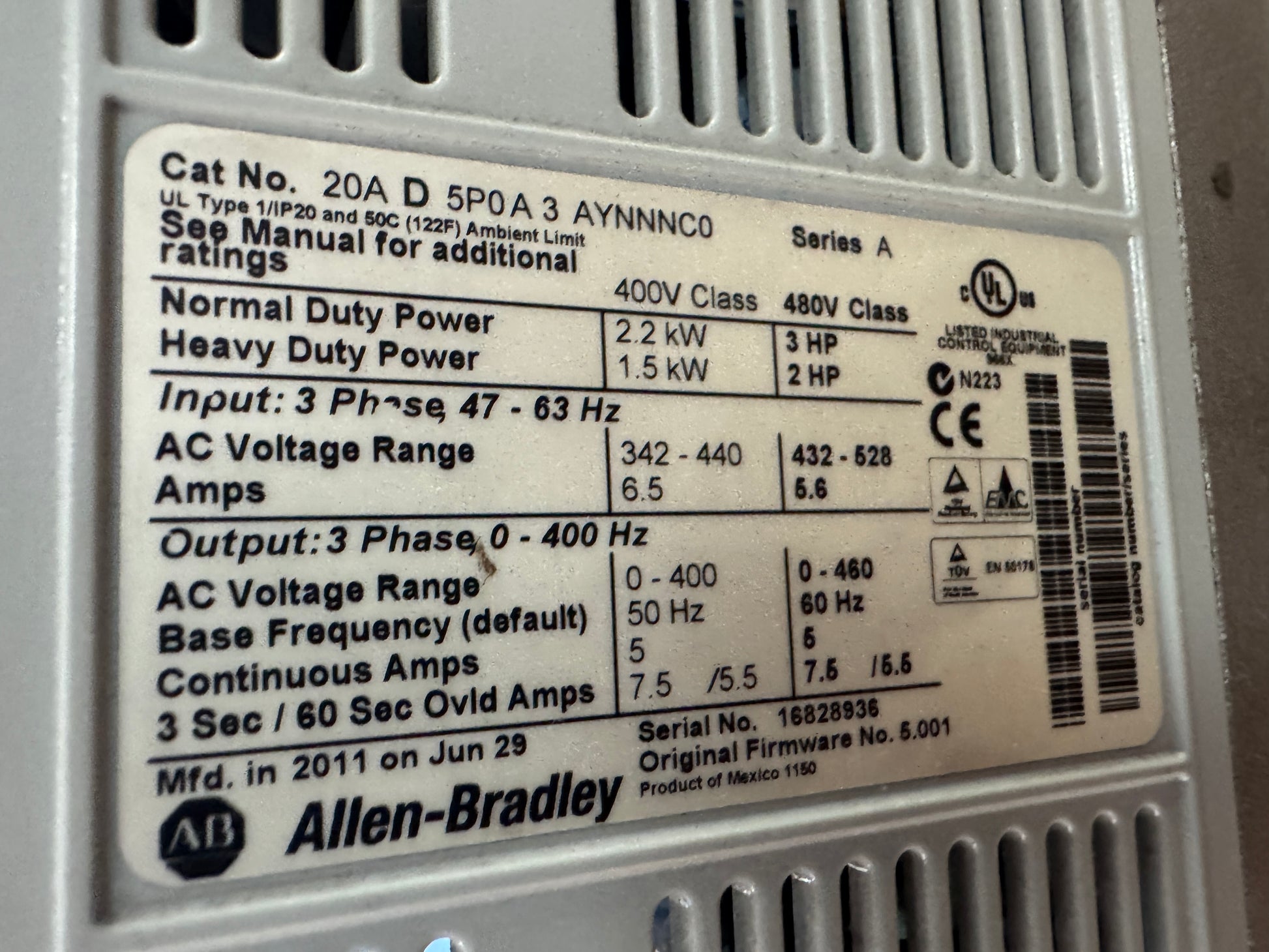

Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 20AD5P0A3AYNNNC0
- Product Type: AC Variable Frequency Drive
- Series: PowerFlex 70, Series A
- Frame Size: B
- Input Voltage: 480V AC, 3-Phase
- Input Voltage Range: 432 to 528V AC
- Input Frequency: 47 to 63 Hz
- Input Amperage: 5.6A
- Output Voltage: 0 to 460V AC
- Output Frequency: 0 to 400 Hz
- Output Current: 6A Continuous
- Normal Duty Power: 2.2 kW / 3 HP
- Heavy Duty Power: 1.5 kW / 2 HP
- Enclosure Rating: UL Type 1 / IP20
- Ambient Temperature Rating: 50 degrees C (122 degrees F)
- HIM: Full Numeric LCD with Keypad (SMART Interface)
- Control Type: Enhanced Control, No Feedback
- Braking Transistor: Integrated IGBT, No Internal Brake Resistor
- EMC Filter: None
- Firmware Version: 5.001
- Serial Number: 16828936
- Manufacture Date: June 2011
Product Description

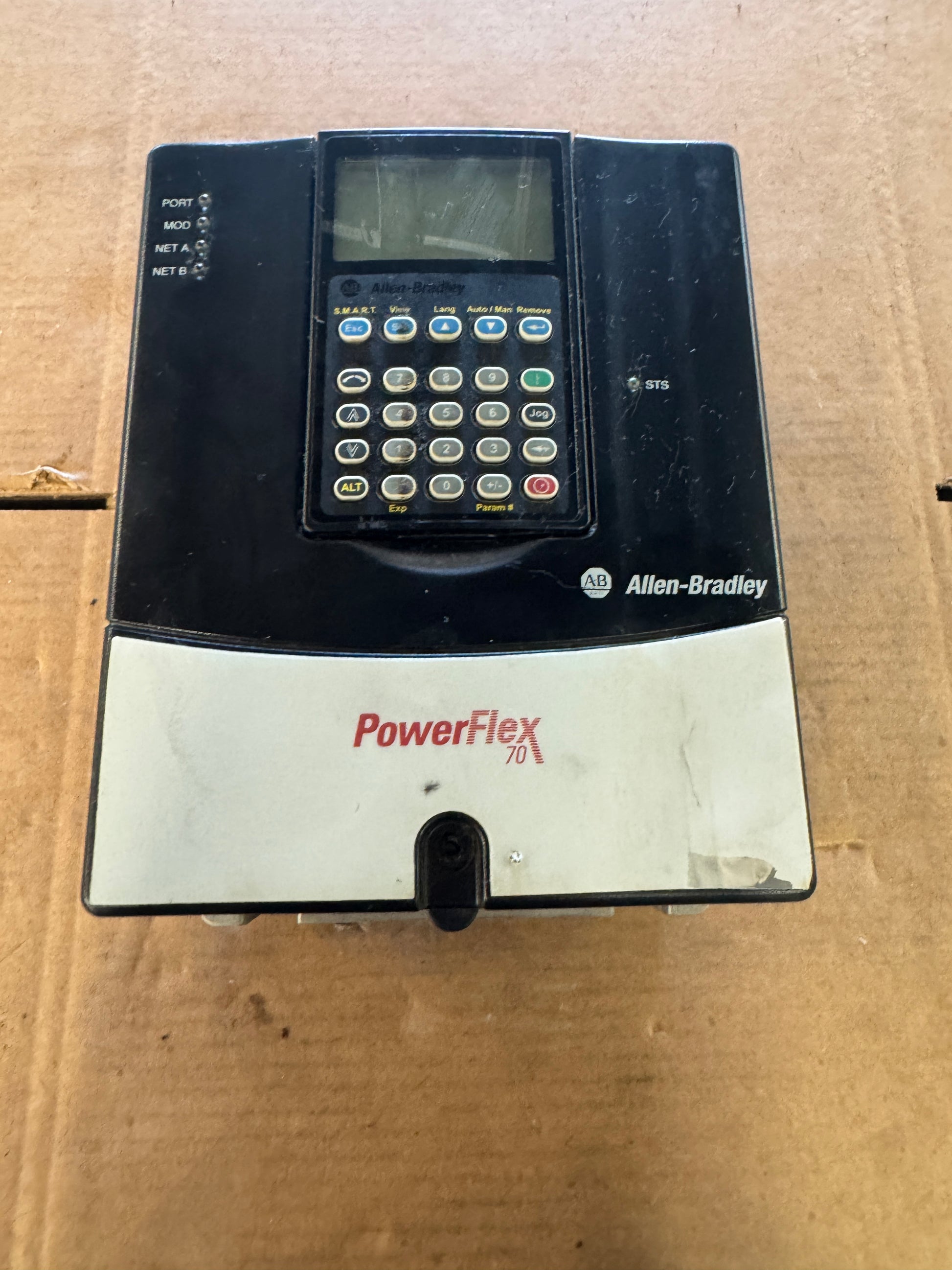

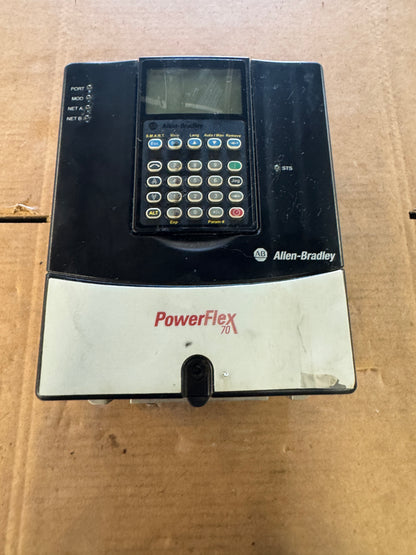

The Allen-Bradley PowerFlex 70, catalog number 20AD5P0A3AYNNNC0, Series A, is a variable frequency drive rated for 480V AC, 3-phase input with a normal duty output of 3 HP (2.2 kW) and heavy duty rating of 2 HP (1.5 kW). Input accepts 3-phase power from 47 to 63 Hz, with an input voltage range of 432 to 528V AC at 5.6 amps. Output is 3-phase, 0 to 400 Hz, with a continuous output rating of 6 amps and an AC voltage output range of 0 to 460V. The drive is rated UL Type 1 and IP20 with a 50 degrees C ambient temperature limit for Frame B panel mount installation. The unit includes a full numeric LCD interface module with an Allen-Bradley S.M.A.R.T. keypad featuring navigation, function, and numeric entry keys. Status indicators for PORT, MOD, NET A, and NET B are present on the front panel. The drive features enhanced control with no feedback, no internal EMC filter, and an IGBT brake transistor without internal brake resistor. Serial number 16828936, original firmware revision 5.001, manufactured June 2011.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
