Allen-Bradley 20AD5P0A3AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01436
Allen-Bradley 20AD5P0A3AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01436
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 20AD5P0A3AYNNNC0
Stock #: 0626-01436

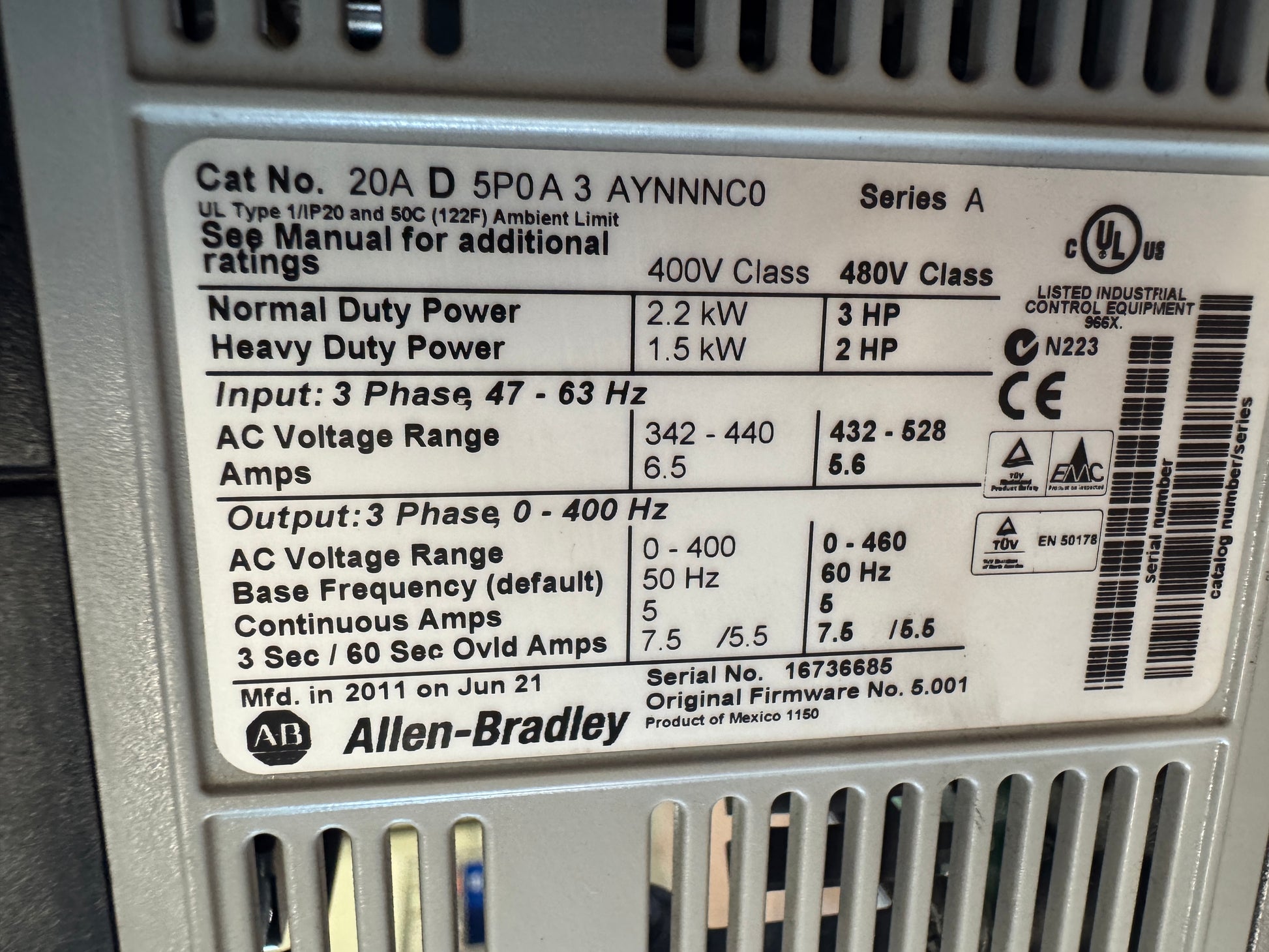

Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 20AD5P0A3AYNNNC0
- Product Type: AC Variable Frequency Drive
- Series: PowerFlex 70, Series A
- Input Voltage: 480V AC, 3-Phase
- Input Voltage Range: 432 to 528V AC
- Input Frequency: 47 to 63 Hz
- Input Amperage: 5.6A
- Output Voltage: 0 to 460V AC
- Output Frequency: 0 to 400 Hz
- Output Current: 5A Continuous
- Overload Current: 7.5A for 3 Seconds, 5.5A for 60 Seconds
- Normal Duty Power: 2.2 kW / 3 HP
- Heavy Duty Power: 1.5 kW / 2 HP
- Enclosure Rating: UL Type 1 / IP20
- Ambient Temperature Rating: 50 degrees C (122 degrees F)
- HIM: Full Numeric LCD with Keypad (SMART Interface)
- Control Type: Enhanced Control, No Feedback
- Braking Transistor: Integrated IGBT
- EMC Filter: None
- Firmware Version: 5.001
- Serial Number: 16736685
- Manufacture Date: June 21, 2011
Product Description

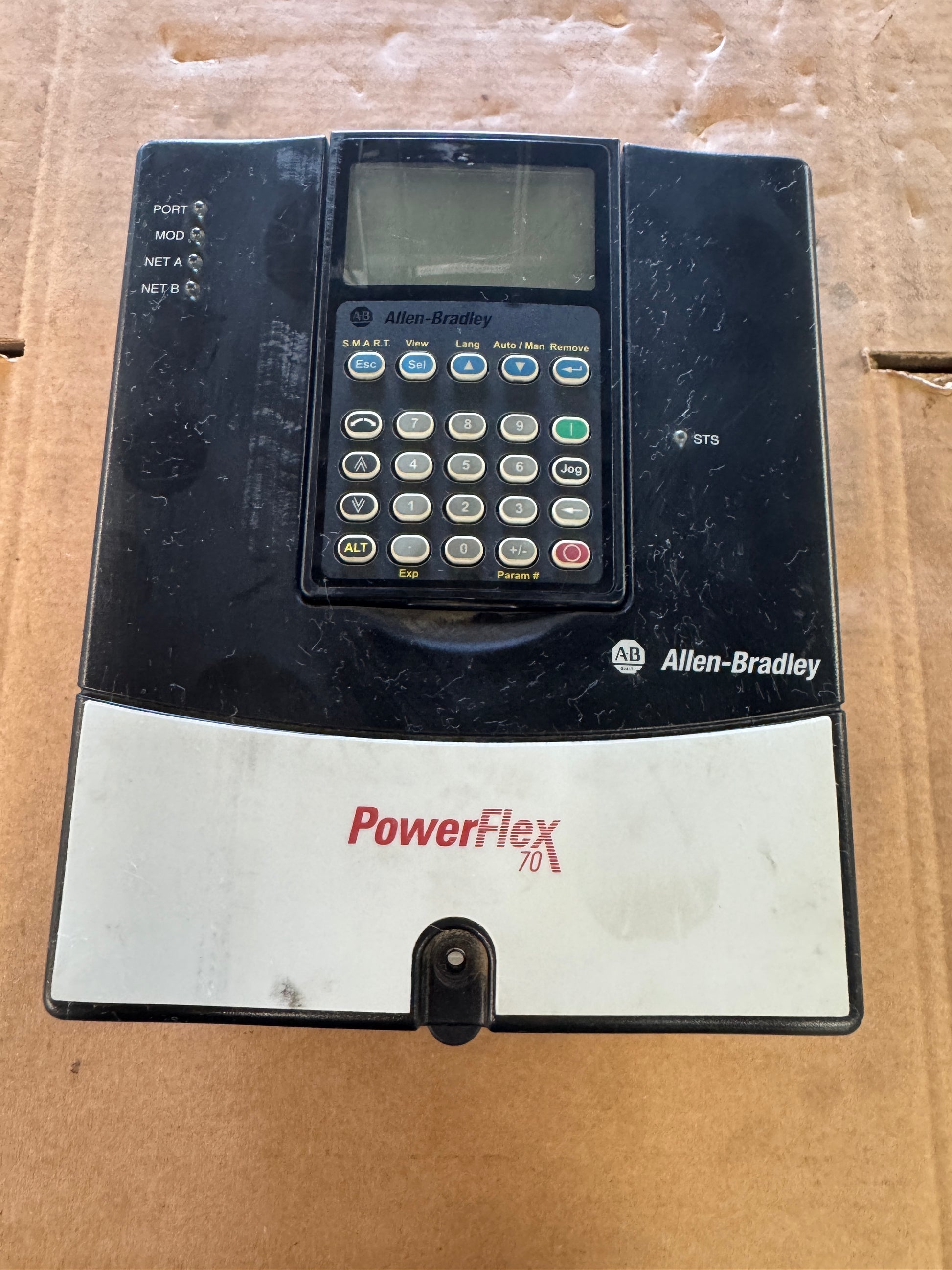

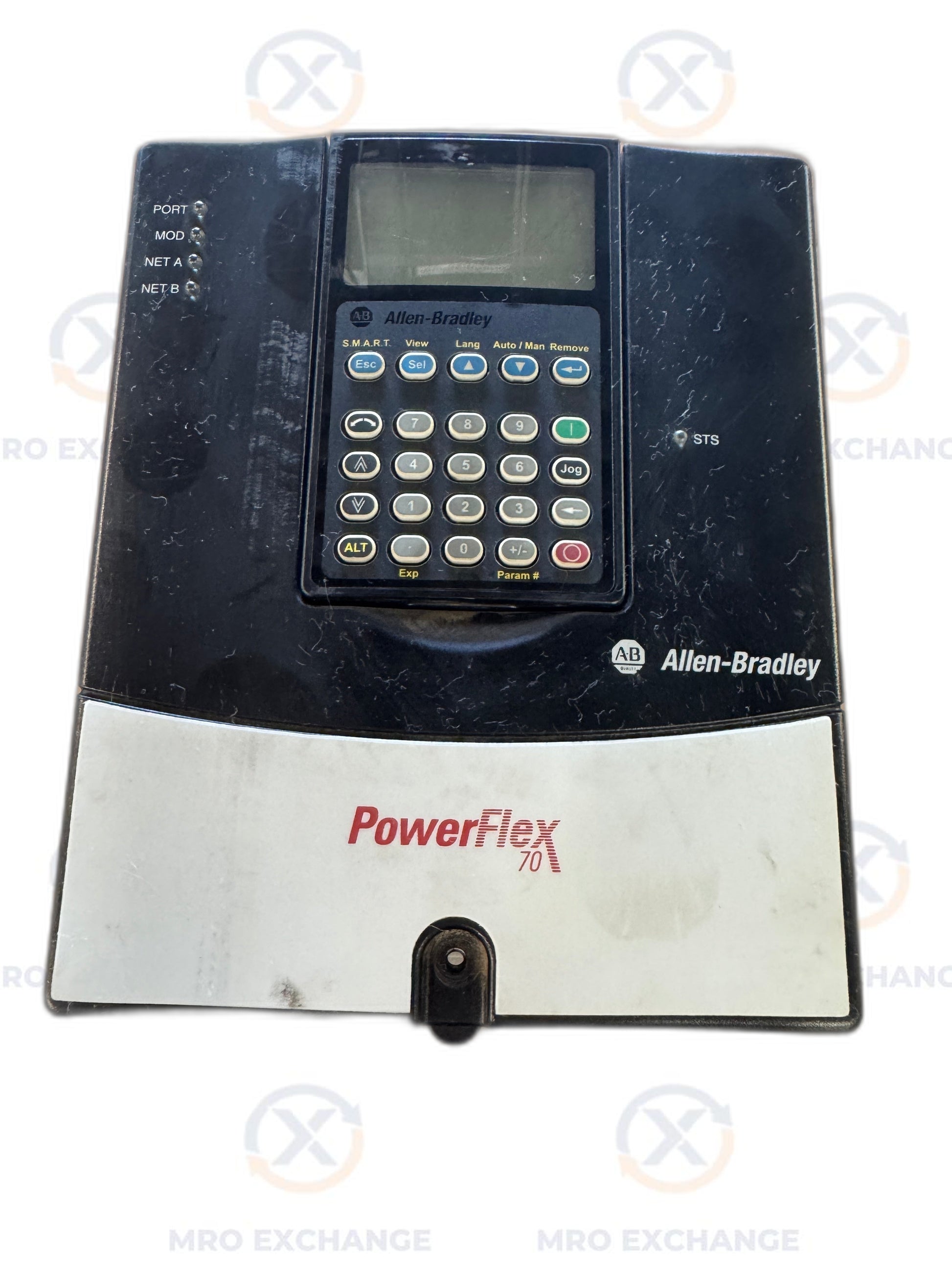

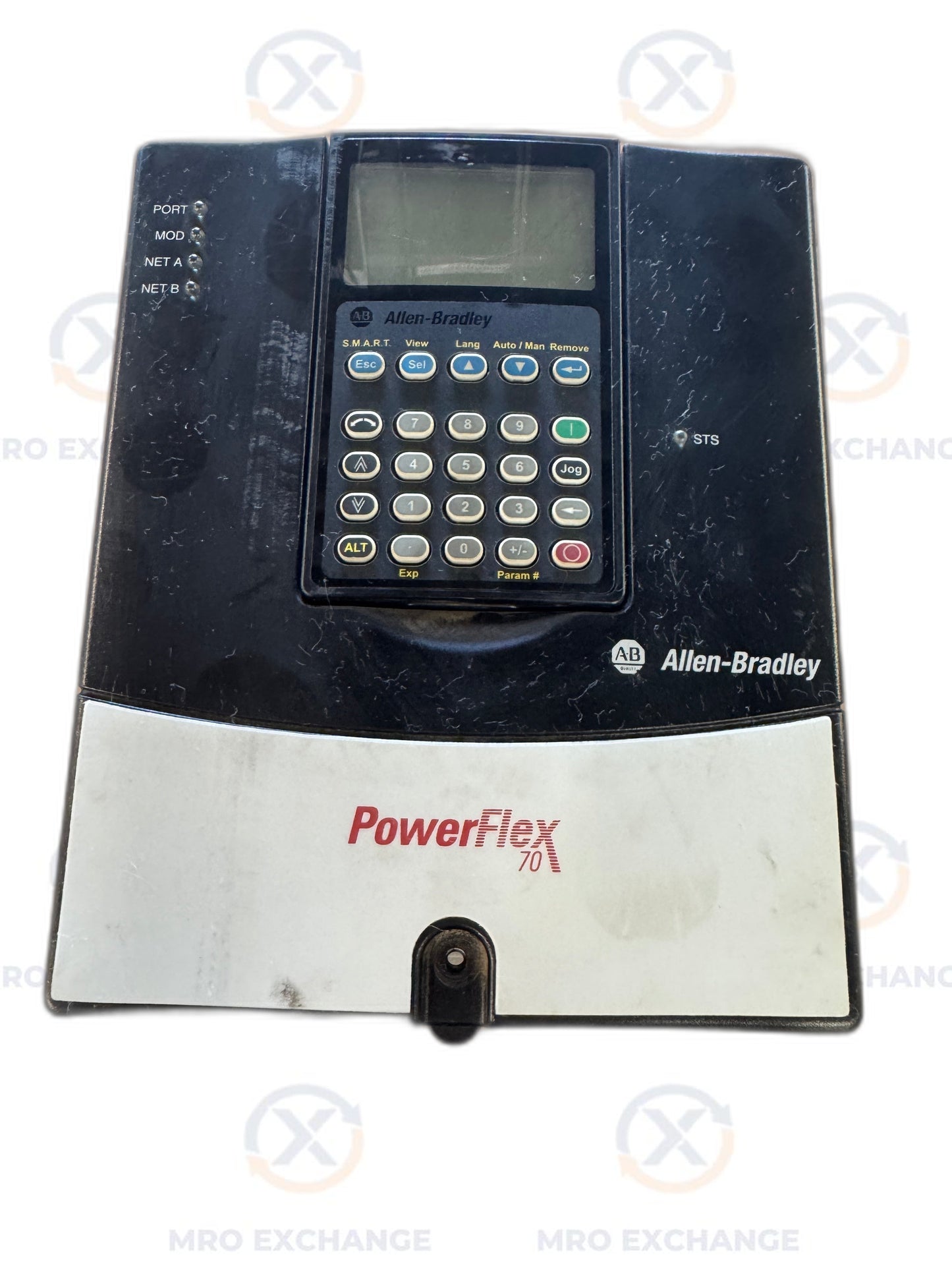

The Allen-Bradley PowerFlex 70, catalog number 20AD5P0A3AYNNNC0, Series A, is a 3 HP (2.2 kW normal duty, 1.5 kW heavy duty) adjustable frequency AC drive rated for 480V three-phase input. Serial number 16736685, original firmware version 5.001, manufactured June 21, 2011. Input accepts 3-phase power in the 432 to 528V range at 47 to 63 Hz, drawing 5.6 amps. Output is 3-phase variable frequency from 0 to 460V AC at 0 to 400 Hz, with continuous output of 5 amps and 3-second and 60-second overload ratings of 7.5 and 5.5 amps respectively. The unit includes the full numeric LCD keypad module with the S.M.A.R.T. interface. Status indicators include PORT, MOD, NET A, and NET B LEDs. The drive features enhanced vector control, internal dynamic braking transistor, and no EMC filter. Enclosure is UL Type 1 / IP20 rated, suitable for 50 degrees C ambient operation.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
