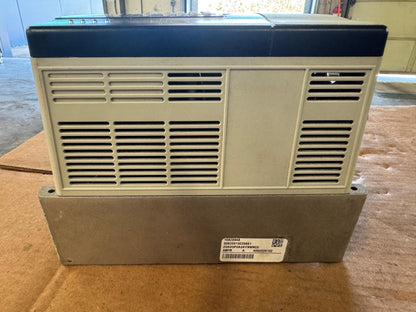

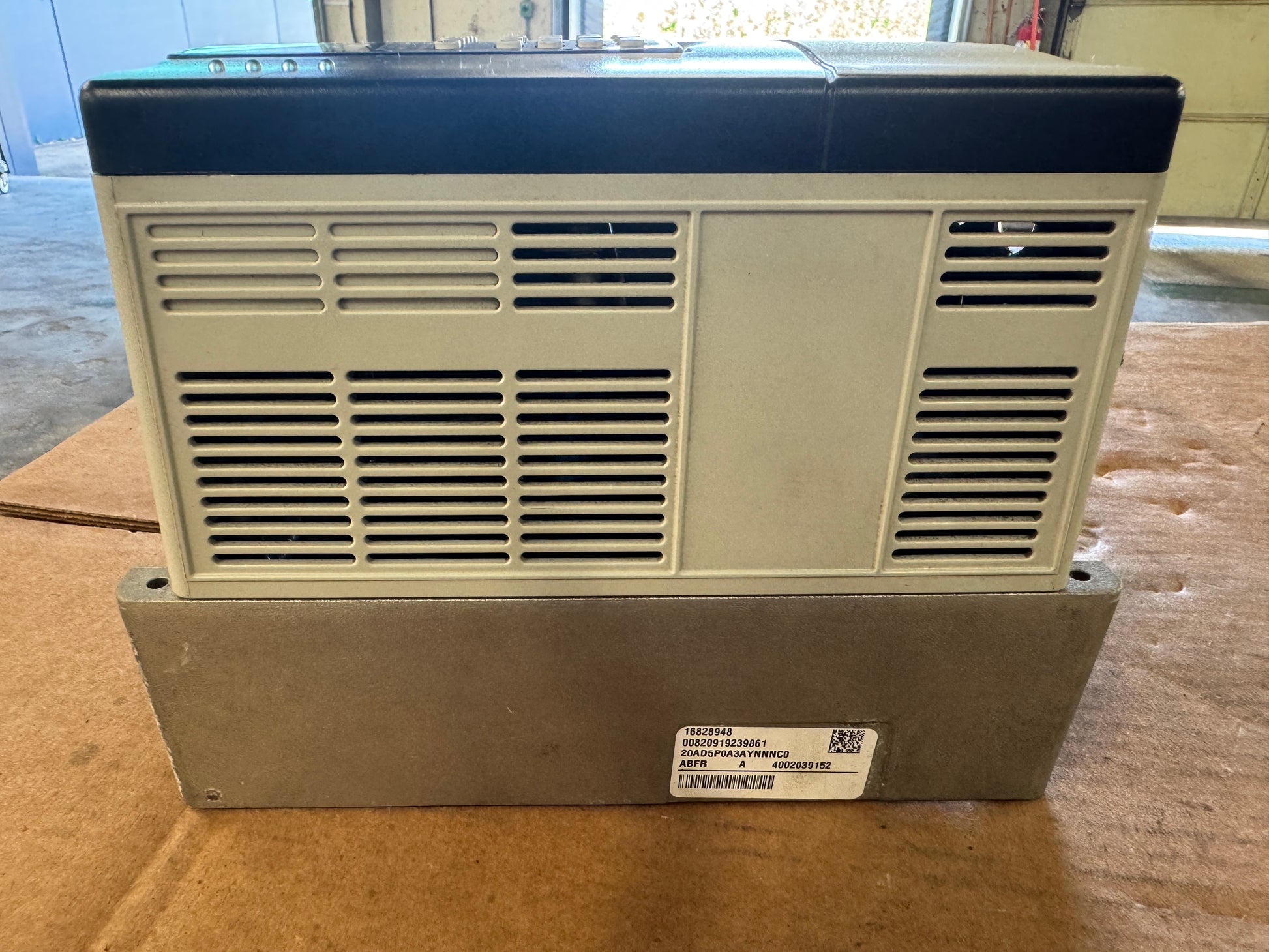

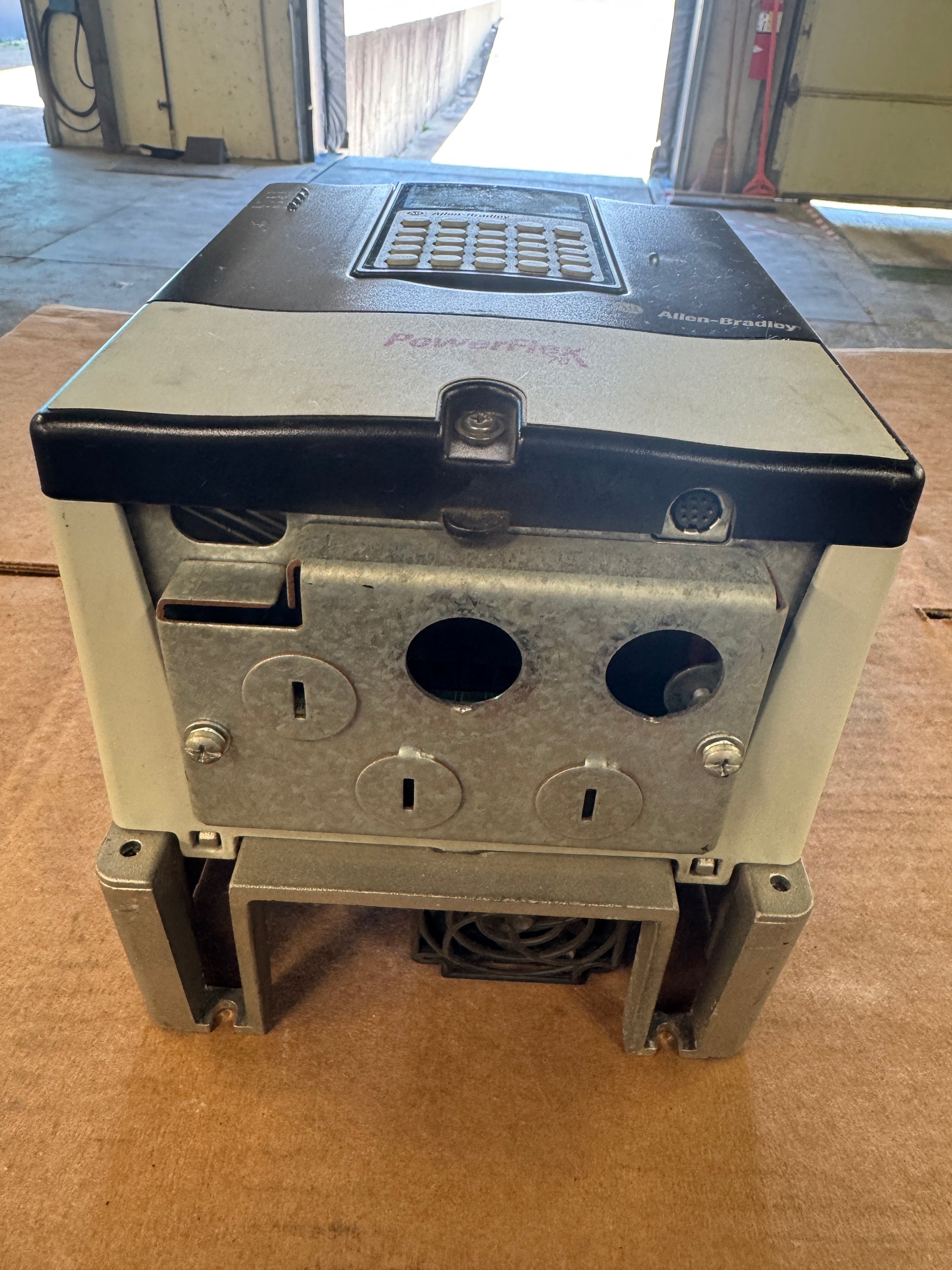

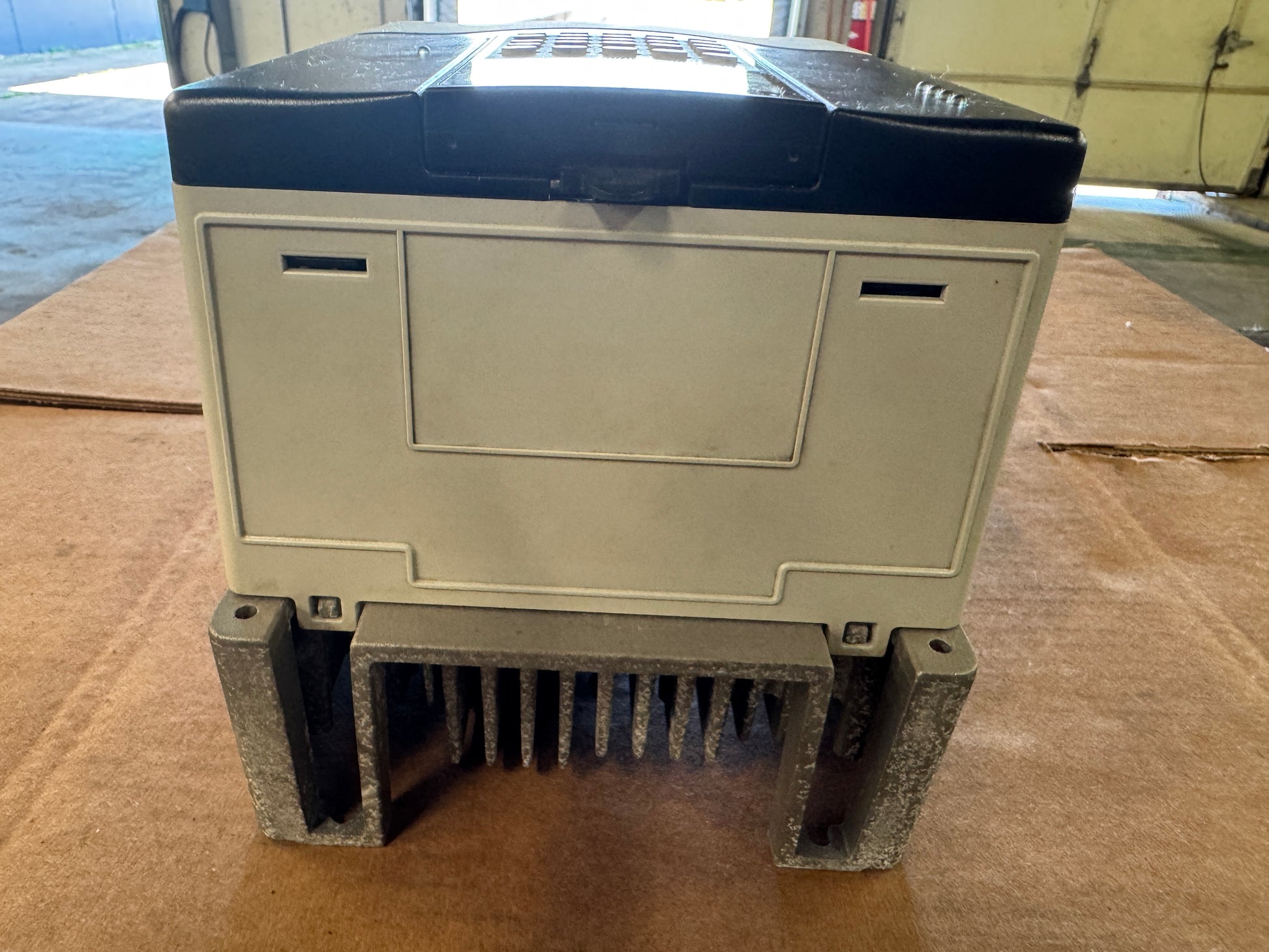

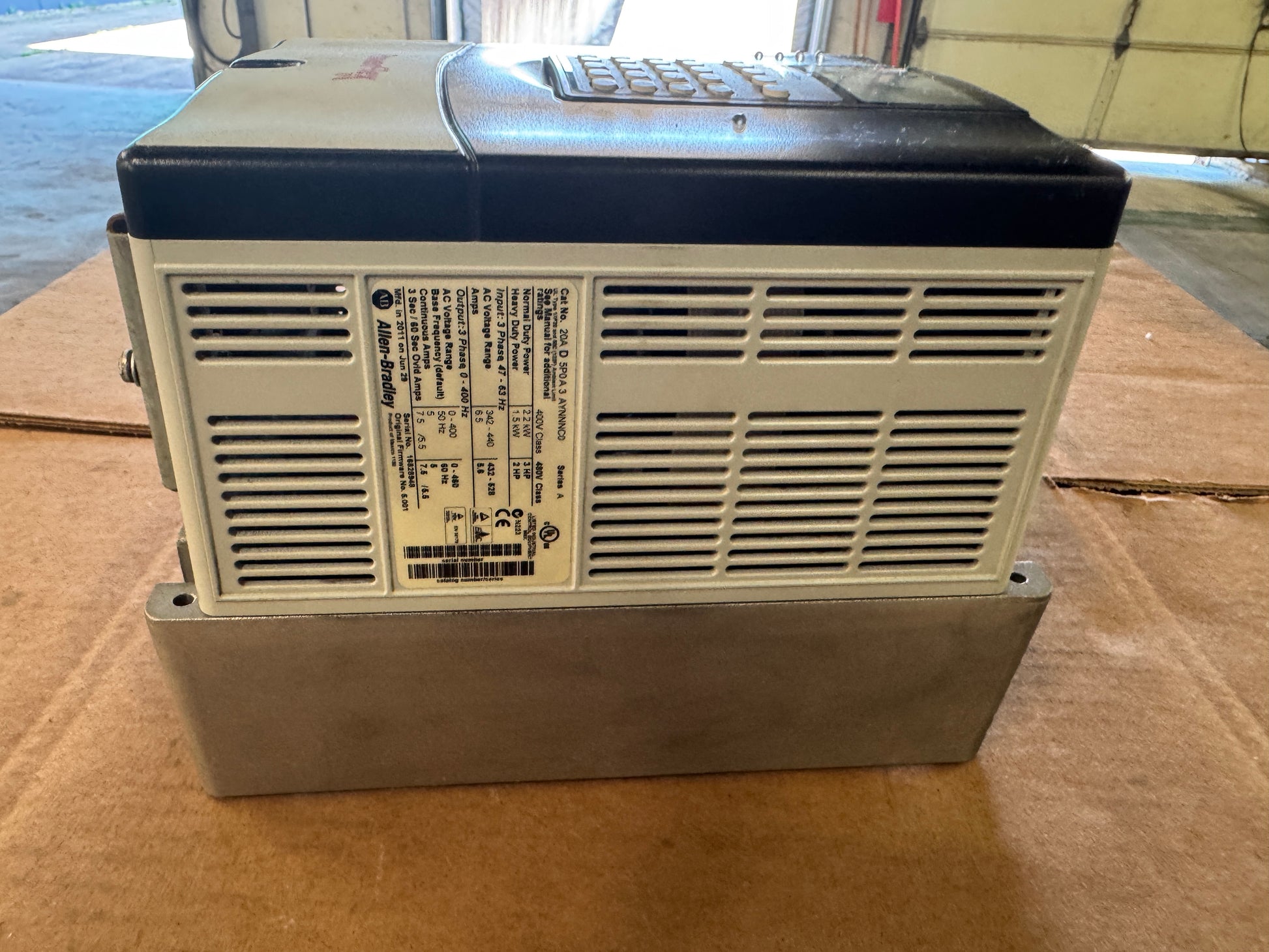

Allen-Bradley 20AD5P0A3AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01437
Allen-Bradley 20AD5P0A3AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01437
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 20AD5P0A3AYNNNC0
Stock #: 0626-01437

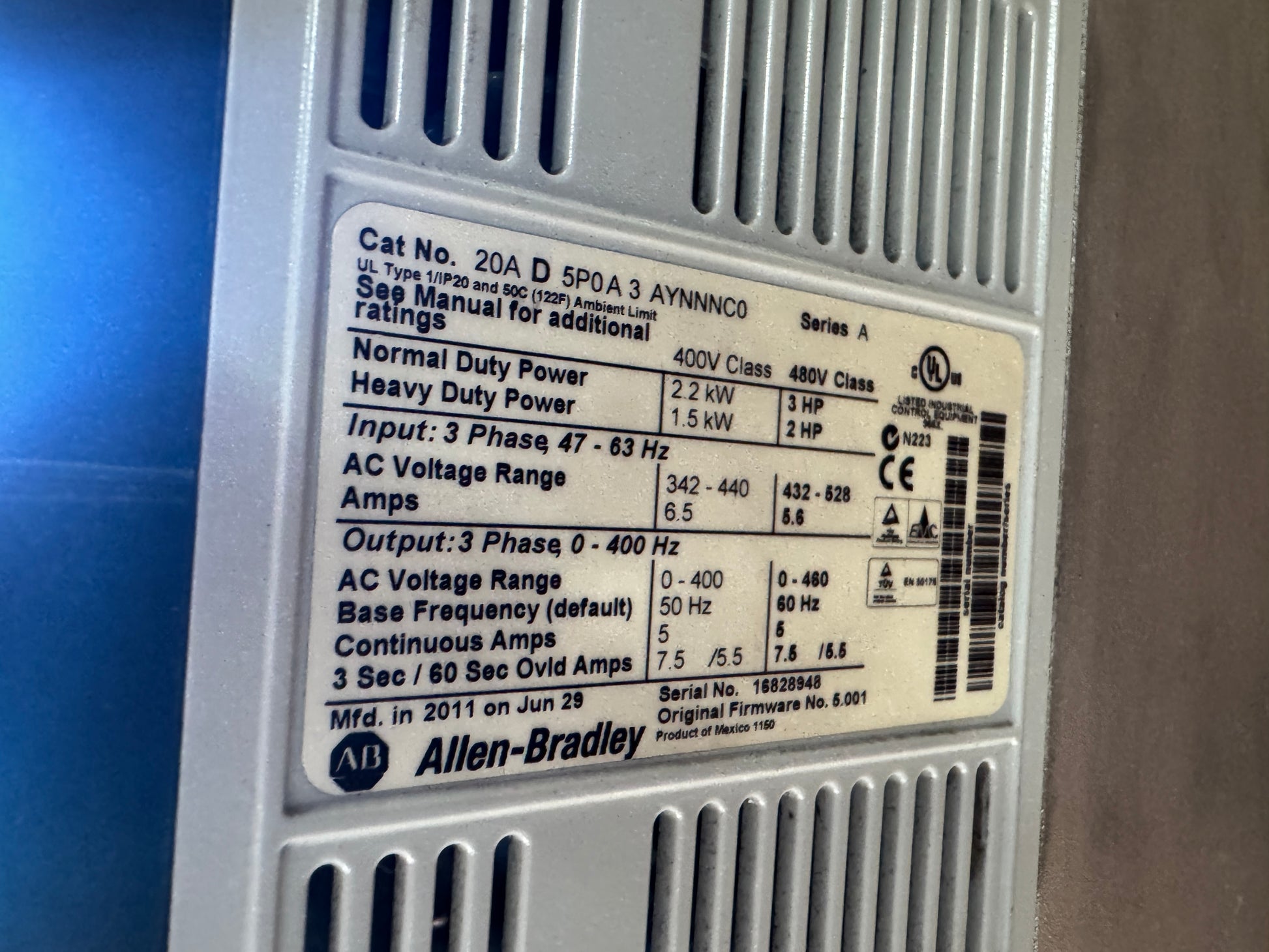

Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 20AD5P0A3AYNNNC0
- Product Type: AC Variable Frequency Drive
- Series: PowerFlex 70
- Series Designation: Series A
- Firmware Version: 5.001
- Manufacture Date: June 2011
- Input Voltage: 480V AC, 3-Phase
- Input Frequency: 47 to 63 Hz
- Input Voltage Range: 432 to 528V
- Output: 3-Phase, 0 to 400 Hz
- Horsepower: 3 HP Normal Duty
- Power (kW): 2.2 kW
- Continuous Output Current: 5.0 A
- Overload Current: 7.5 A for 3 seconds, 6.5 A for 60 seconds
- Enclosure Rating: UL Type 1 / IP20

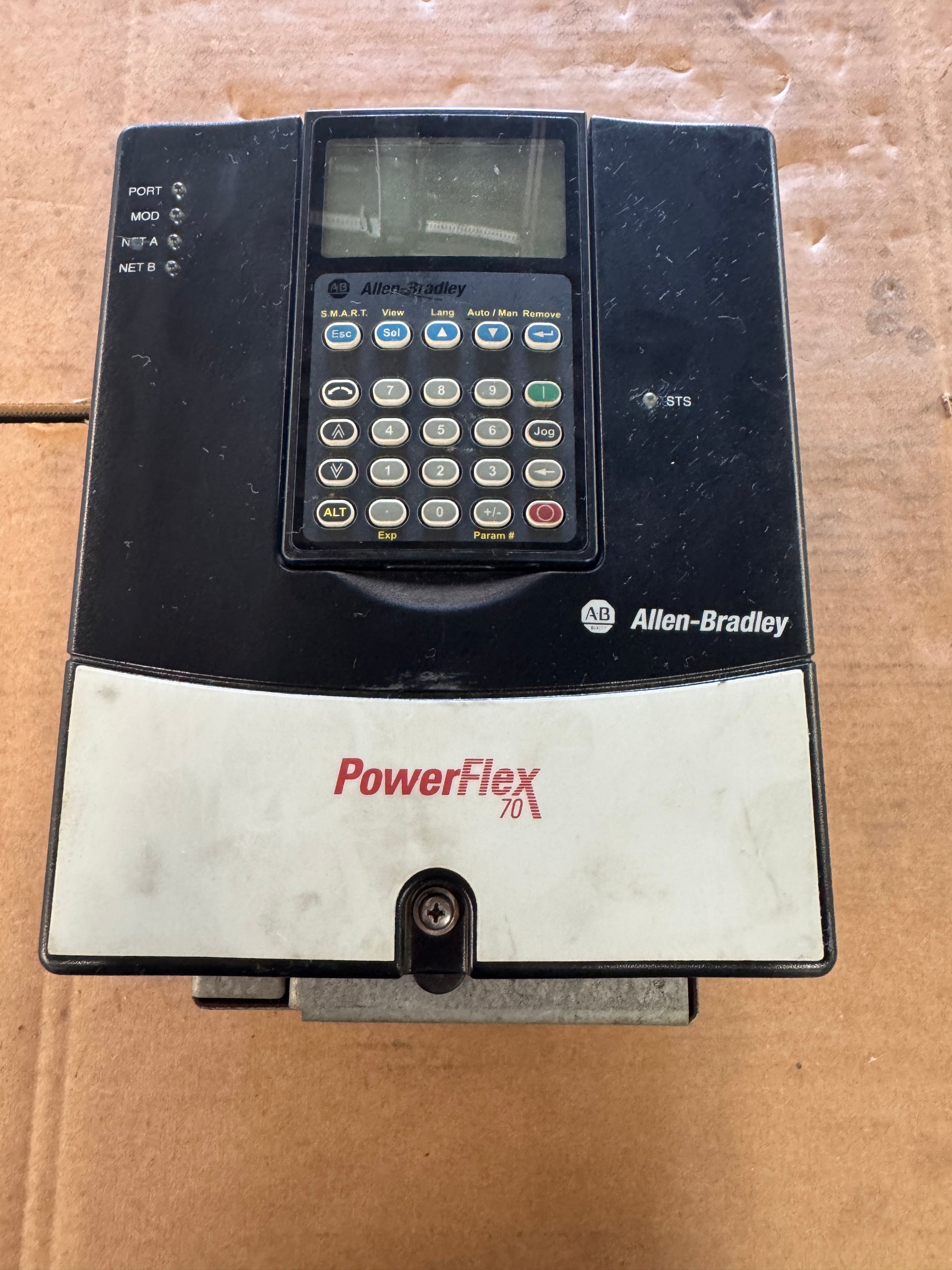

- HIM: Full Numeric LCD with Keypad
- Control Type: Enhanced Control with 24V I/O
- Braking Transistor: Integrated IGBT
- Braking Resistor: None
- Communication Adapter: None
- Encoder Feedback Module: None
- Serial Number: 16828948
Product Description
The Allen-Bradley 20AD5P0A3AYNNNC0 is a PowerFlex 70 series AC variable frequency drive rated for 480V 3-phase input with a normal duty output of 3 HP (2.2 kW) at 5 amps continuous. The drive carries catalog number 20AD5P0A3AYNNNC0, Series A, with firmware version 5.001, manufactured in June 2011. Input accepts 3-phase power across a frequency range of 47 to 63 Hz, with an AC voltage range of 432 to 528V for the 480V class. Output is 3-phase, 0 to 400 Hz, with a continuous output of 5 amps and overload capacity of 7.5 amps for 3 seconds and 6.5 amps for 60 seconds. The enclosure is UL Type 1 / IP20 rated, suitable for panel-mount installation. This unit includes a Full Numeric LCD Human Interface Module with keypad for direct parameter entry, Auto/Manual control, and jog functionality. The drive features Enhanced Control with 24V I/O, an integrated IGBT braking transistor, no internal braking resistor, no communication adapter, and no encoder feedback module. Status indicators for PORT, MOD, NET A, and NET B are present on the front face. The PowerFlex 70 platform supports overcurrent protection, ground fault protection, short circuit trip, and logic control ride-through. Serial number 16828948 is confirmed on the nameplate. The PowerFlex 70 product line has been announced for discontinuation by Rockwell Automation effective September 30, 2026.
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
