Allen-Bradley 2198-D006-ERS3 Kinetix 5700 Dual Axis Inverter 460V AC Safety
Allen-Bradley 2198-D006-ERS3 Kinetix 5700 Dual Axis Inverter 460V AC Safety
Share
Couldn't load pickup availability
✓ 30-day returns on every item — return policy
30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.
Shipping Estimate
⚡ Same-day shipping available — order by 11 am CT ($100 add-on at checkout)
✓ Free domestic UPS Ground shipping — applied automatically at checkout.
- Same-Day Available
- Real support team
- Secure checkout
Product Specifications
- Manufacturer: Allen-Bradley / Rockwell Automation
- MPN / Model: 2198-D006-ERS3
- Product Type: Kinetix 5700 Dual Axis Inverter, Integrated Safety
- Bulletin: 2198
- Series: C
- Firmware: 14.002
- Serial Number: 31735674
- MAC Address: 40:41:01:E2:4A:11
- Main Input: 276 to 747V DC at 2.7A DC
- Control Input: 24V DC at 5.5A
- Output Voltage: 0 to 460V rms, 3-Phase
- Output Frequency: 0 to 590 Hz
- Max Short Circuit Rating: 200,000A
- Communications: Dual EtherNet/IP ports, linear and device level ring topologies
- Rockwell Part Number: PN-661785
- UPC: 00884951282827
- Reference Manual: 2198-UM002
- Date of Manufacture: 4 March 2021
- Country of Origin: USA (FAC 4K, Milwaukee, WI)
- Certifications: CE, UL Listed (c UL us), TUV Rheinland Functional Safety, EAC, KC (KCC. REM-RAA-2198), RCM, UKCA
- Condition: Open Box - Unused
Product Description
The Allen-Bradley 2198-D006-ERS3 is a Kinetix 5700 dual axis inverter with integrated safety, from Rockwell Automation's Bulletin 2198 servo drive family. It controls two axes of servo or induction motor from a single 55 mm wide module on the Kinetix 5700 shared DC bus, which is what makes the platform compact relative to single axis drives.

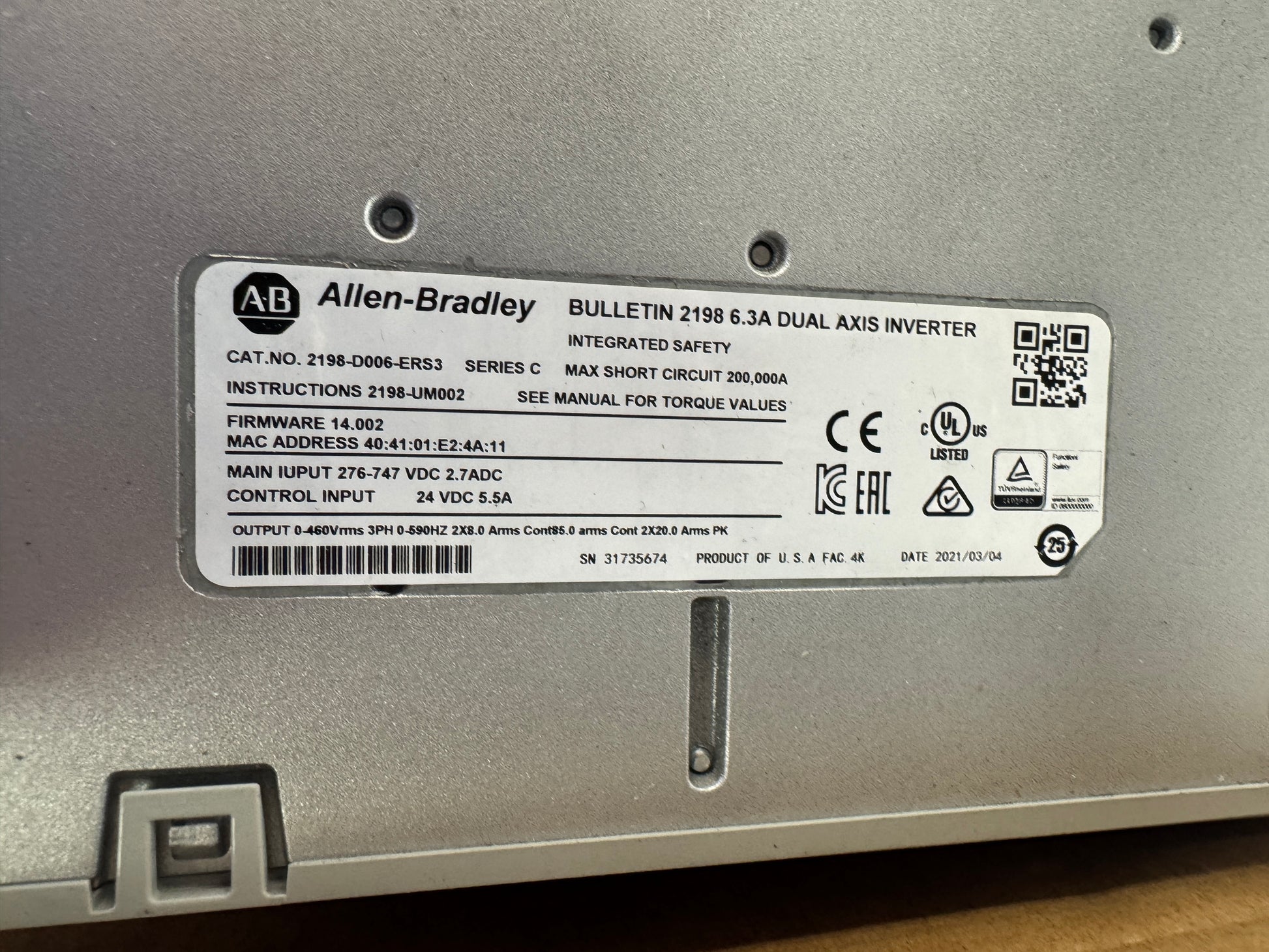

The nameplate identifies catalog number 2198-D006-ERS3, Series C, firmware 14.002, serial number 31735674, MAC address 40:41:01:E2:4A:11, manufactured 4 March 2021 at facility 4K in the USA. Main input is 276 to 747V DC at 2.7A DC and control input is 24V DC at 5.5A. Output is 0 to 460V rms, three phase, 0 to 590 Hz. Maximum short circuit rating is 200,000A. Torque values for the power connections are given in manual 2198-UM002.
The ERS3 suffix denotes integrated safety, with Safe Torque Off and safe stop functions delivered over the network rather than through hardwired safety contactors. Two EtherNet/IP ports support linear and device level ring topologies for network redundancy. The module is certified to CE, UL (c UL us), TUV Rheinland Functional Safety, EAC, KC, RCM and UKCA.
Rockwell publishes a per-axis continuous output current of 2.5 Arms and a peak output current of 6.3 Arms for the 2198-D006-ERS3, with continuous output power of 1.7 kW at 480V rms three phase, an IP20 enclosure, and a module width of 55 mm. Those are the manufacturer's published figures for the catalog number and have not been verified on this unit.

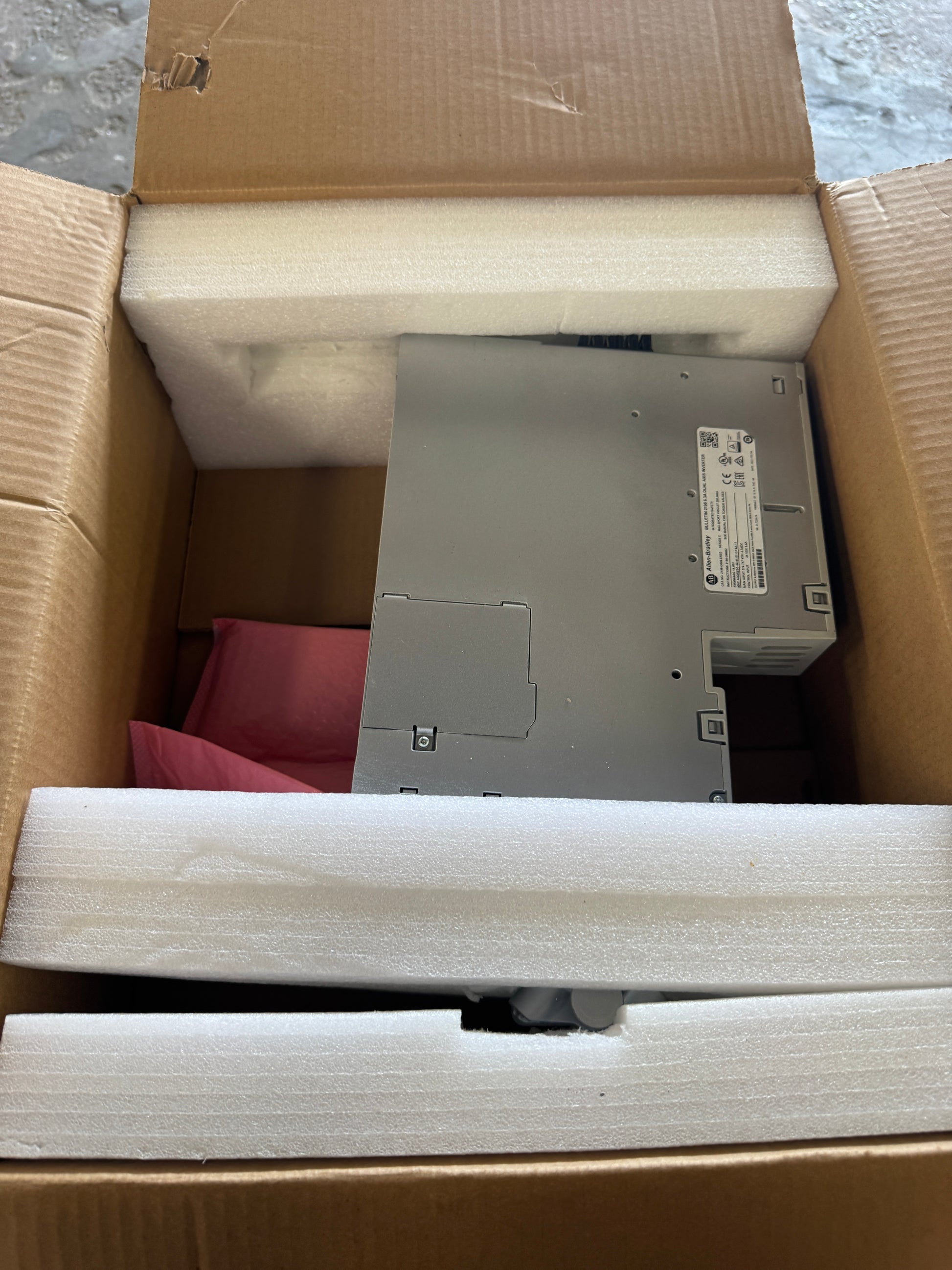

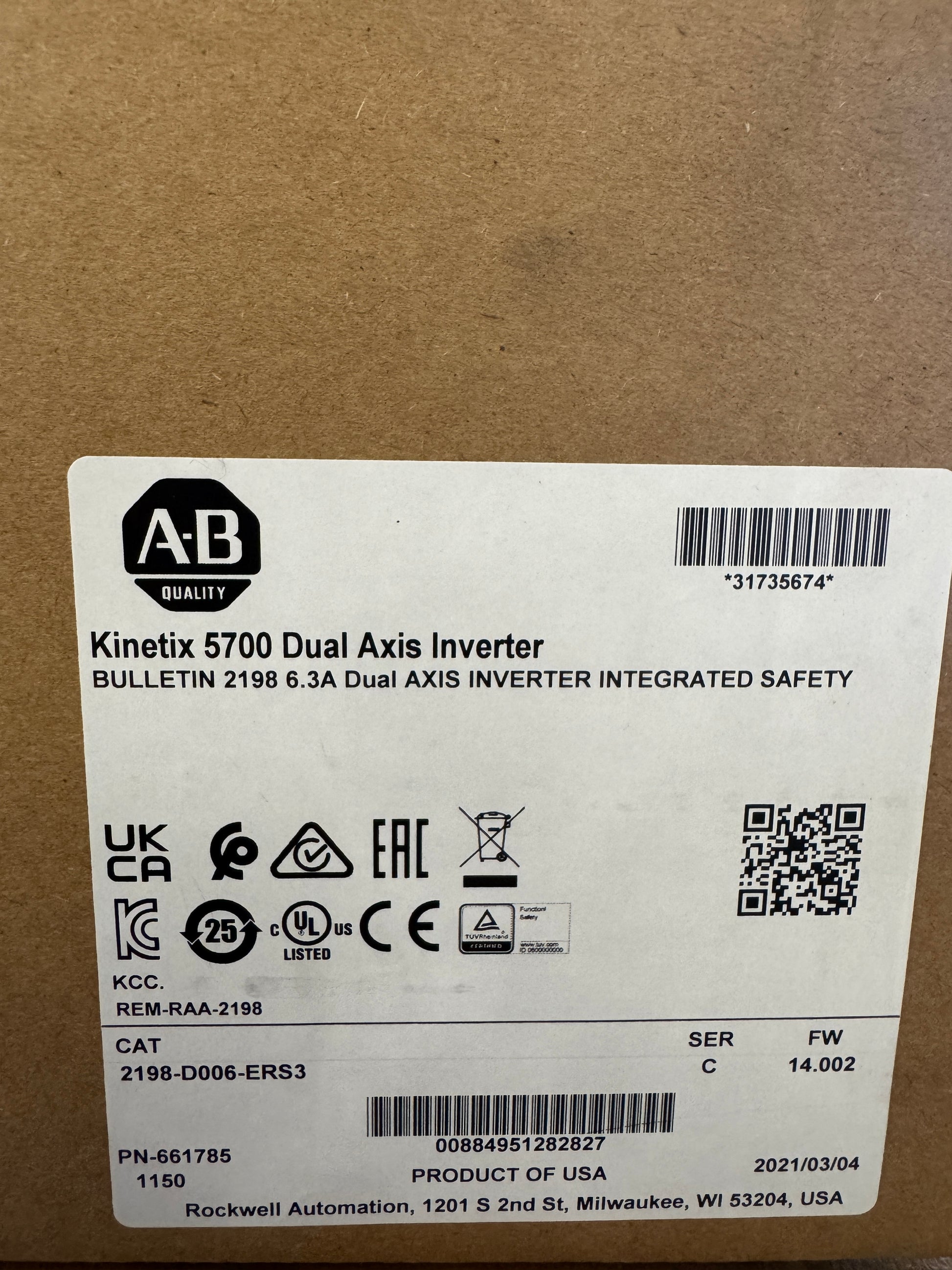

The unit is supplied in its original Rockwell Automation carton with foam packaging and factory labels intact. Rockwell part number PN-661785, UPC 00884951282827.
Buyers matching this inverter for replacement or spare inventory should confirm the catalog number, the series, the firmware revision and the safety configuration against their existing Kinetix 5700 system, since revision level drives firmware and system compatibility.
Stock # 0626-01457
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
