Allen-Bradley 22B-D2P3N104 AC Drive 480V
Allen-Bradley 22B-D2P3N104 AC Drive 480V
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 22B-D2P3N104
Stock #: Stock # 0626-01650
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 22B-D2P3N104
- Product Type: PowerFlex 40 AC Drive (VFD)
- Series: A
- Motor Rating: 0.75 kW / 1.0 HP
- Input: 3 Phase, 380 to 480V, 48 to 63 Hz
- Input AC Voltage Range: 342 to 528V
- Input Amps: 3.2
- Output: 3 Phase, 0 to 400 Hz
- Output AC Voltage Range: 0 to 460V
- Continuous Output Amps: 2.3
- 60 Sec Overload Amps: 3.45
- Short Circuit Current Rating: 100 kA
- Enclosure: IP20 Open Type, IP30 / NEMA 1 / UL Type 1 with top cover and optional conduit box kit installed
- Firmware: FRN 6.02
- Serial Number: BD2P3N0W2350073
Product Description
This Allen-Bradley PowerFlex 40 AC drive is identified by catalog number 22B-D2P3N104, Series A. It is a 0.75 kW / 1.0 HP variable frequency drive accepting 3 phase input from 380 to 480V at 48 to 63 Hz, with a 3 phase output ranging from 0 to 400 Hz and an output AC voltage range of 0 to 460V. Continuous output is rated at 2.3 amps with a 60 second overload rating of 3.45 amps. The unit carries an IP20 open type rating and reaches IP30 / NEMA 1 / UL Type 1 with the top cover and optional conduit box kit installed.

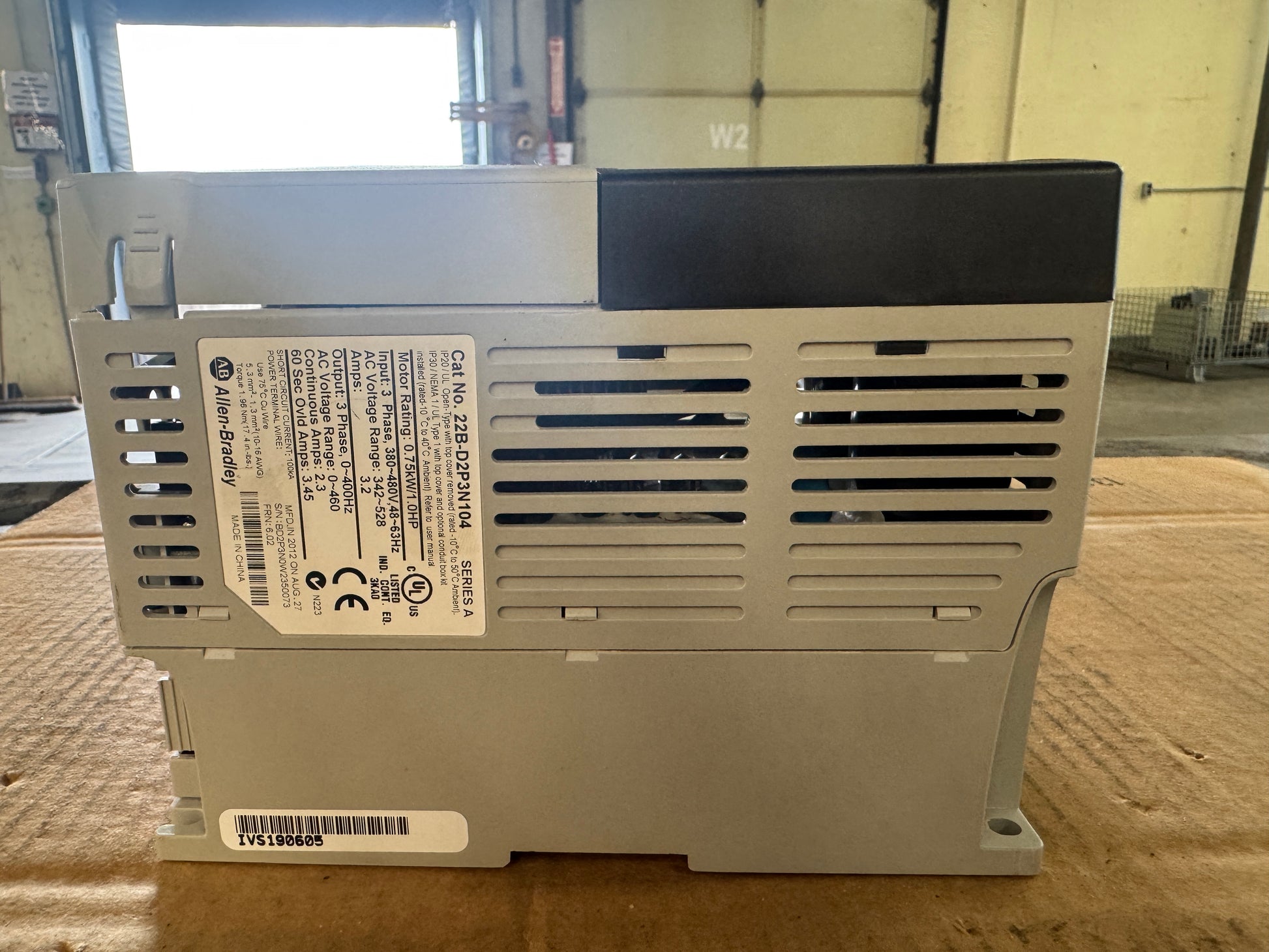

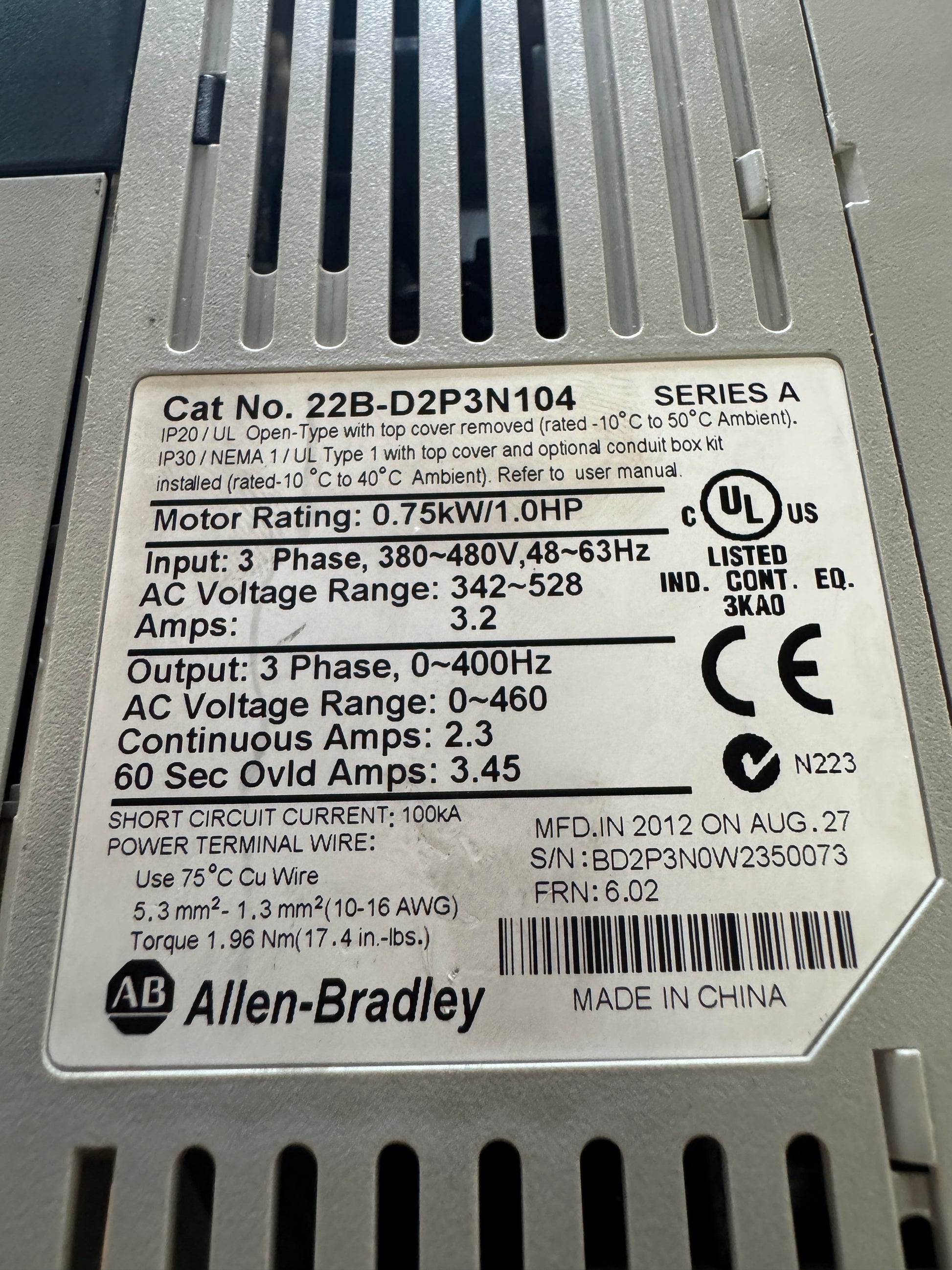

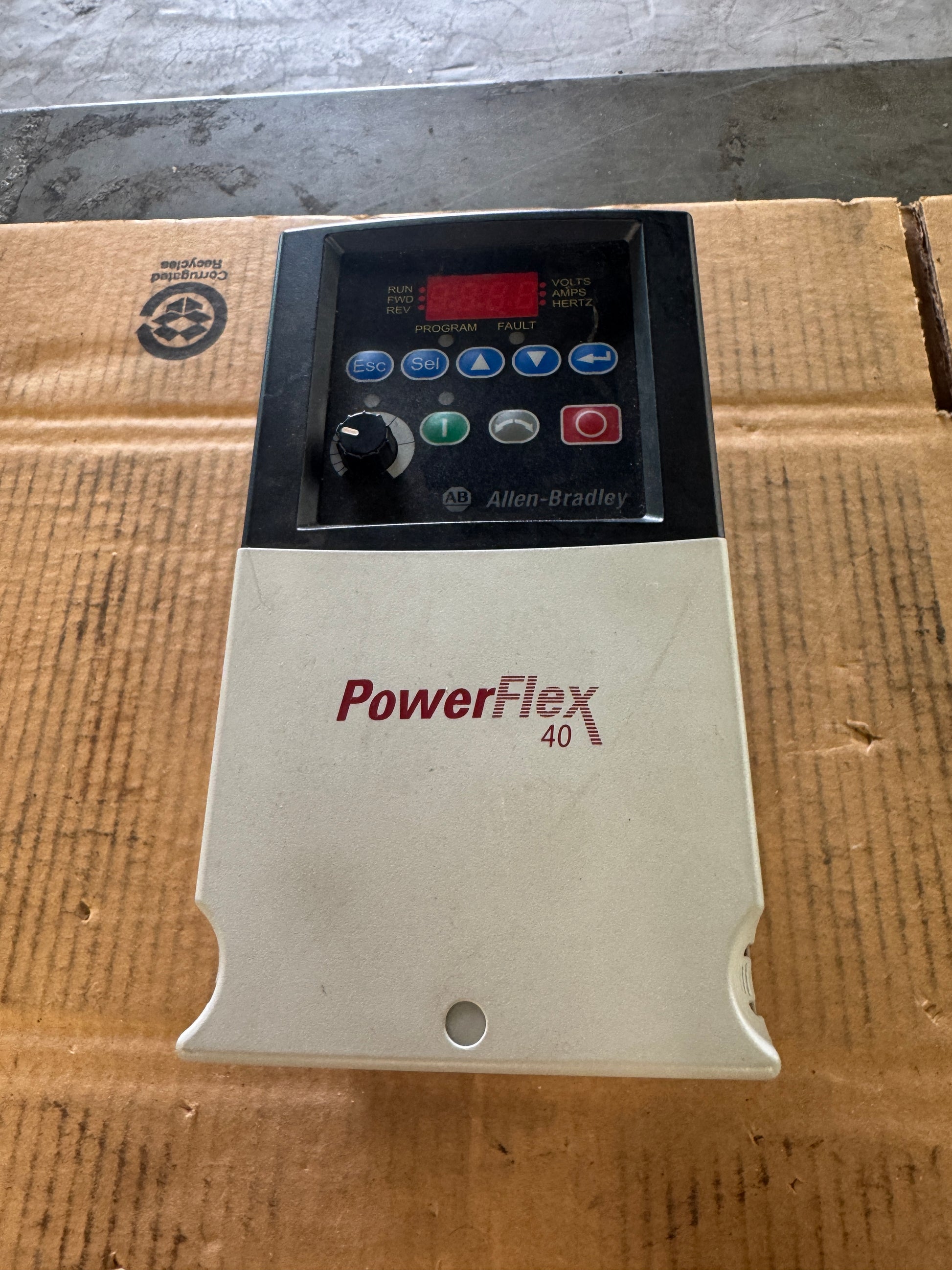

The nameplate confirms firmware revision FRN 6.02 and serial number BD2P3N0W2350073. Buyers matching a PowerFlex 40 480VAC frame B drive for replacement, spare inventory, or maintenance sourcing can use the exact catalog number 22B-D2P3N104 and the visible nameplate data to confirm the part against their existing equipment. The integral keypad with LED display and local potentiometer is present on the front panel.
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
