Allen-Bradley 280D-F12Z-10C-GRW-3-P1 ArmorStart Control Module 24V DC
Allen-Bradley 280D-F12Z-10C-GRW-3-P1 ArmorStart Control Module 24V DC
Share
Couldn't load pickup availability
✓ 30-day returns on every item — return policy
30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.
Shipping Estimate
⚡ Same-day shipping available — order by 11 am CT ($100 add-on at checkout)
✓ Free domestic UPS Ground shipping — applied automatically at checkout.
- Same-Day Available
- Real support team
- Secure checkout
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 280D-F12Z-10C-GRW-3-P1
- Product Type: ArmorStart Control Module
- Series: C
- Serial Number: 10B77707 BBM
- DeviceNet Serial Number: 009B84A4
- Firmware Revision (FRN): 2.005
- Control Voltage: 24 Vdc
- Motor Voltage / HP: 200 V 1 HP, 230 V 1 HP, 460 V 3 HP, 575 V 3 HP
- Power: 1.1 kW at 230 V, 2.2 kW at 400 V
- Current Range: 1.1 - 5.5 A
- Overload Trip: Class 10/15/20, trip ratings 120% of FLA
- Enclosure Rating: UL Type 4/12/13, IP67
- Pollution Degree: 3
- Standards: EN 60947-1, EN 60947-4-1
- Certifications: UL Listed A191 Ind. Cont. Eq., CE
- Country of Origin: USA
- Base Model: 280D-FN-10-R, Series C
- Base Input Rating: 24 Vdc
- Base Output Ratings: 240 V 50/60 Hz / 24 Vdc, total of both outputs 2 A or less
- Base Max Current Rating: 7.6 A
- Base Drop Cable: 30 in (0.76 m) permanently attached DeviceNet drop cable
- Condition: Surplus - Untested
Product Description

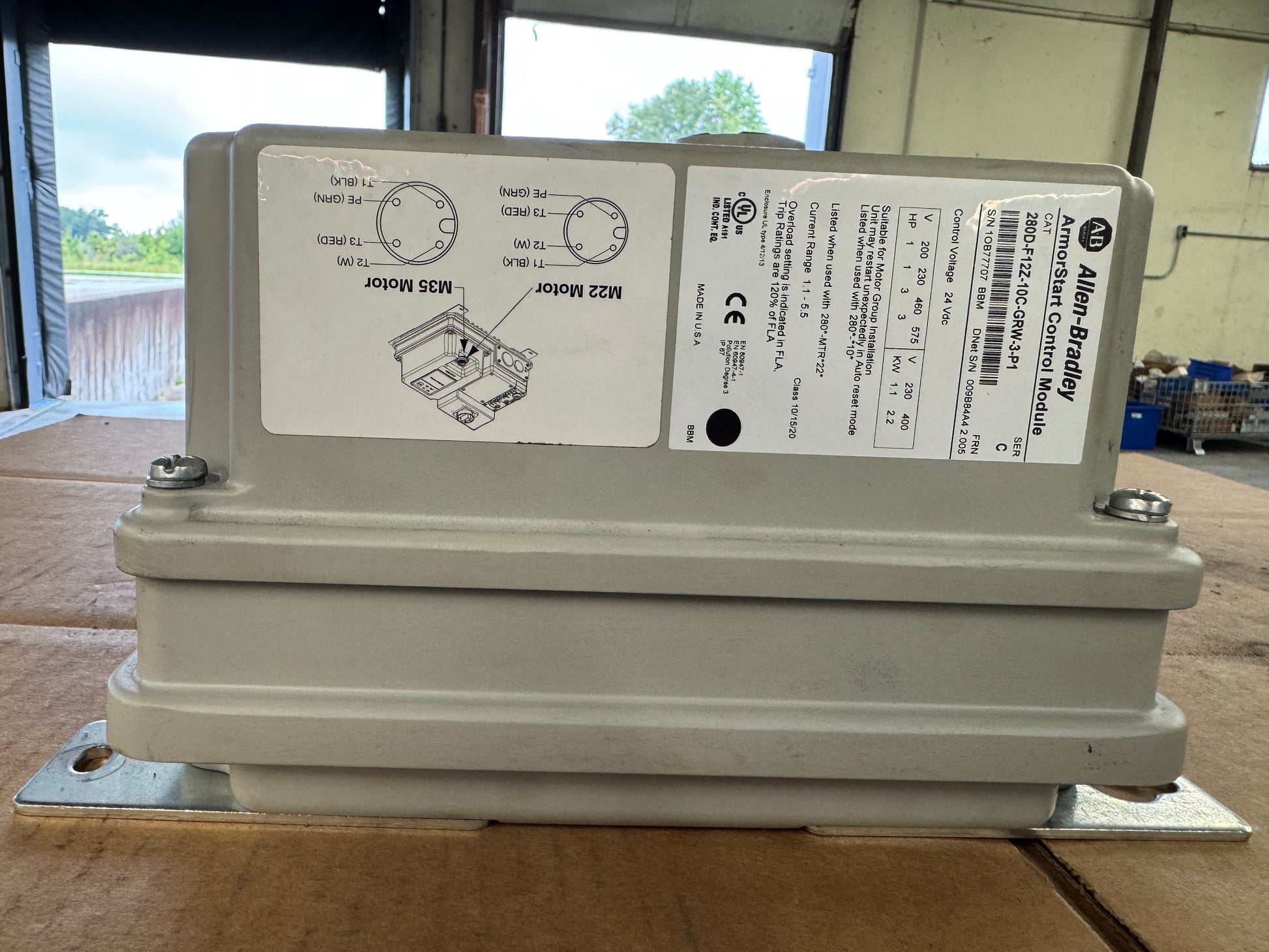

This is an Allen-Bradley 280D-F12Z-10C-GRW-3-P1 ArmorStart Control Module with an ArmorStart Base. The control module nameplate reads CAT 280D-F12Z-10C-GRW-3-P1, SER C, S/N 10B77707 BBM, DNet S/N 009B84A4, FRN 2.005, Control Voltage 24 Vdc, 200 V 1 HP, 230 V 1 HP, 460 V 3 HP, 575 V 3 HP, 230 V 1.1 kW, 400 V 2.2 kW, Current Range 1.1 - 5.5, and Class 10/15/20. It also reads Enclosure UL type 4/12/13, IP 67, Pollution Degree 3, EN 60947-1, EN 60947-4-1, UL Listed A191 Ind. Cont. Eq., CE, and Made in U.S.A. The label notes that the unit may restart unexpectedly in Auto reset mode.

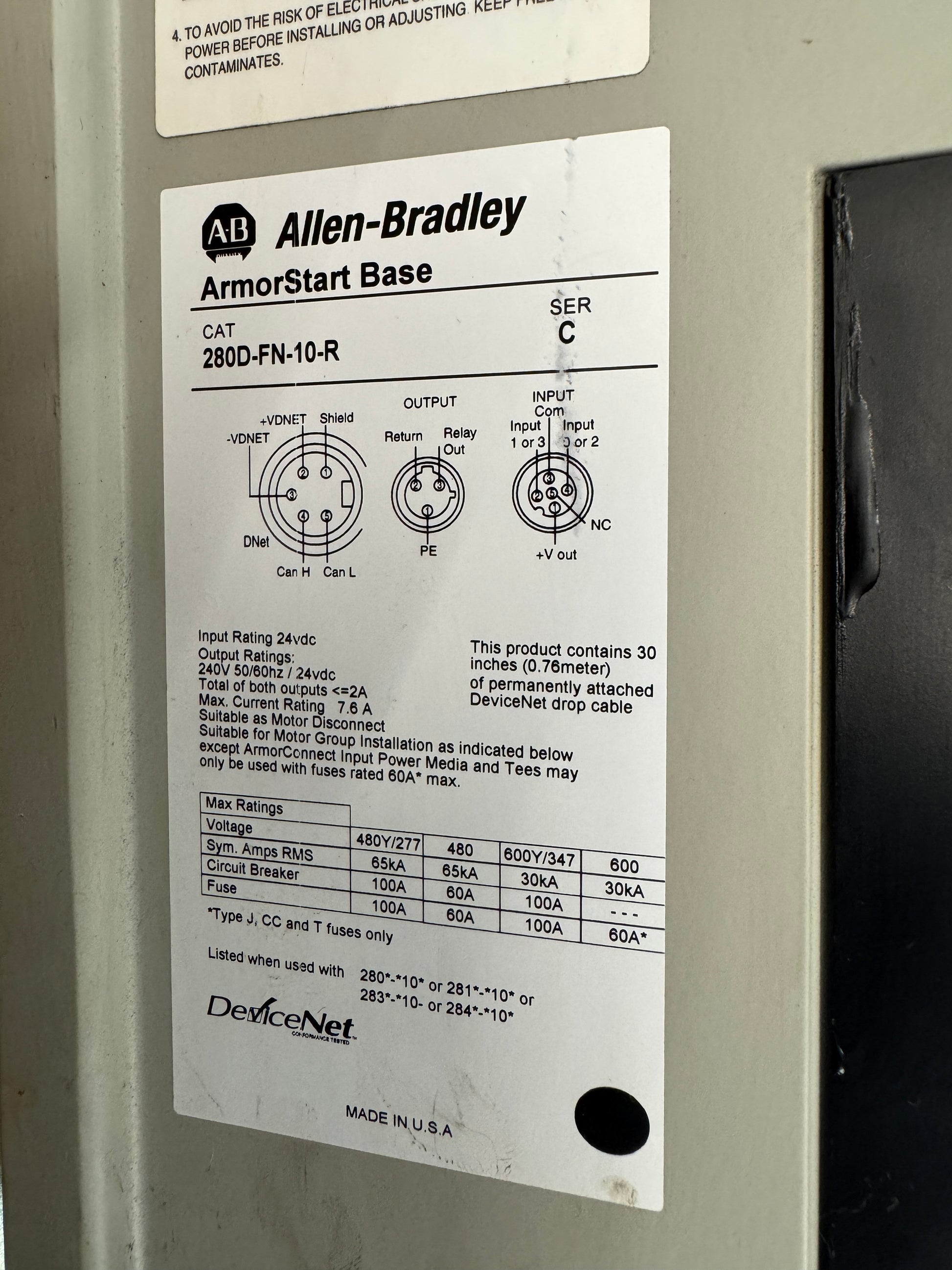

The ArmorStart Base nameplate reads CAT 280D-FN-10-R, SER C, Input Rating 24vdc, Output Ratings 240V 50/60hz / 24vdc, total of both outputs 2A or less, Max. Current Rating 7.6 A, suitable as motor disconnect, and 30 inches (0.76 meter) of permanently attached DeviceNet drop cable. Its max ratings table lists 480Y/277 V and 480 V at 65 kA, 600Y/347 V and 600 V at 30 kA, with Type J, CC and T fuses only. It reads Made in U.S.A. No serial number is visible on the base nameplate.

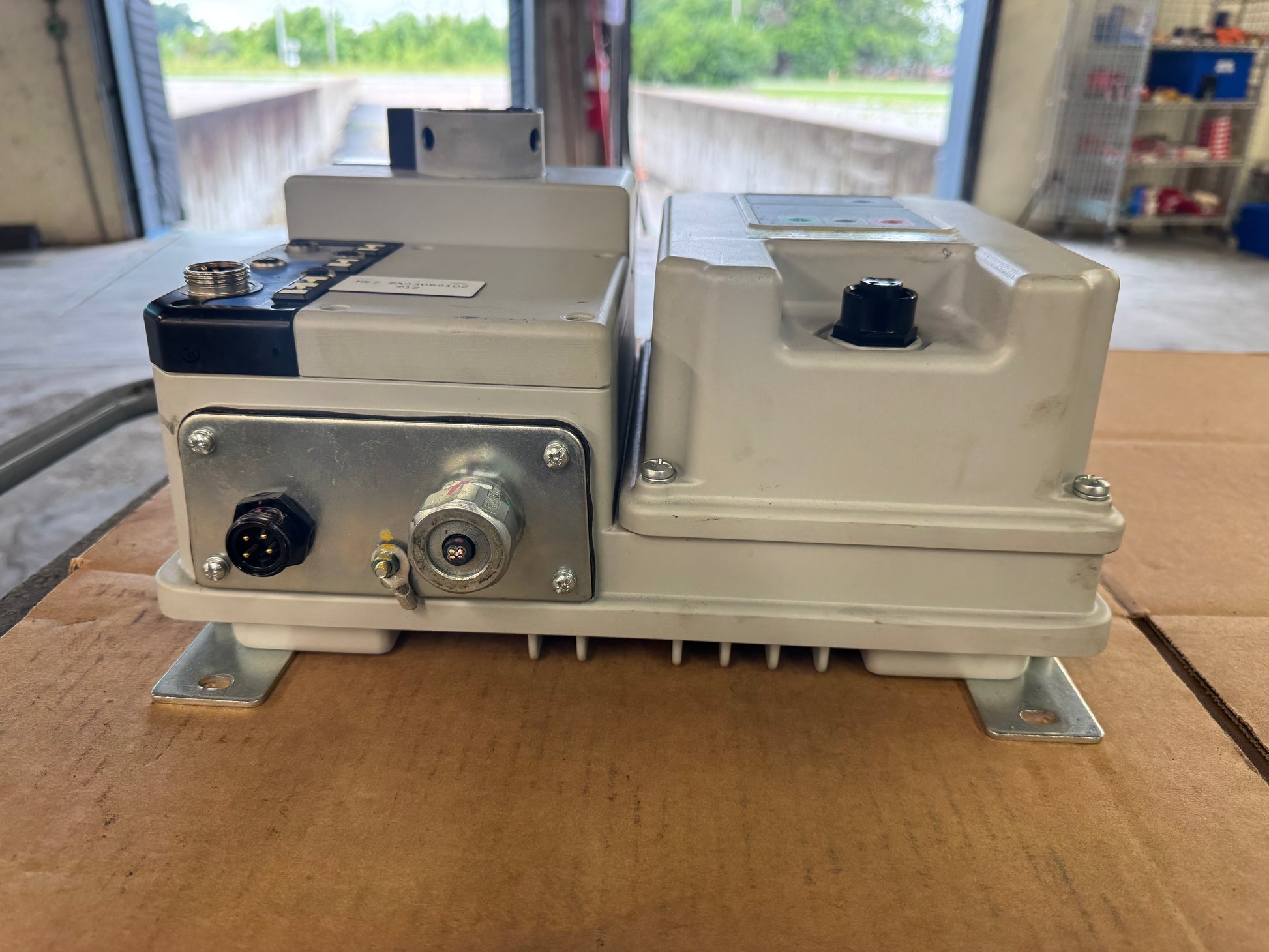

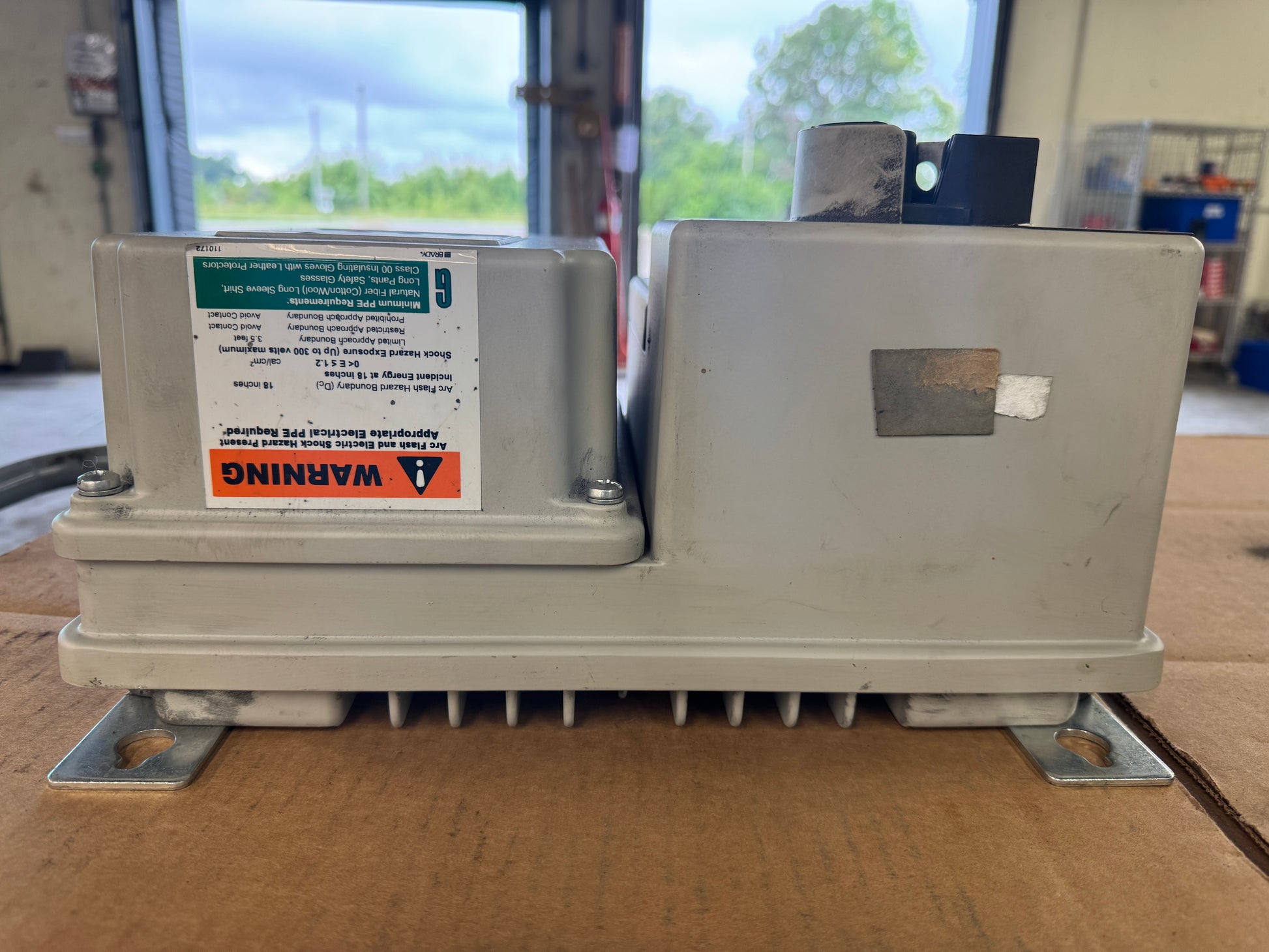

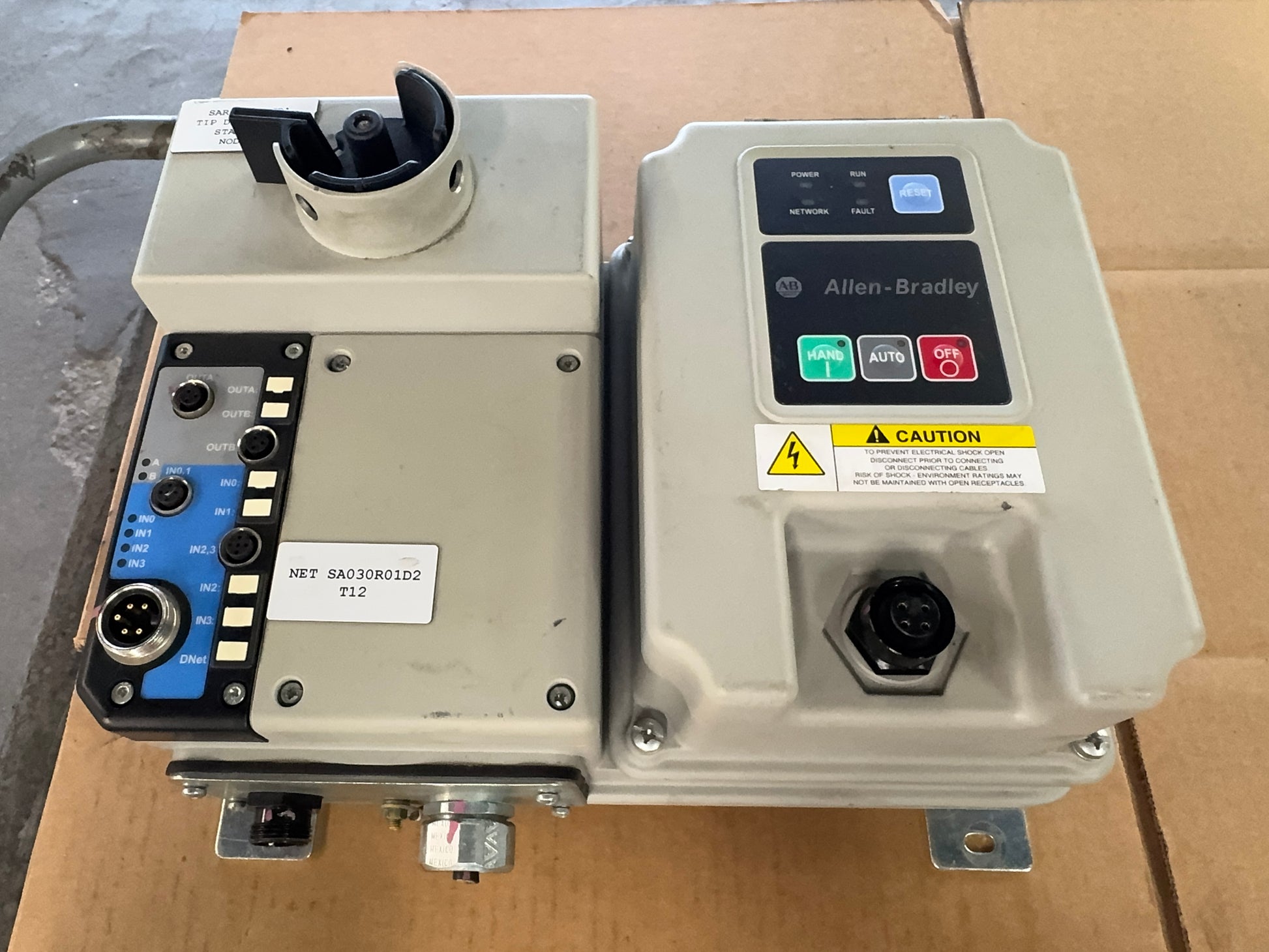

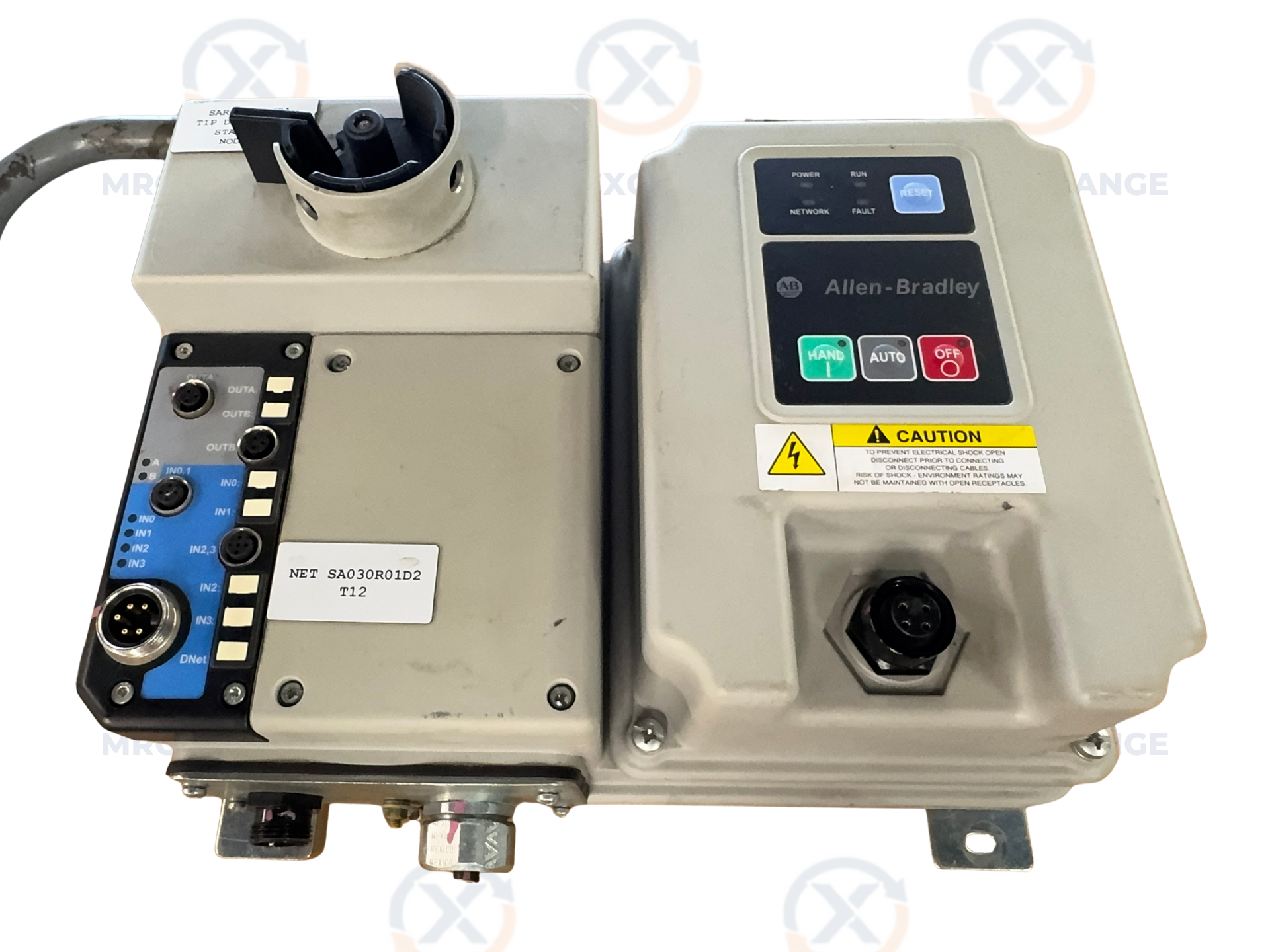

The unit has two light gray enclosures side by side with mounting feet. One has a rotary disconnect handle, an I/O block with IN0 to IN3 indicators, and a DNet connector. The other has HAND, AUTO and OFF buttons, POWER, RUN, NETWORK and FAULT indicators, a RESET button, a caution label and a round connector. A motor wiring diagram label for M22 and M35 motors is on the housing.
Sold as surplus, untested. This unit has not been powered on or tested by MRO Exchange, and the starter, DeviceNet communication and I/O have not been verified.
Stock # 0626-01487
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
