Allen-Bradley 509-BOD Motor Starter
Allen-Bradley 509-BOD Motor Starter
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 509-BOD
Stock #: 0626-01567
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 509-BOD
- Product Type: NEMA Full Voltage Non-Reversing Motor Starter
- Series: B
- NEMA Size: 1
- Continuous Amperage: 27 Amp Max
- Max Voltage: 600V AC Max
- Coil Voltage: 115-120V AC, 60 Hz
- Poles: 3
- Overload Relay Type: Eutectic Alloy
- Enclosure: Open Type, Without Enclosure
- Reversing: Non-Reversing
- Phase: 3 Phase
- Max HP Ratings: 7-1/2 HP at 200V (3 Ph), 7-1/2 HP at 230V (3 Ph), 10 HP at 460-575V (3 Ph), 2 HP at 115V (1 Ph), 3 HP at 230V (1 Ph)
- Installed Accessories: Two Allen-Bradley 595-A Auxiliary Contacts (Series B, Size 0-4, 600V AC Max); Allen-Bradley 42185-800-01 Control Circuit Transformer
- Mounting: Panel Mount with Mounting Bracket
- Origin: Milwaukee, Wisconsin, U.S.A.
Product Description

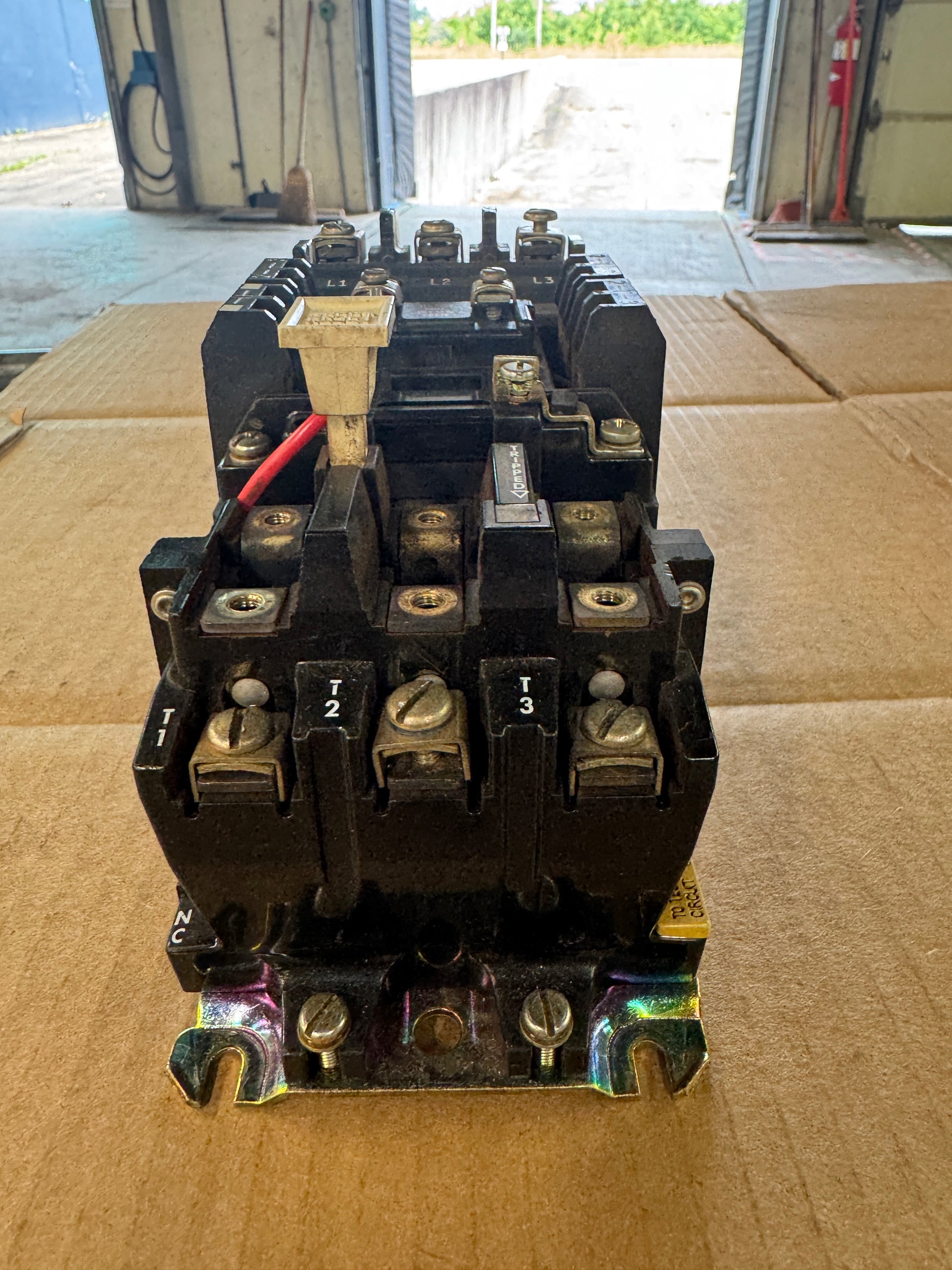

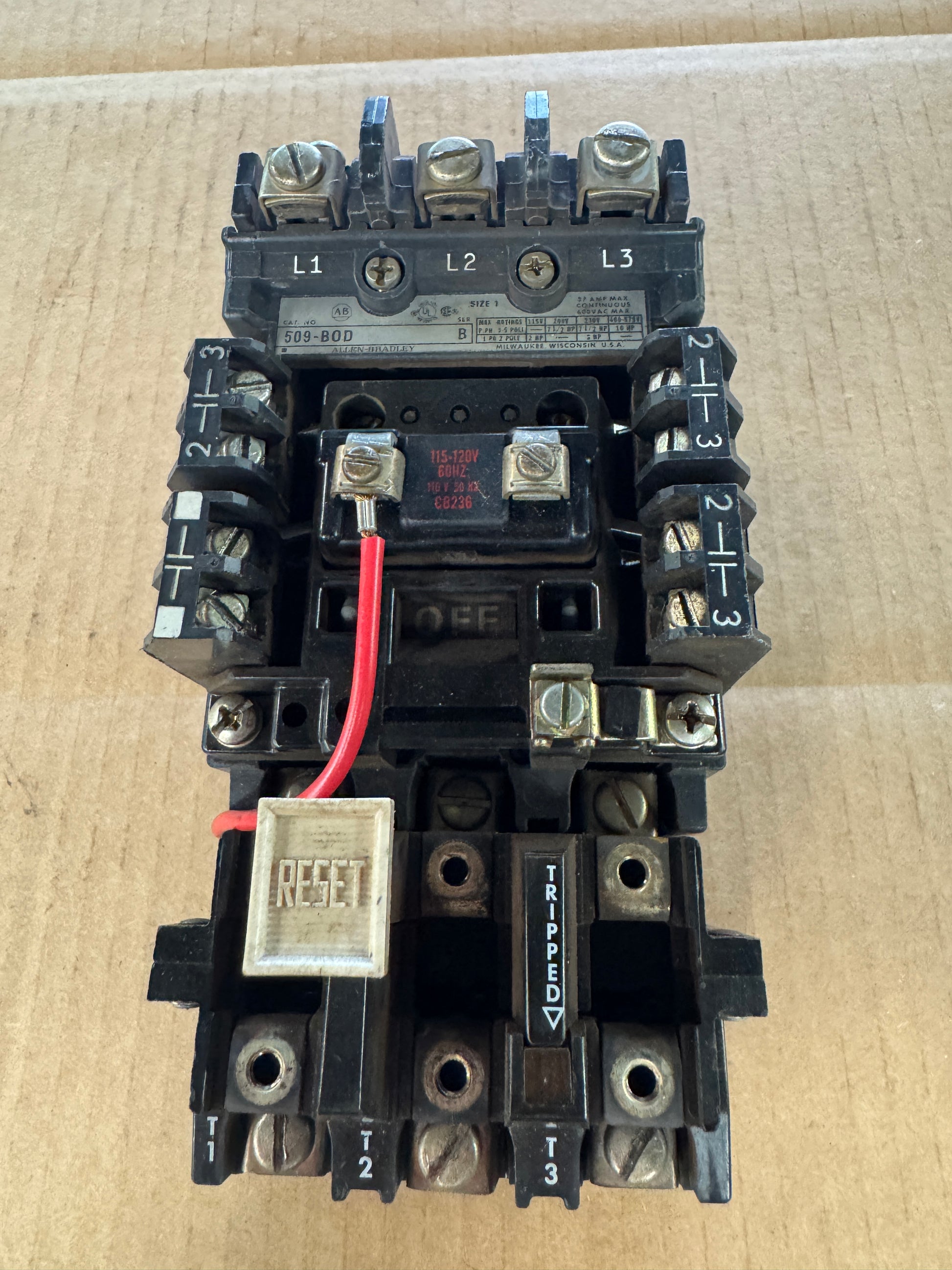

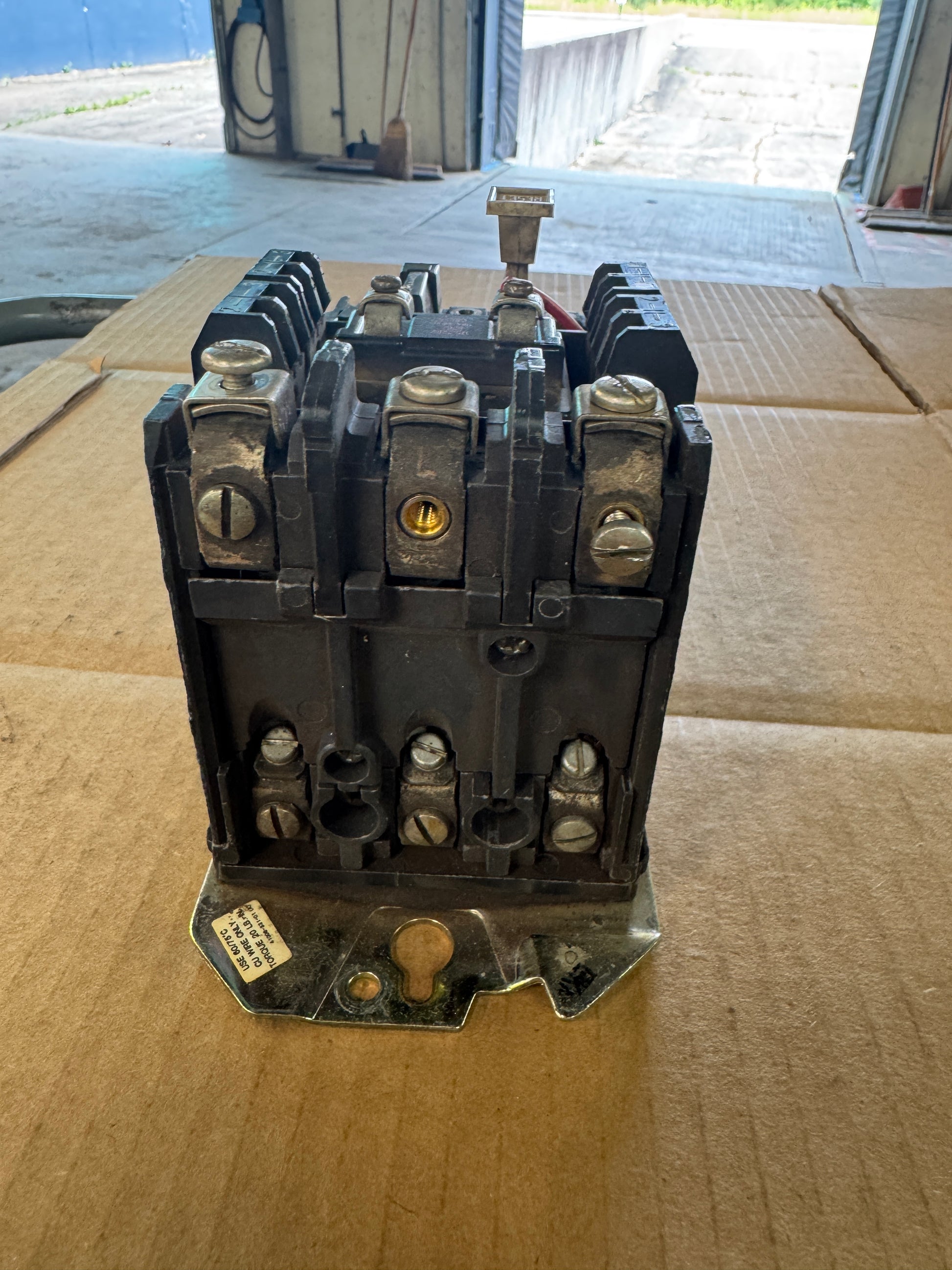

Catalog number 509-BOD is an Allen-Bradley Bulletin 509 NEMA Size 1 full voltage non-reversing motor starter rated 27 amps continuous at 600V AC max with a 115-120V AC, 60 Hz coil. The unit is 3-phase, open type without enclosure, and fitted with a eutectic alloy overload relay. It carries a RESET button and TRIPPED indicator on the overload assembly and is mounted on the original panel mounting bracket.

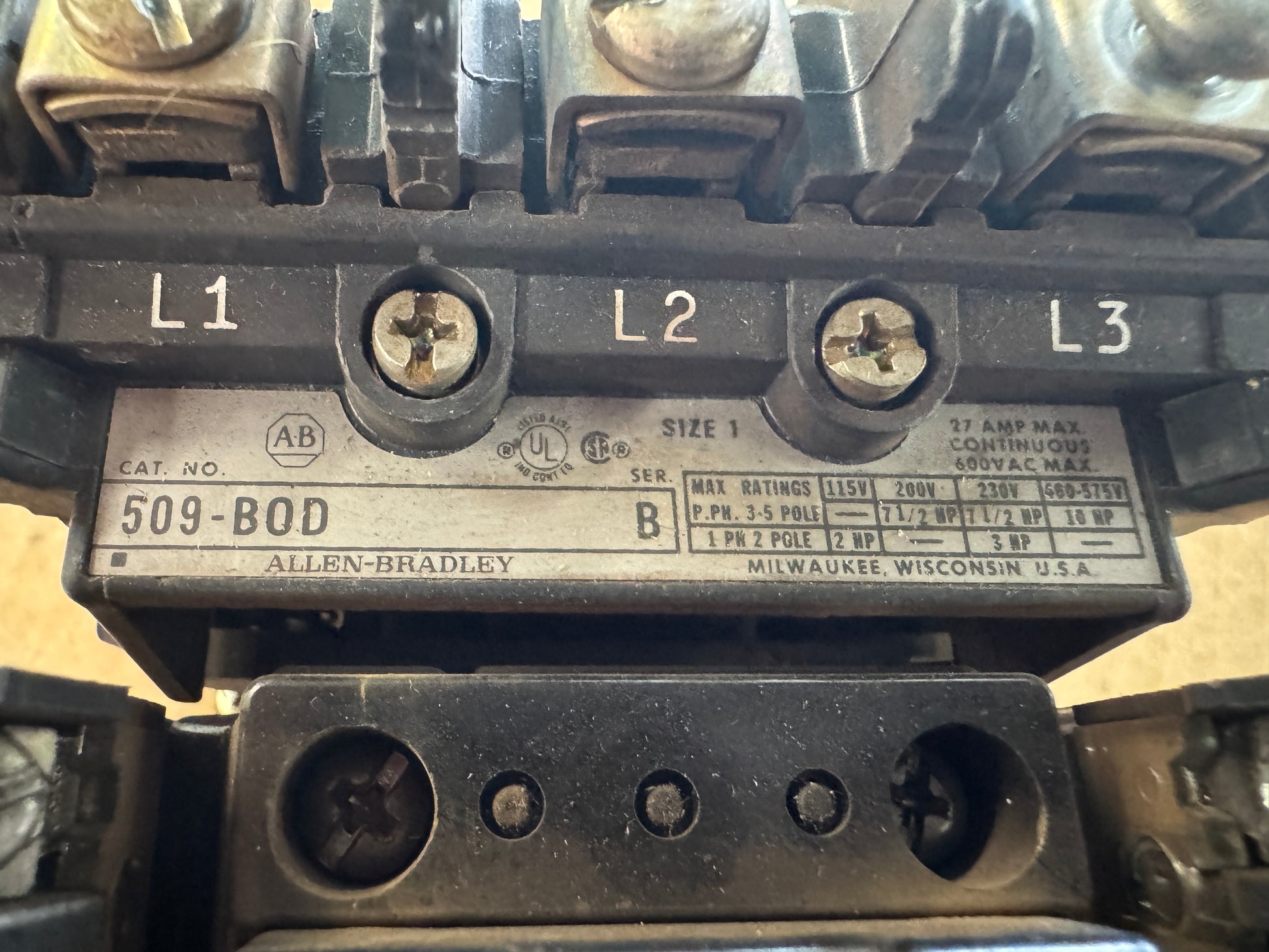

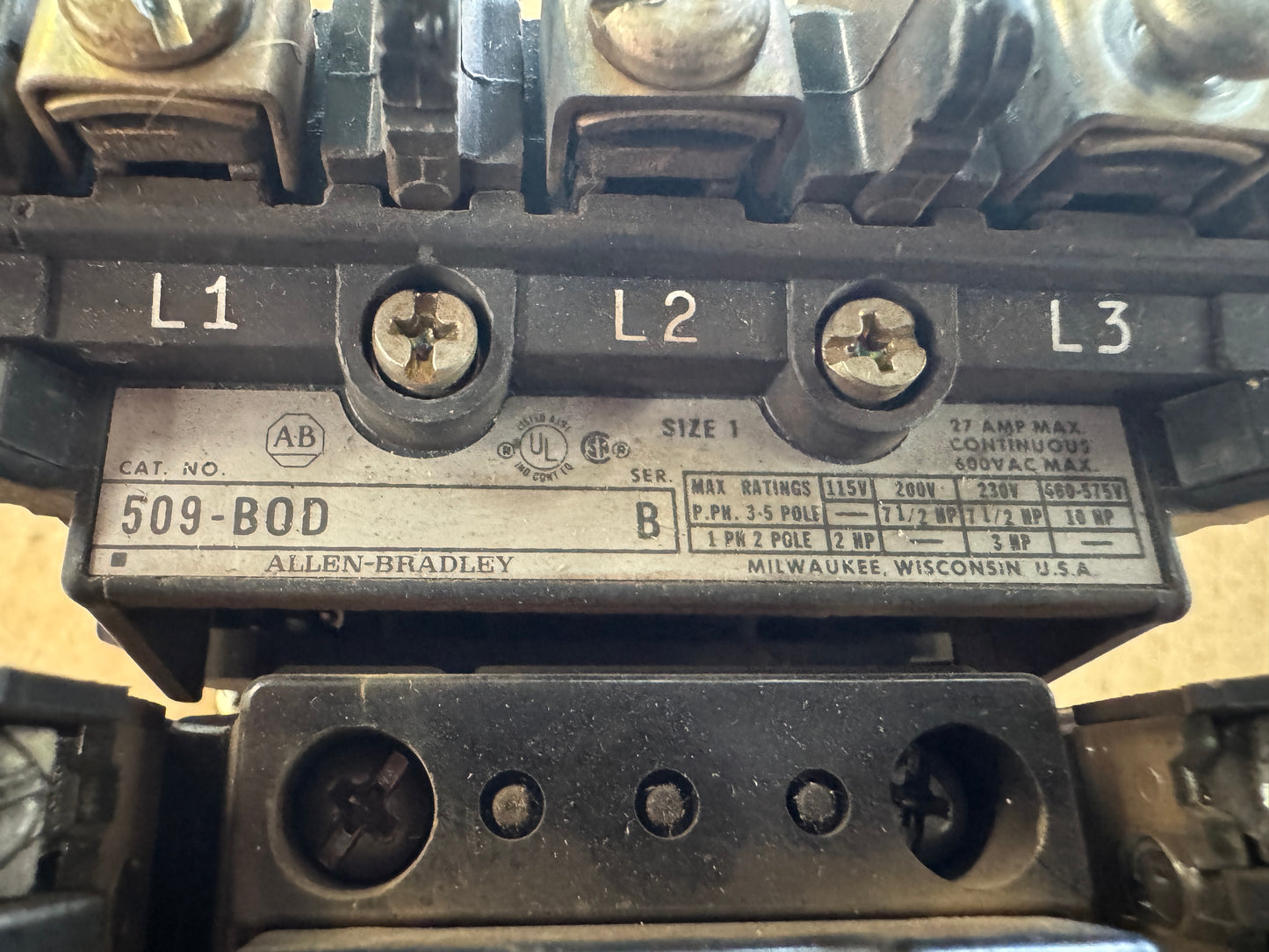

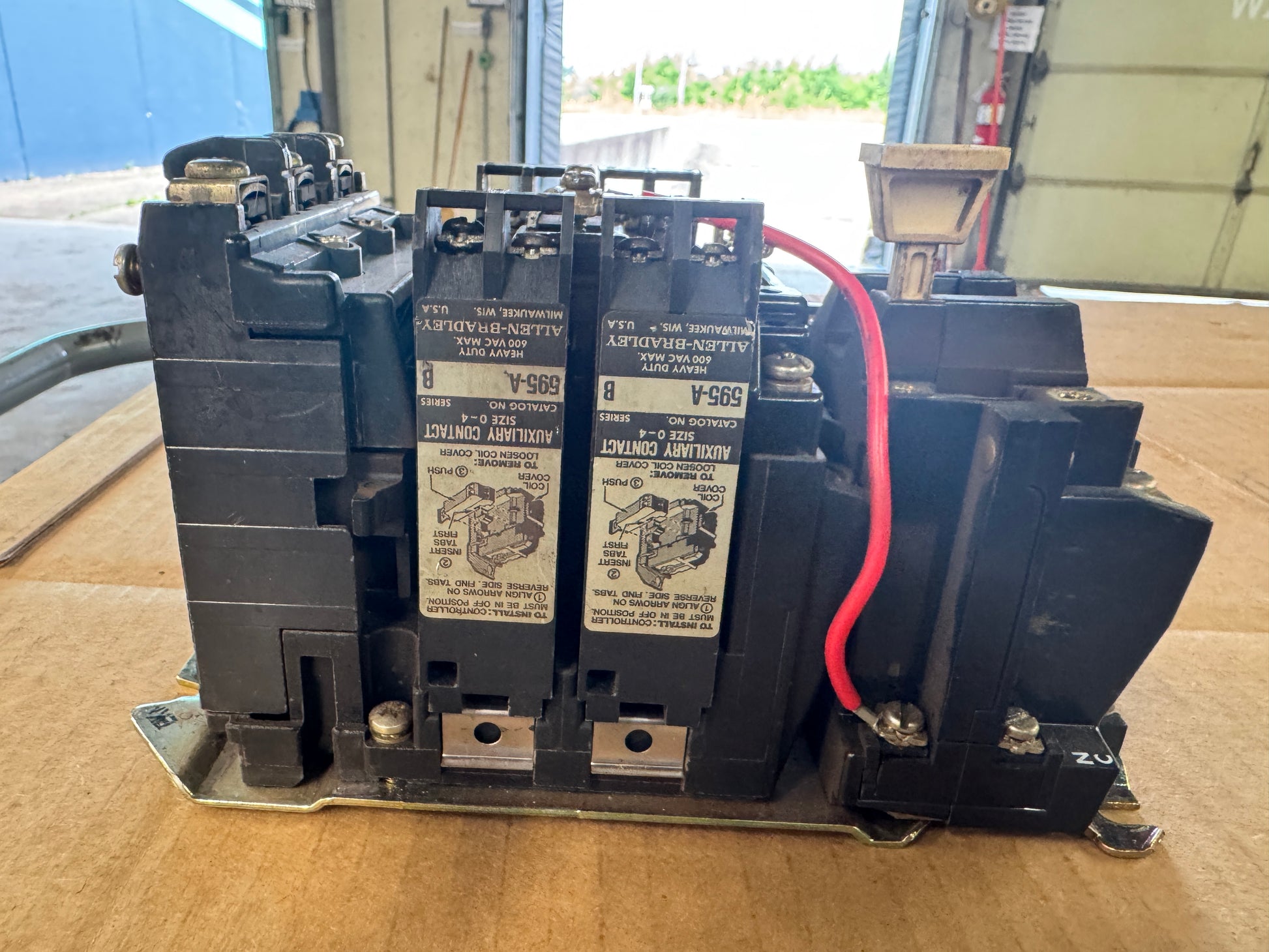

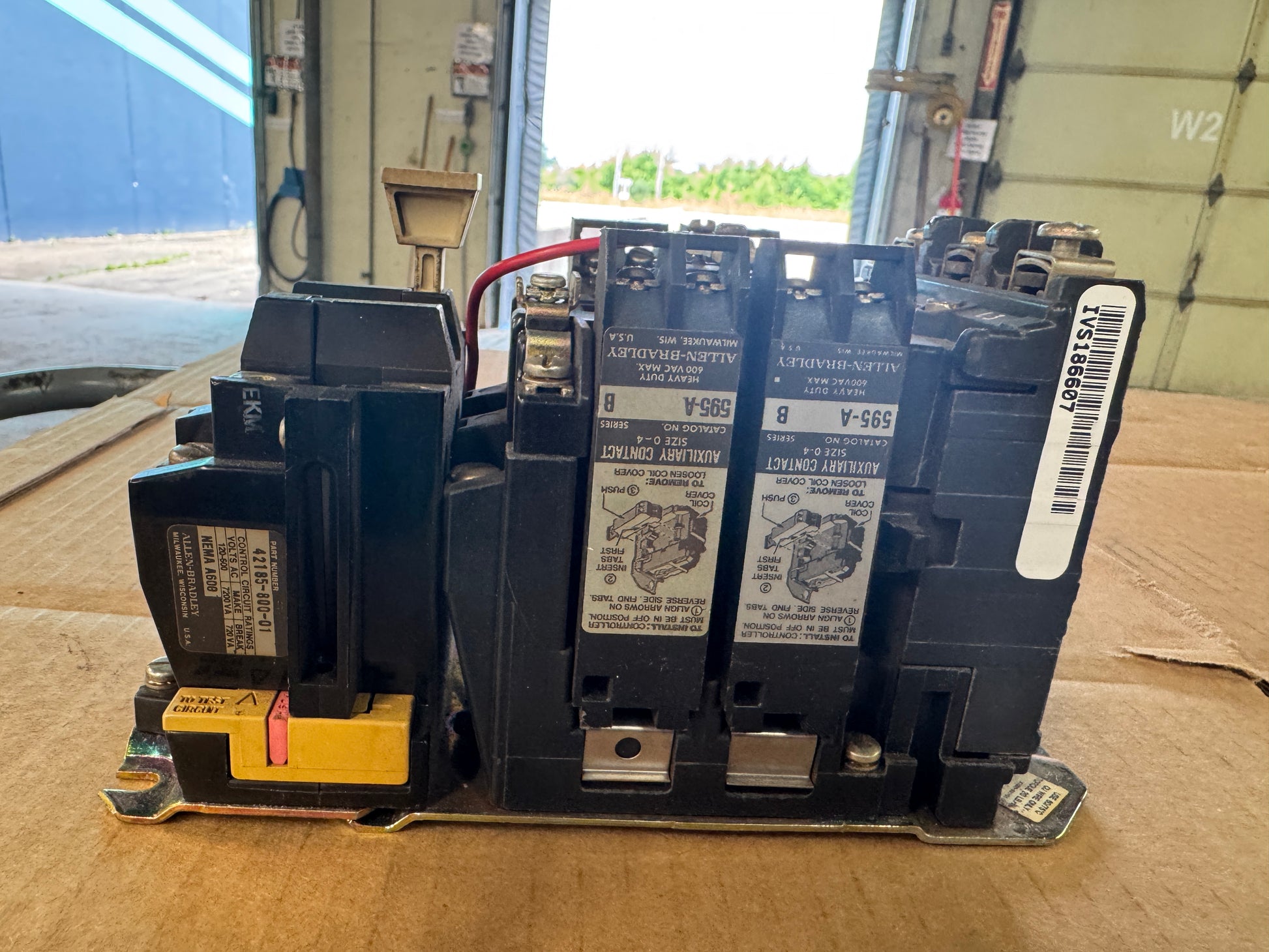

This surplus unit includes two installed Allen-Bradley 595-A auxiliary contacts (Series B, Catalog No. 595-A, Size 0-4, 600V AC Max) and an Allen-Bradley 42185-800-01 control circuit transformer mounted to the left side. The nameplate confirms manufacturer as Allen-Bradley, Milwaukee, Wisconsin U.S.A., and Series B. Condition is surplus / untested with visible field use including terminal oxidation and surface soiling consistent with extraction from a working panel.
Buyers matching the exact catalog number 509-BOD should confirm coil voltage and overload heater element sizing against their application requirements. This listing is identified by Allen-Bradley catalog number 509-BOD, Series B.
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
